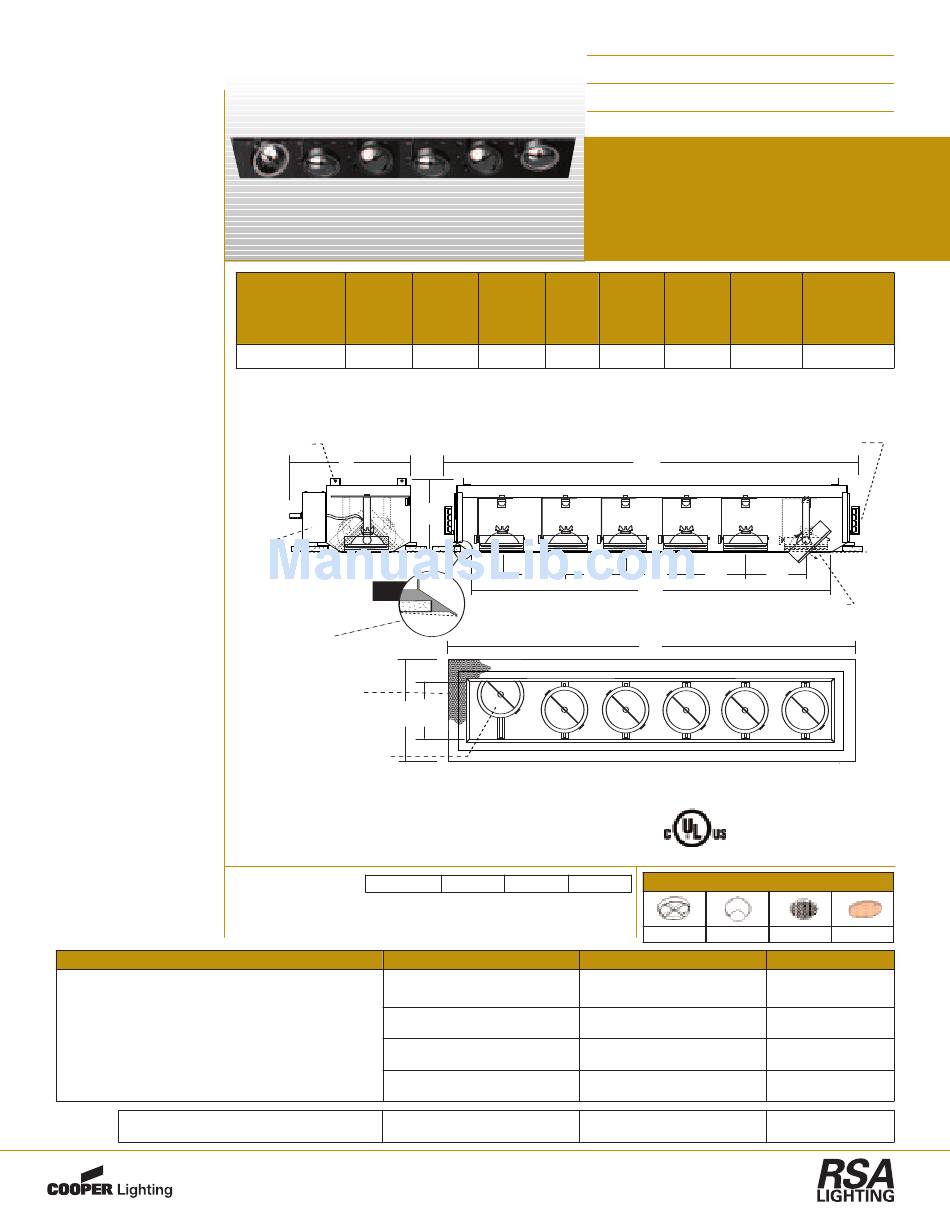

RECESSED AR111
LV TRIMLESS
DESCRIPTION:
An adjustable AR111 fixture suit-
able for multiple downlighting
applications with one point of
electrical entry. Powder coat fin-
ish on housing & lamp assembly.
Housing suitable for new con-
struction applications.
CONSTRUCTION:
All
aluminum
construction.
Perforated mesh plaster frame
adheres to ceiling compound for
seamless
trimless
mounting.
Beveled fixture opening provides
easy mudding compound applica-
tion. Can accommodate 0.50" or
0.625" drywall. Includes butterfly
brackets for black iron commer-
cial mounting.
LAMP ASSEMBLY:
6 - AR111 lamps mounted in
adjustable bezels. Each lamp can
accept up to two optical acces-
sories. 380º x 45º locking adjust-
ment. Fixture provides 45º visual
cut-off. Lamp holders retract for
added internal adjustment.
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and
misuse of insulation over and
around fixture. Vent holes in hous-
ing provide cooler operation
ELECTRICAL:
Integral electronic transformer.
Secondary lead is 11.5V. Primary
lead is 120V. Dimmable. Junction
box is UL listed for through branch
wiring, (access above ceiling not
required) for 8 #12, 90°C supply
conductors or 60°C for end of run.
Fused and short circuit protection.
Transformers
and
electrical
accessible through ceiling open-
ing via access door on housing
sidewall.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
Cat. # / Description
LV1260 : 6 Light Recessed Next Generation Trimless
Combo Fixture
12V AR111
SPECIFY -
A
Dimensions
Housing
Length
48.77"
Tabs for aircraft
cable suspension
above ceiling
G
Side mounted compartment
houses wiring, electronic
Trimless
transformers and thermal
Detail
protector. Accessible
through fixture opening.
Ceiling mudding
compound is applied
directly to the edge
of the aperture.
Perforated mesh plaster
frame adheres to ceiling
compound for seamless
trimless mounting.
Beveled housing interior and
standard retractable yokes allow
lamp holders to slide within the
housing for added adjustability.
LV1260
ORDERING EXAMPLE:
= Six Light Trimless Recessed AR111 - White Interior - 50 watt lamps -
120 Volt
Interior Finish
BK - Black
WH - White
S - Silver
PT - Custom (Specify)
LV1260
___
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
B
C
D
Housing
Aperture
Aperture
Height
Length
Width
8.40"
43.00"
7.00"
B
6.75"
E D
WH
50
Lamp Wattage
Catalog #
Type
Project
COMBOLIGHT
SIX (6) Light Recessed
Next Generation Trimless
Multi-Lamp Luminaire
E
F
G
Plaster Frame
Plaster Frame
Above Ceiling
Width
Length
Width
12.75"
48.75"
14.95"
A
6.75"
6.75"
6.75"
C
F
Optional Accessories - Details on Other Side
120
Baffle
Snoots
35 - 35 Watt AR111
50 - 50 Watt AR111
75 - 75 Watt AR111
100 - 100 Watt AR111
___
LV Series
®
Low Voltage AR111
Ceiling
Cut-Out
46.25" x 10.25"
Butterfly Brackets
for Black Iron mounting
6.75"
380º x 45º locking
angular adjustment
45º visual cut-off
Other Adders
CC - Two Circuit
CP - Chicago Plenum
Louvers
Lenses
Voltage
120 - 120 Volt
(Standard)
277 - 277 Volt
___
