Summary of Contents for The Flying Culinary Circus FCC BBQ EXTREME 3.1

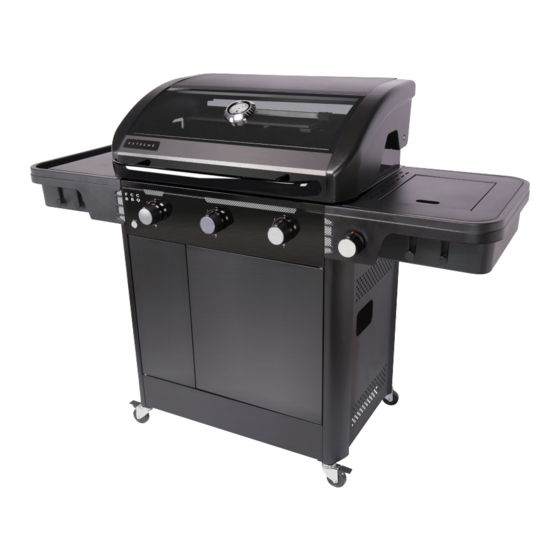

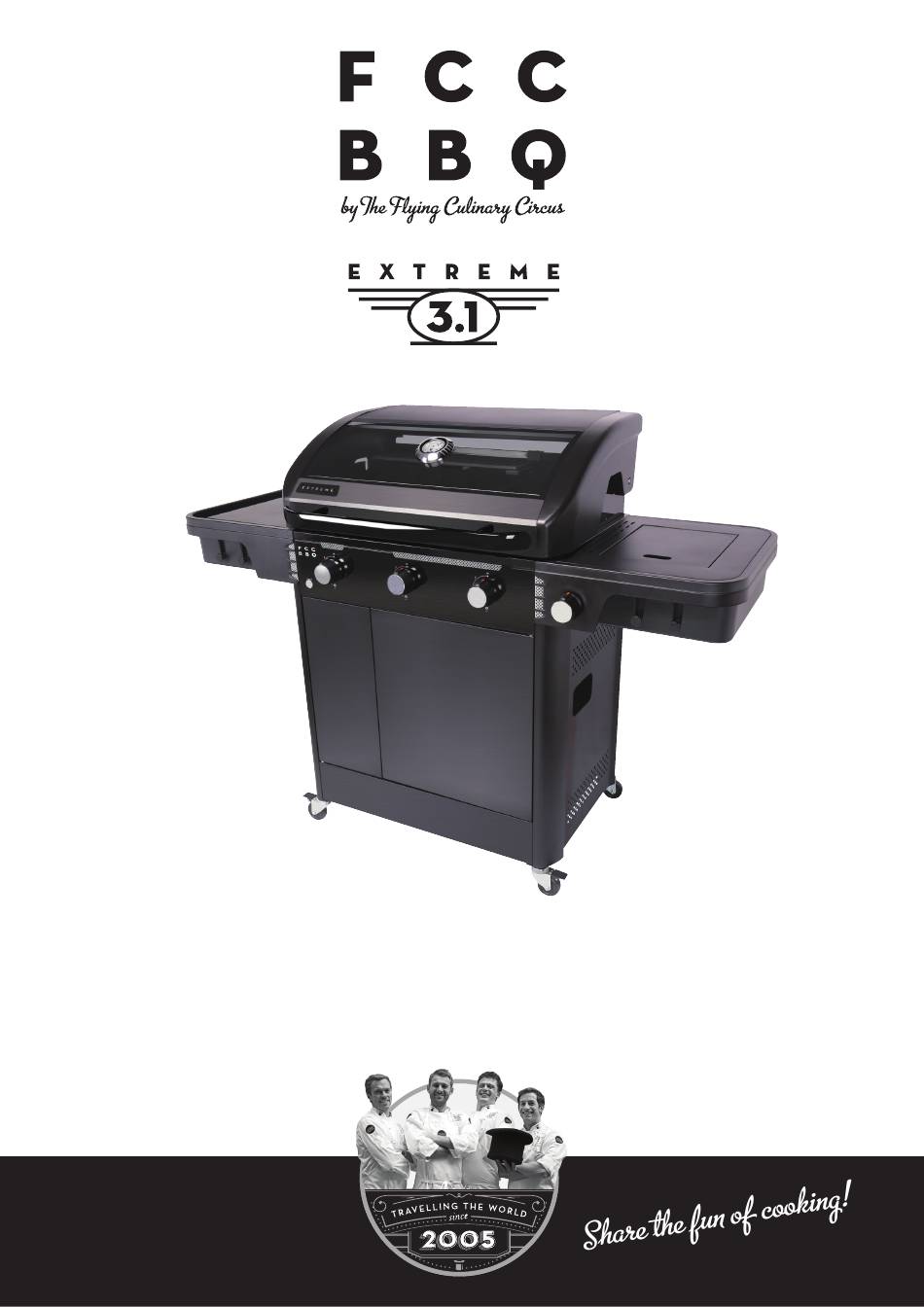

- Page 1 MANUAL Assembly, use, maintenance and safety FCC-G-20290-31 / BW-GK43100 OUTDOOR USE ONLY READ THE MANUAL, FOLLOW THE ASSEMBLY INSTRUCTIONS STEP BY STEP. GET TO KNOW YOUR GRILL AND THE SAFETY INSTRUCTIONS BEFORE USING THE APPLIANCE!
-
Page 2: Table Of Contents
Contents Warnings Technical data Read before assembly Parts list Assembly Regulator and hose Check for leaks before using the barbecue Last check Lighting instructions Maintenance Advice, tips and safety Troubleshooting Consumer contact... -
Page 3: Warnings
WARNINGS! ● ACCESSIBLE PARTS OF THE GRILL BECOME VERY HOT DURING USE. KEEP CHILDREN AND OTHERS WHO NEED SUPERVISION AT A SAFE DISTANCE. ● THE GRILL IS INTENDED FOR OUTDOOR USE ONLY IN WELL- VENTILATED AREAS. ● LEAK TESTS (SEE PAGE ) MUST ALWAYS BE CARRIED OUT BEFORE THE GRILL IS USED AND WHEN REPLACING THE GAS CONTAINER. -
Page 4: Technical Data
Tekniske data Technical Data Total Heat input: 13.3 kW Gas consumption: Butane 967 g/h / Propane 949 g/h Gasbottle (not included): Use standard bottle approved for use in the Nordic Region. Even though butane and propane gas can be used, we recommend propane for use in the Nordic Region. -
Page 5: Read Before Assembly
Read before assembly FOLLOW THESE INSTRUCTIONS CAREFULLY TO AVOID SERIOUS PERSON INJURY OR DAMAGE TO YOUR BARBECUE. Make sure that all parts and screws are included and that they are undamaged before assembling the product. If the barbecue is damaged during transport, do not assemble the barbecue before contacting your dealer or support@fccbbq.com. -
Page 6: Parts List
Parts list CODE DESCRIPTION GAS GRILL ASSEMBLY COOKING GRATE SUPPORT COOKING GRATE WARMING RACK SUPPORT WARMING RACK GRID SIDE BURNER FLAME TAMER LEFT SHELF RIGHT SHELF SIDE BURNER COVER SIDE BURNER KNOB ROUND COOKING GRATE GREASE TRAY RIGHT REAR CORNER BRACE RIGHT SIDE BRACE RIGHT SIDE PANEL REAR CASTERS WITHOUT BRAKE... - Page 7 Parts list CODE DESCRIPTION SCREW M6x15 WASHER Ø6 SCREWM4x12 SCREW M6x12 PHILIPS SCREWDRIVER HEX WRENCH 10/13 HEX WRENCH 14/16 fccbbq.com...
-
Page 8: Assembly
Assembly Fit the right rear corner brace (14) and the right front corner brace (19) to the right side panel (16) with screw (A). Then mount the right side brace (15) on the corner braces (14) and (19) with screw (A). A M6x15 x 8 pcs Fit the left rear corner brace (24) and the left front corner brace (28) to the left side panel (27) with screw (A). - Page 9 Assembly Install the left and right side panels with corner brace to the bottom panel (31) with screw (A). A M6x 15 x 10 pcs. Install rear panel (30) between the corner brace (14) and (24) with screw (A). Note which way the panel is mounted. A M6x15 x 5 pcs fccbbq.com...
- Page 10 Assembly Install top support (32) and lower front plate (33) between corner brace (19) and (28) with screw (A). Then secure plate (33) by tightening screw (A) from the underside as shown in the lower drawing. A M6x15 x 12 pcs.
- Page 11 Assembly Mount the wheels (17) on the base cabinet with the wrench. The wheels with brakes (21) must be in front of the base cabinet. fccbbq.com...
- Page 12 Assembly Install the door stop (25) by attaching it to the top support (32) and the botom shelf (31) using screw (A). A M6x15 x 4 pcs...
- Page 13 Assembly Install the doors (22) and (34) in the base cabinet by inserting the lower pin of the door into the hole in lower front plate (33). The upper pin is spring-loaded and can be checked in the opening on the inside of the door.
- Page 14 Assembly Mount the gas grill assembly (1) on top of the base cabinet. It is recommended to have two people when the grillassembly is lifted into place. Secure the grill assembly with screw (A) in the fasteners on the base cabinet.
- Page 15 Assembly Mount the side tables (8) and (9) by hooking the side table onto the pre- assembled screws in the grill body (1). Insert screw (A) in the lower part of the side table against the base cabinet. Tighten all the screws to the table when it is seated correctly.
- Page 16 Assembly Install the side burner (6) in the opening in the side table with a screw (G). Use the wrench to hold the nut while tightening by hand. Use screw (D) to attach the valve to the front of the side table. Then connect the cable to the lighter as shown below.
- Page 17 Assembly Place the side burner cover (10) on the side burner (39). Slide on the side burner switch (11) on the valve as shown below. Insert the cooking grate support (2) and flame tamers (7) above the burners. Hook on holder for heating shelf (4). fccbbq.com...
- Page 18 Assembly Insert cooking grate in order from left (20), (12), (3) and heating shelf (5).
- Page 19 Assembly Push in the grease tray (13) from the back of the bbq.. Slide the grease cup (23) into the groove under the grease tray. fccbbq.com...
- Page 20 Assembly Insert batteries for LED lights around switches into the battery box (18). THIS GRILL HAS LED LIGHTS AROUND THE SWITCHES THAT ARE POWERED xAA BATTERIES (NOT INCLUDED). Magnetic mount...
- Page 21 Assembly Connect the gas hose to the nipple on the grill. Make sure that the hose is fitted correctly and that the hose clamp closes tightly. Attach the hose to the intake on the grill Thread the hose all the way into the gas nipple.
-
Page 22: Regulator And Hose
Regulator and hose FOLLOW THESE INSTRUCTIONS CAREFULLY TO AVOID SERIOUS DAMAGE YOUR BARBECUE AND CAUSING INJURY TO YOURSELF AND TO PROPERTY. • HOSE • Connect the gas hose to the gas inlet on the grill. Tighten well. • Install the regulator and hose. Follow the installation instructions that came with the controller set. -
Page 23: Check For Leaks Before Using The Barbecue
Check for leaks BEFORE USING THE BARBECUE, A LEAK TEST MUST BE CARRIED OUT! Never check for leaks by using an open flame, use a leak spray or alternatively a soapy water mixture (two parts dishwashing soap and one part water). 1. -
Page 24: Last Check
Last Check PLACEMENT OF THE BBQ • Ensure that the grill is placed at least 150cm in all directions from house walls, trees, plants and other flammable materials or liquids when in use. • Do not place the grill under a roof or overhang. •... -
Page 25: Lighting Instructions
Lighting Instructions LIGHTING INSTRUCTIONS 1. Set all control knobs to off (red bar pointing upwards). 2. Open the lid. The lid must always be open when lighting the grill. 3. Open the gas valve of the gas cylinder. 4. Push the knob of the desired burner in and turn it to the left. The burner will ignite automatically. -
Page 26: Maintenance
Maintenance KEEP THE FIREBOX, FLAME TAMERS, COOKING GRATE AND ACCESSORIES CLEAN TO AVOID GREASE FIRES. IF A GREASE FIRE OCCUR with much fat or oil, pay extra attention. Feel In case of grease fire, if possible close the gas free to use trays in aluminum foil to prevent large supply on the regulator / barbecue and amounts from running down on flame tamers and disconnectthe regulator. - Page 27 Maintenance barbecue for a longer period, feel free to insert CLEANING the grill grates with a thin layer of cooking oil. All cleaning and maintenance must be performed when the barbecue is cold. Make INSECTS AND VERMIN sure that the gas upply is switched OFF and After long-term storage, insects and other the regulator is disconnected from the gas vermin can be found in the barbecue.
-
Page 28: Advice, Tips And Safety
Advice, tips and safety SAFETY AND INFORMATION • The gas cylinder should always be placed next to the grill when in use. • Close the gas supply on the regulator when the grill is not in use and when storing the gas cylinder under the barbecue, disconnect the regulator. -
Page 29: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION Gas bottle is empty Replace gas bottle Damaged regulator Check/replace the regulator Burner is blocked Clean the burner Gas supply is blocked Clean gas ventury or hose BURNER WILL NOT LIGHT Electrode is broken or dirty Clean the electrode Ignition knob is broken Contact your dealer... -
Page 30: Consumer Contact
Consumer Contact This product is covered by a warranty in accordance with consumer legislation. It has undergone strict quality controls and testing at the factory. If there are any parts missing or the product has been damaged, please contact your dealer or the consumer contact below for help. In the event of damage to the product, we ask for pictures of the damage and damage to the product’s packaging is attached to the complaint.
