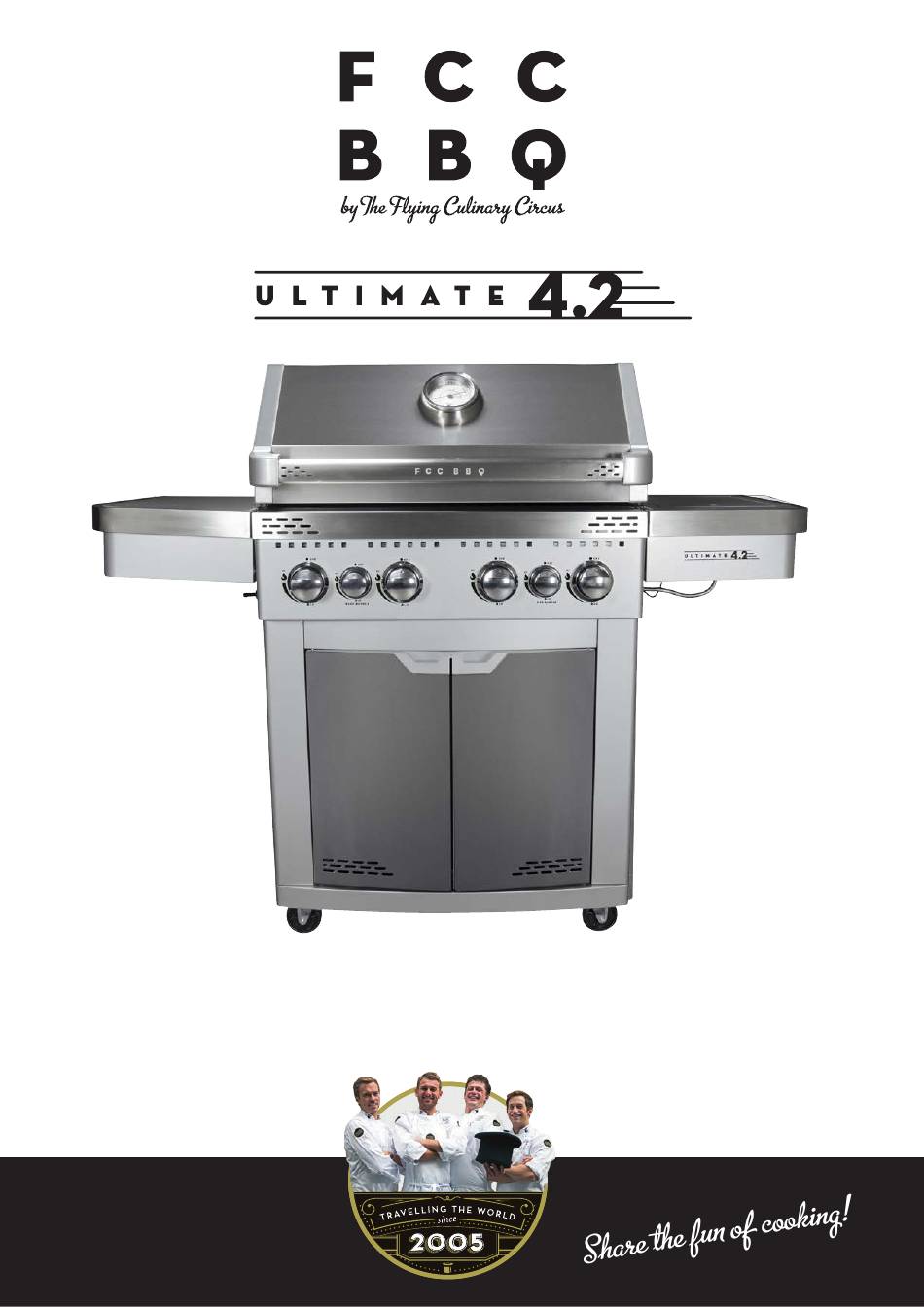

- Page 1 MANUAL Installation, use, maintenance and safety FCC-G-202180-42 / BG02-410B OUTDOOR USE ONLY READ THE MANUAL, FOLLOW THE ASSEMBLY INSTRUCTIONS STEP BY STEP. GET TO KNOW YOUR GRILL AND THE SAFETY INSTRUCTIONS BEFORE USING THE APPLIANCE!
-
Page 2: Table Of Contents
Contents Warnings ........................3 Technical Data ......................4 Read before assembly ...................4 Parts list .........................6 Exploded Drawing ....................7 Assembly instructions ...................8 Regulator and hose - Connecting the gas ..........16 Check for leaks before using the barbecue ...........17 Last check ........................18 Lighting instructions ....................19 Maintenance ......................20 Advice, tips and safety ..................22 Troubleshooting ....................23... -
Page 3: Warnings
WARNINGS! ● ACCESSIBLE PARTS OF THE GRILL BECOME VERY HOT DURING USE. KEEP CHILDREN AND OTHERS WHO NEED SUPERVISION AT A SAFE DISTANCE. ● THE GRILL IS INTENDED FOR OUTDOOR USE ONLY IN WELL- VENTILATED AREAS. ● LEAK TESTS (SEE PAGE ) MUST ALWAYS BE CARRIED OUT BEFORE THE GRILL IS USED AND WHEN REPLACING THE GAS CYLINDER. -
Page 4: Technical Data
Technical Data Tekniske data Total Heat input: 21.2kW (Main burners 3.8kWx4=15.2kW, Side burner 2.3kW, Infrared back burner 3.7kW). Gas consumption: 1543 gram/hour Gas cylinder (not included): Use standard cylinder approved for use in the Nordic Region. Even though butane and propane gas can be used, we recommend propane for use in the Nordic Region. -
Page 5: Read Before Assembly
Read before assembly FOLLOW THESE INSTRUCTIONS CAREFULLY TO AVOID SERIOUS PERSON INJURY OR DAMAGE TO YOUR BARBECUE. Make sure that all parts and screws are in the box before mounting the product, please note that some parts may be located in the styrofoam in the side walls of the packaging. Compare the parts list with the contents of the box. -
Page 6: Parts List
Parts List CODE DESCRIPTION LID HANDLE THERMOMETER THERMOMETER BEZEL WARMING RACK CAST IRON A CAST IRON B CAST IRON C FLAME TAMER SIDE TABLE ASSY LID SHOCK PAD OIL TRAY ASSY SIDE BURNER RACK SIDE BURNER ASSY SIDE BURNER ELECTRODE SIDE BURNER TABLE ASSY LARGE KNOB BEZEL LARGE KNOB... -
Page 7: Exploded Drawing
Exploded Drawing HARDWARE CODE DESCRIPTION FIGURE CODE DESCRIPTION FIGURE M6x16 Screw M6 Washer M6 Spring Washer M5x12 Screw M6x12 Screw M4x10 Screw fccbbq.com... -
Page 8: Assembly Instructions
Assembly Turn bottom panel of cabinet (26) upside down, and fix castors with brake (30) and castors without brake (31) with A,B,D. Fix left side panel (23) and right side panel (25) with screw C as below. Fix door block component (35) with screw F as illustration above. - Page 9 Assembly Fix rear panel (24) with screw E. Assemble left cabinet shelf top plate (32) and left cabinet support plate (33) with two pcs. screws (C). Then attach these to the side wall and bottom panel as shown in the drawing with 4 pcs. screws (C). Fix upper beam (27) with screw C as shown in illustration.
- Page 10 Assembly Follow in the illustration above to insert lower rotating axis of left door assy (28) into hole in the bottom panel of cabinet, then follow in the illustration to press spring pin and insert into hole of upper beam(27). Same assembling procedure for right door assy (29).
- Page 11 Assembly 4PCS Screw 4pcs of screw A halfway into right side of stove body assy(20), hang side burner table assy (15) onto screw A and tighten screw A. 4PCS Screw 4pcs of screw A halfway into left side of stove body assy(20), hang side table assy (9) onto screw A and tighten screw A.
- Page 12 Assembly Follow illustration and put flame tamer (8) -> cast iron grate A (5) -> cast iron grate B (6) -> round cast iron grate C (7) -> warming rack (4) in order into stove body assy. Push drip tray (11) into the gap on the rear side of stove body assy all the way in.
- Page 13 Assembly 11. Follow in the illustration to loosen the nut on side burner injector assy and move it to fixing sheet, then follow in the illustration to insert injector through fixing sheet hole and follow in the illustration to tighten the nut.
- Page 14 Assembly Pass the side burner through the hole in the side table. The tube is passed over the nozzle. Fix burner with screw F. Electrode 2PCS Ignition wire side burner rack Side burner rack 12. Install the side burner assy (13) by passing the venturi tube on the burner through the hole in the side table (15) and over the injector.
- Page 15 Assembly Insert regulator hose (not provided) with gas tube assy (22) connector, and tighten the hose clamps. Read more about hose and regulator on page 16. Insert right cabinet shelf assy (34) and fix the shelf to the bottom panel of the cabinet with two screws (C).
-
Page 16: Regulator And Hose - Connecting The Gas
Connecting gas FOLLOW THESE INSTRUCTIONS CAREFULLY TO AVOID SERIOUS DAMAGE TO YOUR BBQ AND CAUSE PERSONAL INJURY. HOSE • Connect the gas hose to the gas inlet on the grill. Tighten well. • Install the regulator and hose. Follow the installation instructions that came with the controller set. -
Page 17: Check For Leaks Before Using The Barbecue
Gas Leak Test BEFORE USING THE BARBECUE, A LEAK TEST MUST BE CARRIED OUT! Never check for leaks by using an open flame, use a leak spray or alternatively a soapy water mixture (two parts dishwashing soap and one part water). 1. -
Page 18: Last Check
Last Check PLACEMENT OF THE BBQ •Ensure that the grill is placed at least 150cm in all directions from house walls, trees, plants and other flammable materials or liquids when in use. • Do not place the grill under a roof or overhang. •Make sure that the barbecue is placed in a well-ventilated place to avoid carbon monoxide poisoning. -
Page 19: Lighting Instructions
Lighting Instructions LIGHTING INSTRUCTIONS 1. Set all control knobs to off. 2. Open the lid. The lid must always be open when lighting the grill. 3. Open the gas valve of the gas cylinder. 4. Push the knob of the desired burner in and turn it to the left. The burner will ignite automatically. -
Page 20: Maintenance
Maintenance KEEP THE FIREBOX, FLAME TAMERS, COOKING GRATE AND ACCESSORIES CLEAN TO AVOID GREASE FIRES. IF A GREASE FIRE OCCUR free to use trays in aluminum foil to prevent large In case of grease fire, if possible close the gas amounts from running down on flame tamers and supply on the regulator / barbecue and on the grease tray. - Page 21 Maintenance layer of acid-free oil once or twice a year. CLEANING For barbecues that are placed in coastal All cleaning and maintenance must be areas, we recommend that you treat the grill performed when the barbecue is cold. Make more often. sure that the gas upply is switched OFF and the regulator is disconnected from the gas COOKING GRATE OG FLAME TAMERS...
-
Page 22: Advice, Tips And Safety
Advice, tips and safety SAFETY AND INFORMATION • The gas cylinder should always be placed next to the grill when in use. • Close the gas supply on the regulator when the grill is not in use and when storing the gas cylinder under the barbecue, disconnect the regulator. •... -
Page 23: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION Empty gas cylinder Replace gas cylinder Damaged regulator Check/replace the regulator Burner is blocked Clean the burner Gas supply is blocked Clean gas ventury or hose BURNER WILL NOT LIGHT Electrode is broken or dirty Clean the electrode Place the BBQ in a less Windy conditions... -
Page 24: Consumer Contact
Consumer Contact This product is covered by a warranty in accordance with consumer legislation. It has undergone strict quality controls and testing at the factory. If there are any parts missing or the product has been damaged, please contact your dealer or the consumer contact below for help. In the event of damage to the product, we ask for pictures of the damage and damage to the product’s packaging is attached to the complaint.
