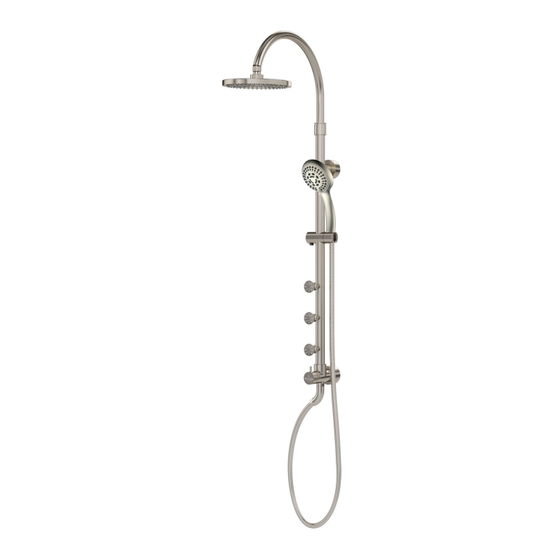

- Page 1 Riviera Shower System Model #7001-BN & 7001-CH PW-97001-6525BRN & PW-97001-6525CP Owner's Manual...
- Page 2 Riviera Shower System / PW-97001-6525BRN / PW-97001-6525CP Please Read The Following Instructions COMPLETELY Before Beginning! Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow recommendations for plumbing and mounting. After reading instructions, if you determine you do not have the necessary skills and/or tools, we recommend that a licensed plumbing contractor complete the installation.
- Page 3 Parts Legend 1. Showerhead.....1 2. Shower Arm.....1 3. Top-T.........1 4. Set Screws......5 5. O-Ring.......9 6. Escutcheon......2 7. Check Valve......1 8. Inlet Nipple.......1 9. Inlet Nipple Extension..1 10. Inner Pipe......1 11. Shower Pipe.....1 12. Handshower Slider..1 13. Body Jets......3 14. Handshower.....1 15.
-
Page 4: Installation Instructions
Installation Instructions BEFORE YOU BEGIN Measure the following to ensure your Shower System will fit properly. New Construction Retrofit 13” 13” minimum minimum 28” minimum 28” minimum Make sure distance from water outlet and mixing valve Remove existing shower arm and shower head. Make sure trim (NOT INCLUDED) is a minimum 28"... - Page 5 Installation Instructions Step 1 Step 2 Optional Step 2 Step 1 Connect shower pipe (11) with Top-T (3) shower arm (2) and secure with set screw (4). Mixing valve (NOT INCLUDED) [Step 1] Apply a generous amount of PTFE (plumber's) tape Slide escutcheon (6), insert washer (26), and screw to end of end of nipple.
- Page 6 Installation Instructions CAUTION: Live Plumbing Drill wall mount (17), place it on marked location and mark Attach assembled shower to inlet nipple (8) and secure set holes for drilling. Set wall anchors (16) in place. Place the screws (4) with allen wrench (24) provided. wall mount (17) on marked location for easy, steady, installation.
- Page 7 Installation Instructions Attach swivel joint (22) to shower pipe (11). Insert washer (26) into the hex end of the handshower hose (15). Attach hose (15) to swivel joint (22) on the diverter body (19). Insert washer (26) into the tapered end of the handshower hose (15) and attach the handshower (14).
-
Page 8: Care And Maintenance
Product. WARRANTY FAILS OF ITS ESSENTIAL PURPOSE, IN NO EVENT Pulse will ship a new or repaired Product to you, at the expense of WILL PULSE’S ENTIRE LIABILITY EXCEED THE PURCHASE Pulse, or refund your purchase price.
