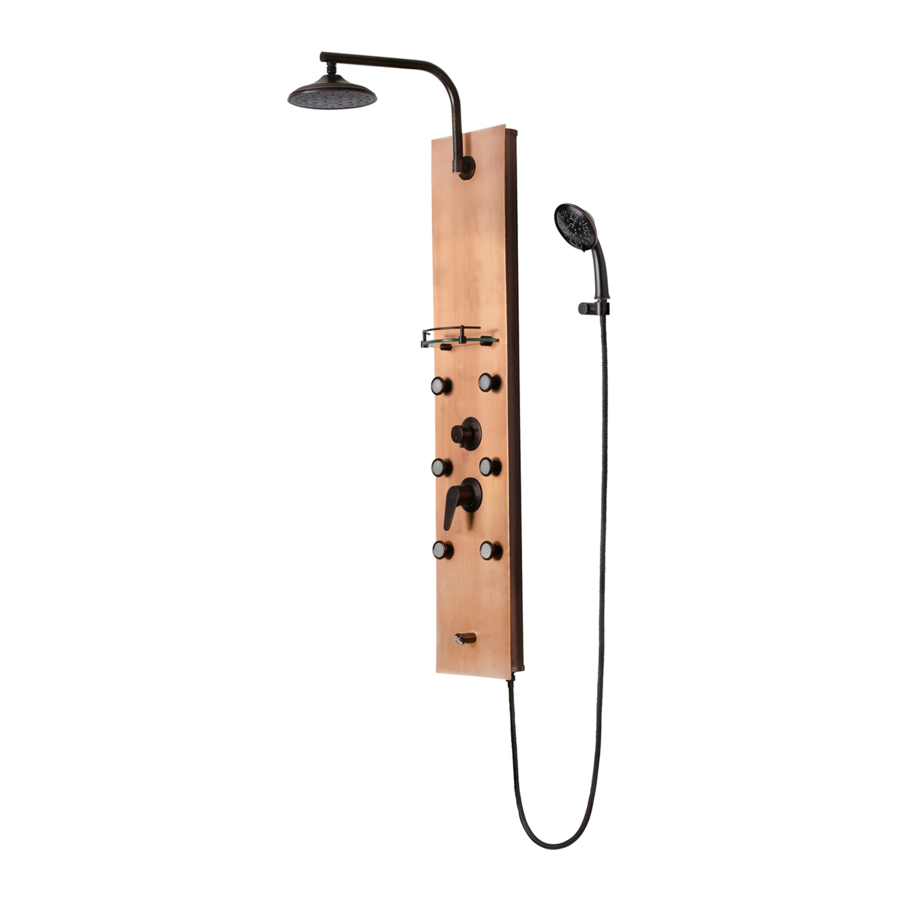

Pulse La Mesa ShowerSpa 7007 Owner's Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
La Mesa ShowerSpa
Model #7007
Owner's Manual

Advertisement

loading

Related Manuals for Pulse La Mesa ShowerSpa 7007

Summary of Contents for Pulse La Mesa ShowerSpa 7007

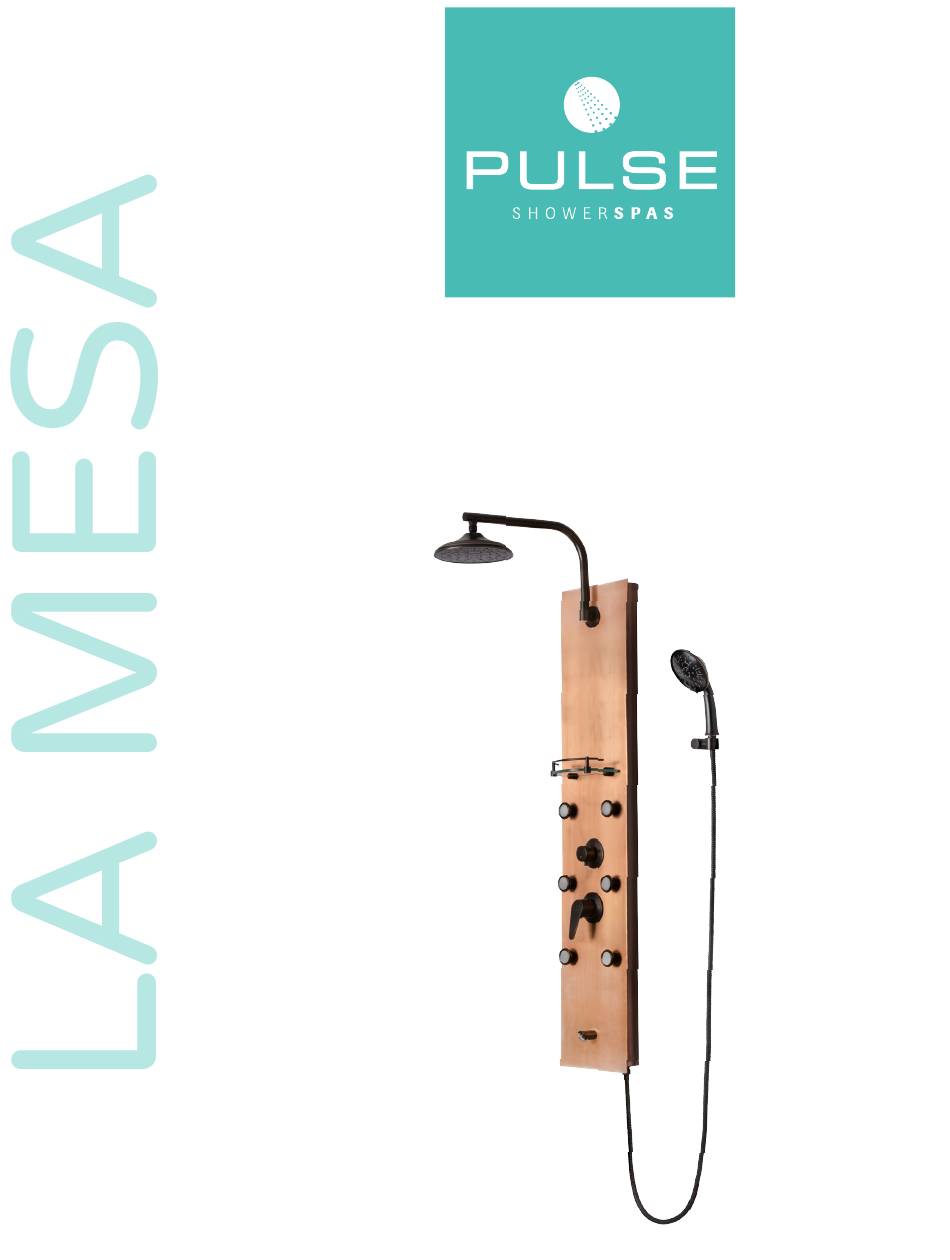

  • Page 1 La Mesa ShowerSpa Model #7007 Owner’s Manual...
  • Page 2 La Mesa ShowerSpa Model #7007 Please Read The Following Instructions COMPLETELY Before Beginning! Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow recommendations for plumbing and mounting. After reading instructions, if you determine you do not have the necessary skills and/or tools, we recommend that a licensed plumbing contractor complete the installation.

  • Page 3: Product Dimensions

    Product Dimensions 18.31 in 465 mm 16.93 in 430 mm 58.46 in 3.94 in 1485 mm 100 mm 51.97 in 1320 mm 7.87 in 200 mm 5.75 in 146 mm 7.87 in 200 mm 16.54 in 8.27 in 420 mm 210 mm 3.4 in 90 mm...
  • Page 4 Parts Legend 1. ShowerSpa 2. Shower Head 3. Shower Arm 4. Shower Arm Insert 5. Hand Shower Holder Mount 6. Hand Shower 7. Hand Shower Holder 8. Set Screw 9. Hand Shower Hose 10. Hand Shower Mount Screw 11. Hand Shower Mount Anchor 12.
  • Page 5 Assembly After unpacking your ShowerSpa, some assembly is required prior to installation. Shower Arm Assembly 1. Thread shower arm (3) into shower arm insert (4) completely. NOTE: Shower arm should pivot side-to-side. 2. Insert rubber washer (12) in shower head (2) and tighten shower head onto show arm (3). Hand Shower Holder Assembly 1.
  • Page 6 Retrofit–Existing Shower Replacement NOTE—In a remodel in which you are not replacing the finished wall surface (tile, or backing material) it is advisable to purchase a PULSE ShowerSpa model that covers the location of your existing valve assembly—either single handle or two-handle type. If your PULSE ShowerSpa model does not cover this area, you will need to either choose another PULSE ShowerSpa model that does or make necessary repairs with appropriate materials (i.e.

  • Page 7: Care And Maintenance

    Usage Pressure Balance Mixing Valve This ShowerSpa is equipped with a cUPC® pressure balance mixing valve to adjust water flow and temperature. The valve automatically adjusts to changes in water pressure (i.e. someone flushes a toilet), keeping your temperature constant and preventing accidental scalding. To turn on the ShowerSpa simply raise the handle until the desired flow rate is achieved.
  • Page 8 2. Remedy: If the Product does not conform to the above warranty, QUENTIAL, INCLUDING BUT NOT LIMITED TO LOST PROFITS OR Pulse, at its option, will repair or replace the Product, free of charge, BUSINESS INTERRUPTION, ARISING OUT OF OR RELATING TO THE or refund your purchase price.
