Overview

This Addendum describes tips for using and preventing jams in the

L5520/L5535 Stacker.

Using The Stacker

1. Before you start your print job, make sure the stacker tray is at the top

position by manually pushing it up as far as it will go.

2. Send your print job from the control panel, then immediately go to the

stacker tray.

3. As the paper exits the printer, it passes through the paper guide rollers

located at the top rear of the stacker. You must manually position the

paper so it will stack along its natural fold. If the first fold is correct, the

paper will continue to fold correctly and lay flat.

176030-001A

L5520/L5535

Stacker Addendum

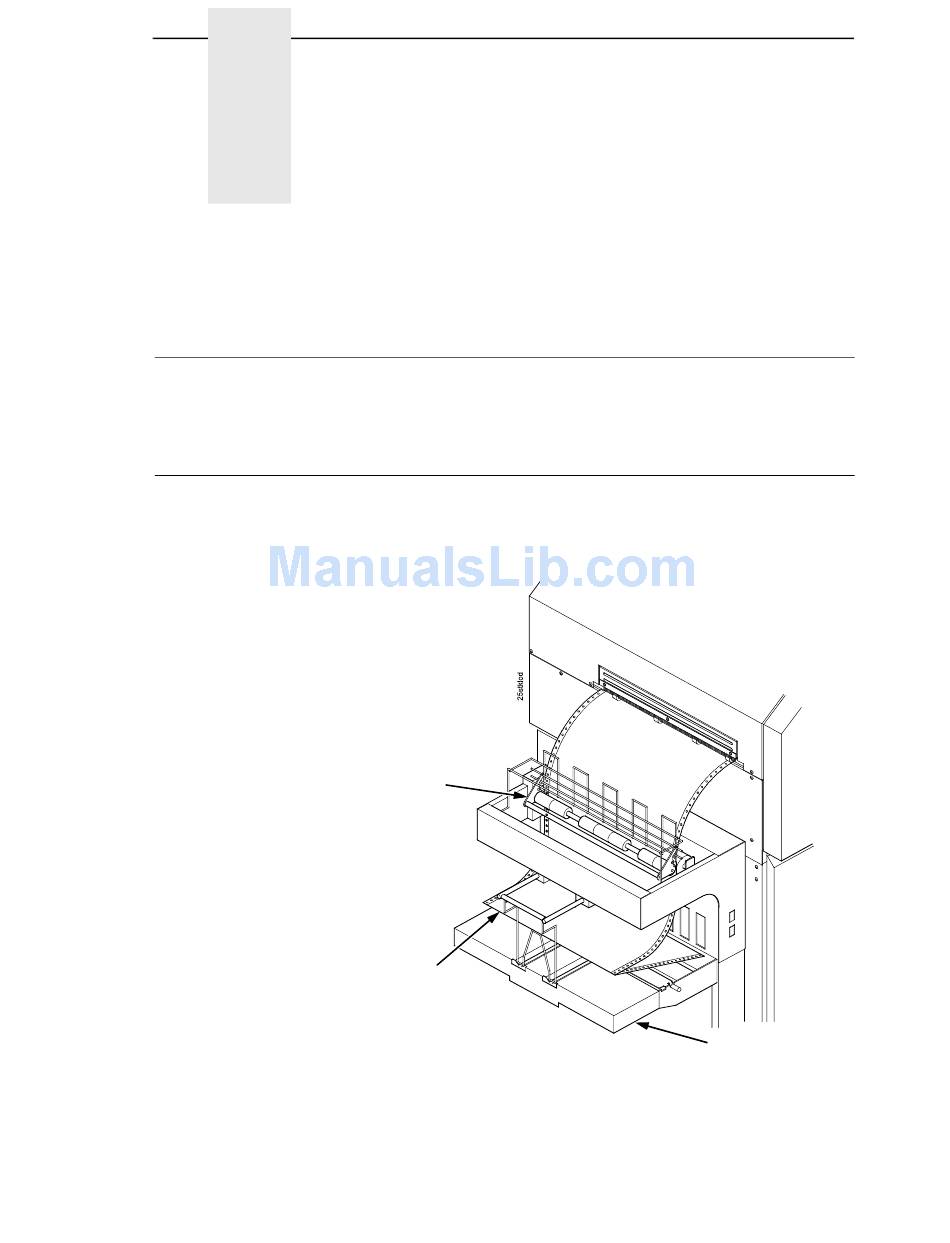

Paper Guide

Rollers

Natural Fold

of Paper

Stacker Tray

1 of 2

Page 1 Natural Fold of Paper 3. As the paper exits the printer, it passes through the paper guide rollers located at the top rear of the stacker. You must manually position the paper so it will stack along its natural fold. If the first fold is correct, the paper will continue to fold correctly and lay flat.
Page 2 4. As the printed paper accumulates on the stacker tray, the tray descends automatically. 5. As the paper stacks, the paper edges may swell out. Press down the edges of the paper stack as needed, and position the flap lever as needed.
