INSTALLATION INSTRUCTIONS

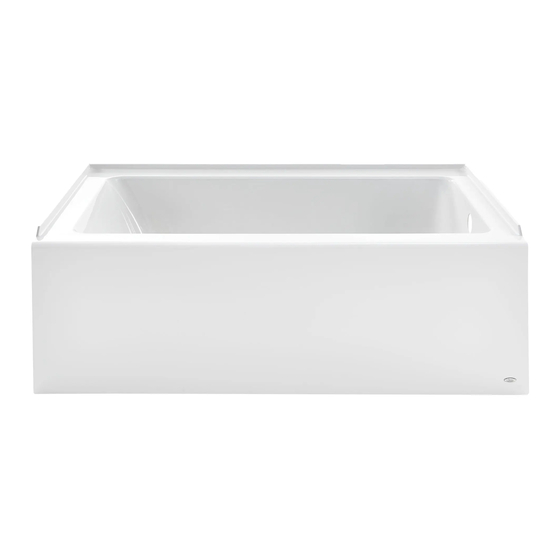

STUDIO
TUB
®
MODEL: 2946.102 & 2946.202
HIGH GLOSS ACRYLIC SURFACE
Thank you for selecting American Standard...the benchmark of fine quality for over 100 years. To ensure
that your installation proceeds smoothly--please read these instructions carefully before you begin.
BEFORE YOU BEGIN....
Your new bath is shipped to you after careful inspection.
To ensure maximum performance and pleasure from this product, please follow the instructions and cautions.
Local building codes vary by location. Observe all local plumbing and building codes.
TOOLS & MATERIALS REQUIRED
TOOLS:
• Level
• Square
• Tape Measure
• Pipe Wrench
• Slip Joint Pliers
NOTE: Take extra care in handling surfaces of the bath. Use only non-abrasive cloths to avoid scratching.
ROUGH-IN INFORMATION:
2946 STUDIO TUB
All product names listed herein are trademarks of AS America, Inc. unless otherwise noted.
© AS America, Inc. 2016
• Screw Driver
• Standard Woodworking Tools
• Personal Safety Equipment
• Caulking Gun
9-3/4"
(248mm)
15-5/8"
(397mm)
32"
(813mm)
3-3/16"
(81mm)
2" (51mm)
C/L OF DRAIN
17-3/4"
(451mm)
STRINGER
HEIGHT
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PTS.
CUBE (FT
MATERIALS:
• Nails
• Plumber's Putty
• Silicone Sealant
• 1 x 3 or 2 x 4 Stringers
60"
(1524mm)
3-15/16"
(100mm)
3"
(76mm)
GENERAL SPECIFICATIONS FOR 2946 TUB
(1524 x 813 x 457mm)
22 x 44.5 In. (559 x 1130mm)
25 X 53 In.(635 x 1346mm)
37 Lbs./Sq.Ft. (181 Kgs/Sq.m)
3
)
• Drop Cloth
• Mortar Mix or Grout
3-3/16"
(81mm)
1"
(25mm)
18"
(457mm)
60 x 32 x 18 In.
60 Lbs. (27 Kg)
493 Lbs.(224 Kg)
52 Gal. (197 L)
12 In. (305mm)
27.5
28.9
755138-100
Advertisement
Related Manuals for American Standard STUDIO 2946.102
Summary of Contents for American Standard STUDIO 2946.102
- Page 1 ® MODEL: 2946.102 & 2946.202 HIGH GLOSS ACRYLIC SURFACE Thank you for selecting American Standard...the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly--please read these instructions carefully before you begin. BEFORE YOU BEGIN..
- Page 2 GENERAL INSTALLATION INFORMATION ... 1. When installing the coordinating bath walls (2946BW series for example), additional studs may be required. Refer to those installation instructions prior to installing tub. 2. Bath walls are to be installed over stud walls. 3. Bath may only be installed in a recess type installation. 4.
- Page 3 A.) THIS BATH MUST BE SUPPORTED ALONG IT'S ENTIRE BOTTOM. We recommend the use of mortar as bedding material (sand is not recommended). Apply enough bedding to support the complete bottom of the bath. After the bedding has been poured, and before it sets, position the bath within the recess until the rim is leveled against the leveling stringers (see "Typical Recess Installation") shown below.
- Page 4 AS America, Inc. Limited Lifetime Warranty for Tubs and Shower Bases AS America, Inc. (” American Standard”) warrants to the original consumer purchaser that it will, at its option, repair or replace this tub/shower base – American Standard, in its sole judgment, to be defective under normal residential use and maintenance so long as it is owned by the original consumer purchaser.
