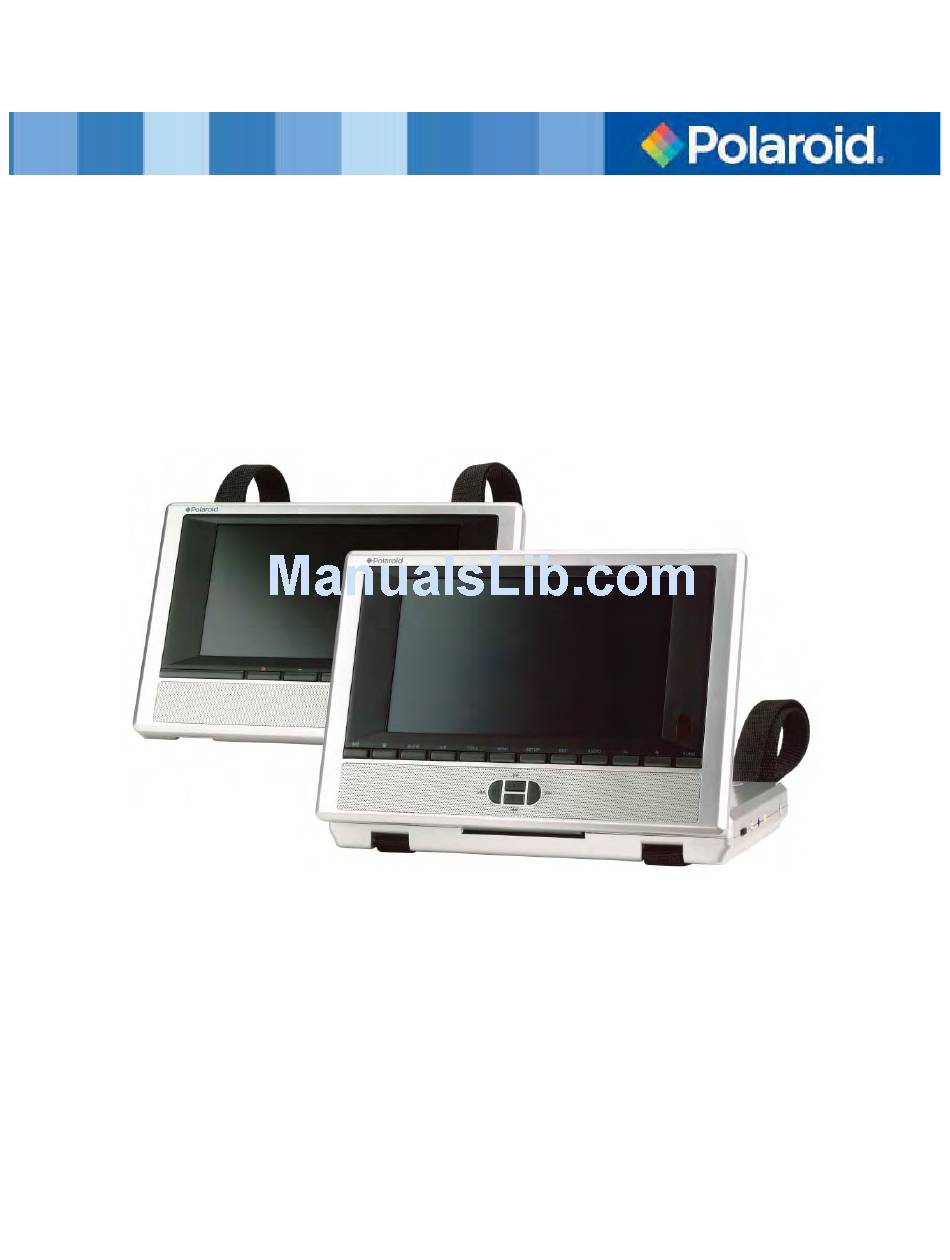

- Page 1 7” Twin Screen Mobile DVD Player PDU-2729 User’s Manual 20060821...
-
Page 2: Important Safety Instructions
Important Safety Instructions CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. - Page 3 Important Safety Instructions CAUTION: These servicing instructions are for use by qualifi ed service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualifi ed to do so. Refer to service manual for servicing instructions.
- Page 4 To fi nd out how to properly dispose of this product, please go to www.polaroid. com and click on “Company“ or call the customer service number for your country listed in the instruction manual.
-
Page 5: Features
High-quality Audio and Video • Excellent Sound: Dolby Digital Decoder delivers great sound. • AV Output: Analog audio and video output. Advanced Playing Functions • Compatibility: Compatible with DVD, CD, and JPEG discs, etc. • On-Screen Display: You can choose English, French, Spanish, etc. for the on-screen display language. •... -
Page 6: Accessories
ITEM ITEM Note: Accessories and their parts numbers are subject to change without prior notice. Accessories NAME NAME Remote Control (with battery) Power Supply Cord with AC Adaptor Power Supply Cord DC Adapter (Car Adapter) Audio/Video Cables Headphone Straps Operation Manual... -
Page 7: Table Of Contents
Important Safety Instructions Features Accessories View of Front Panel View of Side Panels Remote Control System Connections Power Supply Notes on Discs Playback Operation DVD Playback CD Playback JPEG Playback System Setup Straps Carrying Case Defi nitions Troubleshooting Specifi cations Contents... -
Page 8: View Of Front Panel
: press once to pause the playback; press again to resume playback. : press to stop playback; press twice to stop completely. SLOW button: press to activate the slow playback function A-B REPEAT button: press to play a section of the disc from point A to point B TITLE button: press to access or exit the title menu MENU button: press to access or exit the menu. -
Page 9: View Of Side Panels
Ride Side View Volume Control Knob: Used to adjust the volume of headphones and speaker Headphone Jack: Used to connect to headphones for private listening. When headphone is plugged in, the speakers will automatically turnoff. Audio Input/Output Jack: For connecting to an external amplifi er or audio source Video Input/Output Jack: For connecting to an external monitor or video source DC 9.5 Input Jack: Used to connect the DC 9.5/12V adaptor OPEN Switch: Push to open the disc tray cover. -
Page 10: Remote Control
POWER button: press to turn unit on or off INFO button: press repeatedly to display or cancel the detailed information of the disc during playback TITLE button: press to display the title menu if it exists on the disc Direction button: press to select different options ENTER button: press to access playback or confi... -
Page 11: Using The Remote Control
Installing the Remote Control Battery Pull the battery holder out from the remote control as shown below. Load a new battery properly with the (+) side up. Insert the battery holder back into the remote control. Battery Type: CR2025 3V Battery service life: approximately 1 year under normal use (at room temperature) Using the Remote Control Point the remote control to the remote sensor on the unit within a 5-meter range and 60-degree angles, without... -
Page 12: System Connections
• Always endure that the DVD player, TV, and any other electrical equipment to be connected are switched off and unplugged from the power supply. • Ensure that you observe the color coding when connecting audio and video cables. Connecting to a TV Follow the drawing below to connect the DVD player to the TV’s audio/video input with the audio/video cables. -
Page 13: Power Supply
Using the AC Adapter The player is supplied with an AC adapter for powering the unit and charging the batter. Connect the AC adapter to the left side of the DVD player in the pack marked DC 9.5 IN. Plug the two-prong end of the power cord into a grounded electrical outlet. The power indicator lights red when charging the battery and green when complete. -
Page 14: Notes On Discs
Compatible Disc Formats JPEG Operation methods of some DVD discs are specifi ed by the software manufacturer. Please follow the instructions of the disc. Care of Discs Holding Discs • When loading or removing discs, try not to touch their play surfaces. Cleaning Discs •... -
Page 15: Playback Operation
Please read the following instructions carefully before using your Warning: To avoid damaging the lens, do not play poor quality discs. Pre-Operation Connect the unit to power supply through the provided AC adaptor. Switch POWER ON/OFF to ON to turn the DVD player on. Push the OPEN switch on the unit to open the disc tray cover. -
Page 16: Dvd Playback
Features are available on both the DVD player and remote control unless otherwise noted. DVD Playback ENTER/ENT button PAUSE/ button STOP/ button MENU button TITLE button ZOOM button & buttons & buttons SLOW button RED button A-B button GOTO button Playback Operation When you load a disc in, the player will search the disc and play it automatically. -
Page 17: Cd Playback
DVD Playback (continued) INFO button AUDIO button SUBT button ANGLE button CD Playback Press the PAUSE/ PAUSE/ button to resume normal playback. During playback, press the STOP/ ■ button once to stop and then press the PLAY/ STOP/ ■ button pressed. -
Page 18: Jpeg Playback
JPEG Playback Pre-Operation Load a JPEG in the disc tray and the player will search and play the disc automatically. The screen displays the root folder with several subdirectories/subfolders. Use the desired folder. Then press the ENTER/ENT button or PLAY/ The screen enters the subfolder with several fi... - Page 19 Playback Operation JPEG Playback (continued) Rotating Pictures While viewing a picture, use the direction buttons to rotate the picture. Press the button to rotate the current picture clockwise: Press the button to rotate the current picture counterclockwise:...
-
Page 20: System Setup
You can change the default settings of this unit to customize its performance to your own preferences. Note: Program the system while playback is stopped completely or there is no disc in the payer. To Set up your system: Press the SETUP button and the setup menu will appear on the screen. It includes VIDEO SETUP, LANGUAGE SETUP, and PREFERENCES. -
Page 21: Video Setup
Language Setup (continued) Video Setup System Setup DVD MENU • This item is used to set the menu langauge • Press the buttons to highlight this item. • Press the button to access. • There are several languages for you to choose. •... -
Page 22: Misc Setup
Misc Setup System Setup DEFAULTS • This item is used to reset the unit. • Press the buttons to highlight this item. • Press the button to access. • Press the ENT/ENTER button to reset. All settings to your unit are now set back to its original state. -
Page 23: Straps
To attach the DVD player to the car seat headrest: Place the DVD player on a soft and smooth surface with the bottom facing up. Loosen the strap and remove the buckle. Insert the strap through the holes (fi g. 1). Make sure the inside of the strap faces up. Thread the strap into the buckle (fi... -
Page 24: Carrying Case
INSTRUCTIONS FOR ATTACHING YOUR PORTABLE DVD PLAYER CASE IN A VEHICLE Please read and follow these instructions carefully when attaching this case inside your vehicle. For easy installation, do not place the DVD player in the case until the case is attached inside the vehicle. - Page 25 To attach the DVD player case to a seat back (fi gures 1 and 2) Unzip the main compartment that holds the player; locate the set of rings tucked inside the top edge of the case (A). Locate the two straps with hooks on each end. Hook one end of each strap to the rings at the top of the case (A).
-
Page 26: Defi Nitions
Letterbox screen This refers to a screen on which the playback picture of wide-screen DVDs appears with black bands running along the top and bottom. Pan & Scan screen This refers to a screen on which the playback picture of wide-screen DVDs is cut off at the left and right sides. Title, Chapter (DVD) DVDs are divided into some large sections (titles) and some small sections (chapters). -
Page 27: Troubleshooting
If you suspect there is something wrong with the DVD player, immediately turn off the power. Disconnect the power connector and check that there is no smoke or excessive heat coming from the unit. Never open or try to repair the unit yourself. There are no user serviceable parts inside. PROBLEM The player cannot play There is no sound... -
Page 28: Specifi Cations
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Confi dential unpublished works. © 1992-1997 Dolby Laboratories, Inc. For service, support and warranty information, visit www.polaroid.com. “Polaroid” and “Polaroid and Pixel” are trademarks of Polaroid Corporation, Waltham, MA, USA. Specifi cations 7 inches (16:9)
