Page 1: User Manual

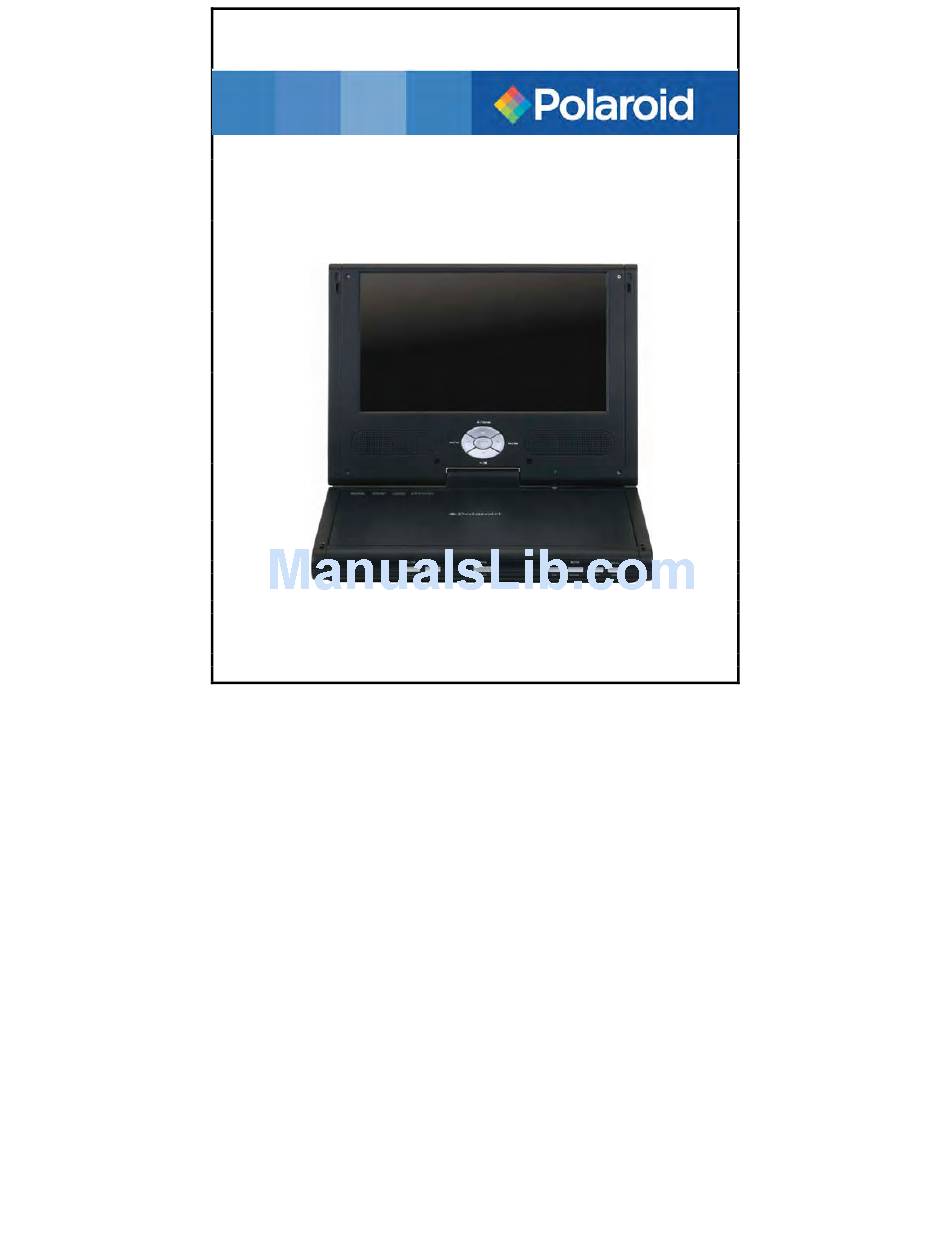

7” Swivel Screen Portable DVD Player PDM-0742 User Manual 20060111... -
Page 2: Important Safety Instructions
Important Safety Instructions CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... - Page 3 CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Refer to service manual for servicing instructions. 1) Read these instructions.
- Page 4 Important Safety Instructions Copyright Protection This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.
-
Page 5: Features
High-quality audio and video Dolby Digital Excellent sound: Decoder delivers great sound. Advanced Playing Functions Compatibility: Compatible DVD, CD and JPEG discs, etc. Particular Performance: Multi-speed, fast forward, fast backward, slow playback repeated playback. Last Memory Playback: Memorizes the stopped playback track and continues playing the disk from this spot when the power is kept to supplied. -
Page 6: Accessories
Accessories Accessories List ITEM NAME Remote Control (with battery) Power Supply Cord with AC Adapter Rechargeable Battery Pack DC Adapter (Car Adapter) Audio/Video Cable Operation Manual ： NOTE Accessories and their parts numbers are subject to change without prior notice. -
Page 7: Table Of Contents
…………………………………………….1 Important Safety Instructions ………………………………………….….4 Features ………………………………………….….5 Accessories ………………………………………..…...7 View of Front Panel …………………………………….……….9 View of Side Panels …………………………………………...10 View of Bottom Panel …………………………………………...11 Revolving LCD Screen …………………………………………...12 Remote Control ……………………………………..……..15 System Connections …………………………………..………..17 Power Supply Preparation ………………………………………..…..18 Rechargeable Battery ………………………………………..…..21 Notes on Discs ……………………………………..……..22... -
Page 8: View Of Front Panel
View of Front Panel... -
Page 9: View Of Front Panel
LCD screen / /+ Button : Press to select different items. : Press to pause the playback. +: Press the Mode button and then press this button to increase the level of brightness, contrast and color. / /- Button : Press to select different items. : Press to stop playback. -
Page 10: View Of Side Panels
View of Side Panels Right Side View 1. Volume Control knob Used to adjust the volume of the headphone and speaker. 2. Headphone Jack Used to connect to headphones for private listening. When headphone is plugged, the speakers will turn off automatically. 3. -
Page 11: View Of Bottom Panel
View of Bottom Panel Rechargeable Battery Contacts For connecting the rechargeable battery pack. -
Page 12: Revolving Lcd Screen
Revolving LCD Screen Revolving Steps The revolving LCD screen is one of the outstanding features about this product. We’d like to suggest you to take the following steps for proper operation. Pos. A Pos. B Pos. C Pos. D Open the screen cover to position (A) as shown in left figure at which the screen is vertical to the operation panel. -
Page 13: Remote Control
MUTE button Press to turn off or on the speaker output. INFO button Press repeatedly to display or cancel the detailed information of the disc during playback. TITLE button Press to display title menu if it exits in the disc. Direction button Press to select different options. - Page 14 Remote Control 0-9 number buttons Select numbers by pressing these buttons. NEXT button Press to skip to the next list, track or chapter. PREV button Press to return to the previous list, track or chapter. 10. SUBT button When playing a DVD coded with multi-subtitles, press to select a subtitle language or to turn subtitles off.
- Page 15 Preparation of Remote Control Follow the steps below to install the battery. Pull the battery holder out from the remote control in the direction of the arrow. Load a new battery properly with the (+) sided up. Insert the battery holder back into the remote control. Battery type: CR2025 3V Battery service life: approximately 1 year under normal use (at room temperature).
-
Page 16: System Connections
System Connections Always ensure that the DVD player, TV and any other electrical equipment to be connected with are switched off and unplugged from the power supply. Ensure that you observe the color coding when connecting audio and video cables. Connecting to TV Follow the drawing below to connect the DVD player to TV's Audio/Video input with Audio/Video cable. - Page 17 System Connections Connecting to External AV Source The player supports an AV signal input function. Use the audio/video cable to connect the unit to an external AV signal source such as a DVD, VCR etc. After connecting, switch the DVD/AV IN to AV IN. NOTE: Noise may occur in speakers when there is an external audio signal input while playing a DVD disc.
-
Page 18: Power Supply Preparation
Power Supply Preparation Using the AC Adapter The player is supplied with an AC adapter for powering the unit and charging the battery. Connect AC adapter to the left side of the DVD player in the jack marked DC 9.5/12V IN as shown on the right. Plug the two-prong end of the power cord into a grounded electrical outlet. -
Page 19: Rechargeable Battery
About Rechargeable Battery Pack Your portable DVD player comes with a lithium ion rechargeable battery that attaches to the bottom of the DVD player. Charge the battery fully before initial use. Charging time is normally about 5 hours. A fully charged battery delivers about 3 hours of use but playing time varies from disc to disc. - Page 20 Rechargeable Battery Attaching the Battery Pack Refer to the following steps for attaching the Battery Pack: With one hand on the DVD Player to prevent it from moving, take the battery and align the plastic tabs on the battery pack with holes on the player, and push the battery pack into the DVD Player.
- Page 21 Detaching the Battery Pack When being turned off, the DVD Player still consumes some power in standby mode. This will eventually discharge the battery. If the DVD Player is not going to be used for long periods of time, the battery pack should be detached. Make sure the power is turned off before detaching the Battery Pack.
-
Page 22: Notes On Discs
Notes on Discs Compatible Disc Formats DISC LOGO JPEG Operation methods of some DVD discs are specified by the software manufacturer. Please follow the instructions of the disc. Care of Discs Holding Discs When loading or removing discs, try not to touch their playing surfaces as the right figure. -
Page 23: Playback Operation
PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING YOUR DVD PLAYER FOR THE FIRST TIME. WARNING: Do not play poor quality discs to avoid damaging the lens. Pre-operation Connect the unit to power supply through the provided AC adaptor. Switch “POWER ON/OFF” to “ON” to turn on the DVD player. Push the OPEN switch on the unit to open the disc tray cover. -
Page 24: Dvd Playback
Playback Operation DVD Playback Load a disc in, the player will search the disc and play it ENTER/ENT automatically. Press the direction buttons ( button highlight the item that you want to play and press the ENTER/ENT button to confirm. Press the PAUSE/ button to pause during playback and PAUSE/ press the PLAY/ (PLAY) button to resume normal... - Page 25 DVD Playback (continued) Press the & buttons Press the Press the to start fast forward/rewind playback. Press it for several seconds) & buttons at the speed of 2X, 4X, 8X, 16X and normal in sequence. Press the PLAY/ (PLAY) button to return to normal playback.
- Page 26 Playback Operation DVD Playback (continued) Press to display or cancel the detailed information of INFO button the disc during playback. DVD discs can contain up to 8 audio bit streams. For example: English, French etc. AUDIO button To select the audio bit stream you prefer, press AUDIO button during playback.
-
Page 27: Cd Playback
CD Playback Press the PAUSE/ PAUSE/ Press the PLAY/ (PLAY) button to resume normal button playback. During playback, press the STOP/ and then press the PLAY/ (PLAY) button to resume STOP/ button normal playback from the place where the STOP/ button is pressed. -
Page 28: Jpeg Playback
Playback Operation JPEG Playback Pre-operation 1. Load a JPEG in the disc tray, and the player will search and play disc automatically. 2.The screen displays the root folder with several subdirectories/subfolders. Use the buttons to select desired folder. Then press the ENTER/ENT or PLAY/ (PLAY) button to confirm your selection. - Page 29 JPEG Playback (continued) During playback, press the GOTO button to select the desired file. GOTO button Press the 0-9 buttons directly to select according to your preference. Under folder status, press the setup. Then press the ENTER/ENT button repeatedly to set the repeat mode and the screen will display as follows REPEAT sequence:...
-
Page 30: System Setup
System Setup You can change the default settings of this unit to customize its performance to your own preference. Note: Set the system up while playback is stopped completely or there is no disk in the player. To set up your system: Press the SETUP button and the setup menu will appear on the screen. - Page 31 LANGUAGE SETUP (continued) 2. Audio This item is used to set the audio output language. Press the Press the There are several languages for you to choose. Press the one. Press the ENTER/ENT button to confirm your selection. Press the 3.
- Page 32 System Setup PREFERENCE 1.TV DISPLAY This item is used to set TV display mode. Press the Press the It includes 4:3 PS, 4:3 LB and 16:9. Press the one. Press the ENTER/ENT button to confirm your selection. Press the Note: Select 4:3 PS or 4:3 LB when a 4:3 TV is connected.
- Page 33 PREFERENCE (continued) 4. DEFAULTS This item is used to reset the unit. Press the Press the Press the ENTER/ENT button to reset. Then all the settings of your unit are back to the original state. TVGuardian TVG--Activation This item is used to filter disc during playback.
-
Page 34: Definition
Definitions Letterbox screen This refers to a screen on which the playback picture of wide-screen DVDs appears with black bands running along the top and bottom. Pan & Scan screen This refers to a screen on which the playback picture of wide-screen DVDs is cut off at the left and right sides. -
Page 35: Troubleshooting
If you suspect there is something wrong with the DVD player, immediately turn the power off. Disconnect the power connector and check that there is no smoke or excessive heat coming from the unit. Never open or try to repair the unit yourself. There are no user serviceable parts inside. POSSIBLE CAUSE PROBLEM The disc cover may not be... - Page 36 Troubleshooting PROBLEM POSSIBLE CAUSE The LCD may be not in correct video mode. The system connection may There is no picture. be not correct. The unit may be not in AV out mode. The disc may be dirty or Poor AV performance. warped.
-
Page 37: Specifications
TFT screen size 7 inches (16：9) Screen resolution 480x234 Laser Wavelength 780/650nm Video System NTSC Frequency Response 20Hz Audio Signal-to-noise Rate ≥85dB Audio distortion + noise ≤ -70dB (1kHz) Channel Separation ≥70dB (1kHz) Dynamic Range ≥80dB (1kHz) Audio Out Out Level 2V± Out Level 1V Video Out Unbalanced Negative... - Page 38 For service, support and warranty information, visit www.polaroid.com or in the US call 1-866-289-5168, in Canada call 1-866-301-7922 and in Mexico call 01-800-400-2443. "Polaroid" and “Polaroid and Pixel” are trademarks of Polaroid Corporation, Waltham, MA, USA.
