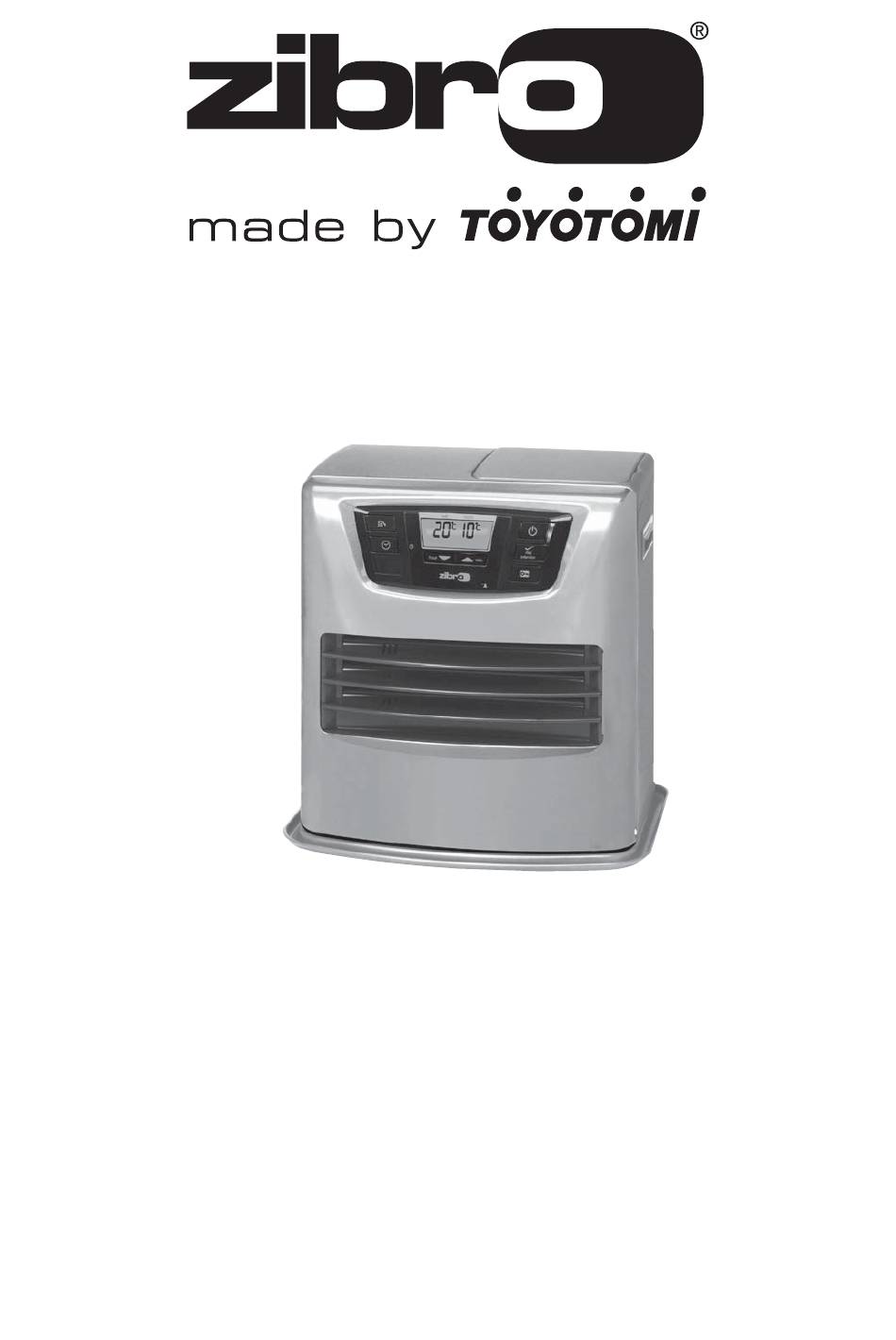

- Page 1 LC – 135 OPERATING MANUAL ......PAGE 2 GEBRAUCHSANWEISUNG......PAGE 18 MANUAL D’UTILISATION .
- Page 2 We hope that you’ll enjoy your Toyotomi appliance for years to come! We invite you to read this instruction manual first, to ensure the maximum lifetime for this appliance. Get to know us better…visit us at www.toyotomi.eu for our full line of products. 1 READ THE DIRECTIONS FOR USE FIRST.
-
Page 3: General Directions For Use
GENERAL DIRECTIONS FOR USE Below you will find the main steps to be taken for using your heater. For more details, please refer to the MANUAL. Remove all packaging materials (Fig. A). Fill the removable tank ¶ (refer to Section B, Fig. D). Insert the plug into the wall-socket. -
Page 4: What You Need To Know In Advance
WHAT YOU NEED TO KNOW IN ADVANCE ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards. -
Page 5: The Right Fuel
THE RIGHT FUEL Your heater has been designed for use with high-quality water-free pure paraffin oil. Only fuels of this kind will ensure clean and proper burning. Lower quality fuel may result in: ¼ increased possibility of malfunctioning ¼ incomplete burning ¼... - Page 6 5 Insert the plug ¸ into the wall-socket (230 Volts - AC / 50 Hz) and set the correct time using the adjustment keys (refer to Section C). 6 Your heater is now ready for use. FILLING FUEL Fill the removable tank in a suitable place since there can always be some spillage. Follow the procedure below: 1 Make sure that the heater is switched off.
- Page 7 IGNITING THE HEATER When used for the first time, a new heater may give out a smell for a short while. You should therefore provide extra ventilation. Always ignite the heater with the button . Never use matches or a cigarette lighter.
-
Page 8: Automatic Deactivation
e - 8 Defective booster. Contact your dealer. e - 9 Air filter dirty; or Clean filter Fuel pump dirty. Contact your dealer. The heater has been in operation continuously for a period of 69 hours and has turned itself off automatically. Switch the heater back on. - Page 9 THE CORRECT USE OF ‘SAVE’ The ‘SAVE’ function allows you to limit the temperature. When this function is activated, the heater will automatically switch off, when the room temperature exceeds the set temperature by 3°C. Subsequently, when the room temperature has dropped again to the set temperature, the heater will automatically switch on again.
- Page 10 MAINTENANCE Switch off the heater and let it cool down, before you start any maintenance work. Also disconnect the plug from the mains. Your heater needs hardly any maintenance. It is, however, important that you clean the air filter º and the vent filter ¾...
- Page 11 SPECIFICATIONS Ignition electrical Dimensions (mm) width Fuel paraffin including base plate: depth Capacity (kW) max. 3.50 height Capacity (kW) min. 1.05 Accessories: - manual fuel pump Suitable space (m 54-140 - transportation cap Fuel consumption (l/hr) 0.365 Mains 230 V -- AC / 50 Hz Fuel consumption (g/hr) Electrical consumption:...
-
Page 12: Tips For Safe Use
14 TIPS FOR SAFE USE Children should be supervised to ensure that they do not play with the appliance. Do not move the heater when it is burning or still hot. Do not refill nor service the heater when it is burning or still hot. Position the front of the heater at a distance of minimum 1.5 metres from walls, curtains, and furniture. -
Page 13: Programming The Week Timer
WEEK TIMER Here is an example on how the week timer can be programmed: Monday Tuesday Wednesday Thursday Friday Saturday Sunday P1 ON 6:30 6:30 6:30 6:30 6:30 10:00 9:00 P1 OFF 8:45 8:45 8:45 8:45 8:45 23:00 23:00 P2 ON 12:00 15:00 18:00... - Page 14 Then, use the adjustment keys to set the minute. Press the adjustment key to increase the minute and the key decrease the minute. Press extension/day/set to select the right minute. Use the adjustment keys to set the hour at which the heater must shutt off.
- Page 15 Use the adjustment keys to choose copy. Press extension/day/set to select the copy function. Use the adjustment keys to select the day to which the settings should be copied. Press extension/day/set choose the selected day. The settings for program for Tuesday are programmed and the display shows SET for 3 seconds.
-
Page 16: Main Components
MAIN COMPONENTS ³ Front plate · Grid » Base plate ¿ ¶ Lid for removable tank ¿ ´ Operation panel ² ´ Handle ² ³ ¶ Removable tank ¾ µ º Air filter · ¾ Vent filter º µ Thermostat »... - Page 18 In caso aveste bisogno di ulteriori informazioni o riscontraste particolari problemi che non sono presi in considerazione nel presente manuale, vi invitiamo a visitare il nostro sito www.toyotomi.eu o contattare la nostra assistenza (il cui numero di telefono é indicato nel nostro sito www.toyotomi.eu) Hvis du ønsker yderligere information eller, hvis der opstår problemer, som ikke behandles i...
