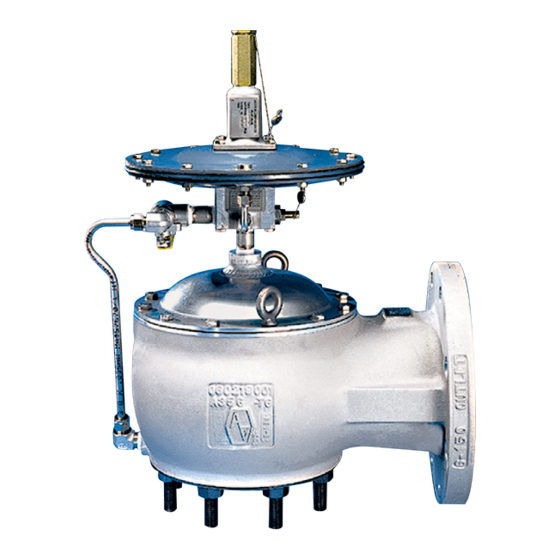

ANDERSON GREENWOOD SERIES 9300 PILOT OPERATED SAFETY RELIEF VALVES
INSTALLATION AND MAINTENANCE INSTRUCTIONS
Before installation, these instructions must be carefully read and understood.
TABLE OF CONTENTS
1
Introduction .................................................. 2
2
Main valve .................................................... 3
3
4
5
6
7
8
9
Installation and Maintenance Instructions
for Anderson Greenwood Series 9300 Pilot
Operated Safety Relief Valves (POSRV).
The intent of these instructions is to acquaint
the user with the storage, installation and
operation of this product. Please read these
instructions carefully before installation.
SAFETY PRECAUTIONS
When the safety valve is under pressure
never place any part of your body near
the outlet/exhaust of the valve.
The valve outlet and any separate drains should
be piped or vented to a safe location.
Always wear proper safety gear to protect hands,
head, eyes, ears, etc. anytime you are near
pressurized valves.
Never attempt to remove the safety valve from
a system that is pressurized.
Emerson.com
Never make adjustments to or perform
maintenance on the safety valve while in service
unless the valve is isolated from the system
pressure. If not properly isolated from the system
pressure, the safety valve may inadvertently open
resulting in serious injury.
Remove the safety valve prior to performing any
pressure testing of the system.
The safety of lives and property often depends on
the proper operation of the safety valve. The valve
must be maintained according to appropriate
instructions and must be periodically tested and
reconditioned to ensure correct function.
WARNING
The protection and safety of equipment, property
and personnel depends on the proper operation
of the safety valves described in this manual.
All Emerson safety valves should be kept in
proper working condition in accordance with the
manufacturer's written instructions. Periodic
testing and maintenance by the user of this
equipment is essential for reliable and safe valve
operation.
All installation, maintenance, adjustment, repair
and testing performed on safety valves should be
done by qualified technicians having the necessary
skills and training adequate to perform such work.
All applicable Codes and Standards, governing
regulations and authorities should be adhered to
when performing safety valve repair. No repair,
assembly, adjustment or testing performed by
other than Emerson or its authorized assemblers
and representatives shall be covered by the
warranty extended by Emerson to its customers.
The user should use only original, factory supplied
OEM parts in any maintenance or repair activity
involving this product.
This Maintenance Manual is provided as a general
guide for the repair and maintenance of the
safety valves described herein. It is not possible
to describe all configurations or variations with
such equipment. The user is advised to contact
Emerson or its authorized assemblers and
representatives for assistance in situations that
are not adequately covered or described in this
manual.
Before removing a safety valve for maintenance,
ensure that the system pressure has been fully
depressurized. If an isolation block valve is used
ensure that any trapped fluid between the block
© 2017 Emerson. All Rights Reserved.
valve and the safety valve is safely vented.
Before disassembling the safety valve ensure that
the valve has been decontaminated from any harmful
gasses or fluids and that it is at a safe temperature
range for handling. Fluids can be trapped in
the dome space of pilot operated safety valves.
Before installation, the Installation and
Operational Safety Instructions should be fully
read and understood. These Instructions may
be requested from the factory or are available at
Emerson.com/FinalControl
Doc. #05.9040.275 Rev.DA
