Contents
Setup
Wireless Amplifier
Owner's Manual
HEOS Amp HS2
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
AMPHS2SRE2
o cerca il tuo prodotto tra le
Use
migliori offerte di Personal Audio
Troubleshooting
1
Status LED
Appendix
Denon

Advertisement

loading

Related Manuals for Denon AMPHS2SRE2

Summary of Contents for Denon AMPHS2SRE2

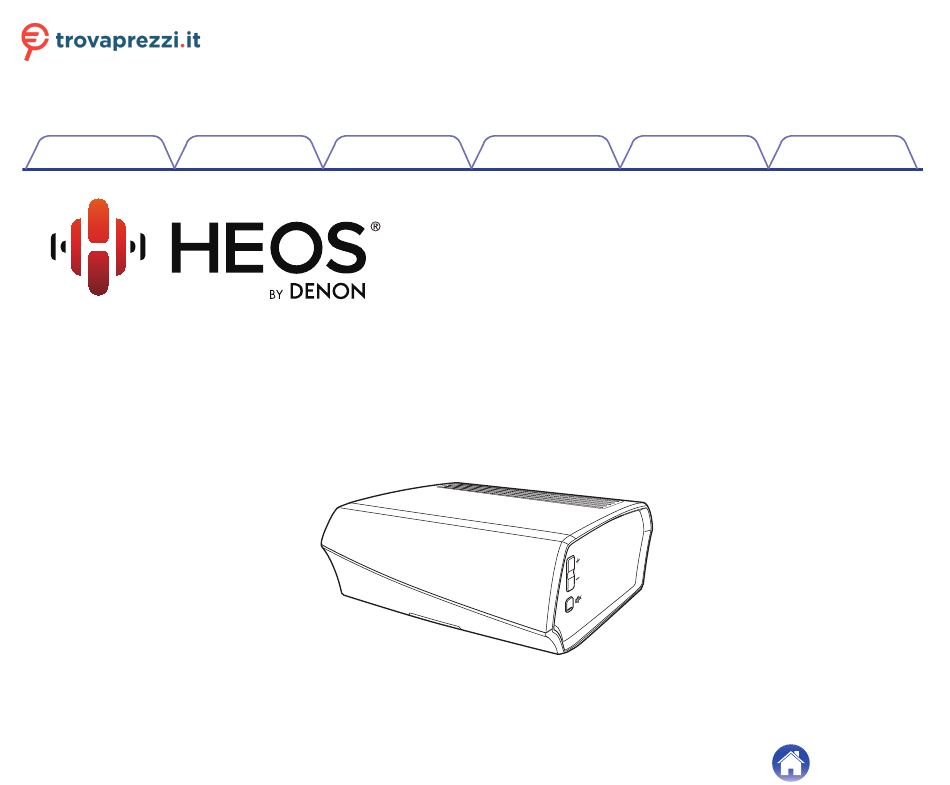

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Denon AMPHS2SRE2 o cerca il tuo prodotto tra le migliori offerte di Personal Audio Contents Setup Troubleshooting Status LED Appendix Wireless Amplifier Owner’s Manual HEOS Amp HS2...
  • Page 2 Contents Contents Setup Troubleshooting Status LED Appendix Introduction Playing music from Bluetooth device Before your begin Pairing the HEOS device with your Bluetooth devices System requirements HEOS account Network requirements What is a HEOS account? Controller requirements Why do I need a HEOS account? Getting to know your HEOS Amp Signing up for a HEOS account Front panel...
  • Page 3 Contents Setup Troubleshooting Status LED Appendix Using the favorite Making adjustments Adding to HEOS favorite Changing the name of a HEOS Amp Deleting station from the HEOS favorite Changing the wireless network connection Adjusting the equalizer Adjusting the balance Adjusting the audio quality Adjusting the volume limit Adjusting the status light brightness Advanced settings...
  • Page 4 I hear a delay when using the external input with my TV Quick Start Mode I hear distortion when using the AUX input Deep Standby Connecting to a WPS network Resetting your HEOS device Restoring the HEOS device to factory defaults Contact Denon...
  • Page 5 Contents Setup Troubleshooting Status LED Appendix Status LED table Supported file types and codecs Supported audio formats (Optical) Specifications Information Trademarks License License information for the software used in the unit The Spotify software is subject to third party licenses found here:...
  • Page 6 Industry leading microsecond audio synchronization between HEOS device Legendary Denon audio quality If you are in a hurry, you can be enjoying great sounding music in no time by following the steps outlined in the HEOS Quick Start Guide (packaged with your HEOS device).
  • Page 7 Wireless Router - In order to use your HEOS music system, you should have a working wireless (Wi-Fi) network in your home. If you do not have a wireless network, please contact your local Denon dealer or electronics retailer to assist you with purchasing and installing a wireless network in your home.
  • Page 8 Contents Setup Troubleshooting Status LED Appendix o Controller requirements You can control your HEOS wireless multi-room sound system using the free HEOS app on any iOS or Android mobile device that meets these minimum requirements: iOS Minimum Requirements Android Minimum Requirements iOS version 7.0 or later Android OS version 2.3 or later All resolutions...
  • Page 9 Contents Setup Troubleshooting Status LED Appendix Getting to know your HEOS Amp Unpack your HEOS Amp from the box and verify that the following items are included: A HEOS Amp B Quick Start Guide C Safety Instructions D Warranty (North America model only) E Extended Protection Plan F Audio/Setup cable (North America model only)
  • Page 10 Contents Setup Troubleshooting Status LED Appendix o Front panel A Status LED Please refer to the “Status LED table” for LED color and state meaning “Status LED table” (v p. 55).
  • Page 11 Contents Setup Troubleshooting Status LED Appendix o Controls A Volume Up/Down buttons (+, –) Adjusts the HEOS device’s volume level up or down. B Mute button (:) Mutes or unmutes the HEOS device’s volume.
  • Page 12 Contents Setup Troubleshooting Status LED Appendix o Back panel 5V1A OPTICAL IN NETWORK IMPEDANCE : 4 16 Class 2 Wiring LINE IN AUX IN CONNECT SPEAKERS WOOFER A AC input (AC IN) G Subwoofer Output (SUB WOOFER) Used to connect the power cord. (v p. 17) Used to connect this unit to a powered subwoofer.
  • Page 13 Contents Setup Troubleshooting Status LED Appendix Placing your HEOS Amp The HEOS Amp is designed to add HEOS multi-room audio functionality to an external device which offers audio amplification. You should place your HEOS Amp in a convenient location near the speakers you are connecting it to. The HEOS Amp must be within range of your wireless network.
  • Page 14 Contents Setup Troubleshooting Status LED Appendix Connecting external devices o Connecting speakers NOTE Carefully check the left (L) and right (R) channels and + (red) and – 0 Disconnect this unit’s power plug from the power outlet before connecting the (black) polarities on the speakers being connected to this unit, and be speakers.
  • Page 15 Contents Setup Troubleshooting Status LED Appendix o Connecting a subwoofer o Connecting an audio playback device Connect the SUB WOOFER output to an input on your powered Connect the LINE IN, AUX IN or OPTICAL IN input to an audio subwoofer or your subwoofer amplifier.
  • Page 16 Contents Setup Troubleshooting Status LED Appendix o Connecting a USB storage device Connect a FAT32 formatted USB mass storage device containing digital music files to any available USB port. USB memory device 5V1A OPTICAL IN NETWORK IMPEDANCE : 4 16 Class 2 Wiring LINE IN AUX IN...
  • Page 17 HEOS system right in the palm of your hand, from anywhere in your home. Download the HEOS app for iOS or Android by searching App Store , Google Play™ store or Amazon for “HEOS by Denon”. For the purpose of improvement, the specifications and design are subject to change without notice.
  • Page 18 Contents Setup Setup Troubleshooting Status LED Appendix Setting up your first HEOS Amp Once you have placed your HEOS Amp in your listening room and have downloaded the HEOS app, you are ready to configure your HEOS Amp for music playback. This involves following a few simple steps to get the HEOS Amp connected to your existing home network: Caution DO NOT connect the Ethernet cable if you are connecting your HEOS Amp to a wireless network.
  • Page 19 Contents Setup Troubleshooting Status LED Appendix Adding more HEOS devices The HEOS wireless multi-room sound system is a true multiroom audio system that automatically synchronizes audio playback between multiple HEOS devices so that the audio coming from different rooms is perfectly in sync and always sounds amazing! You can easily add up to 32 devices to your HEOS system.
  • Page 20 Contents Setup Troubleshooting Status LED Appendix Using your HEOS Amp Once you have your HEOS device connected to your network and the HEOS app installed on your mobile device, it’s easy to start enjoying your favorite music. You can listen to something different in every room or the same music perfectly synchronized in all rooms. It’s up to you! Selecting a room Rooms Drag one room into another to group them...
  • Page 21 Contents Setup Troubleshooting Status LED Appendix Listening to radio Playing music stored on your mobile device The HEOS system includes access to more than 100,000 free internet radio streams from all corners of the globe via the TuneIn radio service. Just select the TuneIn logo from the main “Music”...
  • Page 22 Contents Setup Troubleshooting Status LED Appendix Playing music from your networked PC Audio signal or NAS (Network Attached PC Storage) Select “Music Servers” from the “Music” tab. Select the name of your networked PC or NAS (network attached storage) server. Browse the music on your PC/NAS and select something to play.
  • Page 23 Contents Setup Troubleshooting Status LED Appendix Playing music from an external audio Audio signal device Connect an external audio device to the digital optical, analog RCA stereo or analog 3.5mm stereo input on the back of the HEOS Amp. Select “Inputs” from the “Music” tab. Select the name of the HEOS Amp and which input to which you connected the audio device in step 1.
  • Page 24 Contents Setup Troubleshooting Status LED Appendix Streaming an external audio device to Audio signal any HEOS device The sound from the audio device can be played directly on the selected device or digitized and sent over your network to other HEOS devices. Connect an external audio device to the digital optical, analog RCA stereo or analog 3.5mm stereo inputs on the back of the HEOS Amp.
  • Page 25 Contents Setup Troubleshooting Status LED Appendix Playing music from a USB device Audio signal Insert a FAT32 formatted USB device into the USB port on the back of the HEOS Amp. Select “USB Music” from the “Music” tab. Select the name of your HEOS device. Browse the music on your USB device and select something to play.
  • Page 26 Contents Setup Troubleshooting Status LED Appendix Playing music from Bluetooth device Audio signal o Pairing the HEOS device with your Bluetooth devices Activate the Bluetooth setting on your mobile device. Press and hold the Bluetooth button (V) located on the back of the HEOS Amp for 3 seconds and release the button when you see a pattern of two green flashes on the status LED.
  • Page 27 Contents Setup Troubleshooting Status LED Appendix o Changing your HEOS account HEOS account Tap the “Music” tab. o What is a HEOS account? Select the Settings a icon in the upper left corner of A HEOS account is master account or “keychain” for managing all of your HEOS music services with one single username and password.
  • Page 28 Contents Setup Troubleshooting Status LED Appendix o Changing music service settings Playing from streaming music services Tap the “Music” tab. A music service is an online music company that provides access to vast music collections via free and/or paid subscriptions. Depending upon your geographical location, there are several options to choose from.
  • Page 29 Contents Setup Troubleshooting Status LED Appendix o Changing the name of the inputs Managing inputs Select the name of the input you want to edit. If you connected external audio source components (like CD players, portable music players, Cable Boxes, etc...) to any of your HEOS devices Select "Name".
  • Page 30 Contents Setup Troubleshooting Status LED Appendix Managing your phone Your smartphone or tablet can be hidden if it does not need to be in the “Music Sources” menu. Select the Settings a icon located in the upper left corner of the main “Music” menu to display the Settings menu.
  • Page 31 Contents Setup Troubleshooting Status LED Appendix Listening to the same music in multiple Rooms Rooms rooms Drag one room into another to group them Drag one room into another to group them Dining Dining The HEOS system is a true multiroom audio system that automatically Song Name 1 Song Name 1 synchronizes audio playback between multiple devices so that the audio...
  • Page 32 Contents Setup Troubleshooting Status LED Appendix o Ungrouping rooms Rooms Rooms Tap the “Rooms” tab. Drag one room into another to group them Drag one room into another to group them Dining Dining Song Name 1 Song Name 1 Press and hold your finger on room that you want to remove from the group.
  • Page 33 Contents Setup Troubleshooting Status LED Appendix o Grouping all rooms (party mode) Rooms Rooms You can easily group the eight rooms together into Party Mode by Drag one room into another to group them Drag one room into another to group them using a “pinch”...
  • Page 34 Contents Setup Troubleshooting Status LED Appendix o Ungrouping all rooms Rooms Rooms You can easily ungroup all of your rooms and exit Party Mode by using Drag one room into another to group them Drag one room into another to group them a “spread”...
  • Page 35 Contents Setup Troubleshooting Status LED Appendix Using the now playing queue HEOS uses a Now Playing “Queue” to line up music that you want to listen to. Music can be selected from any of your local or online music sources (as long as they are not preprogrammed “radio”...
  • Page 36 Contents Setup Troubleshooting Status LED Appendix Rearranging the now playing queue Deleting songs from the play queue Once you have songs lined up in your queue, you might want to rearrange You can remove songs one at a time from the Now Playing Queue: the order or remove some songs: Tap the “Now Playing”...
  • Page 37 Contents Setup Troubleshooting Status LED Appendix Deleting all songs from the play queue Saving playlists You can remove all of the songs from the Now Playing Queue: You can save the Now Playing Queue as a HEOS Playlist that you can recall later.
  • Page 38 Contents Setup Troubleshooting Status LED Appendix o Deleting station from the HEOS favorite Using the favorite Tap the “Music” tab. HEOS uses a "HEOS Favorite" to line up station you want to start play quickly the favorite stations. Select "Favorite". Station can be selected from online music sources such as "Radio"...
  • Page 39 Contents Setup Troubleshooting Status LED Appendix Making adjustments You can adjust specific settings for each of your HEOS Amps in your Changing the wireless network system: connection Select the Settings a icon located in the upper left corner of the main “Music” menu to display the Select “Network”.
  • Page 40 Contents Setup Troubleshooting Status LED Appendix Adjusting the equalizer Adjusting the audio quality Selects the transcoding option for rebroadcasting audio from one HEOS Select “EQ”. device to another HEOS device (or group of devices) across the network. When set to high bit rate audio sources originating from the first device Adjust the Treble or Bass up or down.
  • Page 41 Contents Setup Troubleshooting Status LED Appendix Adjusting the volume limit You can set the maximum volume of the HEOS amplifiers to prevent sudden loud volume. Select “Volume Limit”. Select the maximum volume percentage (95, 90, 85, 80). NOTE 0 Depending on the speakers that are connected, the protection circuit may activate and the power may be turned off when music is played at a high volume.
  • Page 42 Contents Setup Troubleshooting Status LED Appendix o About wireless power saving Advanced settings The Wireless Power Saving feature saves power by turning off power to the wireless radio inside the HEOS device when the device is connected Caution to an Ethernet network. If you disconnect the Ethernet cable from the Adjusting these settings may disconnect your device from your network HEOS device, Wireless Power Saving will automatically turn off and the and possibly render your device unusable.
  • Page 43 Contents Setup Troubleshooting Status LED Appendix o Firmware upgrade o About Viewing technical details about the HEOS device. Select “Advanced”. Select “Advanced”. Select “FIRMWARE UPGRADE” tab. Select “ABOUT” tab. Update status Scroll down to see information about the device’s Manually check for a firmware upgrade. a.
  • Page 44 Contents Setup Troubleshooting Status LED Appendix Updating your system HEOS has the ability to add enhancements and updated functionality via your high speed Internet connection. Follow the instructions on the screen to update the HEOS device and/or your controller App. Select the Settings a icon located in the upper left corner of the main “Music”...
  • Page 45 Contents Setup Troubleshooting Status LED Appendix Advanced features There are a few advanced features of the HEOS system that you may want to explore once you become familiar with the basic operations. You can access the advanced features of the HEOS system by following these steps: Wireless performance Select the Settings a icon located in the upper left corner of the main “Music”...
  • Page 46 Submit diagnostics If you are having trouble with your network or HEOS system, you may be asked by Denon technical support personnel to select this option. This feature will automatically send Denon technical support diagnostic information about your HEOS system.
  • Page 47 Contents Setup Troubleshooting Status LED Appendix Power management Power modes o Quick Start Mode o Deep Standby To save power, the device will automatically enter “Quick Start Mode” The device also has the ability to automatically enter “Deep Standby” whenever there is no network access or playback for 20 minutes and whenever the wired or wireless network connection is removed for will automatically resume to full power whenever the device is selected more than 60 minutes in "Quick Start Mode".
  • Page 48 Alternatively, you can connect your device to your network router using the included Ethernet cable. Once connected via Ethernet, the HEOS by Denon App should recognize the device and you can manually move it to your wireless network using Settings/My Devices/Device_Name/Advanced/Network Settings.
  • Page 49 Contents Setup Troubleshooting Status LED Appendix Cannot pair a Bluetooth mobile device with the HEOS device Solution Refer to Page The connection from the Bluetooth mobile device is malfunctioning. Power cycle the mobile device, remove the pairing – information and re-pair the HEOS Amp to the mobile device. Press and hold the Bluetooth button for 3 seconds and release the button when you see a pattern of two flashes on the status LED.
  • Page 50 Contents Setup Troubleshooting Status LED Appendix My HEOS device turns off and the status LED flashes in red Solution Refer to Page The protection circuit has been activated due to a rise in temperature within your HEOS device. Turn the power off, wait about –...
  • Page 51 Contents Setup Troubleshooting Status LED Appendix Music cuts out or delays sometimes Solution Refer to Page Make sure your Internet connection is operating correctly. If you are sharing your network with other users or devices, they may be using most of your bandwidth (especially if they are streaming video). Make sure your HEOS devices are within range of your wireless network.
  • Page 52 Contents Setup Troubleshooting Status LED Appendix I hear distortion when using the AUX input Solution Refer to Page The analog output signals from some sources can be fairly strong. If the input level of the source device is turned up high, it －...
  • Page 53 Contents Setup Troubleshooting Status LED Appendix Resetting your HEOS device Solution Refer to Page Resetting your HEOS device will clear out the wireless network info, EQ, and name but retain it’s current software. You will have to – use Settings - Add Device to reconnect the HEOS device to your home network before it can be used. To reset your HEOS device, press and hold the Connect and Bluetooth buttons located on the back of the HEOS device for 5 seconds until the front LED begins to flash amber.
  • Page 54 Telephone: Toll Free (855) 499 2820 (M-F 10:00AM to 10:00PM EST / Sat 12:00PM to 8:00PM EST) For the other region: If you need additional help in solving problems, please contact Denon customer service in your area or visit HEOSbyDenon.com...
  • Page 55 Contents Setup Troubleshooting Status LED Status LED Appendix Status LED table Device Operation Description Front LED Action Rear LED Action No AC power or Deep Standby (off) (off) Plug in Booting (off) (blink) Ready-Configured and connected to your network (off) (solid) Not Connected to your network (solid)
  • Page 56 Contents Setup Troubleshooting Status LED Appendix Device Operation Description Front LED Action Rear LED Action Not connected (solid) (solid) Connect button was pressed (blink) (blink) Setup Cable connection is OK (solid) (solid) Connecting to your network (off) (blink)
  • Page 57 Contents Setup Troubleshooting Status LED Appendix Device Operation Description Front LED Action Rear LED Action Configured and connected to your network (off) (solid) Setup Error (solid) (solid) Updating (blink) (blink) Update Rebooting (off) (blink) Ready-Configured and connected to your network (off) (solid)
  • Page 58 Contents Setup Troubleshooting Status LED Appendix Device Operation Description Front LED Action Rear LED Action Soft reset - Clear user settings (solid) (fast blink) Hard reset - Factory restore (solid) (blink) Reset Rebooting (off) (blink) Ready-Not Configured (solid) (solid)
  • Page 59 Contents Setup Troubleshooting Status LED Appendix Device Operation Description Front LED Action Rear LED Action Firmware Error (off) (slow blink (NOT fade)) Errors Hardware Error (off) (fast blink) Network Error (solid) (solid) Volume Change (off) (quick blink) Mute (off) (slow blink)
  • Page 60 Contents Setup Troubleshooting Status LED Appendix Device Operation Description Front LED Action Rear LED Action a WPS session is active (fast blink) (fast blink) WPS connected (solid) (for 3 sec. solid) WPS time-out (solid) (for 3 sec. solid) Quick Start Mode (off) Power Management (solid)
  • Page 61 Contents Setup Troubleshooting Status LED Appendix Device Operation Description Front LED Action Rear LED Action Bluetooth pairing is active (two blinks) (two blinks) Bluetooth Connected （No Network) (off) (one blink) Bluetooth pairing is failed (for 3sec. solid) (for 3sec. solid)
  • Page 62 Contents Setup Troubleshooting Status LED Appendix Appendix Supported file types and codecs Frequency Sample Rate File Extension Codec Bit Rates 32/44.1/48 88.2/96/176.4 16/24 bit 192 kHz 32 kHz MPEG-1 Audio Layer 3 44.1 kHz 16 bit 32 - 320 kbps CBR/VBR 48 kHz 32 kHz...
  • Page 63 Contents Setup Troubleshooting Status LED Appendix Specifications o Audio section Power amplifier Rated output: 2-channel driving 100 W+100 W (6 Ω/ohms, 1 kHz, T.H.D. 0.7 %) Output connectors: 4 – 16 Ω/ohms THD+N: ANALOG IN: 0.5 %(1 kHz) S/N ratio (10 W, 6 Ω/ohms, IHF-A): ANALOG IN: 86 dB(IHF–A weighted) Frequency response: 10 Hz to 40 kHz: +1, -3 dB...
  • Page 64 Setup Troubleshooting Status LED Appendix o Dimensions (Unit : in. (mm)) DENON DENON 8 45/64 (221) 6 3/16 (157) o Weight : 6 lbs 3 oz (2.8 kg) For the purpose of improvement, the specifications and design are subject to change without notice.
  • Page 65 Contents Setup Troubleshooting Status LED Appendix Information Trademarks Google Play is a trademark of Google Inc. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by D&M Holdings Inc. is under license.
  • Page 66 GPL/LGPL software that is used in the product. COPYRIGHT AND PERMISSION NOTICE Denon provides the source code based on the GPL and LPGL licenses at the actual cost upon your request to our customer service Copyright (c) 1996 - 2014, Daniel Stenberg, <daniel@haxx.se>.
  • Page 67 Contents Setup Troubleshooting Status LED Appendix n e2fsprogs-libs-1.40.8/lib/uuid n expat-2.0.1 Redistribution and use in source and binary forms, with or without Copyright (c) 1998, 1999, 2000 Thai Open Source Software Center Ltd modification, are permitted provided that the following conditions are and Clark Cooper met: Copyright (c) 2001, 2002, 2003, 2004, 2005, 2006 Expat maintainers.
  • Page 68 Contents Setup Troubleshooting Status LED Appendix n getopt n jQuery http://cvsweb.netbsd.org/bsdweb.cgi/src/lib/libc/stdlib/ Copyright 2014 jQuery Foundation and other contributors Copyright (c) 1987, 1993, 1994 The Regents of the University of http://jquery.com/ California. All rights reserved. Permission is hereby granted, free of charge, to any person obtaining a Redistribution and use in source and binary forms, with or without copy of this software and associated documentation files (the modification, are permitted provided that the following conditions are...
  • Page 69 Contents Setup Troubleshooting Status LED Appendix n libpcap-1.4.0 n libtar-1.2.11 License: BSD Copyright (c) 1998-2003 University of Illinois Board of Trustees Copyright (c) 1998-2003 Mark D. Roth Redistribution and use in source and binary forms, with or without All rights reserved. modification, are permitted provided that the following conditions are met: Developed by: Campus Information Technologies and Educational...
  • Page 70 Contents Setup Troubleshooting Status LED Appendix n mDNS 320.10.80 n mongoose The majority of the source code in the mDNSResponder project is licensed https://github.com/cesanta/mongoose/ under the terms of the Apache License, Version 2.0, available from: Copyright (c) 2004-2013 Sergey Lyubka <http://www.apache.org/licenses/LICENSE-2.0>...
  • Page 71 Contents Setup Troubleshooting Status LED Appendix n openssl-1.0.0d THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT “AS IS” AND ANY EXPRESSED OR IMPLIED WARRANTIES, Copyright (c) 1998-2011 The OpenSSL Project. All rights reserved. INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES Redistribution and use in source and binary forms, with or without OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR modification, are permitted provided that the following conditions are...
  • Page 72 Contents Setup Troubleshooting Status LED Appendix n portmap-6.0 n pstdint.h-0.1.12 Copyright (c) 1990 The Regents of the University of California. BSD License: All rights reserved. Copyright (c) 2005-2011 Paul Hsieh Redistribution and use in source and binary forms, with or without All rights reserved.
  • Page 73 Contents Setup Troubleshooting Status LED Appendix n rl78flash 2000.3.1 n sqlite 2003.5.7 License SQLite Copyright ======= SQLite is in the The MIT License (MIT) Public Domain Copyright (c) 2012 Maxim Salov All of the code and documentation in SQLite has been dedicated to the public domain by the authors.
  • Page 74 Contents Setup Troubleshooting Status LED Appendix n strlcpy.c , v1.11 n tinyxml 2002.4.3 Copyright (c) 1998 Todd C. Miller <Todd.Miller@courtesan.com> www.sourceforge.net/projects/tinyxml Original file by Yves Berquin. Permission to use, copy, modify, and distribute this software for any purpose with or without fee is hereby granted, provided that the This software is provided 'as-is', without any express or implied above copyright notice and this permission notice appear in all warranty.
  • Page 75 Contents Setup Troubleshooting Status LED Appendix n Tremor n zlib http://wiki.xiph.org/index.php/Tremor http://www.zlib.net/ Copyright (c) 2002, Xiph.org Foundation zlib.h -- interface of the ‘zlib’ general purpose compression library version 1.2.3, July 18th, 2005 Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are Copyright (C) 1995-2004 Jean-loup Gailly and Mark Adler met:...
  • Page 77 3520 10430 00AD HEOSbyDenon.com Copyright © 2016 D&M Holdings Inc. All Rights Reserved.
