Dometic CU333 Installation Use And Service Manual

Dometic CU333 Installation Use And Service Manual

Hot and cooking, built-in hotplate, ovens, stoves, minigrills, hotplate-sink combos for recreational vehicles and marine
Hide thumbs Also See for CU333:
Table of Contents

Advertisement

Quick Links

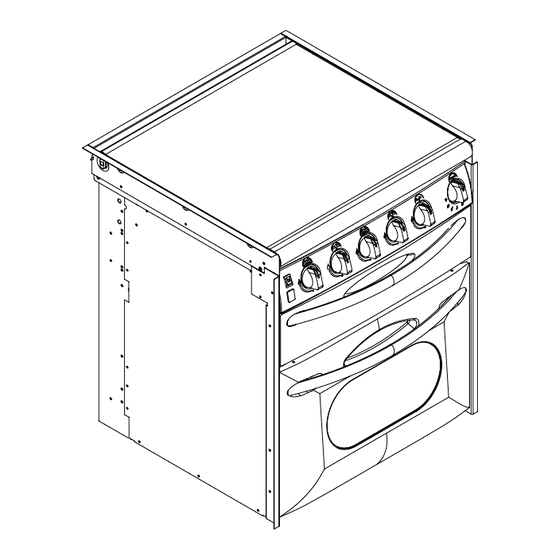

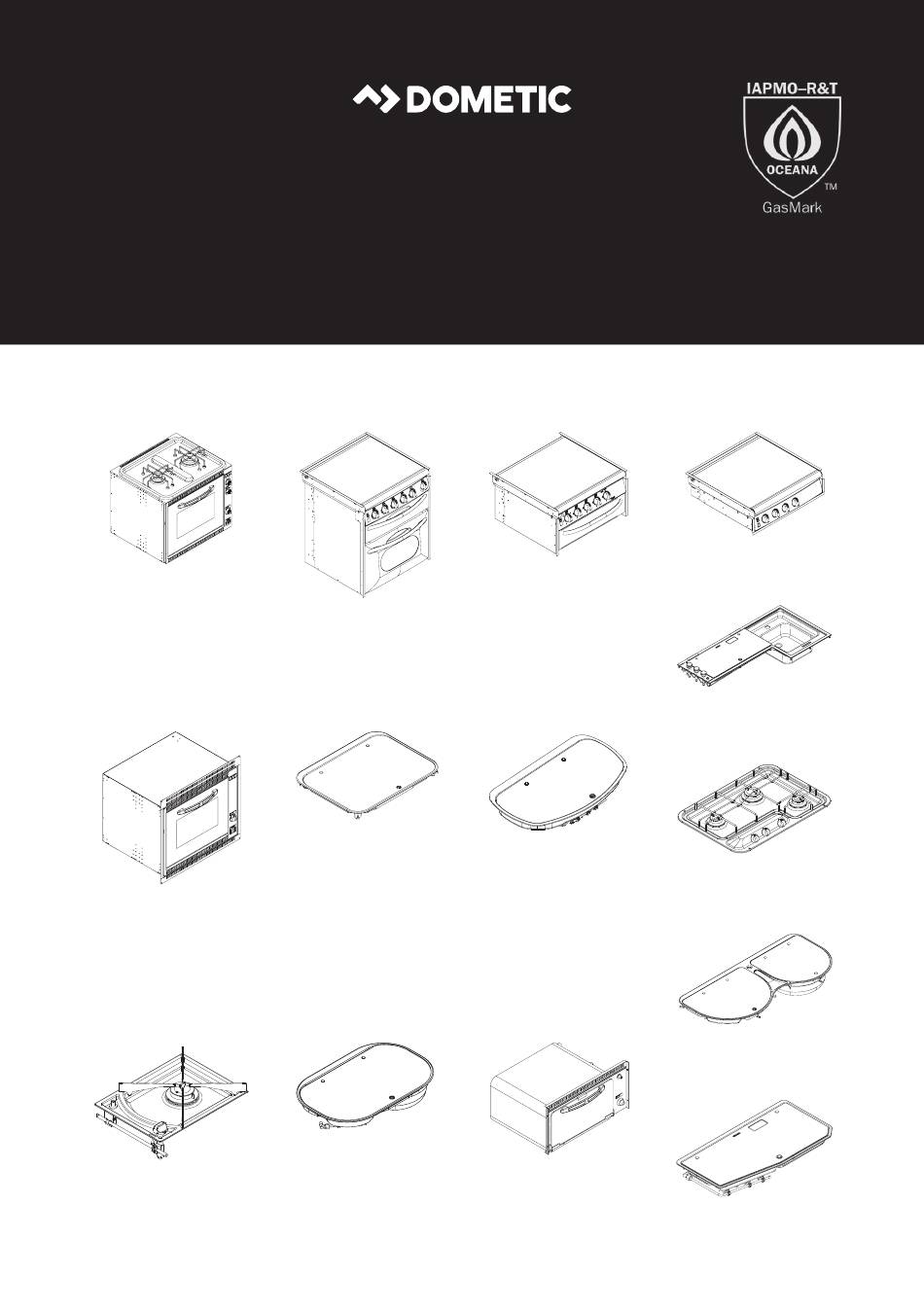

HOT AND COOKING
Built-in Hotplate, Ovens, Stoves, Minigrills, Hotplate-Sink
Combos for Recreational Vehicles and Marine.
Installation, use and service manual
CU311 - CU333 -
CU335 - CU311M -
CU333M - CU335M
FO311
PI8621A - PI8621R -
PI8621S
CU401 - CU401PE
PI8002 - PI8022 -
PI8003 - PI8023
MO8302 -
MO8322 - MO8303
- MO8323
CU402 - CU402PE
PI8403 - PI8403GL -
PI8423 - PI8423GL -
PI8443 - PI8463
VN555
CU403 - CU403PE
MO9503 - MO9523
PI0913 - PI0913A
MO8103 - MO8123
PI7903 - PI7923

Advertisement

Table of Contents
loading

Related Manuals for Dometic CU333

Summary of Contents for Dometic CU333

  • Page 1 HOT AND COOKING Built-in Hotplate, Ovens, Stoves, Minigrills, Hotplate-Sink Combos for Recreational Vehicles and Marine. Installation, use and service manual CU403 - CU403PE CU311 - CU333 - CU401 - CU401PE CU402 - CU402PE CU335 - CU311M - CU333M - CU335M...
  • Page 2 © 2021 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.

  • Page 3: Table Of Contents

    This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit www.dometic.com. CONTENTS GENERAL INFORMATION..............4...

  • Page 4: General Information

    CONTENTS Electric connection ..................15 Fixture ....................... 16 Testing (before leaving) ................16 5.6.1 Test point........................17 Duplicate data plate ..................17 SERVICING..................18 WARRANTY ..................21 FIGURES AND TECHNICAL DRAWINGS ............22 WHO TO CONTACT ...................40 GENERAL INFORMATION Symbols used in this manual Below are shown the various symbols used in the manual to highlight particularly important information.

  • Page 5: Warnings

    • Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer • Alterations to the product without express permission from the manufacturer • Use for purposes other than those described in this manual Dometic reserves the right to change product appearance and product specifications.

  • Page 6: Use

    4. USE Precautions WARNING This appliance must not be used by persons (including children) who suffer from psychical and motor related disorders or who are not familiar with or who have no experience with the appliance unless under supervision or are being instructed on how to use the appliance by WARNING the person responsible for their safety.

  • Page 7: Control Panel

    4. USE Control panel The following symbols identify which knob corresponds to which burner. NOTE: Different models could have similar knobs and symbols. This symbol is positioned near the burner knobs on the hotplate. The black dot indicates the position of the burner on the hotplate. This symbol is positioned near the oven burner knob.

  • Page 8: Hotplate

    4. USE Hotplate 4.3.1 Selecting the burner WARNING The flame must never extend beyond the edge of the pan. Centre the pan over the burner ensuring stability on the pan support. WARNING Pan diameter Burner Auxiliary 6 cm 16 cm Ø...

  • Page 9: Hotplate Flame Regulation

    4. USE 4.3.4 Hotplate flame regulation To regulate the flame turn the knob to the desired cooking flame. Oven CAUTION The oven burner must be ignited only with the oven door fully open. CAUTION WARNING The wire shelf, drip tray and oven dish when in the oven must be positioned so as to avoid coming into contact with the flames.

  • Page 10: Grill

    4. USE Grill CAUTION The grill burner must be ignited only with the door fully open. CAUTION WARNING If the burner does not ignite immediately, release the knob, wait for at least 10 seconds and ignite again. WARNING As accessible parts may be very hot when using the grill, keep children at a safe distance from grill.

  • Page 11: Flame Regulation Grill

    4. USE 4.5.3 Flame regulation grill For models CU311 - CU311M - CU333 - CU333M - CU335 - CU335M - FO311: the grill is to be used only at its maximum capacity. For all other models: to regulate flame, turn the knob to the desired cooking flame.

  • Page 12: Abnormal Operation

    4. USE WARNING Before cleaning the appliance always turn it off and disconnect from power supply and wait until it has cooled down. WARNING WARNING Do not use alcohol or solvents to clean any part of appliance. WARNING WARNING Never use abrasive and / or coarse cleaning materials or metal brushes to clean the glass oven door as these materials scratch the glass surface with the risk of shattering the glass.

  • Page 13: Fitting Cavity

    5. INSTALLATION Fitting cavity WARNING The appliance must fitted at an appropriate and safe distance from flammable materials. WARNING WARNING – For CU3… and FO311 models The cavity that the appliance is built into must be completely sealed off. It is important that the inside panels of the cavity are completely sealed and do not communicate with adjoining WARNING cavities or the outside.
  • Page 14 Ø 77 mm Grill Oven CONSUMPTION № № № № MJ/h № Model MJ/h MJ/h MJ/h MJ/h MJ/h CU311 24.6 CU311M 24.6 CU333 14.9 CU333M 14.9 CU335 20.8 CU335M 20.8 CU401 30.5 CU401PE 24.6 CU402 26.7 CU402PE 20.8 CU403 21.5 CU403PE 15.6...

  • Page 15: Electric Connection

    5. INSTALLATION NOMINAL GAS CONSUMPTION TOTAL AUXILIARY SEMI-RAPID RAPID NOMINAL GAS Ø 47 mm Ø 62 mm Ø 77 mm Grill Oven CONSUMPTION № № № № MJ/h № Model MJ/h MJ/h MJ/h MJ/h MJ/h PI7903 16.9 PI7923 16.9 PI8002 PI8022 PI8003 15.6...

  • Page 16: Fixture

    5. INSTALLATION CAUTION This appliance must be connected to a 12 V source. The circuit must be protected by a fuse of no more than 3 Ampere. CAUTION Ensure that the polarity of the connection is correct! WARNING Absolutely do not connect the appliance to the mains voltage (230 V~), this would destroy the components and cause a hazard for the user.

  • Page 17: Test Point

    6. SERVICING CAUTION In case the appliance fails to operate correctly after all checks have been carried out, shut off the gas supply at the main gas tap and refer to the authorized service provider in your area. CAUTION When satisfied with the appliance, please instruct the user on the correct method of operation. 5.6.1 Test point For models PI...

  • Page 18: Servicing

    6. SERVICING SERVICING WARNING The servicing shall be carried out only by authorized personnel. WARNING WARNING Do not modify this appliance. WARNING WARNING Before any servicing intervention shut off gas supply, disconnect all the electrical power supplies and remove the appliance. WARNING Hotplate: burners, injectors, thermocouples and ceramic igniters 1.
  • Page 19 7. WARRANTY 5. Disconnect the grill thermocouple lead from the gas cock 6. Remove the thermocouple. 7. Remove retaining screw from ceramic igniter support. 8. Disconnect ceramic igniter lead from appropriate electronic igniter unit. 9. Remove the ceramic igniter. 10. Remove the grill burner mounting screws (2) from top. 11.
  • Page 20 7. WARRANTY...

  • Page 21: Warranty

    If the product does not work as it should, please contact your retailer or the manufacturer’s branch in your country (see dometic.com/dealer). The warranty applicable to your product is 3 year(s). For repair and warranty processing, please include the following documents when you send in the device: •...

  • Page 22: Figures And Technical Drawings

    FIGURES AND TECHNICAL DRAWINGS FIGURES AND TECHNICAL DRAWINGS Figure 1 Figure 2 Figure 3...
  • Page 23 FIGURES AND TECHNICAL DRAWINGS Figure 4 CU311 - CU311M - CU333 - CU333M - CU335 - CU335M - CU401PE - CU402- CU402PE - CU403 - CU403PE - 500 mm MO8103 - MO8123 - MO8302 - MO8322 - MO8303 - MO8323 -...
  • Page 24 FIGURES AND TECHNICAL DRAWINGS FO311 - VN555 Figure 5 CU311 CU333 CU335 FRONT VIEW SIDE VIEW 500 mm 415 mm MIN. 45 mm MIN. 460 mm...
  • Page 25 FIGURES AND TECHNICAL DRAWINGS CU311M CU333M FRONT VIEW SIDE VIEW CU335M 524 mm 500 mm CU401 CU401PE TOP VIEW FRONT VIEW SIDE VIEW 488 mm 479 mm MIN. 494 mm MIN. 21 mm 20 mm 488 mm 20 mm MIN. 500 mm VENT (INCLUDED) CU402 CU402PE...
  • Page 26 FIGURES AND 488 mm TECHNICAL DRAWINGS 20 mm 20 mm MIN. 500 mm CU403 CU403PE TOP VIEW MIN. 494 mm FRONT VIEW SIDE VIEW 488 mm 479 mm MIN. 21 mm 20 mm 488 mm 20 mm MIN. 500 mm FO311 FR ONT VIEW SIDE VIEW...
  • Page 27 FIGURES AND TECHNICAL DRAWINGS PI8002 PI8022 233 mm 233 mm 233 mm 233 mm 358 mm 358 mm 466 mm 466 mm 273 mm 273 mm PI8003 PI8023 273 mm 273 mm 428 mm 428 mm 546 mm 546 mm PI8403 - PI8403GL 956 mm PI8423 - PI8423GL...
  • Page 28 FIGURES AND TECHNICAL DRAWINGS Y mm PI8621A PI8621R 3 mm 233 mm 233 mm PI8621S SEZ.A-A SEZ. A-A 224 mm 224 mm 216 mm 358 mm 4 mm 4 mm 4 mm 466 mm 3 mm 3 mm 5 mm 216 mm 273 mm 273 mm...
  • Page 29 FIGURES AND TECHNICAL DRAWINGS MO8302 MO8322 MO8303 MO8323 390 mm 370 mm 11 mm 11 mm 314 mm 19 mm 222,4 mm 232,5 mm 11 mm SEZ. A-A 666 mm MO9503 MO9523 980 mm SEZ. A-A...
  • Page 30 FIGURES AND TECHNICAL DRAWINGS PI7903 PI7923 215 mm 225 mm 214 mm 48 mm 135 mm 135 mm 48 mm 15 mm ° 130° 145° 145° 296 mm 58,2 mm 50 mm 55 mm ° ° 39,5 mm 140° 15 mm 11 °...
  • Page 31 FIGURES AND TECHNICAL DRAWINGS Figure 6 CU311 CU333 CU335 190 mm CU311M CU335M CU333M 210 mm...
  • Page 32 FIGURES AND TECHNICAL DRAWINGS CU401 CU401PE CU402 CU402PE CU403 CU403PE...
  • Page 33 FIGURES AND TECHNICAL DRAWINGS FO311 FIG. 3 MOD: 7003 PI7203 7023 PI7223 7103 PI7703 7123 PI7723 MO8302 PI8403 MO8303 PI8423 MO8322 PI8443 MO8323 PI8463 MO8342 PI8802D MO8362 PI8802S MO8801D PI8822D MO8801S PI8822S MO8821D PI8842D MO8821S PI8842S MO9202D PI8862D MO9202S PI8862S MO9222D PI9003 MO9222S...
  • Page 34 FIGURES AND TECHNICAL DRAWINGS PI8002 PI8022 PI8003 PI8023 ≥ 21 mm ≤ 25 mm ≥ 16 mm ≤ 21 mm FIG. 3 MO8302 - MO8322 MO8303 - MO8323 MOD: PI8403 - PI8403GL 7003 PI7203 PI8423 - PI8423GL 7023 PI7223 PI8443 - PI8463 7103 PI7703 7123...
  • Page 35 FIGURES AND TECHNICAL DRAWINGS MO8103 MO8123 ≥ 21 mm ≤ 25 mm ≥ 16 mm ≤ 21 mm MO9503 MO9523 ≥ 21 mm ≤ 25 mm MAX 16 mm ≥ 16 mm ≤ 21 mm...
  • Page 36 FIGURES AND TECHNICAL DRAWINGS PI7903 PI7923 VN555...
  • Page 37 FIGURES AND TECHNICAL DRAWINGS Figure 7 Figure 8...
  • Page 38 FIGURES AND TECHNICAL DRAWINGS Figure 9...

  • Page 40: Who To Contact

    YOUR LOCAL YOUR LOCAL YOUR LOCAL DEALER SUPPORT SALES OFFICE dometic.com/dealer dometic.com/contact dometic.com/sales-offices A complete list of Dometic companies, which comprise the Dometic Group, can be found in the public filings of: DOMETIC GROUP AB Hemvärnsgatan 15 SE-17154 Solna Sweden...
