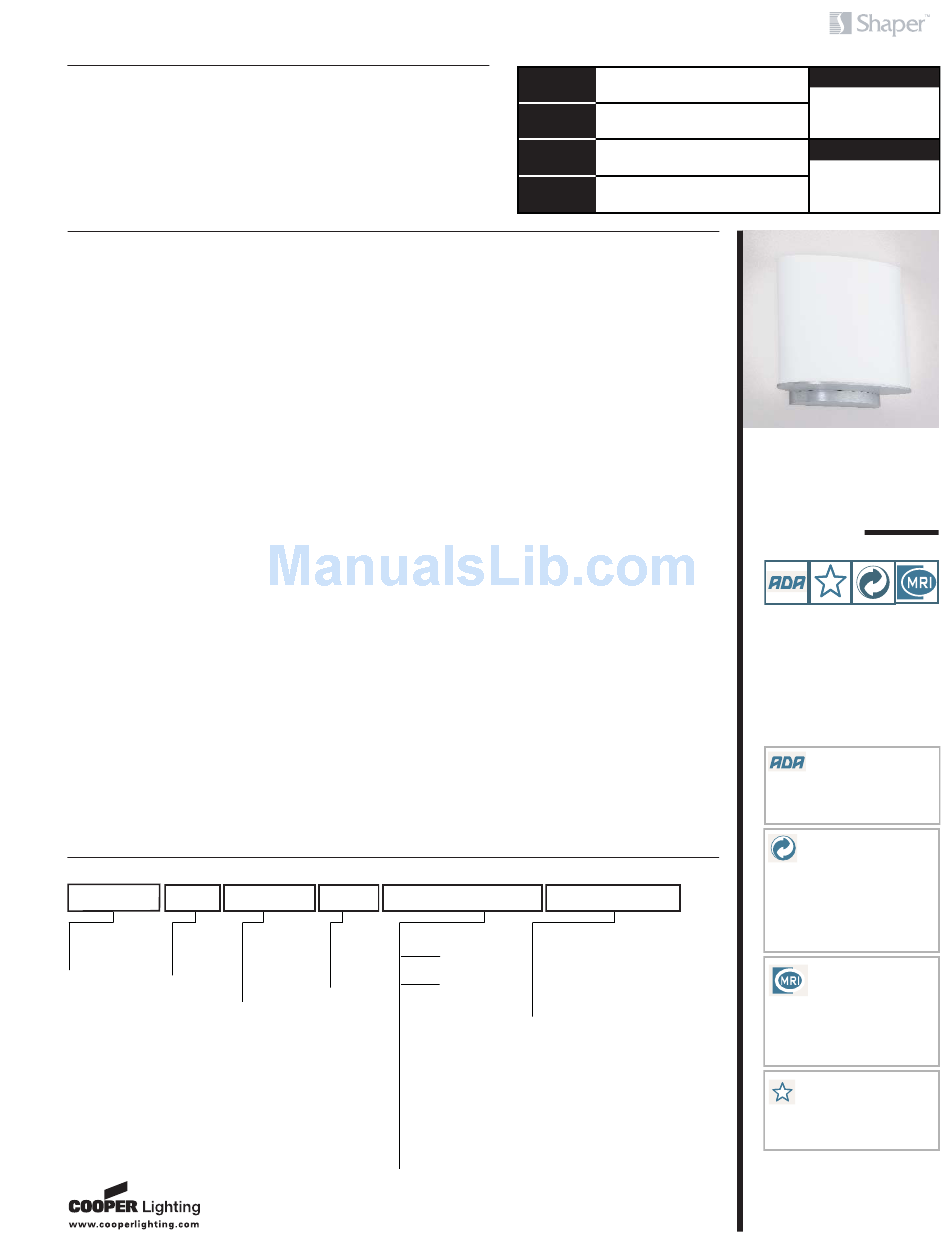

Cooper Lighting Interior Wall Luminaire 658 Specification Sheet

D E S C R I P T I O N
658 features a luminous shield with a modern die-cast base and is
ADA compliant.
S P E C I F I C AT I O N F E AT U R E S
M a te ri a l
Painted or plated solid die-cast
aluminum with a 1/8" matte
white acrylic shield.
F i n i s h
Standard: Matte White (MW).
Premium: Satin Chrome (SC),
Polished Chrome (PC), Satin
Brass (SB), Polished Brass (PB),
Lacquered Satin Aluminum (SAL)
Satin Copper (SCP), Polished
Copper (PCP), (NA) Natural
Aluminum, (SAL) Lacquered
Satin Aluminum, Satin Nickel
(SN), Polished Nickel (PN),
Lacquered Satin Chrome (SCL),
Lacquered Satin Nickel (SNL) or
Custom Color (CC).
O p t i c s
Refer to
www.shaperlighting.com for
complete photometrics.
B a l l a s t
Integral electronic HPF , multi-volt
120/277V (347V Canada),
thermally protected with end-of-
life circuitry to accommodate the
specified lamp wattage.
O R D E R I N G I N F O R M AT I O N
Sample Number: 658-10-INC/2/40-120V-PCP
Series Size Lamp
658 Luminous = 10 10" =
Shield
14 14" =
Notes:
1
Available in 10".
2
Available in 14".
3
Available with CFL only.
4
Supplied by others.
L a m p / S o cke t
10": Two (2) 13W (GX7) low
wattage CFL, two (2) 26W
(G24q-3) 4-pin quad CFL lamps
or two (2) 40W frosted T-10
lamps.
14": Two (2) 27W (2G11) high
lumen CFL lamps. CFL socket
injection molded plastic. INC
socket fired ceramic rated for
660W-250V. Lamps furnished by
others.
I n s t a l l a t i o n
Supplied with a universal
circular strap for a standard 4"
J-box or plaster ring.
O p t i o n s
Hand Painted Faux Alabaster
Diffuser (FD), MRI Applications
(INC only) - Contact factory,
Remote Emergency Battery -
Supplied by others (REM). MRI
options - Contact factory. Damp
Location (DL): All Painted
Finishes, Lacquered Satin
Chrome (SCL) and Lacquered
Satin Nickel (SNL) finishes only.
Energy Star Rating - Consult
factory.
Voltage Finish
1
CFL/2/13 120V
Standard
1
3 MW Matte White =
CFL/2/26 277V
2
3
CFL/2/27 347V
Premium
1
CC Custom Color =
INC/2/40
PB Polished Brass =
PC Polished Chrome =
PCP Polished Copper =
PN Polished Nickel =
SAL Lacquered Satin Aluminum =
SB Satin Brass =
SC Satin Chrome =
SCL Lacquered Satin Chrome =
SCP Satin Copper =
SN Satin Nickel =
SNL Lacquered Satin Nickel =
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
L a b e l s
U.L. and C.U.L approved for
indoor and damp location. See
options for damp location
finishing requirements. ADA
compliant.
M o d i f i c a t i o n s
Shaper's skilled craftspeople
with their depth of experience
offer the designer the flexibility
to modify standard wall
luminaires for project specific
solutions. Contact the factory
regarding scale options, unique
finishes, mounting, additional
materials/colors, or decorative
detailing.
Options
DL Damp Location =
REM Remote =
4
Emergency Battery
FD Hand Painted Faux =
Alabaster Diffuser
shaperlighting.com
Type
Date
658 SERIES
I n t e r i o r W a l l L u m i n a i r e
W a l l S c o n c e
L u m i n o u s S h i e l d
AMERICAN DISABILITIES
ACT (ADA)
Shaper offers a large selection of ADA
interior and exterior wall luminaires.
ADA requires all fixtures below 68" to
have a maximum projection of 4".
SUSTAINABLE
DESIGN
Shaper has a long-standing history
of offering environmentally-friendly
fixtures. The copper and bronze alloys
used in our exterior luminaires feature
up to 98% recycled content, contribute
less undesirable air emissions compared
to painted aluminum and are easy to
recycle.
MAGNETIC
RESONANCE
IMAGING (MRI)
Lighting fixtures for MRI facilities are
specialized and unique, requiring non-
ferrous construction. Fluorescent fixtures
cannot be used due to the ferrous parts in
ballasts and lampholders. Modified incan-
descent fixtures meet the requirements.
ENERGY
STAR
Shaper now offers a wide variety of
fixtures that can be provided with an
Energy Star Rating.
Refer to the Icon Legend
Link on shaperlighting.com.
