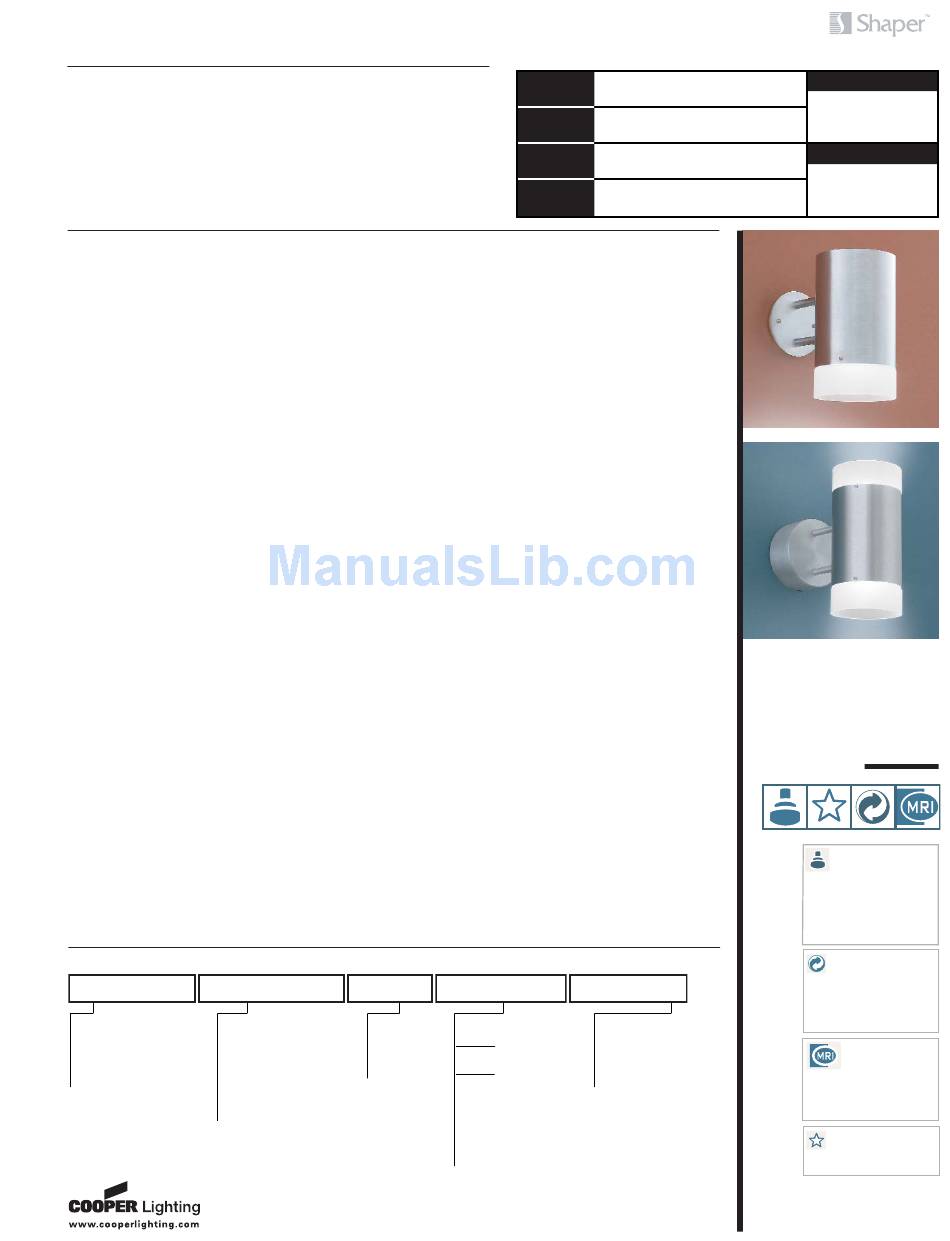

Cooper Lighting Interior Wall Luminaire 653 Specification Sheet

D E S C R I P T I O N
652 Direct Cylinder with Luminous Edge and 653 Direct/Indirect
Cylinder with a Luminous Edges and a double arm wall bracket.
S P E C I F I C AT I O N F E AT U R E S
M a te ri a l
Solid aluminum. 1/4" Matte
acrylic edge(s).
F i n i s h
Standard: Unlacquered Natural
Aluminum (NA).[Sustainable
Design] Premium: Matte White
(MW), Lacquered Satin
Aluminum (SAL), Satin Copper
(SCP), Polished Copper (PCP) or
Custom Color (CC).
O p t i c s
Refer to
www.shaperlighting.com for
complete photometrics.
B a l l a s t
Integral electronic HPF , multi-volt
120/277V (347V Canada),
thermally protected with end-of-
life circuitry to accommodate the
specified lamp wattage.
O R D E R I N G I N F O R M AT I O N
Sample Number: 652-CFL/1-277V-PCP
Series Lamp
652 Direct Cylinder = CFL/1 (26/32W-Triple)
w/ Luminous Edge
CFL/2 (26/32W-Triple)
653 Direct/Indirect Cylinder =
INC/1/75
w/ Luminous Edge
INC/2/75
PARH/1
Notes:
PARH/2
1
Available with 652 Series
2
Available with 653 Series
3
Available with CFL only.
4
Supplied by others.
L a m p / S o cke t
652: One (1) 26W or 32W
(GX24q-3) 4-pin triple CFL lamps,
one (1) 50WPAR20H or
75WPAR30 lamp or one (1) 75W
A-19 lamp. 653: Two (2) 26W or
32W (GX24q-3) 4-pin triple CFL
lamps, two 50WPAR20H or
75WPAR30 lamps or two (2) 75W
A-19 lamps. CFL socket injection
molded plastic. INC socket fired
ceramic rated for 660W-250V.
Lamps furnished by others.
I n s t a l l a t i o n
Supplied with a universal
circular strap for a standard 4"
J-box or plaster ring.
O p t i o n s
Dimming Ballast - Contact
factory, Remote Emergency
Battery - Supplied by others
(REM), Damp Location (DL): All
Voltage
1 120V
3
2 277V
1 3
347V
2
1
2
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
Painted Finishes only. Energy
Star Rating - Consult factory. MRI
Applications (INC only) - Contact
Factory.
L a b e l s
U.L. and C.U.L approved for
indoor and damp location. See
options for damp location
finishing requirements.
M o d i f i c a t i o n s
Shaper's skilled craftspeople
with their depth of experience
offer the designer the flexibility
to modify standard wall
luminaires for project specific
solutions. Contact the factory
regarding scale options, unique
finishes, mounting, additional
materials/colors, or decorative
detailing.
Finish Options
Standard DL Damp Location =
NA Natural Aluminum =
REM Remote =
Emergency
Premium
Battery
CC Custom Color =
MW Matte White =
PCP Polished Copper =
SAL Lacquered =
Satin Aluminum
SCP Satin Copper =
shaperlighting.com
652 SERIES
653 SERIES
I n t e r i o r W a l l L u m i n a i r e
S t a r t e r C o l l e c t i o n
A r m M o u n t C y l i n d e r
STARTER
COLLECTION
Shaper's exclusive Starter Collection fixtures
are featured throughout the Shaper product
line. The concept of offering highly styled,
affordable fixtures was introduced over
fourteen years ago and has become one of
our fastest growing lines. The design
premise, basic construction, clean lines
and unadorned shapes are highly desirable
in modern architectural environments.
SUSTAINABLE
DESIGN
Shaper has a long-standing history of
offering environmentally-friendly fixtures.
The copper and bronze alloys used in our
exterior luminaires feature up to 98% re-
cycled content, contribute less undesirable
air emissions compared to painted alumi-
num and are easy to recycle.
Lighting fixtures for MRI facilities are
4
specialized and unique, requiring non-
ferrous construction. Fluorescent fixtures
cannot be used due to the ferrous parts in
ballasts and lampholders. Modified incan-
descent fixtures meet the requirements.
ENERGY
STAR
Shaper now offers a wide variety
of fixtures that can be provided
with an Energy Star Rating.
Refer to the Icon Legend
Link on shaperlighting.com.
Type
Date
MAGNETIC
RESONANCE
IMAGING (MRI)
ADS042680
