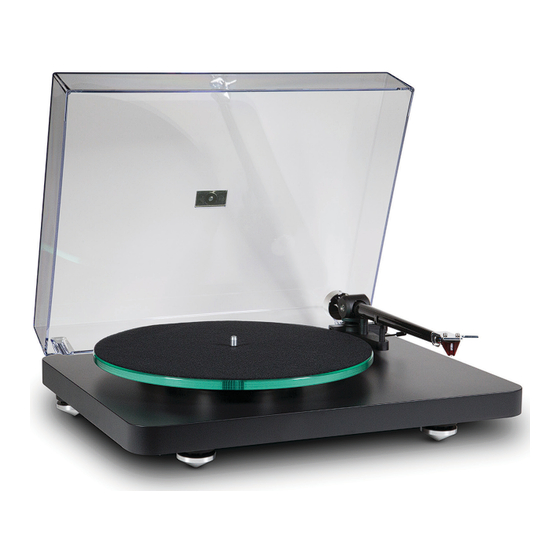

- Page 1 C 588 ® Turntable Owner’s Manual...
-
Page 2: Important Safety Instructions
(servicing) instructions in the literature accompanying the appliance. For your convenience, record the model number and serial number in the space provided ark of NAD Electronics International, a division of Lenbrook Industries Limited below. Please refer to them when you contact your dealer in case of difficulty. -
Page 3: Getting Started
White cotton gloves SAVE THE PACKAGING Please save the box and all of the packaging in which your C 588 arrived. Should you move or need to transport your C 588, this is the safest container in which to do so. We’ve seen too many otherwise perfect... -
Page 4: Identification Of Controls
IDENTIFICATION OF CONTROLS 1 Platter 8 Dustcover 15 Anti-Skating Adjustment 2 Felt Mat 9 Dustcover Hinges 16 Headshell With Finger Lift 3 Sub-Platter 10 Hinge Fasteners 17 Damped Feet 4 Motor Pulley 11 Counterweight 18 RCA Output, Earth Connection 5 Drive Belt 12 Tonearm 19 Power Supply Socket 6 Plinth... -
Page 5: Installation
SETUP PLATTER, SUB-PLATTER, FELT MAT AND DRIVE BELT VERTICAL TRACKING FORCE SETTING (VTF) INSTALLATION 1 Confirm the exact weight of your cartridge before setting the Vertical 1 Install sub-platter (3) and drive belt (5). Tracking Force (VTF). 2 Push the counterweight carefully towards the rear end of the counterweight support rod. -
Page 6: Vertical Tracking Angle Setting (Vta)
SETUP VERTICAL TRACKING ANGLE SETTING (VTA) ANTI-SKATING FORCE ADJUSTMENT 1 Set the Vertical Tracking Angle (VTA) by putting a record on the platter. The anti-skating force must be adjusted to the corresponding tracking 2 When the needle is lowered into the record groove, the tube of the force. -
Page 7: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE • The unit is not connected to the mains power supply. The platter doesn’t turn although the unit is switched on. • No mains power is being delivered at the socket. • The drive belt is not fitted properly or has slipped off. •... -
Page 8: General Specifications
435 x 340 x 125mm 17 1/8 x 13 7/16 x 4 15/16 inches Shipping weight 9.2 kg (20.3 lbs) Specifications are subject to change without notice. For updated documentation and features, please check out www.NADelectronics.com for the latest information about C 588. - Page 10 All rights reserved. NAD and the NAD logo are trademarks of NAD Electronics International, a division of Lenbrook Industries Limited. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International.
