Quick Start

Thank you for purchasing the MSI®
section provides demonstration diagrams about how to install your computer. Some
of the installations also provide video demonstrations. Please link to the URL to watch
it with the web browser on your phone or tablet. You may have even link to the URL by
scanning the QR code.

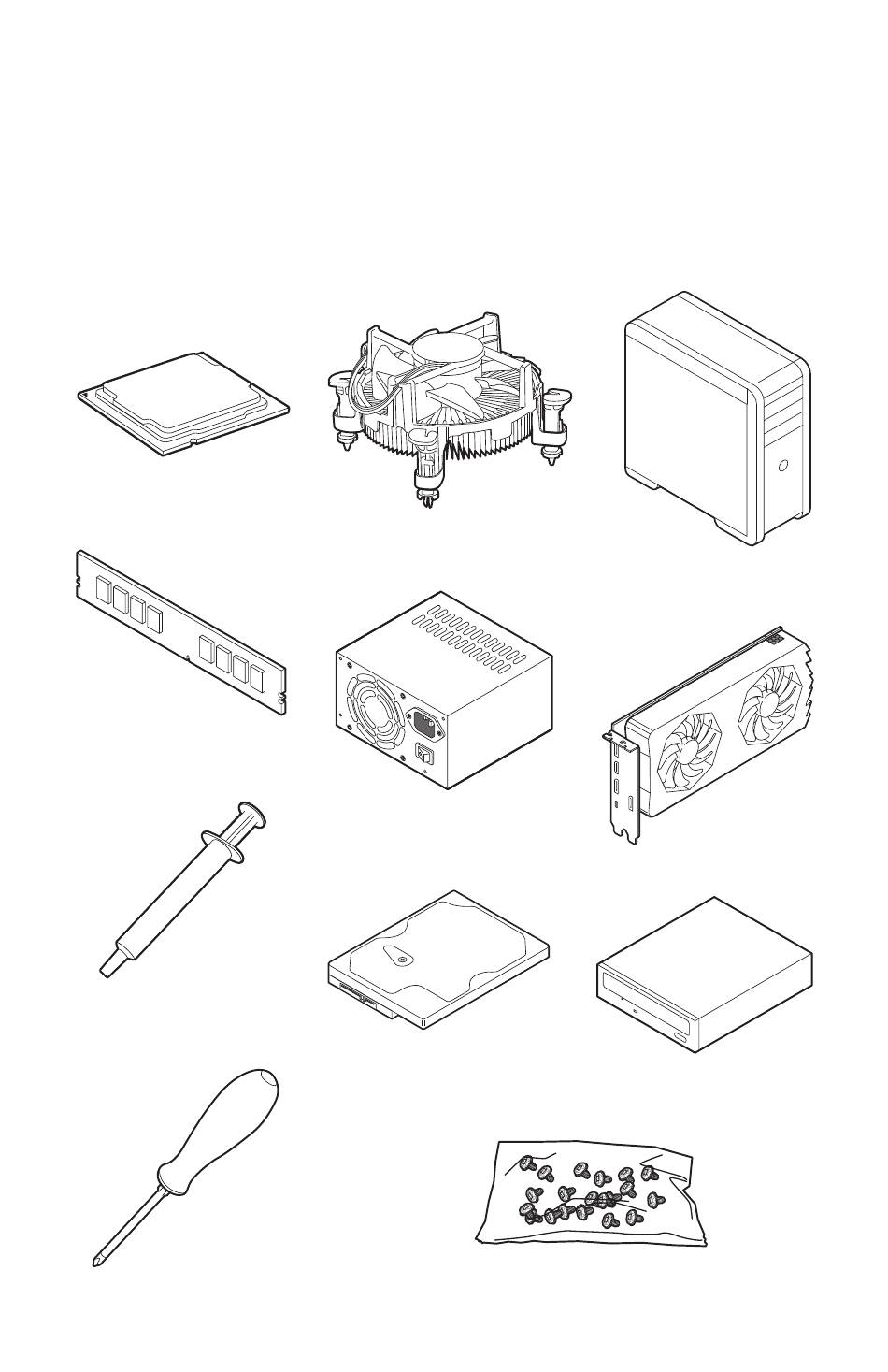

Preparing Tools and Components

Intel® LGA1200 CPU
DDR4 Memory
Thermal Paste
Phillips Screwdriver
B560-A PRO
motherboard. This Quick Start
CPU Fan
Power Supply Unit
SATA Hard Disk Drive
Graphics Card
SATA DVD Drive
A Package of Screws
Chassis
1
Quick Start

Advertisement

Table of Contents
loading

Related Manuals for MSI B560-A PRO

Summary of Contents for MSI B560-A PRO

  • Page 1: Quick Start

    Quick Start Thank you for purchasing the MSI® B560-A PRO motherboard. This Quick Start section provides demonstration diagrams about how to install your computer. Some of the installations also provide video demonstrations. Please link to the URL to watch it with the web browser on your phone or tablet. You may have even link to the URL by scanning the QR code.

  • Page 2: Safety Information

    Safety Information ∙ The components included in this package are prone to damage from electrostatic discharge (ESD). Please adhere to the following instructions to ensure successful computer assembly. ∙ Ensure that all components are securely connected. Loose connections may cause the computer to not recognize a component or fail to start.

  • Page 3: Case Stand-Off Notification

    Case stand-off notification Before installing the motherboard into the case, install first the necessary mounting stand-off required for a motherboard on the mounting plate in the case. To prevent damage to the motherboard, any unnecessary mounting stand-off between the motherboard circuits and the computer case is prohibited. The Case standoff keep out zone signs will be marked on the backside of motherboard (as shown below) to serve as a warning to user.

  • Page 4: Installing A Processor

    Installing a Processor ⚽ https://youtu.be/4ce91YC3Oww Quick Start...

  • Page 5: Installing Ddr4 Memory

    Installing DDR4 memory ⚽ http://youtu.be/T03aDrJPyQs DIMMA1 DIMMA2 DIMMA2 DIMMA2 DIMMB1 DIMMB2 DIMMB2 Quick Start...

  • Page 6: Connecting The Front Panel Header

    Connecting the Front Panel Header ⚽ http://youtu.be/DPELIdVNZUI Power LED Power Switch JFP1 Reserved HDD LED Reset Switch HDD LED + Power LED + HDD LED - Power LED - Reset Switch Power Switch JFP1 Reset Switch Power Switch Reserved No Pin HDD LED - HDD LED HDD LED +...

  • Page 7: Installing The Motherboard

    Installing the Motherboard ⚽ https://youtu.be/wWI6Qt51Wnc Torque: 3 kgf·cm* BAT1 *3 kgf·cm = 0.3 N·m = 2.6 lbf·in Quick Start...

  • Page 8: Connecting The Power Connectors

    Connecting the Power Connectors ⚽ http://youtu.be/gkDYyR_83I4 PCIE_PWR1 ATX_PWR1 CPU_PWR2 CPU_PWR1 Quick Start...

  • Page 9: Installing Sata Drives

    Installing SATA Drives ⚽ http://youtu.be/RZsMpqxythc Quick Start...

  • Page 10: Installing A Graphics Card

    Installing a Graphics Card ⚽ http://youtu.be/mG0GZpr9w_A Quick Start...

  • Page 11: Connecting Peripheral Devices

    Connecting Peripheral Devices Quick Start...

  • Page 12: Power On

    Power On Quick Start...

  • Page 13: Table Of Contents

    Contents Quick Start ......................1 Preparing Tools and Components................1 Safety Information ....................2 Case stand-off notification ..................3 Installing a Processor .................... 4 Installing DDR4 memory ..................5 Connecting the Front Panel Header ..............6 Installing the Motherboard ..................7 Connecting the Power Connectors ................
  • Page 14 JRAINBOW1~2: Addressable RGB LED connectors ..........42 Onboard LEDs ...................... 43 EZ Debug LED ....................... 43 LED_SW1: EZ LED Control ................... 43 Installing OS, Drivers & MSI Center ..............44 Installing Windows® 10 ..................44 Installing Drivers ....................44 MSI Center ......................44 UEFI BIOS ......................

  • Page 15: Specifications

    ∙ Supports Dual-Channel mode ∙ Supports non-ECC, un-buffered memory ∙ Supports Intel® Extreme Memory Profile (XMP) * Please refer to www.msi.com for more information on compatible memory ∙ 2x PCIe x16 slots ▪ PCI_E1 (from CPU) ▫ Support up to PCIe 4.0 for 11th Gen Intel® CPU Expansion Slot ▫...
  • Page 16 ** PCI_E2 will be unavailable when installing M.2 SSD in the M2_3 slot. *** Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. ∙ Intel® B560 Chipset ▪...
  • Page 17 Continued from previous column 1x Realtek® RTL8125B 2.5Gbps LAN controller ∙ 1x 24-pin ATX main power connector ∙ 1x 8-pin ATX 12V power connector ∙ 1x 4-pin ATX 12V power connector ∙ 1x 6-pin PCIE power connector ∙ 6x SATA 6Gb/s connectors ∙...
  • Page 18 BIOS Features ∙ ACPI 6.2, SMBIOS 3.0 ∙ Multi-language ∙ Drivers ∙ MSI Center ∙ MSI APP Player (BlueStacks) ∙ Open Broadcaster Software (OBS) Software ∙ CPU-Z MSI GAMING ∙ Intel® Extreme Tuning Utility ∙ Google Chrome™, Google Toolbar, Google Drive ∙...
  • Page 19 Continued from previous column ∙ MSI Sound Tune ∙ Gaming Mode ∙ Creator Mode ∙ Game Highlights ∙ LAN Manager ∙ Mystic Light MSI Center ∙ Frozr AI Cooling Features ∙ User Scenario ∙ True Color ∙ Live Update ∙ Monitor ∙...
  • Page 20 ▪ Front USB Type-C ▪ Dual CPU Power ▪ SUPPLEMENTAL PCIE POWER CONNECTOR ▪ 2oz Copper thickened PCB ∙ Protection ▪ PCI-E Steel Armor ▪ Pre-installed I/O Shielding ∙ Experience ▪ MSI Center ▪ Click BIOS 5 ▪ CPU Cooler Tuning Specifications...

  • Page 21: Package Contents

    Package contents Please check the contents of your motherboard package. It should contain: Motherboard B560-A PRO Quick installation guide Documentation MSI reward program card Application Driver DVD Cables SATA 6Gb/s cables (2 cables/pack) Case badge M.2 screw + standoff (2 sets/pack) Accessories M.2 screw + standoff (1 set/pack)

  • Page 22: Block Diagram

    Block Diagram PCI_E1 PCIe x16 DDR4 2Channel DIMM A1/A2 M2_1 DIMM B1/B2 DMI x8 PCI_E2 PCIe x4 USB 3.2 Gen 2x2 20Gbps USB 3.2 Gen 2 10Gbps PCI_E3 SATA2 USB 3.2 Gen 1 5Gbps M2_2 M2_3 USB 2.0 Realtek LAN RTL8125B USB 2.0 Hub-GL850G SATA1/3/4/5/6...

  • Page 23: Rear I/O Panel

    Rear I/O Panel Audio Ports USB 2.0 2.5Gbps Type-A DisplayPort USB 3.2 USB 3.2 Optical Gen 1 Gen 2x2 S/PDIF-Out (5Gbps) (20Gbps) Type-A Type-C LAN Port LED Status Table Link/ Activity LED Speed LED Status Description Status Description No link 10 Mbps connection Yellow Linked...

  • Page 24: Realtek Audio Console

    Realtek Audio Console After Realtek Audio Console is installed. You can use it to change sound settings to get better sound experience. Application Enhancement Device Selection Main Volume Connector Settings Jack Status ∙ Device Selection - allows you to select a audio output source to change the related options.
  • Page 25 Audio jacks to headphone and microphone diagram Audio jacks to stereo speakers diagram AUDIO INPUT Audio jacks to 7.1-channel speakers diagram AUDIO INPUT Rear Front Side Center/ Subwoofer Rear I/O Panel...

  • Page 26: Overview Of Components

    Overview of Components CPU_FAN1 CPU_PWR2 JRAINBOW1 CPU_PWR1 Processor Socket JRGB2 PUMP_FAN1 ATX_PWR1 JUSB3 JUSB4 M2_1 SYS_FAN1 DIMMB2 DIMMB1 PCI_E1 DIMMA2 DIMMA1 BAT1 M2_2 JBAT1 SATA▼1▲2 PCI_E2 SATA▼3▲4 M2_3 JDASH1 SYS_FAN4 JTPM1 PCI_E3 JCI1 JAUD1 SYS_FAN5 JFP1 JRGB1 JFP2 JRAINBOW2 SATA6 SYS_FAN2 SYS_FAN3 SATA5...
  • Page 27 Component Contents Port Name Port Type Page CPU_FAN1, PUMP_ Fan Connectors FAN1, SYS_FAN1~5 CPU_PWR1~2, ATX_ Power Connectors PWR1, PCIE_PWR1 CPU Socket LGA1200 CPU Socket DIMM Slots Memory slots JAUD1 Front Audio Connector JBAT1 Clear CMOS (Reset BIOS) Jumper JCI1 Chassis Intrusion Connector JDASH1 Tuning Controller connector JFP1, JFP2...

  • Page 28: Cpu Socket

    ∙ the CPU. ∙ Please retain the CPU protective cap after installing the processor. MSI will deal with Return Merchandise Authorization (RMA) requests if only the motherboard comes with the protective cap on the CPU socket. When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink ∙...

  • Page 29: Dimm Slots

    It is recommended to use a more efficient memory cooling system for full DIMMs ∙ installation or overclocking. The stability and compatibility of installed memory module depend on installed CPU ∙ and devices when overclocking. ∙ Please refer to www.msi.com for more information on compatible memory. Overview of Components...

  • Page 30: Pci_E1~3: Pcie Expansion Slots

    PCI_E3: PCIe 3.0 x1 (From B560 chipset) ⚠ Important If you install a large and heavy graphics card, you need to use a tool such as MSI ∙ Graphics Card Bolster to support its weight to prevent deformation of the slot.

  • Page 31: M2_1~3: M.2 Slots (Key M)

    M2_1~3: M.2 Slots (Key M) ⚽ Video Demonstration Watch the video to learn how to Install M.2 SSD. https://youtu.be/2UeWMgjwogU M2_1 M2_2 M2_3 ⚠ Important Intel® RST only supports PCIe M.2 SSD with UEFI ROM. ∙ ∙ Intel® Optane™ Memory Ready for M2_3 slot only. Installing M.2 module 1.
  • Page 32 3. Secure the supplied M.2 standoff according to your M.2 SSD length if need. 4. Insert your M.2 SSD into the M.2 slot at a 30-degree angle. 5. Secure the M.2 SSD in place with the supplied M.2 8.5H screw. ⚠...

  • Page 33: Sata1~6: Sata 6Gb/S Connectors

    SATA1~6: SATA 6Gb/s Connectors These connectors are SATA 6Gb/s interface ports. Each connector can connect to one SATA device. SATA2 SATA1 SATA4 SATA3 SATA5 SATA6 ⚠ Important Please do not fold the SATA cable at a 90-degree angle. Data loss may result during ∙...

  • Page 34: Jfp1, Jfp2: Front Panel Connectors

    JFP1, JFP2: Front Panel Connectors These connectors connect to the switches and LEDs on the front panel. Buzzer JFP2 Speaker Speaker - Buzzer + Buzzer - Speaker + Power LED Power Switch JFP1 Reserved HDD LED Reset Switch HDD LED + Power LED + HDD LED - Power LED -...

  • Page 35: Cpu_Pwr1~2, Atx_Pwr1, Pcie_Pwr1: Power Connectors

    CPU_PWR1~2, ATX_PWR1, PCIE_PWR1: Power Connectors These connectors allow you to connect an ATX power supply. CPU_PWR1 Ground +12V Ground +12V Ground +12V Ground +12V CPU_PWR2 Ground +12V Ground +12V +3.3V +3.3V +3.3V -12V Ground Ground PS-ON# Ground Ground Ground ATX_PWR1 Ground Ground PWR OK...

  • Page 36: Jusb4: Usb 3.2 Gen 2 Type-C Connector

    JUSB4: USB 3.2 Gen 2 Type-C Connector This connector allows you to connect USB 3.2 Gen 2 Type-C connector on the front panel. The connector possesses a foolproof design. When you connect the cable, be sure to connect it with the corresponding orientation. USB Type-C Cable JUSB4 USB Type-C port on...

  • Page 37: Jusb1~2: Usb 2.0 Connectors

    Note that the VCC and Ground pins must be connected correctly to avoid possible ∙ damage. In order to recharge your iPad, iPhone and iPod through USB ports, please install ∙ MSI® Center utility. JTBT1: Thunderbolt Add-on Card Connector This connector allows you to connect the add-on Thunderbolt I/O card. TBT_FORCE_PWR TBT_S0IX_ENTRY_REQ...

  • Page 38: Cpu_Fan1, Pump_Fan1, Sys_Fan1~5: Fan Connectors

    CPU_FAN1, PUMP_FAN1, SYS_FAN1~5: Fan Connectors Fan connectors can be classified as PWM (Pulse Width Modulation) Mode or DC Mode. PWM Mode fan connectors provide constant 12V output and adjust fan speed with speed control signal. DC Mode fan connectors control fan speed by changing voltage. The auto mode fan connectors can automatically detect PWM and DC mode.

  • Page 39: Jci1: Chassis Intrusion Connector

    JCI1: Chassis Intrusion Connector This connector allows you to connect the chassis intrusion switch cable. Normal Trigger the chassis (default) intrusion event Using chassis intrusion detector 1. Connect the JCI1 connector to the chassis intrusion switch/ sensor on the chassis. 2.

  • Page 40: Jbat1: Clear Cmos (Reset Bios) Jumper

    JBAT1: Clear CMOS (Reset BIOS) Jumper There is CMOS memory onboard that is external powered from a battery located on the motherboard to save system configuration data. If you want to clear the system configuration, set the jumpers to clear the CMOS memory. Keep Data Clear CMOS/ (default)

  • Page 41: Jrgb1~2: Rgb Led Connectors

    (12V/G/R/B) with the maximum power rating of 3A (12V). Always turn off the power supply and unplug the power cord from the power outlet ∙ before installing or removing the RGB LED strip. Please use MSI’s software to control the extended LED strip. ∙ Overview of Components...

  • Page 42: Jrainbow1~2: Addressable Rgb Led Connectors

    (5V). In the case of 20% brightness, the connector supports up to 200 LEDs. ∙ Always turn off the power supply and unplug the power cord from the power outlet before installing or removing the RGB LED strip. Please use MSI’s software to control the extended LED strip. ∙ Overview of Components...

  • Page 43: Onboard Leds

    Onboard LEDs EZ Debug LED These LEDs indicate the debug status of the motherboard. CPU - indicates CPU is not detected or fail. DRAM - indicates DRAM is not detected or fail. VGA - indicates GPU is not detected or fail. BOOT - indicates the booting device is not detected or fail.

  • Page 44: Installing Os, Drivers & Msi Center

    MSI Center is an application that helps you easily optimize game settings and smoothly use content creation softwares. It also allows you to control and synchronize LED light effects on PCs and other MSI products. With MSI Center, you can customize ideal modes, monitor system performance, and adjust fan speed.

  • Page 45: Uefi Bios

    UEFI BIOS MSI UEFI BIOS is compatible with UEFI (Unified Extensible Firmware Interface) architecture. The UEFI BIOS firmware infrastructure has many new functions and advantages that traditional BIOS cannot achieve. It will fully support future PCs and devices that comply with UEFI firmware architecture.

  • Page 46: Bios Setup

    * When you press F10, a confirmation window appears and it provides the modification information. Select between Yes or No to confirm your choice. BIOS User Guide If you’d like to know more instructions on setting up the BIOS, please refer to http://download.msi.com/manual/mb/Intel500BIOS.pdf or scan the QR code to access. UEFI BIOS...

  • Page 47: Resetting Bios

    Updating BIOS Updating BIOS with M-FLASH Before updating: Please download the latest BIOS file that matches your motherboard model from MSI website. And then save the BIOS file into the USB flash drive. To update BIOS: 1. Insert the USB flash drive that contains the update file into the USB port.
  • Page 48 ∙ Please close all other application software before updating the BIOS. To update BIOS: 1. Install and launch MSI CENTER and go to Support page. 2. Select Live Update and click on the Advanced button. 3. Select the BIOS file and click on the Install button.

  • Page 49: Intel® Optane™ Memory Configuration

    Optane™ memory, please note that it requires Windows 10 64-bit operating system. Intel® Optane™ Memory User Guide If you’d like to know more instructions on how to enable or remove Intel® Optane™ Memory, please refer to http://download.msi.com/manual/mb/Optane.pdf or scan the QR code to access. ⚠ WARNING After you enable Intel®...

  • Page 50: Troubleshooting

    Troubleshooting Lost BIOS password Before sending the motherboard for RMA repair, try to go over troubleshooting ∙ Clear the CMOS, but that will cause guide first to see if your got similar you to lose all customized settings in the symptoms as mentioned below.
  • Page 51 The point of contact for regulatory matters is MSI, MSI-NL Eindhoven 5706 5692 ER Son. y Visit the MSI website and locate a nearby distributor for further recycling information. KC인증서 y Users may also reach us at gpcontdev@msi.com for 상호: (주)엠에스아이코리아...
  • Page 52 MSI will comply with the product take estos residuos. back requirements at the end of life of MSI-branded NEDERLANDS products that are sold into the EU.
  • Page 53 MSI si adeguerà a tale Direttiva ritirando tutti i prodotti marchiati MSI che sono stati venduti all’interno dell’Unione Europea alla fine del loro ciclo di vita.
  • Page 54 Copyright © 2021 All rights reserved. contact your place of purchase or local distributor. The MSI logo used is a registered trademark of Alternatively, please try the following help resources Micro-Star Int’l Co., Ltd. All other marks and names for further guidance.
