Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com
56x
Infrared Thermometers
Users Manual
August 2010
©2010 Fluke Corporation, All rights reserved. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.
Advertisement
Table of Contents
Related Manuals for Fluke 56 Series
Summary of Contents for Fluke 56 Series
- Page 1 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com Infrared Thermometers Users Manual August 2010 ©2010 Fluke Corporation, All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies.
- Page 2 Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is available only if product is purchased through a Fluke authorized sales outlet or Buyer has paid the applicable international price.
-
Page 3: Table Of Contents
Table of Contents Title Page Introduction......................1 Contacting Fluke....................1 Safety Information ..................... 2 Features......................5 561 Display ......................6 566/568 Display....................7 566/568 Menu Overview ................7 Save ....................... 8 Light ......................8 Memory ......................9 Emissivity Menu.................... 9 °C and °F ....................... - Page 4 Users Manual Maintenance....................... 22 Battery Charge....................22 Changing the Batteries .................. 22 Cleaning the Lens ..................23 Cleaning the Housing ..................23 User Replaceable Parts and Accessories............23 User Replaceable Parts .................. 23 Accessories ....................24 Recommended Temperature Probes.............. 24 Specifications.....................
- Page 5 List of Tables Table Title Page Symbols........................3 Top-Level Menu Description ................. 8 Surface Emissivity (561)..................10 Nominal Surface Emissivity (566/568)..............11 Buttons and Connector ................... 15 Troubleshooting ..................... 21 Replaceable Parts ....................23 Recommended Temperature Probes............... 24...
- Page 6 Users Manual...
- Page 7 List of Figures Figure Title Page 561 Laser Safety Markings ..................4 566/568 Laser Safety Markings ................4 Thermometer Display..................... 6 Menu Navigation....................7 How the Thermometer Works................16 Locating a Hot or Cold Spot .................. 17 Distance and Spot Size................... 18 Field of View......................
- Page 8 Users Manual...
-
Page 9: Introduction

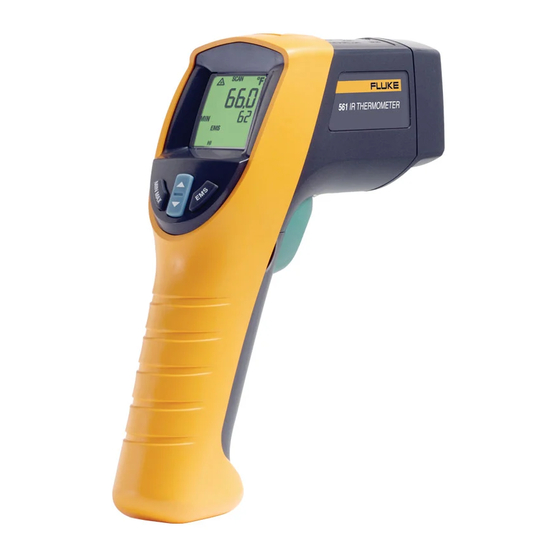

Infrared Thermometers Introduction The 561, 566 and 568 Infrared Thermometers (“the thermometers” or “the Product”) are for non-contact temperature measurement. These thermometers determine an object’s surface temperature by measuring the amount of infrared energy radiated by the object’s surface. The thermometers also support contact- temperature measurement via K-type thermocouple. -
Page 10: Safety Information
Users Manual Safety Information A Warning identifies conditions and actions that pose hazard(s) to the user; A Caution identifies conditions and procedures that could cause Product damage, equipment under test damage, or permanent loss of data. Symbols used on the Product and in this manual are explained in Table 1 and Figures 1 and 2. - Page 11 Conforms to requirements of European Union and European Free Trade Association (EFTA) °C Celsius °F Fahrenheit Battery Do not dispose of this product as unsorted municipal waste. Go to Fluke’s web site for recycling information. Battery „ China metrology certification mark for measuring instruments manufactured in the Peoples...
- Page 12 Users Manual Laser Aperture AVOID EXPOSURE - LASER RADIATION IS EMITTED FROM THIS APERTURE CAUTION LASER RADIATION - DO NOT STARE INTO BEAM OUTPUT < 1mW WAVELENGTH 630 - 670nm CLASS 2 ( II ) LASER PRODUCT COMPLIES WITH FDA 21CFR 1040.10 AND 1040.11 COMPLIES WITH IEC 60825 efh010f.eps...
-
Page 13: Features
Infrared Thermometers Features Features 561: • Single-spot laser sighting • Backlit display • Current Temperature plus MAX, MIN, DIF, AVG temperature displays • Two AA batteries • Hard case • 80PK-1 and 80PK-11 K-type thermocouple probe • Adjustable emissivity and predefined emissivity table •... -
Page 14: 561 Display
Users Manual 561 Display The primary temperature display reports the current or last IR temperature read until the 7-second hold time elapses. The secondary temperature display reports current thermocouple temperature when a type-K thermocouple is attached. When a thermocouple is not connected, the small temperature display reports a choice of maximum, minimum, or difference between maximum and minimum temperature. -
Page 15: 566/568 Display
Infrared Thermometers 566/568 Display 566/568 Display The 566/568 thermometers display can show data in the following languages: • English • Spanish • French • German • Portuguese • Japanese • Simplified Chinese To change the displayed language, refer to “Setup”. 566/568 Menu Overview There are many settings that can be easily changed by using the menu. -
Page 16: Save
Users Manual Table 2. Top-Level Menu Description Center Right Left Level Description Description Softkey Softkey Softkey Adjust backlight Save Save reading to memory Menu Light brightness Review/delete memories Menu Set emissivity MnMx Enables Min/Max Menu Enable Avg/Diff °C/°F Toggle between C and F Menu Alarm Set and enable alarms... -
Page 17: Memory
Infrared Thermometers 566/568 Display Memory The thermometers can store measurement records including time, date, emissivity, and measurement record numbers (see “Save” for more information). The 566 can store 20 records and the 568 can store 99. To access records stored in memory: 1. - Page 18 Users Manual Table 3. Surface Emissivity (561) Materials Switch Setting Materials Switch Setting Aluminum Iron, Cast Oxidized Oxidized High, Medium Alloy A3003 Unoxidized Oxidized Molten Roughened Iron, Wrought Brass Dull High Burnished Lead Oxidized Rough Copper Oxidized Low, Medium Oxidized Medium Molybdenum Electrical Terminal...
-
Page 19: C And °F
Infrared Thermometers 566/568 Display Table 4. Nominal Surface Emissivity (566/568) Material Value Material Value Default**** 0.95 Glass (plate) 0.85 Aluminum* 0.30 Iron* 0.70 Asbestos 0.95 Lead* 0.50 Asphalt 0.95 0.94 Brass* 0.50 Paint 0.93 Ceramic 0.95 Plastic** 0.95 Concrete 0.95 Rubber 0.95 Copper*... -
Page 20: Alarm
Users Manual Note Min, Max, Avg, and Differential readings are saved as part of the saved data when either Min/Max or Avg/Dif mode is enabled. Alarm The thermometers have a programmable high and low alarm to designate high or low readings depending on the thresholds entered. When the alarm level is reached, an alarm will sound and the display will flash orange and white. -
Page 21: Setup
Infrared Thermometers 566/568 Display Setup From the Setup menu, the backlight, time and date, and display language can be changed. Backlight In normal use, the backlight is always on. Use this menu to change the backlight setting from on to off. Turning the backlight off conserves battery power. 1. -
Page 22: Language
Users Manual To change the date on the thermometer: 1. From the main menu, press the Menu softkey until Setup appears as the left softkey function. 2. Press the Setup softkey. 3. Press the down arrow softkey to select Time/Date. 4. -
Page 23: Deleting Individual Data Records
Infrared Thermometers Buttons and Connector Deleting Individual Data Records To delete individual records, press the View softkey and then use the down and up arrow softkeys to access the desired record. Once the desired record is shown, press the Yes softkey to delete the record. To cancel data deletion, pull the trigger. -
Page 24: How The Thermometers Work
Users Manual How the Thermometers Work Infrared thermometers measure the surface temperature of an object. The thermometer’s optics sense emitted, reflected, and transmitted energy, which is collected and focused onto a detector. The unit’s electronics translate the signal into a temperature reading which the unit displays (see Figure 5). Reflected energy Emitted Energy... -
Page 25: Locating A Hot Or Cold Spot
Infrared Thermometers Operating the Thermometer Locating a Hot or Cold Spot To find a hot or cold spot, aim the thermometer outside the desired area. Then, slowly scan across the area with an up and down motion until you locate the hot or cold spot (see Figure 6). -
Page 26: Distance And Spot Size
Users Manual Distance and Spot Size As the distance (D) from the object being measured increases, the spot size (S) of the area measured by the unit becomes larger. The relationship between distance and spot size (D:S) for each unit is shown in Figure 7. The spot sizes indicate 90 % encircled energy. -
Page 27: Field Of View
Infrared Thermometers Operating the Thermometer Field of View For accurate measurements, make sure that the target is larger than the unit’s spot size. The smaller the target, the closer you should be to it (see Figure 8). eyl05.eps Figure 8. Field of View Emissivity Emissivity describes the energy-emitting characteristics of materials. -
Page 28: Storing Data
Users Manual Storing Data The 566 thermometer can store up to 20 data records. The 568 thermometer can store up to 99 data records. The following information is stored in each record: • Record number • IR and probe temperature in °F or °C •... -
Page 29: External Contact Probe
Infrared Thermometers External Contact Probe External Contact Probe XWWarning To avoid electrical shock or personal injury, do not connect the external contact probe to live electrical circuits. The thermometers come with a bead K-type thermocouple probe. The probes attach to the thermometers via the probe input located on the top of the thermometer (see Figure 9). -
Page 30: Maintenance
Users Manual Maintenance Battery Charge Use the battery charge symbols to gauge the approximate level of charge left on the batteries. Notes When in low battery mode, the thermometer does not store values. “Err” appears on the display if attempted. Batteries are at 5 %. -
Page 31: Cleaning The Lens
Infrared Thermometers User Replaceable Parts and Accessories eyl04.eps Figure 10. Battery Replacement Cleaning the Lens Blow off loose particles using clean compressed air. Carefully wipe the surface with a water-moistened cotton swab. Cleaning the Housing Use soap and water on a damp sponge or soft cloth. WCaution To avoid damaging the thermometers, do NOT submerge them in water. -
Page 32: Accessories
Users Manual Accessories Optional accessories for the thermometers are: • Soft Carrying Case (H6) • Calibration Certification • All Type-K Temperature Probes with standard mini-connector. See Table 8 for more information. Recommended Temperature Probes See Table 8 for a list of recommended temperature probes. Table 8. -
Page 33: Specifications
Infrared Thermometers Specifications Specifications Feature -40 °C to 550 °C -40 °C to 650 °C -40 °C to 800 °C IR Temperature Range (-40 °F to 1022 °F) (-40 °F to 1202 °F) (-40 °F to 1472 °F) <0 °C: ±(1.0 °C + 0.1 °/1 °C) >0 °C: ±1 % or ±... -
Page 34: 561 Accessory
Users Manual 561 Accessory Feature K-Type Thermocouple Probe (Wrap Type) Measurement Range 0 °C to 100 °C (32 °F to 212 °F) ±2.2 °C (4.0 °F) Accuracy 505 mm (20 in) cable terminated with a Type K thermocouple inside a Cable Length 495 mm (19.5 in) nylon cuff 566/568 Accessory...
