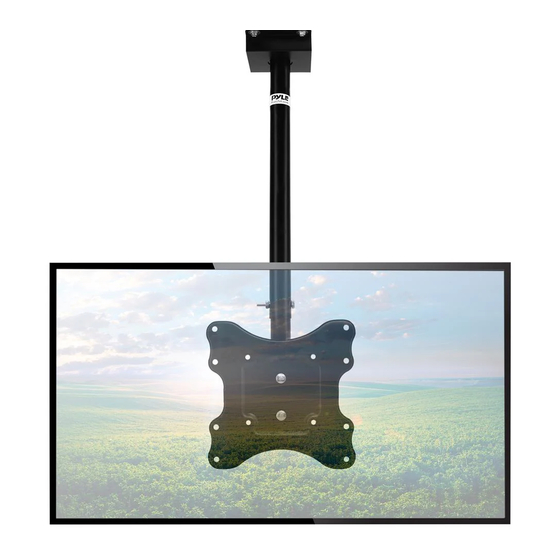

Pyle PCTVM15 Installation Manual

Lcd ceiling mount

Download this manual

6. Installing the Display

M-A

M-C

M-B

M-D

M-E

M-F

Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen.

Lift the display and match the holes on your display with the holes on the mount. Secure your display to

the mount by tightening screws.

Tighten all screws but do not over tighten.

7. Adjustment

Use the tilt adjusting knob to adjust your display to the desired angle then tighten it.

Maintenance

• Check that the bracket is secure and safe to use at regular intervals(at least every three months).

• Please contact your dealer if you have any questions.

M-

M-F

M-G

M-

M-G

PCTVM15

INSTALLATION MANUAL

LCD Ceiling Mount

42"

75x75 100x100

200x100/200x200

MAX

CAUTION:

DO NOT EXCEED

RATED LISTED WEIGHT. SERIOUS

INJURY OR PROPERTY DAMAGE

MAY OCCUR!

30kg

(66lbs)

RATED

Page 1 DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR! Use the tilt adjusting knob to adjust your display to the desired angle then tighten it. 42" 75x75 100x100 PCTVM15 Maintenance 30kg 30kg 200x100/200x200 (66lbs) (66lbs) • Check that the bracket is secure and safe to use at regular intervals(at least every three months).
Page 2 Component Checklist NOTE: Read the entire instruction manual before you start installation and assembly. IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, telephone your local distributor for a replacement. WARNING plastic bushing (x2) plastic cover...
Page 3 1a. For Wooden Joist Ceiling Mounting 1b. Solid Brick and Concrete Block Mounting: 1b. For Solid Brick and Concrete Mounting 55mm 55mm 60mm 60mm (2.2") (2.2") (2.4") (2.4") ø 4.5mm ø 10mm (ø 3/16") (ø 3/8") Mark the exact location of Find and mark mounting the exact location...
Page 4 4. Assembling the VESA Plate 2. Installing the Outer Column to the Ceiling Plate 5. Installing the VESA Plate 3. Installing the Inner Column and Routing Cables Run the power cable through columns. Insert plastic bushing and inner column into the outer column and fix them at the desired height using the correct combination of screw and nut.
