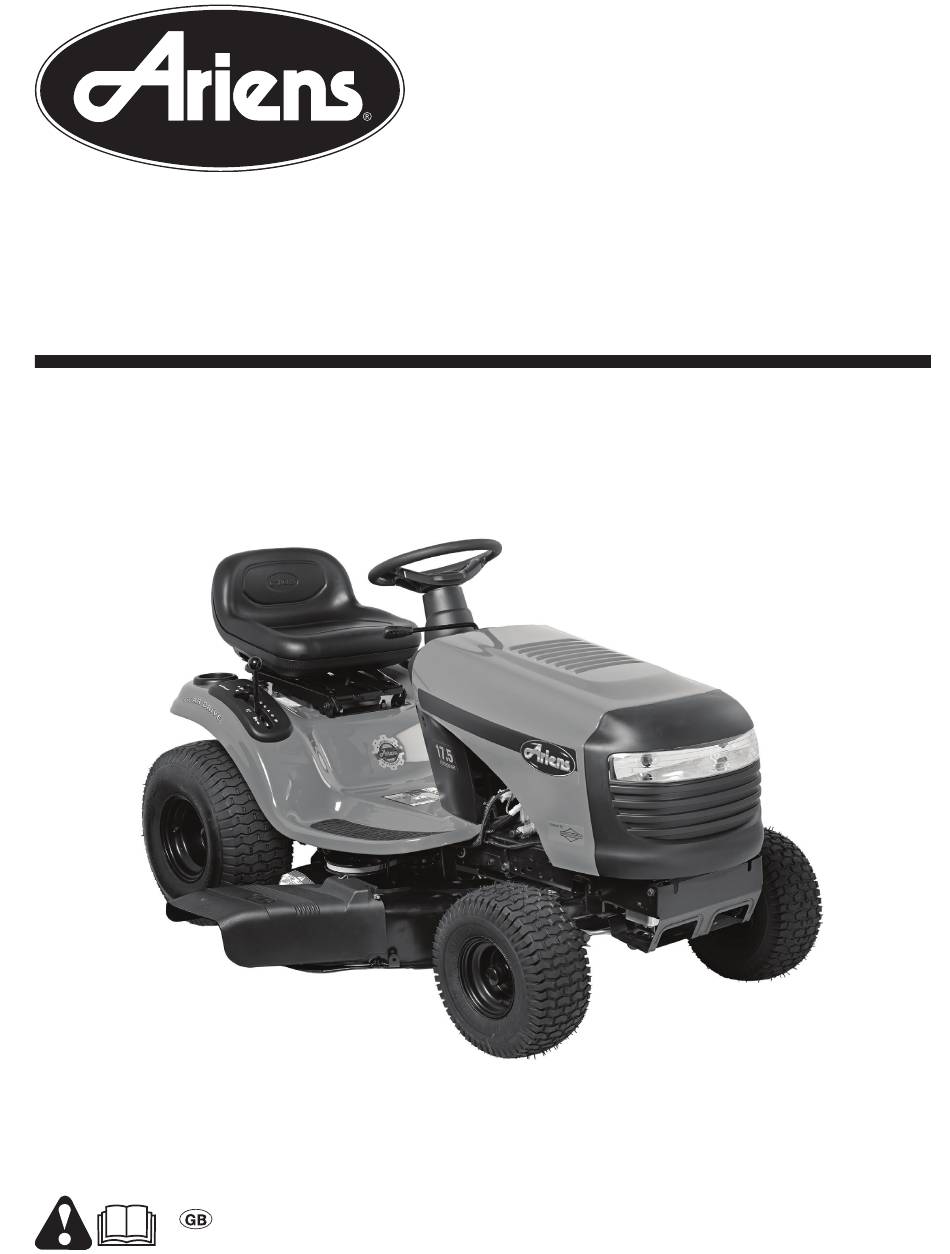

GEAR TRACTOR
Operator Manual
Models
936093 42" Gear Tractor
Gasoline containing up to 10% ethanol (E10) or up to 10% MTBE (methyl tertiary butyl
ether) is acceptable for use in this machine. The use of any gasoline exceeding 10%
ethanol (E10) or 10% MTBE will void the product warranty.
ENGLISH
587 73 62-26 Rev. 4 (21548878D) 02.27.15
Printed in the U.S.A.
Advertisement
Table of Contents
Related Manuals for Ariens 936093
Summary of Contents for Ariens 936093
- Page 1 GEAR TRACTOR Operator Manual Models 936093 42" Gear Tractor Gasoline containing up to 10% ethanol (E10) or up to 10% MTBE (methyl tertiary butyl ether) is acceptable for use in this machine. The use of any gasoline exceeding 10% ethanol (E10) or 10% MTBE will void the product warranty.
-
Page 2: Safety Rules
SAFETY RULES Safe Operation Practices for Ride-On Mowers DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. • Be alert and turn machine off if a child enters the area. WARNING: In order to prevent ac ci den tal •... - Page 3 SAFETY RULES Safe Operation Practices for Ride-On Mowers III. SLOPE OPERATION • Never remove gas cap or add fuel with the engine running. • Allow engine to cool before refueling. WARNING! When loading or unloading • Never fuel the machine indoors. this machine, do not exceed the maximum •...
-
Page 4: Table Of Contents
PRODUCT SPECIFICATIONS CONGRATULATIONS on your purchase of a new tractor. It has been designed, engineered and manu fac tured to give you the best possible dependability and performance. Gasoline Capacity 1.5 Gal/5,67 L and type: Regular Unleaded Should you experience any problem you cannot easily remedy, please contact your nearest authorized service Oil Type: SAE 30 (above 32°F/0°C) -
Page 5: Assembly
UNASSEMBLED PARTS Steering Wheel (1) Lock Washer Steering (1) Large Wheel Insert Flat Washer Steering Wheel (1) Hex Bolt Steering Steering Wheel Extension Adapter Steering Boot Shaft Seat (1) Washer (1) Knob (1) Seat Battery Keys Oil Drain Extension Slope Sheet (2) Bolt Key(s) (2) Nut... - Page 6 ASSEMBLY BEFORE REMOVING TRACTOR FROM IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES IN SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR IS TO SKID ROLL OFF SKID. CONNECT BATTERY (See Fig. 1) INSERT WARNING: Do not short battery ter mi nals BOLT by allowing a wrench or any other object to contact both terminals at the same...
- Page 7 ASSEMBLY CHECK TIRE PRESSURE The tires on your tractor were overinflated at the factory for shipping purposes. Correct tire pressure is important for best cutting performance. • Reduce tire pressure to PSI shown on tires. CHECK DECK LEVELNESS SEAT For best cutting results, mower housing should be prop- erly leveled.
-
Page 8: Operation
OPERATION These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. REVERSE NEUTRAL HIGH CHOKE FAST SLOW IGNITION SWITCH ENGINE ENGINE ENGINE DIFFERENTIAL CLUTCH/ PARKING MOWER MOWER START LOCK BRAKE PEDAL BRAKE HEIGHT LIFT... - Page 9 OPERATION KNOW YOUR TRACTOR READ THIS MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. Fig. 4 Our tractors conform to the applicable safety standards of the American National Standards Institute.
- Page 10 OPERATION The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any ad just ments or repairs. We rec om mend standard safety glasses or a wide vision safety mask worn over spectacles.
- Page 11 OPERATION TO MOVE FORWARD AND BACKWARD TO ADJUST GAUGE WHEELS (See Fig. 10) (See Fig. 8) Gauge wheels are properly adjusted when they are slightly off the ground when mower is at the desired cutting height The direction and speed of movement is controlled by the in operating position.
- Page 12 OPERATION TO OPERATE ON HILLS TO TRANSPORT • Raise attachment lift to highest position with at tach ment CAUTION: Do not drive up or down hills lift control. with slopes great er than 15° and do not • When pushing or towing your tractor, ensure gearshift drive across any slope.
- Page 13 OPERATION MOWING TIPS CAUTION: Alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture • DO NOT use tire chains when the mower hous ing is which leads to sep a ra tion and for ma tion of acids attached to tractor.
-
Page 14: Maintenance Schedule
MAINTENANCE BEFORE EVERY EVERY EVERY EVERY EVERY BEFORE MAINTENANCE SCHEDULE EACH SEASON STORAGE HOURS HOURS HOURS HOURS Check Brake Operation Check Tire Pressure Check Operator Presence and ROS Systems Check for Loose Fasteners Check/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Clean Debris off Steering Plate Check Transaxle Cooling... -
Page 15: Maintenance
MAINTENANCE TRACTOR BLADE CARE For best results mower blades must be kept sharp. Re place Always observe safety rules when per form ing any bent or damaged blades. main te nance. BRAKE OPERATION CAUTION: Use only a replacement blade ap- proved by the manufacturer of your tractor. - Page 16 MAINTENANCE V-BELTS TO CHANGE ENGINE OIL (See Fig. 16 & 17) Check V-belts for deterioration and wear after 100 hours Determine temperature range expected before oil change. of operation and replace if necessary. The belts are not All oil must meet API service classification SG-SL. ad just able.
- Page 17 MAINTENANCE CLEANING AIR FILTER Your engine will not run properly using a dirty air filter. Ser- • Clean engine, battery, seat, finish, etc. of all foreign vice air cleaner more often under dusty conditions. matter. • Clean debris from steering plate. Debris can restrict CLEAN AIR SCREEN clutch/brake pedal shaft movement, causing belt slip The air screen is over the air intake blower located on top...
-
Page 18: Service And Adjustments
SERVICE AND ADJUSTMENTS WARNING: TO AVOID SE RI OUS IN JU RY, BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS: • Depress clutch/brake pedal fully and set parking brake. • Place gearshift lever in neutral position. • Place attachment clutch in “DISENGAGED” position. •... - Page 19 SERVICE AND ADJUSTMENTS • ATTACH MOWER SIDE SUSPENSION ARMS (A) TO • Insert end of link (E) into hole in front mower bracket CHASSIS - Position hole in arm over pin (B) on outside and secure with washer and retainer spring (J). of tractor chassis and secure with retainer spring.
- Page 20 SERVICE AND ADJUSTMENTS TO LEVEL MOWER FRONT-TO-BACK ADJUSTMENT (See Figs. 29 & 30) IMPORTANT: Deck must be level side-to-side. Ensure tires are properly inflated to the PSI shown on tires. If tires are over or under inflated, it may affect the appear- To obtain the best cutting re sults, the mower blades should ance of your lawn and lead you to think the mower is not be adjusted so the front tip is 1/8"...
- Page 21 SERVICE AND ADJUSTMENTS TO REPLACE MOWER BLADE DRIVE BELT TO REPLACE MOTION DRIVE BELT (See Fig. 31) (See Fig. 32) Park the tractor on level surface. En gage parking brake. The mower blade drive belt may be replaced without tools. For as sis tance, there is a belt installation guide decal on Park the tractor on level surface.
- Page 22 SERVICE AND ADJUSTMENTS TRANSAXLE GEAR SHIFT LEVER NEU TRAL TO AD JUST STEER ING WHEEL ALIGN MENT ADJUSTMENT (See Fig. 33) If steering wheel crossbars are not horizontal (left to right) when wheels are positioned straight forward, remove steer- The transaxle should be in neutral when the gear shift lever ing wheel and reassemble per instructions in the Assembly is in neutral (lock gate) position.
- Page 23 SERVICE AND ADJUSTMENTS REPLACING BATTERY (See Fig. 36) TO REPLACE FUSE Replace with 20 amp automotive-type plug-in fuse. The WARNING: Do not short battery ter mi nals fuse holder is located behind the dash. by allowing a wrench or any other object to contact both terminals at the same TO REMOVE HOOD AND GRILL ASSEMBLY time.
-
Page 24: Storage
STORAGE ENGINE Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. FUEL SYSTEM IMPORTANT: IT IS IMPORTANT TO PREVENT GUM DEPOSITS WARNING: Never store the trac tor with FROM FORMING IN ES SEN TIAL FUEL SYSTEM PARTS SUCH gas o line in the tank inside a building AS CARBURETOR, FUEL FIL TER, FUEL HOSE, OR TANK... -
Page 25: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE CORRECTION 1. Out of fuel. 1. Fill fuel tank. Will not start 2. Engine not “CHOKED” properly. 2. See “TO START ENGINE” in Operation section. 3. Engine flooded. 3. Wait several minutes before attempting to start. 4. Bad spark plug. 4. - Page 26 TROUBLESHOOTING PROBLEM CAUSE CORRECTION Engine continues to 1. Faulty operator-safety presence control 1. Check wiring, switches and connections. If not system. corrected, contact an authorized service center/ run when operator department. leaves seat with attachment clutch CAUTION: DO NOT operate machine until engaged problem is corrected.
-
Page 27: Warranty
In the event you have a claim under this Warranty, you must return the product to an authorized service dealer. Should you have any unanswered questions concerning this Warranty, please contact: Ariens 655 W. Ryan Street Brillion, WI 54110 1-877-257-6920 www.ariens.com... - Page 28 SERVICE NOTES...
- Page 30 Ariens Company 655 West Ryan Street Brillion, WI 54110-1072 1-877-257-6920 www.ariens.com WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
