Pico Macom PFAM550SUB Specifications

Headend & Electronics
89-Channel Range 5.75-550 MHz
(CATV T7-T13, 2-78, 95-99)
Sub-band operation enables
remote TV origination making it
ideal for institutional cable systems
DIP switch controlled digital
phase-locked loop for solid drift-
free output on any channel
SAW filtered for superior adjacent
channel performance enables
drop-in channel expansion
57dBmV output for optimum
carrier-to-noise performance
Carrier-to-noise ratio >60dB
provides superior picture quality
Front panel test point for easy
RF level system monitoring
Composite audio-video IF loop
provides compatibility with
encoders, ghost cancellers, and
video-override applications
IRC and HRC offset available
allows for easy frequency set-
tings in systems using offset
channels
Double heterodyne conversion
provides superior spurious har-
monic output suppression
www.picomacom.com

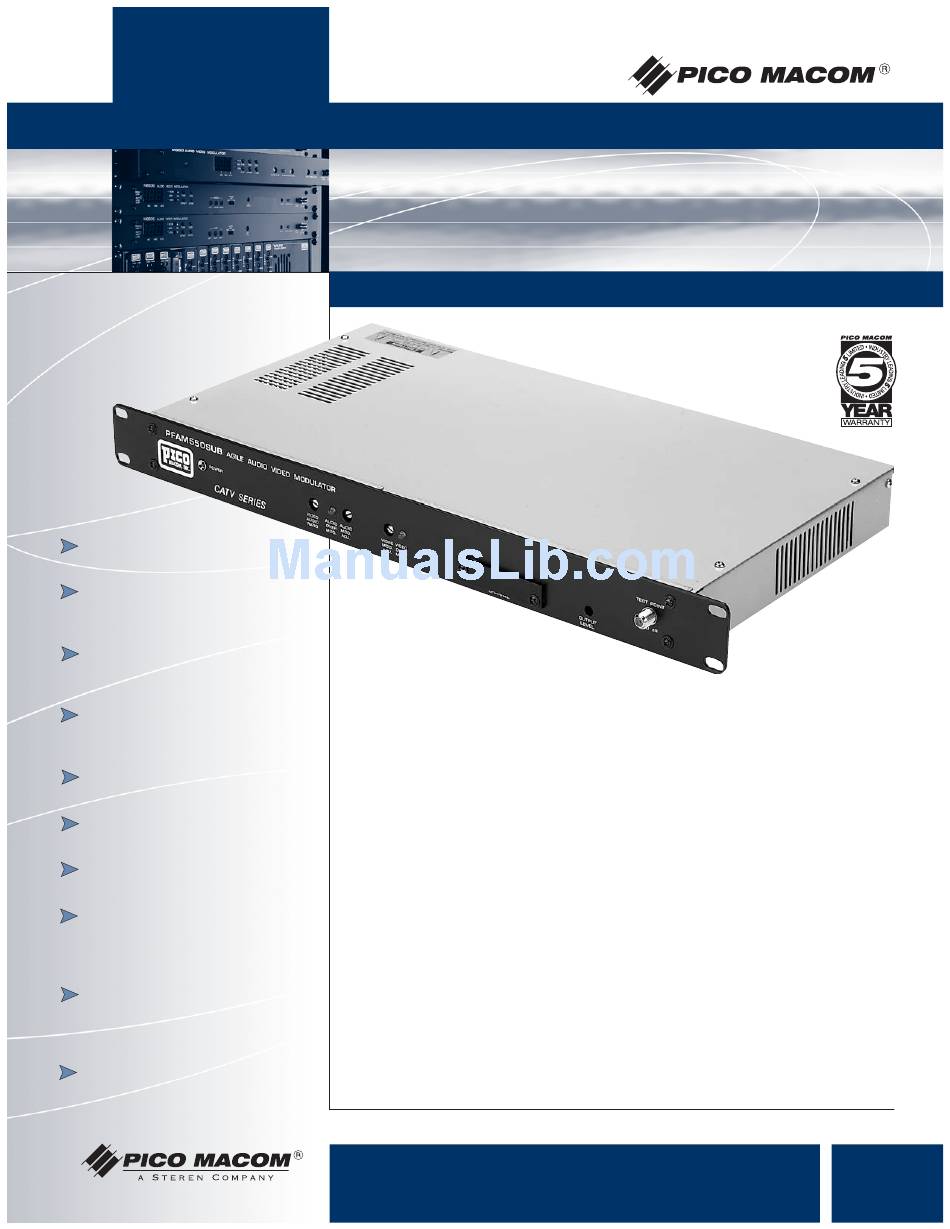

PFAM550SUB
550MHz Sub-Band Extended Agile A/V Modulator
PFAM550SUB
550MHz Sub-Band Extended Agile A/V Modulator
The PFAM550SUB is a professional re-broadcast grade frequency agile double
heterodyne conversion audio/video modulator that allows RF return of audio-
video signal from a remote location on bi-directional cable systems. It is ideal
for use in institutional applications requiring remote TV origination. The
PFAM550SUB features a composite audio-video IF loop, which provides com-
patibility with encoders, ghost cancellers, and video-override applications. Its
SAW filter provides superior sideband filtering, adjacent channel compatibility,
and spurious free output. The PFAM550SUB provides 56±1dBmV output from
sub-band channels T7 through T13, CATV channels 2 to 78 including channels
95 to 99 while accommodating HRC and IRC offset frequencies (5.75-550MHz).
Front panel DIP-switch controlled phase-locked-loop (PLL) allows easy channel
selection and drift-free channel stability. High quality modulation and RF level
control potentiometers assure years of reliable operation. The modulator is
shipped with all internal adjustments pre-set. FCC Docket 21006 offsets are
standard. Pico Macom backs up this product with its industry leading 5-year
limited warranty.
355 Parkside Drive San Fernando, CA 91340
Ph: 818-493-4300 Toll Free: 800-421-6511 Fax: 818-493-4433
A-21
Rev. 12/02
