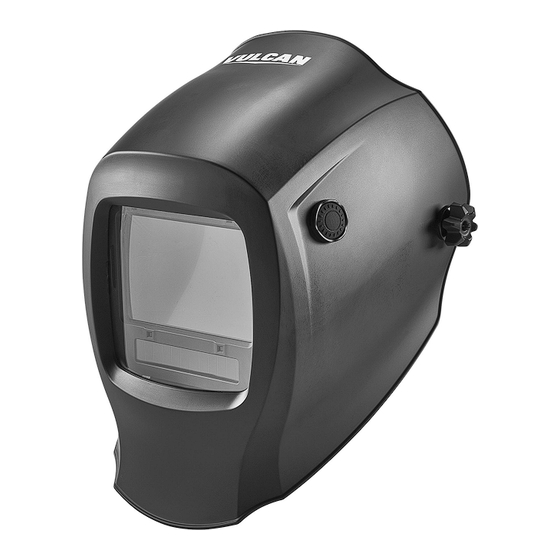

Vulcan-Hart ARCSAFE 58201 Owner's Manual & Safety Instructions

Auto darkening welding helmet
Hide thumbs

Advertisement

Quick Links

Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2023 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
23e
58201

Advertisement

loading

Related Manuals for Vulcan-Hart ARCSAFE 58201

Summary of Contents for Vulcan-Hart ARCSAFE 58201

  • Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.

  • Page 2: Table Of Contents

    table of contents Safety ............2 Maintenance and Servicing ......9 Specifications ..........5 Parts List and Diagram ......12 Operation ............ 7 Warranty ............ 15 WarninG SyMBOLS anD DeFinitiOnS This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
  • Page 3 13. this helmet provides protection for intended WarninG purposes only. There are certain applications for which this helmet was designed. Do not modify this helmet and do not use this helmet for a purpose for which it was not intended: a.
  • Page 4 Button/coin Battery Warnings inGeStiOn HaZarD: 4. Do not mix old and new batteries, different WarninG This product contains a brands or types of batteries, such as alkaline, button cell or coin battery. carbon-zinc, or rechargeable batteries. This symbol means: 5. Ensure the batteries are installed correctly inGeStiOn HaZarD: This product contains a according to polarity (+ and -).

  • Page 5: Specifications

    Specifications Description Auto-Darkening Welding Helmet Power Source Solar powered cell with battery assistance (two replaceable 3V CR2450 lithium batteries) Operating Temperature 14° to 131° F Resting Shade Shade #  4 Shade Range 4/5-8/9-13 variable UV/IR Protection Up to DIN 16 at all times Lens Type ANSI Z87.1, CSA Z94.3 approved Viewing Area...
  • Page 6 Shade Guide chart Guide for Shade Numbers Shade numbers are given as a guide only and may be varied to suit individual needs. MiniMUM SUGGeSteD arc cUrrent prOceSS eLectrODe SiZe prOtectiVe SHaDe nO. (amperes) SHaDe (comfort) Less than 3" (2.5  m m) Less than 60 —...

  • Page 7: Operation

    Operating instructions read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Function The Auto-Darkening Welding Helmet is designed to protect the eyes and face from sparks, splatter, and harmful radiation under normal welding conditions.
  • Page 8 controls power/Mode Button Mode control Low Battery WELD indicator/Grind Mode MODE CUTTING control GRIND reminder Light Buttons SHADE SENSI. TEST DELAY GRIND MEMORY LOW BATTERY SHADE SENSI. DELAY test/Memory Button Mode Selection and Shade number 1. Use the Mode Control Button to select the 4.

  • Page 9: Maintenance And Servicing

    time Delay and Sensitivity control 1. At the moment the welding operation is started, the Buttons filter screen automatically changes from clear to dark. The operator can vary the amount of time it takes the filter to return to a clear state after welding stops by adjusting Time Delay on the Digital Screen.
  • Page 10 Maintenance tO preVent SeriOUS inJUry FrOM tOOL FaiLUre: Do not use damaged equipment. if damage or abnormal operation occurs, have the problem corrected before further use. BeFOre eacH USe, inspect the general condition of the tool. check for loose hardware, misalignment or binding of moving parts, cracked or broken parts, damaged electrical wiring, and any other condition that may affect its safe operation.
  • Page 11 4. Install new Filter Lens into the Lens Holder auto-Darkening and install Lens Holder assembly into Shell. Filter (c) 5. Plug Auto Darkening Filter wire into grind control case. Lens Holder (e) Battery installation or replacement To install Batteries before first use or when the LOW BATTERY LED begins to turn red, indicating Batteries need replaced: a.

  • Page 12: Parts List And Diagram

    parts List and Diagram pLeaSe reaD tHe FOLLOWinG careFULLy THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
  • Page 13 assembly Diagram Item 58201 For technical questions, please call 1-888-866-5797. Page 13...
  • Page 14 record product’s Serial number Here: note: If product has no serial number, record month and year of purchase instead. note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Specify UPC 193175508591 when ordering parts. Page 14 For technical questions, please call 1-888-866-5797.

  • Page 15: Warranty

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
  • Page 16 26677 agoura road • calabasas, ca 91302 • 1-888-866-5797...
