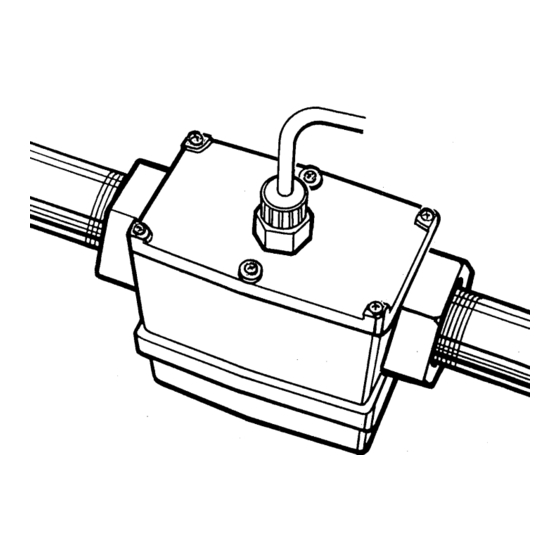

- Page 1 User’ s Gui d e omega.com omega.com ® ® ® http://www.omega.com e-mail: info@omega.com FLSC790-P Pulse Output Module For use with FTB790 Series Turbine Meters with Display Electronics...
- Page 2 CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Table Of Contents
TABLE OF CONTENTS – Introduction ..........1 Installation and Wiring ......1 Technical Specifications ......2 – Typical Wiring ..........3 Warranty/Disclaimer ........5 Return Requests/Inquiries ......5 3. The Pulse Access Module connects to a 10-pin connector located on the back side of the computer electronics next to the INTRODUCTION negative battery connectors. -
Page 4: Technical Specifications
(minimum) Pull Up Resistor if the Series Turbine Meter with Display Electronics interface device does not have one. Ref- which are sold seperately. erence illustration above as necessary. Dimensions (FLSC790-P) TECHNICAL SPECIFICATIONS Frequency Range: 0 to 750 Hz Housing Material: Nylon 6/6 0.8 in. -
Page 5: Typical Wiring
TYPICAL WIRING Wiring to DPF700 Series Panel Meter For connecting to the DPF700 meter, attach the white wire to Pin 2 on TB2, “SIG IN”. The black wire goes to Pin 3 on TB2, “SIG GND”. Set the S1 switches for 12.4 VDC OUT. - Page 6 NOTES...
-
Page 7: Warranty/Disclaimer
Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or un- authorized modification. - Page 8 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA… Of Course! TEMPERATURE Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies Wire: Thermocouple, RTD & Thermistor Calibrators & Ice Point References Recorders, Controllers & Process Monitors...
