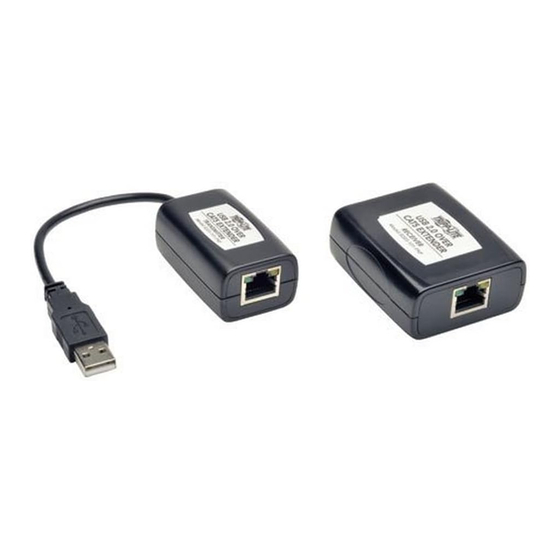

USB 2.0 Over Cat5 Plug-and-Play Extender Kit
4-Port USB 2.0 Over Cat5 Plug-and-Play Extender Hub
Product Features
• B203-101-PNP extends a USB 2.0 signal up to 164 ft. (50 m)
from the source
• The B203-104-PNP allows you to connect four USB 2.0 devices up
to 164 ft. (50 m) from the source
Package Includes
• B203-101-PNP or B203-104-PNP Transmitter
• B203-101-PNP or B203-104-PNP Receiver
Optional Accessories
• N202-Series Cat6 Snagless Patch Cables
• U022-Series USB 2.0 Cables
• UR022-Series Reversible USB 2.0 Cables
• U030-Series USB 2.0 5-Pin Mini B Cables
Installation
Note: Test to make sure that the entire installation works properly before pulling cables through ceilings or walls.
1. Connect the built-in USB cable on the transmitter unit to an available USB port on your computer.
2. Connect the RJ45 ports on the transmitter and receiver units with Cat5e/6 cable.
Note: The distance between the transmitter and receiver units must be no longer than 164 ft. (50 m).
3. Connect the external power supply to the receiver unit and plug it into a Tripp Lite Surge Protector, Uninterruptible Power Supply (UPS), or
Power Distribution Unit (PDU).
4. Connect a USB 2.0 device to each available port on the receiver unit.
Register your product for quicker service and ultimate peace of mind.
You could also win an ISOBAR6ULTRA surge protector—a $50 value!
Owner's Manual
Model: B203-101-PNP
Model: B203-104-PNP
PROTECT YOUR INVESTMENT!
www.tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2014 Tripp Lite. All rights reserved.
• Supports USB 2.0 data transfer rates up to 480Mbps
• Backward compatible with USB 1.1
• Plug-and-Play; no software or drivers required
• Compatible with all major operating systems
• External Power Supply
(Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
• Owner's Manual
• UR030-Series Reversible USB 2.0 5-Pin Mini B Cables
• U050-Series USB 2.0 Micro B Cables
• UR050-Series Reversible USB 2.0 Micro B Cables
