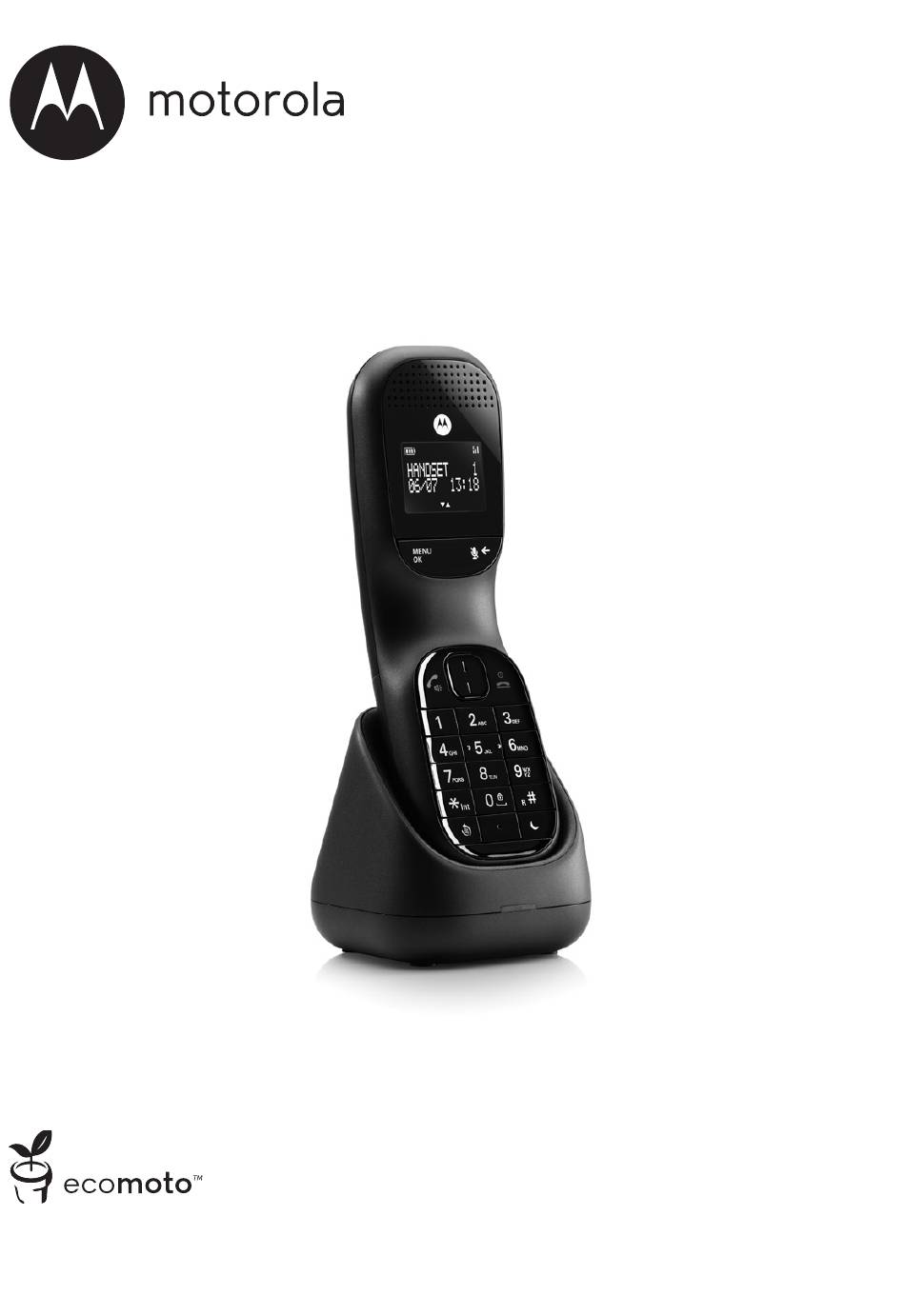

- Page 1 Digital Cordless Telephone Motorola TD1 Models: TD1001, TD1002, TD1003 and TD1004 Warning: Charge the handset for 16 hours before use.
- Page 2 • Intelligent Charging saving unnecessary power usage. Need help? If you have any problems setting up or using your TD1, please contact Customer services on: (65) 68412668. Email: support@alcom.com.sg Alternatively, you may find the answer in the ‘Help’ section at the back of this guide.
- Page 3 Power adaptor for the base • Telephone line cord • 2x AAA rechargeable batteries If you have purchased an TD1 multiple pack you will also have the following additional items: • Cordless handset & charger • Power adaptor for the charger •...
-
Page 4: Table Of Contents
1. Getting started ..............7 2. Getting to know your phone ..........11 3. Using the phone ..............16 Make a call .....................16 Pre-dial ......................16 Dial direct memory numbers 1 to 9...............16 Call from the phonebook ................16 Call from the Calls list ..................16 Answer a call ....................16 Adjust volume ....................17 Mute .......................17... - Page 5 5.2.4 Edit a number in the blocked call list ..........26 5.2.5 Delete a number from the blocked call list ........26 5.2.6 Delete the blocked calls list ..............27 Change PIN ....................27 6. Caller ID and calls list ............28 Calls list ......................28 6.1.1 View the calls list .................28 6.1.2...
- Page 6 9.5.1 Temporarily switch from Pulse to Tone dialling ........37 Registration ....................37 Register a handset ..................37 De-register a handset ..................38 PIN ........................38 9.10 Reset ......................38 9.11 ECO mode ....................38 9.12 Eco plus......................39 9.13 Call barring ....................39 9.13.1 Switch call barring on/off ..............39 9.13.2 Set a number to be barred ..............40 9.14 Default settings ....................40...
-
Page 7: Getting Started
Do not place your TD1 in the bathroom or other humid areas. Location You need to place your TD1 base within 2 metres of the mains power socket and telephone wall socket so that the cables will reach. The socket-outlet should be installed near the equipment and should be easily accessible. - Page 8 Connecting the base 1. Plug the telephone line cord into the socket marked on the underside of the base. 2. Plug the power adaptor into the socket marked on the underside of the base and plug the other end into the mains power wall socket. Switch on the mains power. Installing and charging the handset 1.
- Page 9 Warning! Use only the approved rechargeable Ni-MH battery cells (2 x AAA Ni-MH 550mA rechargeable batteries) supplied with your TD1. Do not use alkaline or non rechargeable batteries. It may cause permanent damage to the product and void the warranty.
- Page 10 3. Enter the date using the format DD-MM-YY e.g. 27/08/16 for 27 August 2016 and press 4. Enter the time using the 24 hour format HH:MM, e.g. 14:45 for 02.45pm and press 5. Press to return to standby. Your TD1 is now ready for use. Getting started...
-
Page 11: Getting To Know Your Phone
2. Getting to know your phone Overview of your handset A Earpiece B Display See page 13 for display icons. C Menu / OK Enter the main menu. Select the option displayed on screen. Confirm menu option – is displayed on screen. D Call List / Scroll Up / Volume up Press to enter the... - Page 12 E Talk / Hands-free key Make or answer a call. Activate and deactivate hands-free during a call. IMPORTANT Hands-free activation can suddenly increase the volume in the earpiece to a very high level. Make sure the handset is not too close to your ear. F Pulse to Tone Dialling / * / Intercom During a call, press to switch from pulse dialling to tone dialling.
- Page 13 Handset display Display icons On when the line is in use. Flashes when there is an incoming call. Flashes when you have new voicemail messages. Off when you have no voicemail messages. Flashes when you have missed calls and new number(s) are in the Calls list. Phonebook is open.
- Page 14 This feature is dependent on your Network Service provider supporting the service. A subscription fee may be payable. Overview of the base A Paging key Paging is a useful way to find lost handsets. 1. Press on the base. All handsets ring. 2.
- Page 15 Menu map Personal Set Phonebook Handset Tone List Entry Ring Volume When no entry is stored List empty Ring Melody is shown, if entries are stored Key Tone scroll to the required entry and press Docking tone Handset Name Edit Auto Pick-Up Delete Auto Hang-Up...
-
Page 16: Using The Phone
3. Using the phone Make a call 1. Press 2. Dial the telephone number. Pre-dial 1. Enter the phone number (maximum 24 digits). If you make a mistake press 2. Press to dial the phone number entered. Dial direct memory numbers 1 to 9 1. -
Page 17: Adjust Volume
IMPORTANT When the phone is ringing, avoid holding the earpiece too close to your ear as it may damage your hearing. NOTE If auto pick up mode (see page 34) is on, simply lift up the handset from its base to answer the call. -
Page 18: Transfer An External Call To Another Handset
NOTE If the handset does not belong to TD1 range, this function may not be available. 3.11.2 Transfer an external call to another handset 1. During an external call, press and hold Your caller is put on hold. 2. Scroll... -
Page 19: Phonebook
4. Phonebook The TD1 phonebook can store up to 100 names and numbers. Numbers can be up to 24 digits long and names up to 12 characters long. Entries are stored in alphabetical order. View phonebook entries 4.1.1 View and dial an entry 1. -
Page 20: Store An Entry
Store an entry 1. Press Phonebook is displayed. 2. Press . Scroll Entry. 3. Press Enter Name is displayed. 4. Enter a name and press If you make a mistake press to delete a character or press and hold to delete all characters. -
Page 21: Character Map
Character map Use the keypad to enter names and characters. Case Assigned characters and symbols 1 @ _ # = < > ( ) & € £ $ ¥ [ ] { } ¤ § … L / U a b c 2 à â æ á ã ä å ą ā ç č A B C 2 À... -
Page 22: Enter A Pause
Enter a pause If your TD1 is connected to a switchboard, you may need to enter a pause in a stored number. This gives the switchboard time to get an outside line. A pause is normally stored after the switchboard access code (e.g. 9). You can also add a pause when dialling a number manually. -
Page 23: Store A Direct Memory Number
4.10 Store a direct memory number 1. Press twice. 2. Scroll Direct Mem and press Key 1 is displayed. Press If no number is stored No Entry is displayed. If a number is stored the name will be displayed. 4. Scroll X, where is the keypad number where the entry will be stored. -
Page 24: Call Block
5. Call block Your phone can block calls by call type or by number. For this feature to work, you must subscribe to Caller ID Service from your network operator. A subscription fee may be payable. Up to 50 numbers can be blocked. Block by call type Your phone can block calls by 4 different call types, unknown call, international, private or payphone calls. -
Page 25: Block All Payphone Calls
5.1.4 Block all payphone calls 1. Press , scroll Call Block and press 2. Enter the PIN (default 0000) and press 3. The display shows By CallType and press 4. Scroll to Payphone, press 5. Press to select or Off. 6. -
Page 26: Add A Number To The Blocked Call List
5.2.3 Add a number to the blocked call list 1. Press , scroll Call Block and press 2. Enter the PIN (default 0000) and press 3. Scroll Blacklist and press 4. Scroll Block number and press 5. Scroll new, press 6. -
Page 27: Delete The Blocked Calls List
5.2.6 Delete the blocked calls list 1. Press , scroll Call Block and press 2. Enter the PIN (default 0000) and press 3. Scroll Blacklist and press 4. Scroll Block number and press 5. Scroll Delete All, press 6. The display shows Confirm?. 7. -
Page 28: Caller Id And Calls List
6. Caller ID and calls list If you have subscribed to Caller ID and provided the identity of the caller is not withheld, when you receive an incoming call the number of the caller will be displayed. NOTE If the caller’s number is stored in the phonebook, the name and number will flash alternately on the screen. -
Page 29: Dial From The Calls List
NOTE icon stops flashing once all new calls have been viewed. 6.1.2 Dial from the calls list 1. Press to enter Call List. The most recent call is displayed. 2. Scroll to the entry you want. 3. Press to dial. 6.1.3 Save a number from the calls list to the phonebook 1. -
Page 30: Redial
Redial The TD1 lets you redial any of the last 10 numbers called. Numbers can be up to 24 digits long. 6.2.1 Redial the last number 1. Press r. The last number dialled is displayed. • If the number is stored in the phonebook, the name is displayed. Press to see the number. -
Page 31: Clock & Alarm
7. Clock & Alarm If you subscribe to your network’s Caller ID service and auto clock is set to on, the time on your TD1 may be set automatically each time you receive a call, depending on your network provider. -
Page 32: Switch Auto Clock On / Off
Switch auto clock on / off If you have subscribed to Caller ID, the date and time will be set on all your handsets whenever a call is received. This feature can be set to on or off. 1. Press , scroll to Clock/Alarm and press... -
Page 33: Personal Settings
8. Personal settings Handset tones IMPORTANT When the phone is ringing, avoid holding the earpiece too close to your ear as it may damage your hearing. 8.1.1 Ring volume Choose from 5 levels and off. 1. Press , scroll Personal Set and press Handset Tone is displayed. -
Page 34: Handset Name
5. Press to return to standby. Handset name Personalise your handset, with a name or location for example Peter or Bedroom. Maximum 10 characters. 1. Press , scroll Personal Set and press 2. Scroll Handset Name and press . The current name is displayed. 3. -
Page 35: Backlight On/Off
Backlight on/off 1. Press , scroll Personal Set and press 2. Scroll to Backlight. Press 3. Press to select or Off. 4. Press to confirm. 5. Press to return to standby. Keypad lock Prevent accidental dialling while carrying the handset by locking the keypad. While the keypad is locked, you can answer incoming calls as normal. -
Page 36: Advanced Settings
Auto prefix You can set the TD1 to detect a dialling number and replace it with another number. The number to be detected can be up to 5 digits long. It can be replaced with a number up to 10 digits. -
Page 37: Dial Mode
The functionality of your TD1 cannot be guaranteed on all PABX. Dial mode The default TD1 dialling mode is suitable for your country and network operator. It is unlikely that you should need to change this setting unless advised to do so. -
Page 38: Register A Handset
“RESET” cannot be performed. 9.11 ECO mode If you have a TD1 with only one handset registered to the base the phone offers an ECO mode function which reduces the transmitted power and energy consumption when switched on. This feature is set to by default. -
Page 39: Eco Plus
9.13 Call barring Prevent certain numbers from being dialled from your TD1. Store up to four specific numbers, each up to 4 digits – for example, international or local prefixes. Bypass Call barring by switching the setting to Off. -
Page 40: Set A Number To Be Barred
9.13.2 Set a number to be barred 1. Press , scroll Advanced Set and press 2. Scroll Call Barring. Press 3. Enter the master PIN (default setting 0000) and press 4. Scroll to Number. Press 5. If necessary, scroll to the next available slot. 6. -
Page 41: Help
10. Help icon is not scrolling during charge • Bad battery contact – move the handset slightly. • Dirty contact – Clean the battery contact with a cloth moistened with alcohol. • Battery is full – no need to charge. No dialling tone •... -
Page 42: General Information
11. General information IMPORTANT This equipment is not designed to make emergency telephone calls when the power fails. Alternative arrangements should be made for access to emergency services. This product is intended for connection to analogue public switched telephone networks and private switchboards in Singapore. - Page 43 Installation Guidelines • Read and understand all instructions and save them for future reference. • Follow all warnings and instructions marked on the product. • Do not install this product near a bath tub, sink, or shower. • Operate this phone using only the power source that is indicated on the marking label.
- Page 44 (“SUNCORP”) What Does this Warranty Cover? Subject to the exclusions contained below, SUNCORP warrants that this Motorola branded product (“Product”) or certified accessory (“Accessory”) sold for use with this product that it manufactured to be free from defects in materials and workmanship under normal consumer usage for the period outlined below.
- Page 45 REPAIR OR REPLACEMENT PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OF IMPLIED. IN NO EVENT SHALL MOTOROLA OR SUNCORP BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE)
- Page 46 Equivalence Number (REN), which is used to calculate the number of items which may be connected to any one telephone line. Your TD1 has a REN of 1. A total REN of 4 is allowed. If the total REN of 4 is exceeded, the telephones may not ring. With different telephone types, there is no guarantee of ringing, even when the REN is less than 4.
- Page 47 Declaration of Conformity (DoC) Suncorp declares that the following products: Brandname: Motorola Type: TD1001, TD1002, TD1003 and TD1004 Descriptions: DECT phone without telephone answering machine (TD100x) and their multi-handset versions. to which this declaration related is in conformity with the essential requirements of the following directives of the Council of the European Communities: R&TTE Directive (1999/5/EC)
- Page 48 Singapore 349315 Manufactured, distributed or sold by Suncorp Technologies Ltd., official licensee for this product. MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners.
