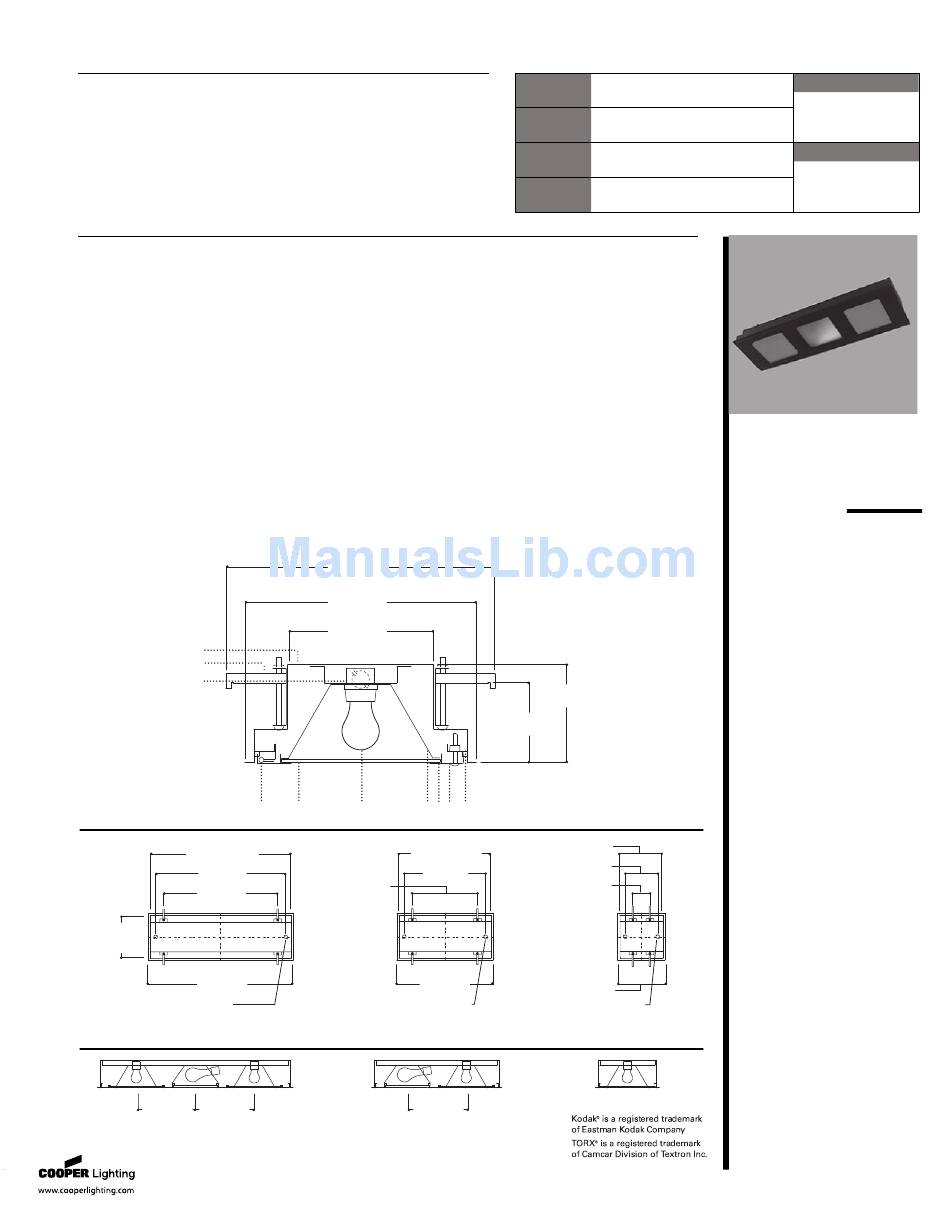

Cooper Lighting DRR-F Specifications

DESCRIPTION
Fail-Safe's DRR-F Series is part of the Dark Room Safelights product line.
These energy efficient, durable luminaires feature a die formed 20 gauge
housing and door with integral lens/filter retainers, prismatic tempered
glass lamp diffuser with up to (2) Kodak® dark room safelight filters, and a
smooth black polyester powder coat finish. Gasketing surrounds the door
frame and filter reflector(s) to prevent light leaks. Adjustable swing hangers
are used for mounting.
The DRR-F Series is ideal for areas which require a filtered light source such
as photo processing labs, medical x-ray processing centers and graphics
printing pre-press applications.
SPECIFICATION FEATURES
A ... Shielding/Filter(s)
Crystal 73 pattern prismatic
tempered glass or glass fresnel
task lamp diffuser. Choice of up to
two (2) Kodak® dark room
safelight filters. See Filter
Applications chart and Ordering
Information.
B ... Fasteners
Two captive Phillips-head screws
standard. Tamperproof TORX®
screws are optional.
C ... Hinge
Concealed continuous piano hinge.
D ... Housing/Finish
Die-formed 20 ga. CRS housing. All
spot welded construction. Satin
black
D
J
G
C
MOUNTING DIMENSIONS
35" [899mm]
Ceiling Cut-Out
32"
[813mm]
28"
[711mm]
11" [279mm]
Ceiling
Cut-Out
35 11/16"
[906mm]
(4) 7/8" Dia.
Knock Outs
LAMP CONFIGURATIONS
10 3/4" 10 3/4"
[273mm] [273mm]
Specifications and Dimensions subject to change without notice.
D ... Housing/Finish Cont.
polyester powder coat finish over a
seven stage pre-treatment.
Hardness: 2H; Salt Spray: 500
Hours.
E ... Door Frame
One-piece die formed 20 ga. CRS
door with integral lens/filter
retainer brackets. Finish to match
housing. Stainless steel door
optional.
F ... Lamps
(By Others)
G ... Electrical
Porcelain socket(s), copper
screwshell, silicone braid, 150°C
wiring.
13 9/16"
[344mm]
11 11/16"
[297mm]
10 3/4"
[273mm]
A F H E B I
23" [584mm]
Ceiling Cut-Out
20"
[508mm]
16"
[406mm]
23 11/16"
[602mm]
(4) 7/8" Dia.
Knock Outs
10 3/4"
[273mm]
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
H ... Reflector(s)
Die formed 20 ga. CRS. All spot
welded construction. (Filter
reflector features one-piece seam
welding.) White polyester powder
coat finish over seven-stage
pre-treatment. Gloss: 85%;
Reflectance: 93%; Hardness: 2H;
Salt Spray: 500 Hours.
I ... Light Mask
Door frame and filter reflector(s)
are surrounded by gasketing to
prevent light leaks.
J ... Mounting
Four (4) adjustable swing hangers
secure fixture to ceiling.
Labels
U.L. listed, C.S.A. certified,
standard damp label.
4 15/16"
[125mm]
4" [102mm] Max.
1 5/8" [41mm] Min.
11" [279mm]
Ceiling Cut-Out
8"
[203mm]
4 3/16"
[106mm]
11 11/16"
[297mm]
(4) 7/8" Dia.
Knock Outs
FAIL-SAFE
®
Type
Date
DRR-F
15W & 200W
Incandescent
DARK ROOM
SAFELIGHT
RECESSED FLANGE
E N E R G Y D ATA
Input Watts:
(1) 15W incandescent: 15W
(1) 15W & (1) 200W Incand.: 215W
(2) 15W & (1) 200W Incand.: 230W
