ELEVATION SERIES
(RISE x 1.7) + (DROP x 6.6) + HORIZONTAL RUN = EQUIVALENT RUN
Rise:
(35 ft. x 1.7) + (40 ft.) = 99.5 equivalent feet line run
Drop:
(10 ft. x 6.6) + (34 ft.) = 100 equivalent feet line run

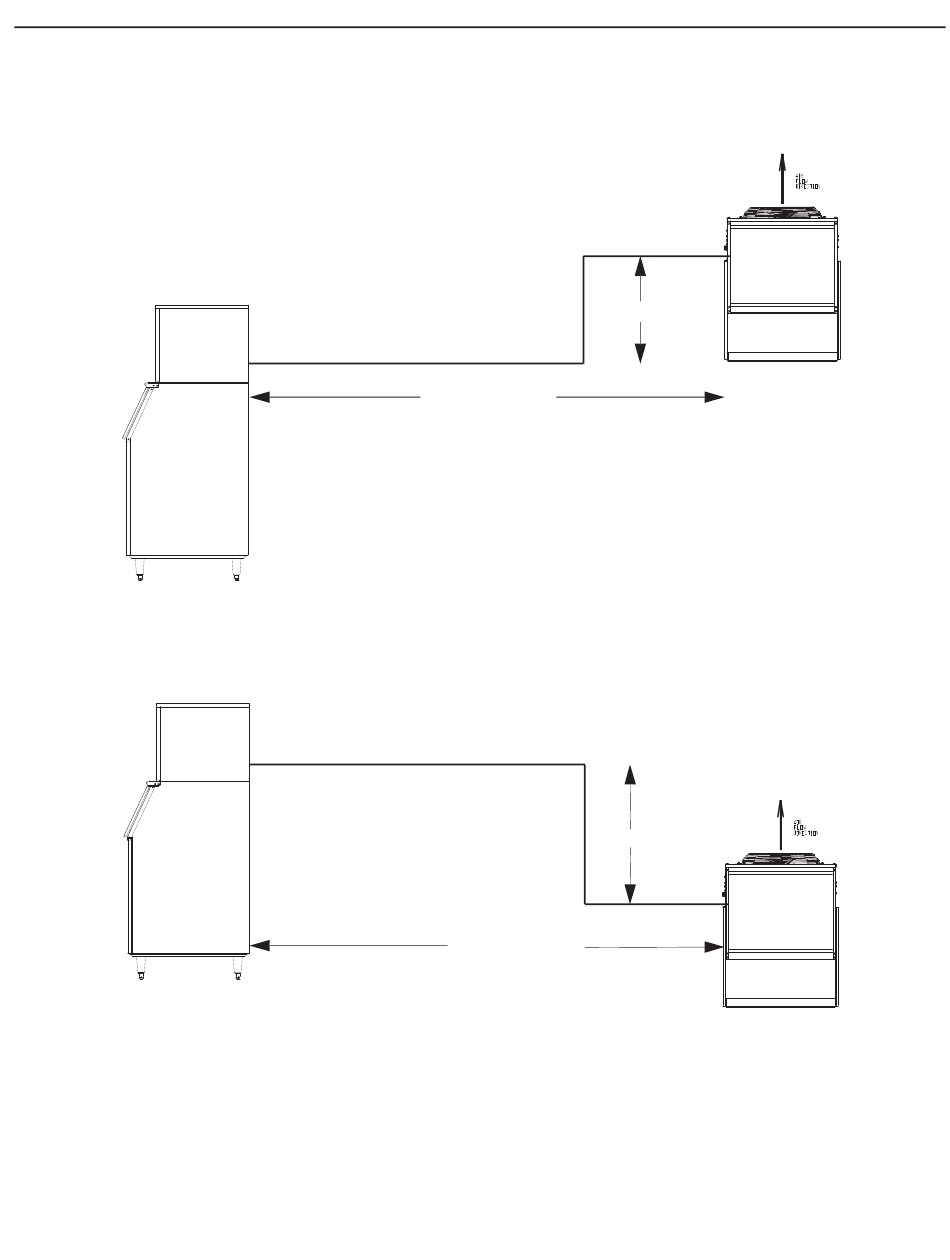

Equivalent Run Calculation Examples
Formula for maximum equivalent run:
NOT TO EXCEED 100 CALCULATED FEET
40 ft. horizontal
REMOTE CONDENSER GUIDELINES
35 ft. rise
10 ft. drop
34 ft. horizontal
