Ice-O-Matic CD40022 Series Service & Parts Manual
Hotel dispenser
Hide thumbs
Also See for CD40022 Series:
- Specification sheet (2 pages) ,
- Specification (1 page) ,
- Service & installation manual (21 pages)
Related Manuals for Ice-O-Matic CD40022 Series
Summary of Contents for Ice-O-Matic CD40022 Series

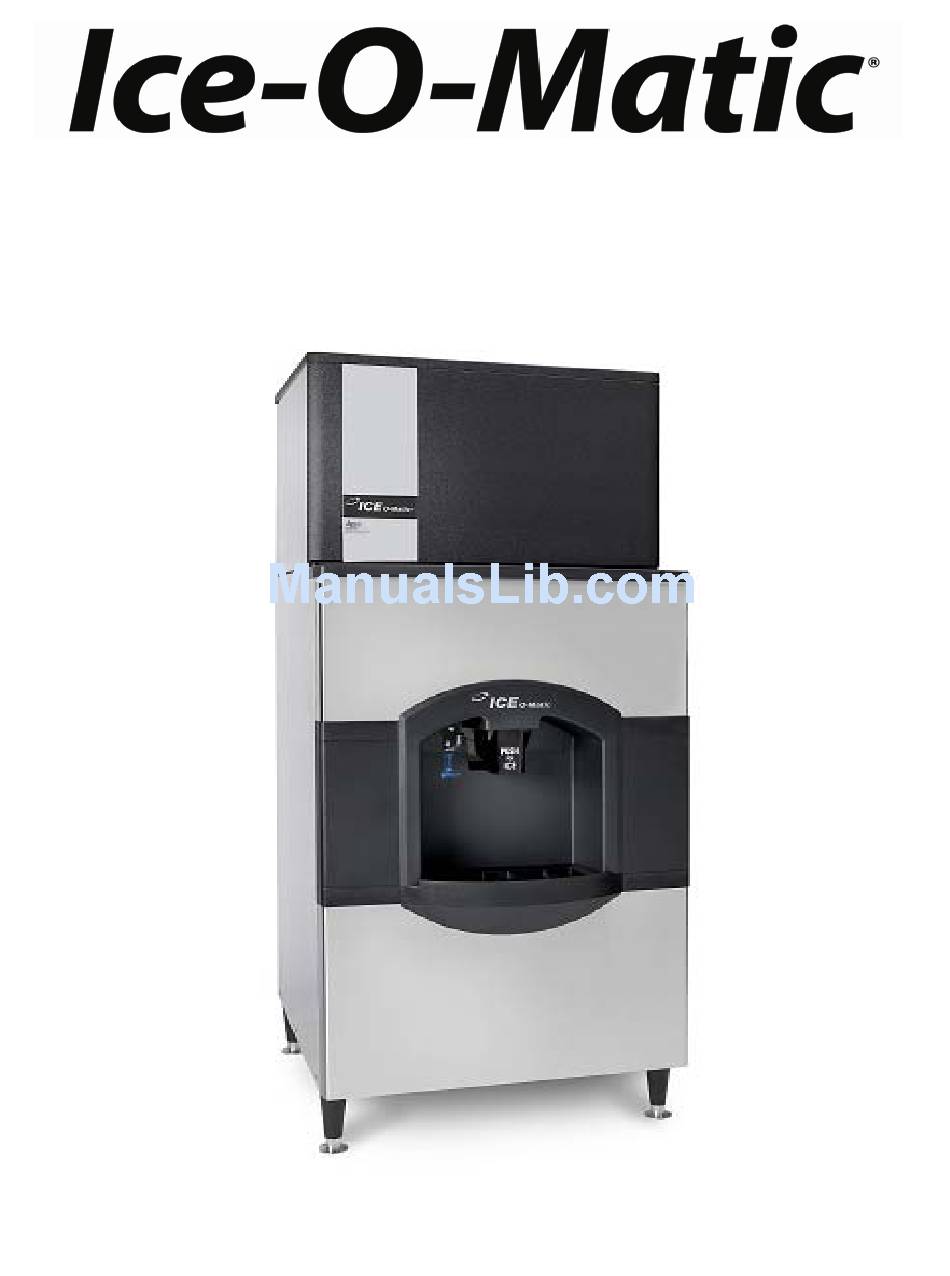

- Page 1 SERVICE PARTS MANUAL HOTEL DISPENSER MODEL CD40030 and CD40022 Ice-O-Matic 11100 East 45th Ave Denver, Colorado 80239 Part Number 9081317-02 Print Date 9/08...
-
Page 3: Table Of Contents
CD40022 and CD40030 Service Parts This is the list of service parts and for all versions of these two hotel dispensers. Pay close attention to the voltage and/or cycles to be sure of ordering the correct part. Front and Top Panels · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 2 CD40030 &... -
Page 4: Front And Top Panels
CD40022 and CD40030 Service Parts Item Part Number Number Description 1011339-104 Gasket tape, order by ft. 1011339-104 Use 27.5” for CD40030, 19.5” for CD40022 1011339-104 Use 27.88” 1011339-104 Use 27.25” for CD40030, 19.25” for CD40022 1011351-24 CD40030 top panel 1011351-25 CD40022 top panel 1011351-42 Top panel screw... -
Page 5: Cd40030 & Cd40022 Front Panel
CD40022 and CD40030 Service Parts CD40030 & CD40022 Front Panel Item Part Number Number Description 1011351-44 Screw 1011351-106 CD40030 stiffener 1011351-107 CD40022 stiffener 1011351-36 Retainer 1011351-17 CD40030 side flange 1011351-19 CD40022 side flange 1011351-91 CD40030 Front panel* 1011351-92 CD40022 Front panel* 1011351-50 Snap bushing 1011351-32... -
Page 6: Cd40130 And Cd40230 Front Panel & Related Parts
CD40022 and CD40030 Service Parts CD40130 and CD40230 Front Panel & Related Parts Item Part Number Number Description 1011351-74 Water inlet fitting 1011351-75 Straight connector 1011351-31 Pal nut 1011351-77 Male elbow connector 1011351-23 Water faucet 1011351-71 Tubing, order per ft 1011351-78 Shut off valve 1011351-119 Indicator light backing... -
Page 7: Side, Back And Interior Panels
CD40022 and CD40030 Service Parts Side, Back and Interior Panels Item Part Number Number Description 1011339-70 Screw 1011351-95 CD40030 back panel 1011351-121 CD40022 back panel 1011351-94 Right side panel, includes hardware 1011351-30 Screw 1011351-97 Bin support, right 1011351-96 Bin support, left 1011351-06 Drain fitting 1011351-105 Catch pan support... -
Page 8: Dispensing Components
CD40022 and CD40030 Service Parts Item Part Number Number Description 1011351-45 Hitch pin 1011351-22 Sweep arm 1011339-144 Dispense rotor 1011339-235 Hub plate 1011351-85 CD40030 bin assembly 1011351-86 CD40022 bin assembly 1011351-73 Insulation pad 1011351-48 Loop clamp Screw 1011351-72 Insulation for hub 1011351-66 Dispense gearmotor, dual voltage... -
Page 9: Ice Chute Mechanism
CD40022 and CD40030 Service Parts Item Part Number Number Description 1011351-118 Clip 1011339-70 Screw 1011351-11 Bracket 1011351-10 Door lock 1011351-09 Door 1011351-13 Wire 1011351-08 Dispense chute 1011351-53 Vend switch Ice Chute Mechanism Page 7... -
Page 10: Ice Catch Pan
CD40022 and CD40030 Service Parts Item Part Number Number Description 1011351-99 Screen Screw 1011351-02 Drain top Complete assembly as shown 1011351-69 O-ring 1011351-05 Drain bottom 1011351-76 Drain fitting 1011351-117 Drain pan bracket 1011351-28 Foam pad 1011351-116 Drain guard Ice Catch Pan Page 8... -
Page 11: Control Box
CD40022 and CD40030 Service Parts Item Part Number Number Description 1011351-124 Coin mech timer 1011351-35 Screw 1011351-58 Adjustment module 1011339-70 Screw 1011351-47 Loop clamp 1011339-82 Snap bushing 1011339-78 Free vend switch 1011351-49 Strain relief 1011351-55 60 Hz off cycle timer 1011351-56 50 Hz off cycle timer 1011351-98...
