Quick Installation Guide
1-Port XGS-PON Terminal

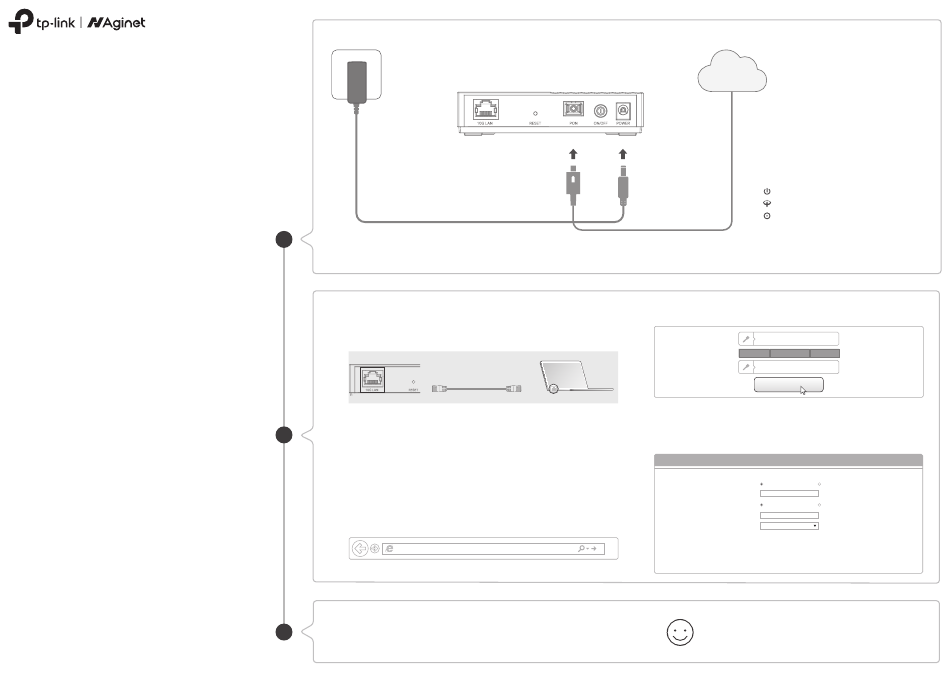

Connect the Hardware
Register the Terminal
Connect to the Internet
Power adapter
XGZ030
If the PON LED is solid on, please skip to Connect to the Internet.
1
Connect your computer to the Terminal via an Ethernet cable.
2
Configure TCP/IP Properties manually on your computer.
If the Terminal's LAN IP address is 192.168.1.1, please type
in IP address 192.168.1.x (x is from 2 to 253), subnet mask
255.255.255.0, and default gateway 192.168.1.1.
3
Register the Terminal via a web browser.
A
Launch a web browser and type in http://192.168.1.1 in the
address bar. Set and confirm your password to log in to the
Terminal.
http://192.168.1.1
Establish your internet connection according to your ISP's instructions.
Note: If you need assistance, contact your ISP.
2 1
Ethernet Cable
Internet
Terminal
3
Verify that the hardware connection
is correct by checking these LEDs.
Power: On
PON: On or Flashing
LOS: Off
New Password
Low Middle High
Confirm Password
Save
B
Go to Network > GPON Settings > GPON Registration.
Enter the GPON Password and/or GPON SN provided by
your ISP (Internet Service Provider) to register the Terminal
and click Save.
GPON Registration
SN Type: ASCII+HEX HEX
GPON SN:
Password Type:
ASCII HEX
GPON Password:
OLT Mode:
Normal Mode
Enjoy!
