Page 5: Preface
Preface Preface This guide describes the RUGGEDCOM WIN5118. It describes the major features of the subscriber unit, installation, commissioning and important technical specifications. It is intended for use by subscriber unit installers and operators, and assumes readers have a working knowledge of WiMAX technologies and procedures. -
Page 6: Related Documents
Siemens Sales representative. Customer Support Customer support is available 24 hours, 7 days a week for all Siemens customers. For technical support or general information, contact Siemens Customer Support through any of the following methods: Online Visit http://www.siemens.com/automation/support-request... -
Page 7: Introduction

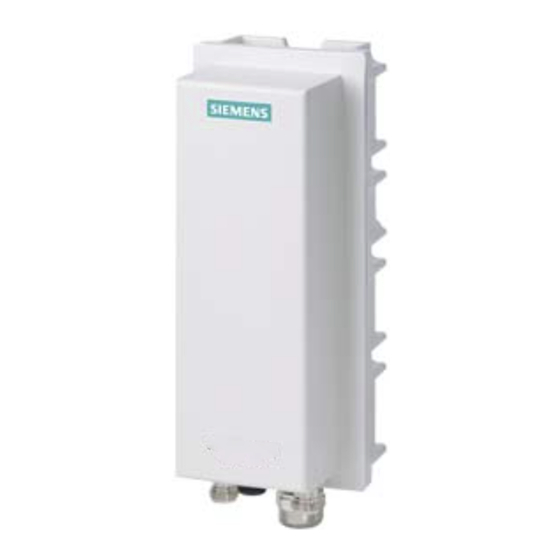

Introduction Introduction The RUGGEDCOM WIN5118 subscriber unit is part of the RUGGEDCOM WIN family, a line of mobile WiMAX broadband wireless access systems based on the IEEE 802.16e mobile WiMAX standard. The RUGGEDCOM WIN5118 is a high-performance, self-learning subscriber. It automatically detects the base station on the best signal available, allowing for plug-and-play installation and maintenance free operation. -
Page 8: Feature Highlights
The subscriber unit supports both IP convergence sublayer for wireless Internet service providers or Ethernet Convergence Sublayer, ideal for mission critical private networks. Section 1.2 Description The RUGGEDCOM WIN5118 is available in one of two models: • AC Model The AC model receives power from a Siemens-approved PoE injector. • DC Model The DC model receives power directly from a Class 2 power supply. - Page 9 Introduction ANT 1 ANT 2 ETH/PWR RSSI RSSI W.LINK W.LINK Figure 1: RUGGEDCOM WIN5118 (AC Model) 1. ANT 1 Port 2. ETH/PWR Port 3. RSSI LEDs 4. W.LINK LED 5. PWR LED 6. ANT 2 Port 7. Chassis Ground 12VDC ANT 1 ANT 2 RSSI ETH/PWR RSSI W.LINK PWR W.LINK PWR...
-
Page 10: Required Tools And Materials
Section 2.7, “Grounding the Subscriber Unit”. Section 1.3 Required Tools and Materials The following tools and materials are required to install the RUGGEDCOM WIN5118: Kits Greases • Class I, Division 2 Kit (P/N MKIT0090) – For hazardous • Marine grease (for marine applications only) - Page 11 RUGGEDCOM WIN5118 Chapter 1 Installation Guide Introduction Decommissioning This device may include sensitive, proprietary data. Before taking the device out of service, either permanently or for maintenance by a third-party, make sure it has been fully decommissioned. For more information, refer to the associated User Guide.
- Page 12 Chapter 1 RUGGEDCOM WIN5118 Introduction Installation Guide Decommissioning and Disposal...
-
Page 13: Installing The Subscriber Unit
WARNING! Safety hazard – risk of serious personal injury and/or damage to equipment. Installing the RUGGEDCOM WIN5118 can pose a serious safety hazard. Be sure to take precautions to avoid the following: • Exposure to high voltage lines during installation •... -
Page 14: General Procedure
Chapter 2 RUGGEDCOM WIN5118 Installing the Subscriber Unit Installation Guide IMPORTANT! This product should be installed in a restricted access location where access can only be gained by authorized personnel who have been informed of the restrictions and any precautions that must be taken. -
Page 15: Unpacking The Subscriber Unit
Configure the subscriber unit. For more information, refer to Section 3.1, “Configuring the Subscriber Unit”. Section 2.2 Unpacking the Subscriber Unit The following items are included in the RUGGEDCOM WIN5118 package: Item Quantity RUGGEDCOM WIN5118 Subscriber Unit RUGGEDCOM WIN1010 AC Power Injector Radio Frequency (RF) antenna cables, 5 m (16.4 ft) long... - Page 16 • Always use the most appropriate mounting method for the site and the equipment being installed. For assistance, contact a Siemens representative. • Always assume an overhead line can cause serious injury or death. Note that electric power lines and phone lines look alike.
-
Page 17: Installing The Subscriber Unit In Hazardous Locations
Installing the Subscriber Unit in Hazardous Locations The RUGGEDCOM WIN5118 is designed to comply with the safety standards for Class I, Division 2, Zone 2 hazardous locations where concentrations of flammable gases, vapors or liquids may be present, as opposed to normal operating environments. -
Page 18: Mounting The Subscriber Unit To A Wall Or Tower
Chapter 2 RUGGEDCOM WIN5118 Installing the Subscriber Unit Installation Guide When choosing the mounting location for the unit, consider the available mounting structures and antenna clearance. Site Survey Most wireless networks include many subscriber/base stations installed in various locations in an overlapping radio-cell pattern. -
Page 19: Mounting The Subscriber Unit To A Pole
RUGGEDCOM WIN5118 Chapter 2 Installation Guide Installing the Subscriber Unit Figure 4: Mounting the Subscriber Unit to a Wall or Tower 1. Subscriber Unit 2. Mounting Kit 3. Wall Holder/Pole Mount 4. M8 × 25 mm Hex Screw 5. M8 Spring Washer 6. M8 Flat Washer 7. M8 Nut 8. M5 Flat Washer 9. NS 1/4" × 1/2" HEX Chipboard Screw 10. Wall Anchor Liberally apply an anti-corrosion spray to all galvanized steel components, including mounting brackets, washers and screws. - Page 20 Chapter 2 RUGGEDCOM WIN5118 Installing the Subscriber Unit Installation Guide To mount the subscriber unit to a pole, do the following: Attach the subscriber unit to the mounting bracket. Figure 5: Mounting the Subscriber Unit to a Large Pole 1. Subscriber Unit 2. Pole 3. Clamping Bracket 4. Mounting Bracket 5. M8-25 Hex Screw 6. M8 Spring Washer 7. M8 Flat Washer ...
-
Page 21: Installing The Antennas
14 N·m (10 lbf-ft). Section 2.6 Installing the Antennas The RUGGEDCOM WIN5118 supports N-Connect female antennas. To install an antenna, do the following: WARNING! Radiation hazard – risk of Radio Frequency (RF) exposure. This subscriber unit is compliant with the requirements set forth in FCC CFR 47, section 1.1307, addressing Radio Frequency (RF) exposure from... - Page 22 Switch-Mode Power Supplies (SMPS). Figure 7: Antenna and Lightning Protector Assembly 1. Drain Wire 2. RUGGEDCOM WIN5118 3. Shielded Coaxial Cable 4. Lightning Protector 5. Ground Wire 6. Antenna Make sure the PWR LED on the subscriber unit is on.
-
Page 23: Grounding The Subscriber Unit
RUGGEDCOM WIN5118 Chapter 2 Installation Guide Installing the Subscriber Unit Section 2.7 Grounding the Subscriber Unit When connecting the ground cable to the subscriber unit, make sure to use a 10 AWG grounding cable and torque the screw to 15 N·m (11 ft. lb.). -
Page 24: Connecting Power Directly (Dc Only)
Section 2.8.1 Connecting Power Directly (DC Only) The DC version of the RUGGEDCOM WIN5118 requires a 10 to 30 VDC Class 2 power supply. IMPORTANT! When connecting a DC battery power supply, make sure to use a 36 VDC, 3 A, double-pole circuit breaker as the main disconnecting device. -
Page 25: Connecting To A Ruggedcom Rp100 Or Rp110 (Ac Only)
Connecting to a RUGGEDCOM RP100 or RP110 (AC Only) The RUGGEDCOM RP100 and RP110 are optional power injectors for powering and providing data to the RUGGEDCOM WIN5118 (AC Only). The RUGGEDCOM RP100 and RP110 meet a wider temperature and voltage range than the standardRUGGEDCOM WIN1010. -
Page 26: Assembling The Poe Connector
Installing the Subscriber Unit Installation Guide Figure 10: Typical Outdoor Installation 1. RUGGEDCOM WIN5118 2. Shielded Cable 3. Ground Connection 4. Lightning Protector 5. RUGGEDCOM RP100/RP110 6. Drain Wire (Shielded) For more information about the RUGGEDCOM RP100 or RP110, refer to the RUGGEDCOM RP100 Installation Guide or the RUGGEDCOM RP110 Installation Guide. - Page 27 RUGGEDCOM WIN5118 Chapter 2 Installation Guide Installing the Subscriber Unit 38 mm (1.5 in) Figure 12: Cutting the Jacket 1. Wire Jacket 2. Foil Fold the foil back over the wire jacket. Figure 13: Folding Back the Foil 1. Foil 2. Twisted-Pair Wires 3. Drain Wire Bend the drain wire back over the jacket.
- Page 28 Chapter 2 RUGGEDCOM WIN5118 Installing the Subscriber Unit Installation Guide Figure 15: Untwisting the Wire Pairs Arrange the wires according to the following pin-out description: Color Description Number White/Orange ETH Data TP0+ Orange ETH Data TP0- White/Green ETH Data TP1+ Figure 16: CAT-5e PoE Cable Pin-Out...
-
Page 29: Installing The Hazardous Location Kit
An approved Power-over-Ethernet (PoE) injector is required when the subscriber unit is installed in a hazardous location. The RUGGEDCOM WIN5118 is certified for installation in Class I, Division 2 Groups A, B, C and D hazardous locations when installed using the Class I, Division 2 kit (P/N MKIT0090). The Class I, Division 2 kit contains the following items: •... -
Page 30: Weatherproofing The Subscriber Unit
Most outdoor subscriber unit, antenna and cable problems are caused by coaxial cable connections loosened by vibration, allowing moisture to penetrate the connector interface. Siemens strongly recommends weatherproofing all outdoor cable connections to prevent the ingress of water and help secure connections. -
Page 31: Weatherproofing A Cable
RUGGEDCOM WIN5118 Chapter 2 Installation Guide Installing the Subscriber Unit IMPORTANT! The method of weatherproofing described in this section must be completed on all external connections. If surge arrestors are used, all associated connections and arrestors must be completely wrapped with splicing tape or self-amalgamating tape. -
Page 32: Applying Self-Amalgamating Tape
Chapter 2 RUGGEDCOM WIN5118 Installing the Subscriber Unit Installation Guide Hold the tube against the subscriber unit chassis and start rotating it clockwise while gently pulling out the core. Stop rotating once the front end of the cold shrink has begun to form around the cable end. -
Page 33: Device Management
RUGGEDCOM WIN5118 Chapter 3 Installation Guide Device Management Device Management This section describes how to connect to and manage the subscriber unit. CONTENTS • Section 3.1, “Configuring the Subscriber Unit” Section 3.1 Configuring the Subscriber Unit Once the subscriber unit is installed and connected to the network, it must be configured. The RUGGEDCOM WIN5118 features a Web-based User Interface (UI) for all configuration management. - Page 34 Chapter 3 RUGGEDCOM WIN5118 Device Management Installation Guide Configuring the Subscriber Unit...
-
Page 35: Technical Specifications
• Section 4.6, “IDU to ODU Cable Specifications” • Section 4.7, “Dimension Drawings” Section 4.1 Power Supply Requirements The RUGGEDCOM WIN5118 requires an external power supply that meets the following requirements: AC Model Power Supply Rated Input Power Rated Output Power RUGGEDCOM WIN1010 100 to 240 VAC, 50 to 60 Hz, 1.5 A... -
Page 36: Power Consumption
-20 to 100 dBm Dynamic Range (Transmitter) -20 to 27 dBm Section 4.4 Operating Environment The RUGGEDCOM WIN5118 is rated to operate under the following environmental conditions. Ambient Operating -40 to 75 °C (-40 to 167 °F) Temperature Ambient Storage Temperature -40 to 75 °C (-40 to 167 °F) -
Page 37: Mechanical Specifications
RUGGEDCOM WIN5118 Chapter 4 Installation Guide Technical Specifications Maximum Altitude 2000 m (6562 ft) Measured from a 30 cm (12 in) radius surrounding the center of the enclosure Non-condensing Section 4.5 Mechanical Specifications Weight 1.5 kg (3.3 lb) Ingress Protection IP67... -
Page 38: Dimension Drawings
Chapter 4 RUGGEDCOM WIN5118 Technical Specifications Installation Guide Overall Drain-wire Size 24 AWG Overall Drain-wire Stranded Construction Inner Jacket Material UV resistant FR-PVC Inner Jacket Diameter 6.1 mm (0.24 in) Total Number of Wires IDU to ODU Cable Standards Flammability Rating... - Page 39 RUGGEDCOM WIN5118 Chapter 4 Installation Guide Technical Specifications 71.2 80.1 92.2 Figure 20: Overall Dimensions (AC Model) Dimension Drawings...
- Page 40 Chapter 4 RUGGEDCOM WIN5118 Technical Specifications Installation Guide 71.2 44.2 92.2 Figure 21: Overall Dimensions (DC Model) Dimension Drawings...
-
Page 41: Certification
RUGGEDCOM WIN5118 Chapter 5 Installation Guide Certification Certification The RUGGEDCOM WIN5118 ODU SU has been thoroughly tested to guarantee its conformance with recognized standards and has received approval from recognized regulatory agencies. CONTENTS • Section 5.1, “Approvals” • Section 5.2, “Environmental Type Tests”... -
Page 42: Csa
Chapter 5 RUGGEDCOM WIN5118 Certification Installation Guide • UL 1604 Electrical Equipment for Use in Class I and II, Division 2, and Class III Hazardous (Classified) Locations • CAN/CSA-C22.2 No. 213-M1987 Non-Incendive Electrical Equipment for Use in Class I, Division 2 Hazardous Locations The subscriber unit is marked with an MET classified mark that indicates compliance with both Canadian and U.S. -
Page 43: European Union (Eu)
Siemens”. Section 5.1.5 ISED This subscriber unit is declared by Siemens Canada Ltd to meet the requirements of the following ISED (Innovation Science and Economic Development Canada) standard: • SRSP 301.7 Issue 24 Technical Requirements for Fixed Radio Systems Operating in the Bands 1700-1710 MHz and 1780-1850 MHz Section 5.1.6... -
Page 44: Rohs
Installation Guide Section 5.1.7 RoHS This device is declared by Siemens Canada Ltd to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: • China RoHS 2... - Page 45 RUGGEDCOM WIN5118 Chapter 5 Installation Guide Certification Test Description Test Levels IEC 60068-2-29 Shock (Class 4M5) Spectrum: Half sine Duration: 11 ms Accelerator: 50 m/s² 100 shocks in each direction Shock Spectrum: Half sine Duration: 6 ms Accelerator: 180 m/s²...
- Page 46 Chapter 5 RUGGEDCOM WIN5118 Certification Installation Guide Environmental Type Tests...
