Summary of Contents for Elation PIXEL DRIVER 1000IP

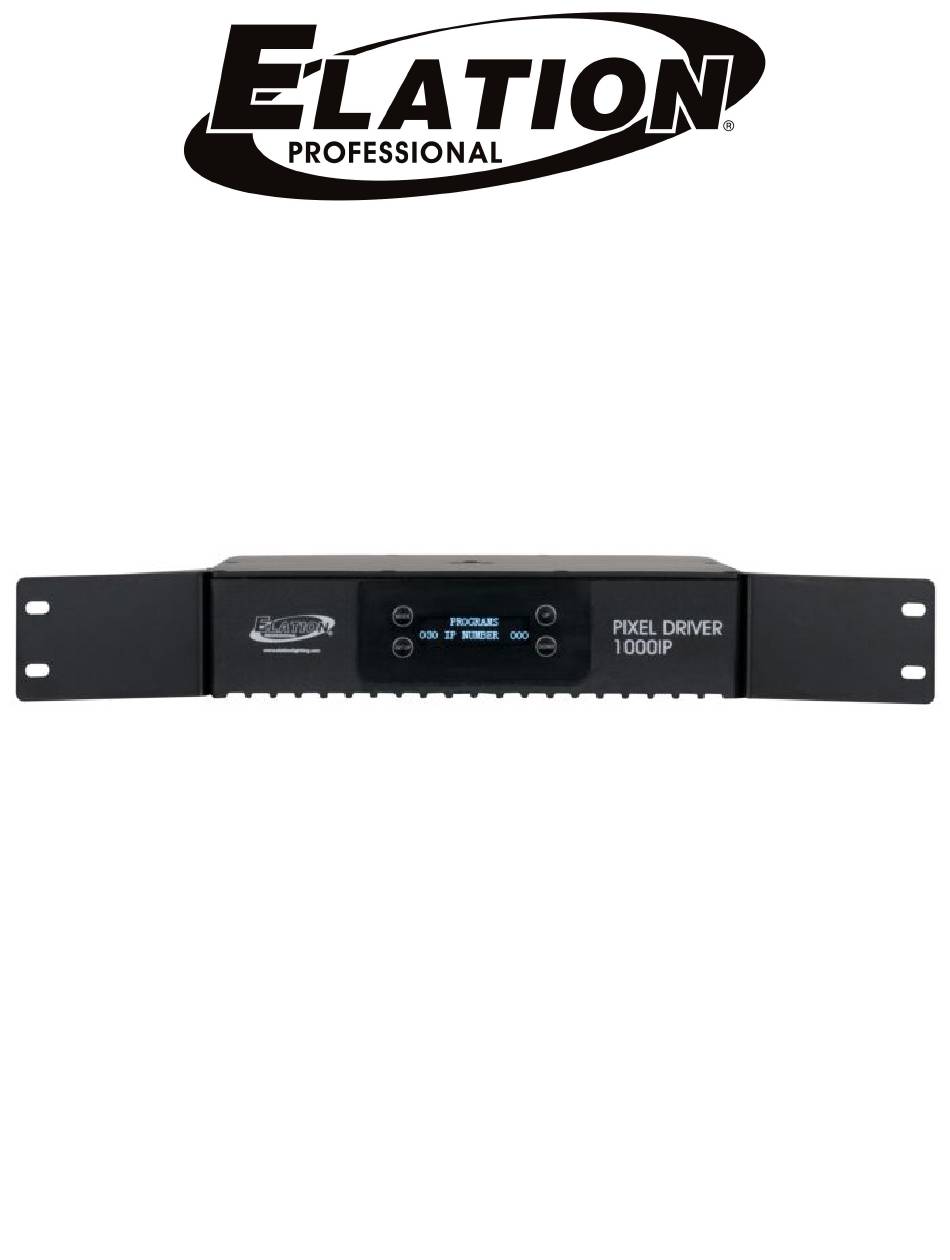

- Page 1 PIXEL DRIVER 1000IP User Manual...
- Page 2 Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 DOCUMENT VERSION Due to additional product features and/or enhancements, an updated version of this document may be available online.
-
Page 3: Table Of Contents
CONTENTS General Information Limited Warranty (USA Only) Safety Guidelines Overview Installation Remote Device Management (RDM) Driver Output Limitations RGB Pixel Control Modes Control Panel System Menu Dimensional Drawings Specifications FCC Statement... -
Page 4: General Information
4-pin Data Cable (x1) Rack Mount Brackets w/ Hardware (x2) IP65 Power Cable Connector Kit (x1) CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com... -
Page 5: Limited Warranty (Usa Only)
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 6: Safety Guidelines
This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. - Page 7 SAFETY GUIDELINES For Your Own Personal Safety, Please Read and Understand This Manual Completely Before You Attempt To Install Or Operate This Unit! • Be sure to save the packing carton in the unlikely event the device may have to be returned for service.
-
Page 8: Overview

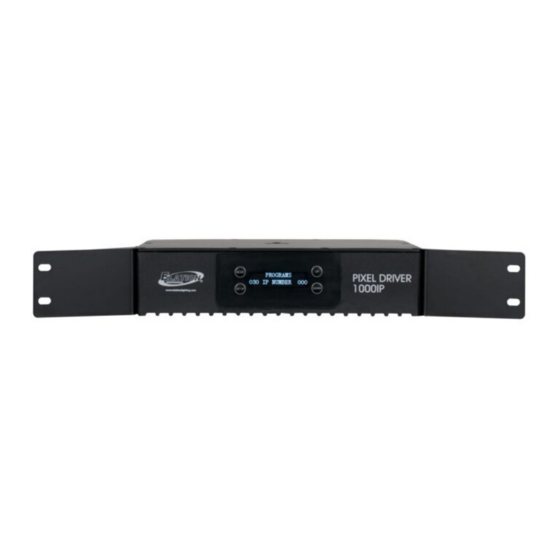

OVERVIEW 1. Mode Button 8. Safety Cable Attachment 2. Display Screen 9. Power In 3. Up Button Power Out 4. Setup Button LED Out 5. Down Button Net Data In 6. Underside Mounting Point Net Data Out 7. Topside Mounting Point Rack Mount Brackets... -
Page 9: Installation
INSTALLATION FLAMMABLE MATERIAL WARNING! Keep drive a minimum of 5.0 feet (1.5m) away from flammable material and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. DO NOT INSTALL THE DEVICE IF YOU ARE NOT QUALIFIED TO DO SO! The driver MUST be installed following all local, national, and country commercial electrical and construction codes and regulations. - Page 10 INSTALLATION RACK MOUNTING This device can be rack mounted using the removable mounting brackets located on each side of the device. Make sure to use mounting hardware that fits the mounting holes on the device as well as the rack itself. Use all four (4) points on the mounting brackets to ensure that the device is mounted securely.
- Page 11 INSTALLATION CLAMP MOUNTING This device features a mounting clamp attachment point in the middle of both the top face and the bottom face, as well as a built-in safety cable attachment point in the corner of the device near the Power In port (see the illustration below). When mounting the fixture to a truss or any other suspended or overhead installation, be sure to secure an appropriately rated clamp (not included) to the clamp attachment point and attach a separate SAFETY CABLE of the appropriate safety rating to the safety cable rigging point.
- Page 12 INSTALLATION MULTIPLE DRIVERS Up to five (5) Pixel Driver 1000IP devices may be daisy-chained directly together and linked to a single controller. See the image below for reference. Do NOT daisy-chain more than five (5) devices directly together. If more than five (5) devices are required, a one-gigabit ethernet switch may be used to expand the size of the network.
-
Page 13: Remote Device Management (Rdm)
R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems. -
Page 14: Driver Output Limitations
DRIVER OUTPUT LIMITATIONS There is a limitation to how many pixels can be controlled by each driver unit, which in turn determines the maximum number of lighting fixtures that can be controlled by a single output or driver. PIXEL BAR SERIES KLINGNET / ARTNET / sACN MAX PIXELS PER DRIVER = 1020 TOTAL... -
Page 15: Rgb Pixel Control Modes
RGB PIXEL CONTROL MODES This feature gives the user the ability to adjust the RGB pixel control mode of the device. Individual pixels may be controlled independently for finer control over the resolution of the device’s lighting display. Alternately, multiple individual pixels may be grouped together under a common set of control channels in order to reduce the number of required control channels. - Page 16 RGB PIXEL CONTROL MODES Available pixel control modess: Pixel Bar 30IP Pixel Bar 60IP Pixel Bar 120IP 30x1 60x1 120x1 15x2 30x2 60x2 10x3 20x3 40x3 15x4 30x4 12x5 24x5 3x10 10x6 20x6 2x15 6x10 15x8 5x12 12x10 4x15 10x12 3x20 8x15 2x30...
-
Page 17: Control Panel
CONTROL PANEL The device includes an easy to navigate system menu control panel display where all necessary settings and adjustments are made (see image below). • The MODE button is used to cycle through main menu options, or to return to the previous menu. •... -
Page 18: System Menu
SYSTEM MENU Manual Control Red Dimmer Red color intensity Red: x x x Manual Control Green Dimmer Green color intensity Green: x x x DIMMER MODE Manual Control Blue Dimmer Blue color intensity Blue: x x x White color intensity Manual Control White Dimmer (Pixel Wash 40IP mode... - Page 19 SYSTEM MENU Select model of Artnet Pixel Bar that will Pixel Bar x x x IP be controlled by the driver Select the number of Artnet Pixel Bar units that x x x IP Number x x x Pixel Bar Setup the driver will control Artnet see RGB Pixel Control...
- Page 20 SYSTEM MENU DMX Universe sACN set DMX universe of Output Set U: x x x x x the output Select model of sACN Pixel Bar that will Pixel Bar x x x IP be controlled by the driver Select the number of sACN Pixel Bar units that Pixel Bar Setup...
- Page 21 SYSTEM MENU S e l e c t m o d e l Programs Pixel Bar that will Pixel Bar x x x IP be controlled by the driver Pixel Bar Setup Select the number of Programs Pixel Bar units that x x x IP Number x x the driver will control Program...
-
Page 22: Dimensional Drawings
DIMENSIONAL DRAWINGS Dimensions not to scale. -
Page 23: Specifications
SPECIFICATIONS CONTROL / CONNECTIONS Manual RGB Mode Internal Programs Art-NET | sACN | Kling-NET Protocols 2 RJ45 Ethernet Ports 1 4pin Power/Data Output SIZE / WEIGHT Length: 18.9” (480mm) * With Rack Ears Width: 8.0” (203.5mm) Height: 2.5” (64mm) Weight: 8 lbs. (3.6kg) ELECTRICAL AC Input 100-240V - 50/60HZ, 2.2A DC Output 24V, 8.4A... -
Page 24: Fcc Statement
FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RADIO FREQUENCY INTERFERENCE WARNINGS &... - Page 25 This page intentionally left blank.
