Jabra GN9120 DECT GAP
How to connect my Jabra GN9120 EHS / GN 9125 EHS with
Aastra Office 70 and 80 or Aastra 5370 and 5380
Prerequisite:
Jabra GN9120 EHS + EHS 14201-10
Jabra GN9125 EHS + EHS 14201-10
In combination with one of the following phones:
Office 70 / 70 IP or 5370 IP
Office 80 / 80 IP or 5380 IP
Connection:

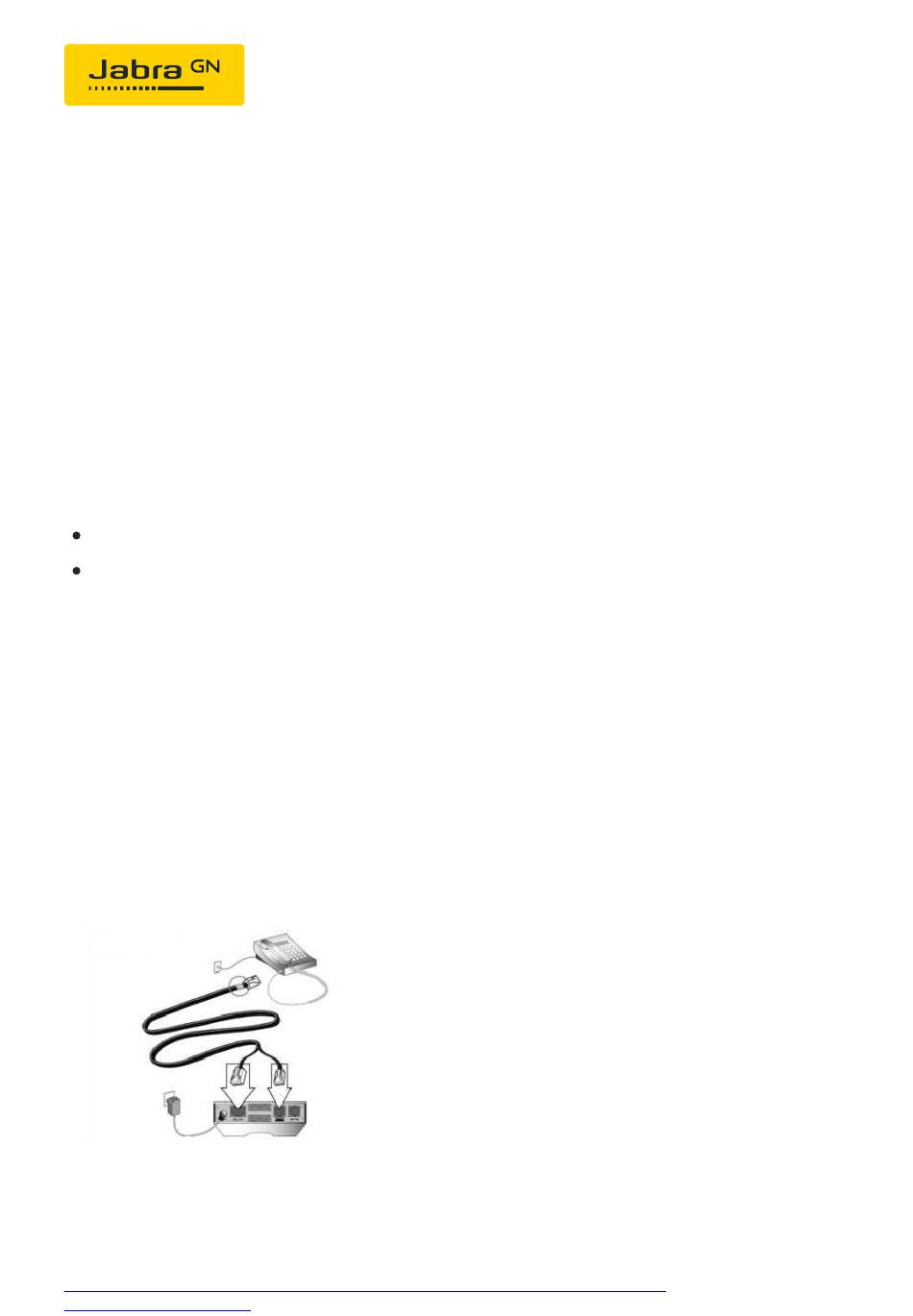

1. Plug the 1-sided end of the DHSG cable marked in blue into the socket
marked with the "headset" symbol on your phone.
2. Plug the split end of the DHSG cable into the base of the Jabra
GN9120. Insert the RJ9 plug into the socket with the "phone" symbol
and the RJ45 plug into the socket on the Jabra GN9120 base marked
with "AUX".
EHS setup:
The Jabra GN912x must support and be set up to DHSG EHS.
https://www.emea.jabra.com/supportpages/jabra-gn9120/9120-49-21/faq/9dfccf10-47e3-
4e15-a1d1-d7623936d744
23/12/2022 05:47
Page 1 of 3
Advertisement
Related Manuals for Jabra GN9120
Summary of Contents for Jabra GN9120
- Page 1 1. Plug the 1-sided end of the DHSG cable marked in blue into the socket marked with the "headset" symbol on your phone. 2. Plug the split end of the DHSG cable into the base of the Jabra GN9120. Insert the RJ9 plug into the socket with the "phone" symbol and the RJ45 plug into the socket on the Jabra GN9120 base marked with "AUX".
- Page 2 4. With the PLUS or MINUS buttons, you can now switch between the different EHS types. 5. To confirm the EHS has successfully installed, the phone automatically switches back to charge mode after approx. 10 seconds. Base setup: Set the phone set-up switch to "A". https://www.emea.jabra.com/supportpages/jabra-gn9120/9120-49-21/faq/9dfccf10-47e3- Page 2 of 3 4e15-a1d1-d7623936d744...
- Page 3 4. To confirm, after approx. 10 seconds a low signal tone is produced. All the settings are then automatically saved. Phone setup: Menu > Settings > Audio > Headset ON from release 7.9: Menu> Settings> Audio> Headset> Headset ON https://www.emea.jabra.com/supportpages/jabra-gn9120/9120-49-21/faq/9dfccf10-47e3- Page 3 of 3 4e15-a1d1-d7623936d744...
