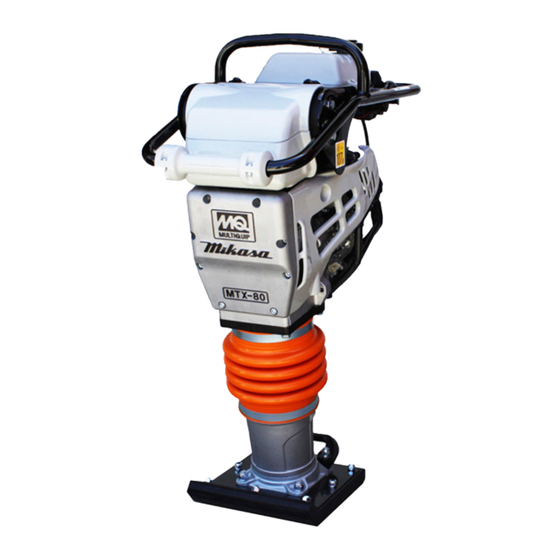

Tamping rammer
Hide thumbs Also See for Mikasa Series:
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATION MANUAL
SERIES
MODEL MTX80HDR
TAMPING RAMMER
(HONDA GXR120RT-KRBF GASOLINE ENGINE)
Revision #5 (12/01/22)
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

Advertisement

Table of Contents
loading

Related Manuals for MULTIQUIP Mikasa Series

Summary of Contents for MULTIQUIP Mikasa Series

  • Page 1 OPERATION MANUAL SERIES MODEL MTX80HDR TAMPING RAMMER (HONDA GXR120RT-KRBF GASOLINE ENGINE) Revision #5 (12/01/22) THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
  • Page 2 @ www.discount-equipment.com Select an option below to find your Equipment We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman, Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto, Power Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack, Lull,...

  • Page 3: Proposition 65 Warning

    PROPOSITION 65 WARNING PAGE 2 — MTX80HDR RAMMER • OPERATION MANUAL — REV. #5 (12/01/22)

  • Page 4: Table Of Contents

    TABLE OF CONTENTS MTX80HDR Rammer Proposition 65 Warning ........... 2 Safety Information ..........5–8 Specifications ............9 Noise And Vibration Emissions ......10 General Information ..........11 Components ............12 Basic Engine ............13 Transporting And Lifting ......... 14 Inspection .............. 15 Operation ............

  • Page 5: Safety Information

    SAFETY INFORMATION Do not operate or service the equipment before reading Potential hazards associated with the operation of this the entire manual. Safety precautions should be followed equipment will be referenced with hazard symbols which at all times when operating this equipment. may appear throughout this manual in conjunction with Failure to read and understand the safety safety messages.
  • Page 6 „ NEVER lubricate components or attempt service on a „ NEVER use accessories or attachments that are not running machine. recommended by Multiquip for this equipment. Damage NOTICE to the equipment and/or injury to user may result. „ ALWAYS keep the machine in proper running condition.
  • Page 7 SAFETY INFORMATION ENGINE SAFETY FUEL SAFETY DANGER DANGER „ The engine fuel exhaust gases contain poisonous carbon „ DO NOT add fuel to equipment if it is placed inside truck monoxide. This gas is colorless and odorless, and can bed with plastic liner. Possibility exists of explosion or cause death if inhaled.
  • Page 8 SAFETY INFORMATION TRANSPORTING SAFETY CAUTION „ NEVER allow any person or animal to stand underneath the equipment while lifting. NOTICE „ Before lifting, make sure that the equipment parts (hook and vibration insulator) are not damaged and screws are not loose or missing. „...

  • Page 9: Specifications

    SPECIFICATIONS Table 1. Rammer Specifications Overall Height 40.43 in. (1027 mm) Overall Width 13.78 in. (350 mm) Over Length 31.02 in. (788 mm) Shoe Size (W x L) 13.4 x 11.2 in. (340 x 285 mm) Fuel Tank Capacity 2.7 qt. (2.5 liters) Lubrication Oil Capacity 0.8 qt.

  • Page 10: Noise And Vibration Emissions

    NOISE AND VIBRATION EMISSIONS Table 3. Noise and Vibration Emissions Measured Sound Power Level in dB(A) Guaranteed Sound Power Level in dB(A) Guaranteed Sound Pressure Level at Operator Station in dB(A) Hand-Arm Vibration in m/s NOTES: Products are tested for sound pressure level in accordance with European Directives 2000/14/EC and 2005/88/EC, relating to Noise Emission in the Environment by equipment for use outdoors.

  • Page 11: General Information

    GENERAL INFORMATION The Multiquip MTX80HDR tamping rammer is a powerful compacting tool capable of applying a tremendous force in consecutive impacts to a soil surface. Its applications include soil compacting for road, embankments and reservoirs as well as backfilling for gas pipelines, water pipelines and cable installation work.

  • Page 12: Components

    COMPONENTS 8. Drain Valve — Open this valve to remove oil from the bellows. 9. Foot — Laminated wood with tempered steel plate for superior shock absorption. 10. Bellows — Reservoir for oil bath. 11. Roller — Facilitates loading onto tailgate of a truck or transport vehicle 12.

  • Page 13: Basic Engine

    BASIC ENGINE Figure 2. Honda GXR120RT-KRBF Engine 5. Oil Drain Plug — Remove this plug to remove oil from The engine (Figure 2) must be checked for proper lubri- cation and filled with fuel prior to operation. Refer to the the engine's crankcase.

  • Page 14: Transporting And Lifting

    TRANSPORTING AND LIFTING Inspect the lower lifting handle (Figure 3) for cracks or NOTICE damage. If the lifting handle is damaged in any way, replace it DO NOT use the lower lifting handle as a connection immediately. Ensure hardware is properly tightened before use. point when transporting or lifting with forklifts, cranes LOWER or other machinery.

  • Page 15: Inspection

    INSPECTION It is extremely important that this section be read carefully before attempting to operate the rammer. DO NOT use FUEL your rammer until this section is thoroughly understood. TANK CRANKCASE AND SPRING CYLINDER OIL BATH This unit uses an oil bath lubrication system. Perform the following: 1.

  • Page 16: Operation

    OPERATION 3. Place the choke lever to the closed position. When the CAUTION weather is cold, close the choke all the way. When it Failure to understand the operation of the Tamping is hot, or if the engine is hot, open the choke a little or Rammer could result in severe damage to the unit or leave it fully open.
  • Page 17 OPERATION OPERATION Figure 14. Throttle Lever (Start Position) CAUTION CAUTION Rammer should only be operated while standing Make sure that the throttle lever is moved to the FULL behind the machine, and holding Guide Handle START position. Operating the rammer at less than full firmly with both hands (Figure 13A).

  • Page 18: Maintenance

    MAINTENANCE DAILY EVERY 200 HOURS „ Thoroughly remove dirt and oil from the engine and „ Remove the oil drain plug on foot housing (Figure 18) and control area. drain the oil. Refill with approximately 0.8 qt. (0.75 liter) of 10W-30 SE, SF or higher grade motor oil. Oil should „...

  • Page 19: Troubleshooting (Engine)

    TROUBLESHOOTING Troubleshooting (Engine) Symptom Possible Problem Solution Combo lever in incorrect position? Make sure combo lever is in start position. Spark plug bridging? Check gap, insulation or replace spark plug. Carbon deposit on spark plug? Clean or replace spark plug. Short circuit due to defi cient spark plug Check spark plug insulation, replace if worn.
  • Page 20 TROUBLESHOOTING Troubleshooting (Engine) - continued Symptom Possible Problem Solution Air cleaner dirty? Clean or replace air cleaner. Improper level in carburetor? Check fl oat adjustment, rebuild carburetor. Weak in power, compression is proper and does not misfi re. Defective spark plug? Clean or replace spark plug.

  • Page 21: Troubleshooting (Rammer)

    TROUBLESHOOTING Troubleshooting (Rammer) Symptom Possible Problem Solution Operating speed of throttle lever is Set throttle lever to correct position. incorrectly set? Oil in excess? Drain excess oil. Bring to correct level. Clutch slips? Replace or adjust clutch. Engine runs but rammer jumps erratically or not at all.
