Philips ACT200 Product Manual

Psa64 digital audio player portable sport audio
Hide thumbs Also See for ACT200:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Manual

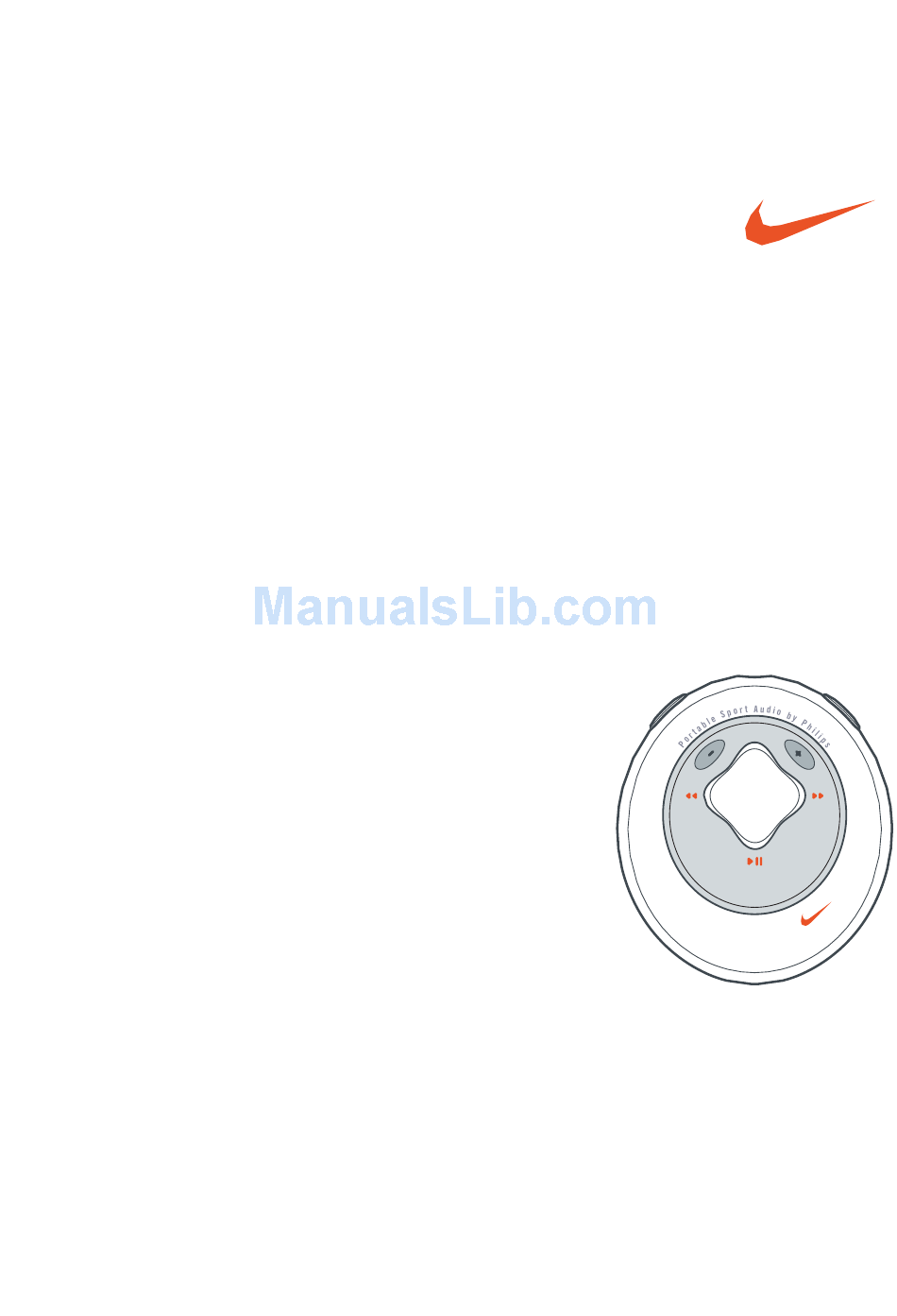

product manual
psa[64
digital audio player
Philips
Portable Sport Audio by

Advertisement

Table of Contents
loading

Related Manuals for Philips ACT200

Summary of Contents for Philips ACT200

  • Page 1 Philips Portable Sport Audio by...

  • Page 2: Table Of Contents

    2 contents controls and connections, accessories ––––––––––––––––––––––––– 4 minimum computer system requirements –––––––––––––––––––––––– 6 general information ––––––––––––––––––––––––––––––––––––––––––– 7 power supply ––––––––––––––––––––––––––––––––––––––––––––––––– 8 power on/off, playback and pause 2; power saving mode ––––––––––––––––––––––––––––––––––––––––––– 9 adjusting volume - / + and eq settings ––––––––––––––––––––––––– 10 selecting a different track fast searching 5 , 6 ––––––––––––––––––––––––––––––––––––––––...
  • Page 3 CAUTION use this device according to the instructions that follow failure to do so could be hazardous to your health. users of pacemakers or other implanted devices should consult their physician before using magnets or devices that may gen- erate electro-magnetic interference. this product complies with the radio interference requirements of the European Union.

  • Page 4: Controls And Connections, Accessories

    4 controls and connections switches the set on / off; starts / pauses playback 2 5 / 6 skips to the beginning of a previous/next track 3 - / + adjusts the volume indicator lights up: red (battery low / power down), green (power up) or orange (button lock activated / pause mode) 5 eq...
  • Page 5 front view rear view controls 5...

  • Page 6: Minimum Computer System Requirements

    6 minimum computer system requirements Windows system requirements you need to have a usb port. computers that were upgraded from Win 95 to Win 98 may not have usb compatibility! check out the other requirements: – Pentium® MMX 166MHz processor or better –...

  • Page 7: General Information 7

    & windows media audio format. – software upgradeable and will support future playback formats and sofware exten- sions that will be made available on www.nike-philips.com. – will support for future digital rights management technology, including the Secure Digital Music Initiative (SDMI).

  • Page 8: Power Supply

    8 power supply battery press 4 to open the battery cover latch and insert one AAA /UM4 /LRO3 battery (preferably alkaline) or Ni-MH rechargeable as indicated. insert the lower edge of cover as shown to close the battery cover latch. beep beep! indication of empty battery when the power level is almost empty, the psa64 will beep at intervals and the inidicator lights up red.

  • Page 9: Power Saving Mode

    power on and playback, 2; press and hold 2; for 2 seconds to turn on. – indicator: green light flashes briefly and play- back starts automatically. – psa beeps: if no content has been stored in the psa, the psa powers down. power off, 2;...

  • Page 10: Adjusting Volume - / + And Eq Settings

    10 adjusting volume - / + and eq settings volume press - / + to decrease / increase the volume. eq sound options - bring out the bass or top up on treble! press eq again and again to select your equalizer option.

  • Page 11: Selecting A Different Track

    selecting a different track 5 , 6 press 5 / 6 to select the desired track. fast searching within a track during playback, press and hold 5 / 6 briefly. psa plays track at high speed until the button is released. using the button lock deactivates the other buttons so they are not activated accidentally.

  • Page 12: Remote Control, Clip Magnets, Armband

    12 accessories remote control the remote has 5 buttons ( - / +, 2; ,5 / 6) that function the same way that they do on the psa. even if the button lock control will override. connect the remote control and headphones as shown.
  • Page 13 clip magnets wear your remote control and secure your headphone cord with these wearable magnets. check the polarity of the 2 button magnets. insert the big button magnet underneath your garment. clip the small button magnet on your outer gar- ment.

  • Page 14: Installing Musicmatch Jukebox

    14 accessories, software: MUSICMATCH Jukebox armband wear your digital audio player during sport activity by securing it to the supplied armband. fit the psa into the rubber buckle, with the head- phone / remote socket aligned to the socket hole. position the armband around your arm.
  • Page 15 an introduction screen appears. select the language that suits you best (english, français, italiano, deutsch or español). select your product. software: MUSICMATCH Jukebox 15...
  • Page 16 16 software: MUSICMATCH Jukebox and device drivers from the next screen, click install MUSICMATCH jukebox and follow the screen instructions to install. click Yes on the screen to restart your computer when prompted. the software is now installed.

  • Page 17: Installing The Psa Drivers 17

    installing the psa drivers you must install the device drivers for your computer to recognize the psa player. follow these directions to install the drivers. insert the psa cd rom into your cd rom drive. an introduction screen appears. select the language that suits you best (english, français, italiano, deutsch or español).

  • Page 18: Connecting The Psa To Your Computer

    18 connecting the psa connecting the psa to your computer check that the psa is loaded with a suitable battery (preferably fresh) before you start connecting. connect the supplied usb cable to your computer's usb port. press 4 to open the battery compartment. connect the other end of the usb cable to usb in, (found inside the battery compartment.) turn on the computer.

  • Page 19: Creating Mp3 & Windows Media Audio Files From Cds

    convert music cds into mp3 files click the (record) button. the Recorder window will open. insert a commercial music cd into your computer's cd tray. CD lookup will attempt to add artist track and album names. if information doesn't appear, enter it manually. check the boxes next to each track to record then click the the Recorder.

  • Page 20: Playlist

    20 playlist create & save music playlists open the Music Library by clicking the My Library button. double-click a track in the library, or drag and drop tracks from the Music Library into the Playlist window. drag and drop tracks within the Playlist to change the play order. click Save to save the playlist.

  • Page 21: Download Music To The Psa From Your Computer

    Done to exit. view download sta- tus from the track progress bar. * the current psa may not download windows media audio for mac users. check out www.nike-philips.com for updates of mac plug-in. ➔ Download To Nike psa[64, psa[128 max. your songs...
  • Page 22 22 downloading music tips: – the Portable Device Memory window (right) shows the tracks currently stored on the psa (if any). to clear tracks from psa memory, click Reformat Close. – to fit more songs onto your player with existing memory, use the Resample Rate option (upper left), which allows you to reformat the tracks downloaded to a lesser bit rate.

  • Page 23: Updating Musicmatch Software

    MUSICMATCH Jukebox for you. requires an active internet connection. upgrading your audio player visit http://www.nike-philips.com for more information and firmware upgrades. updating software, upgrading your audio player 23 ➔ Continue.

  • Page 24: Recovery

    24 recovery (for Windows OS users only) recovery • my psa hangs on certain tracks • psa cannot be corrected even after using the Format application to format the psa memory. • psa won't switch on, but responds and can be detected when I connect it to my PC. check out solutions from the helpful tips (see page 26-27) first.

  • Page 25: Recovery

    uncheck the Quick download box and click Start in the recovery window. follow the instructions to update the firmware. when the recovery process is complete, click Close to exit the recovery window. click the hardware icon the message The Nike psa[64 Player device can now be safely removed from the system appears, click OK.

  • Page 26: Helpful Tips

    26 helpful tips helpful tips if a fault occurs, first check the points listed below before taking the set for repair. if you are unable to remedy a problem by following these hints, consult your dealer or service center. warning : do not open the set as there is a risk of electric shock! under no circumstances should you try to repair the set yourself, as this will invalidate the warranty.

  • Page 27: Helpful Tips

    – current psa does not download windows media audio for mac users. check out www.nike-philips.com for updates. – electrostatic discharge. remove battery and replace after several seconds. – usb connection broken during downloading.

  • Page 28: Technical Data

    ......... . . yes future audio codec (format) support, firmware upgrades and SDMI compliance will be available at www.nike-philips.com connections I/O Interface .

  • Page 29: Technical Data

    power supply battery ....1 x AAA / UM4 / LRO3 alkaline / Ni-MH rechargeable battery playtime 10 hours using AAA alkaline 6 hours using Ni-MH rechargeable general dimensions.

  • Page 30: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.
  • Page 31 Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
  • Page 32 Return your Warranty Registration card today to ensure you receive all the benefits you’re entitled to. • Once your Philips purchase is regis- tered, you’re eligible to receive all the privileges of owning a Philips product. Warranty Verification Registering your product...
  • Page 33 You may exchange the product in all countries where the product is officially distributed by Philips. In countries where Philips does not distribute the product, the local Philips service organization will attempt to provide a replacement product (although there may be a delay if the appropriate product is not readily available).
  • Page 34 (In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)
  • Page 35 © Koninklijke Philips Electronics N.V., 2002, Nike, Inc. 2002. All rights are reserved. type number - act200...
