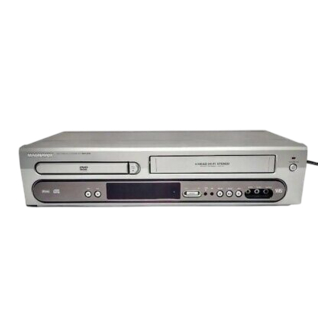

Magnavox MDV530VR Quick Use Manual

530VR qug2 19/03/2003 2:49 PM
There are many ways to connect your new DVD/VCR to your Television and other equipment.This
Quick-Use Guide shows the easiest, most common connection between the DVD/VCR and a TV.
Higher quality connections are explained in the owner's manual and will provide better sound or
picture if your TV and/or audio system is compatible.
REAR OF TV
(EXAMPLE ONLY)
Disconnect all equipment from the power outlets. Connect the equipment to the power outlets
1
only after you have finished hooking up everything. Never make or change connections with equipment
connected to the power outlet.
If you do not have a Cable Box, simply connect your Antenna or Cable TV signal directly to the
2
ANT -IN jack on the rear of the DVD/VCR.
If you do have a Cable Box (or Satellite Receiver), first connect the Cable TV (or Satellite) signal
to the IN jack on the Cable Box/Satellite Receiver. Then, use an RF coaxial cable (like the one
supplied) to connect the OUT jack of the Cable Box/Satellite Receiver to the ANT -IN jack on
the DVD/VCR.
Connect the supplied black RF coaxial cable to the DVD/VCR's ANT -OUT jack and to your TV's
3
ANTENNA IN jack. The TV's ANTENNA IN jack could be labelled 75-ohm,TV IN, or RF IN. Check your
TV manual for details.
Plug the power cords of the DVD/VCR and the TV into an active power outlet.
4
Turn on the TV power. Set the TV to channel 3. (If you cannot use channel 3 at your TV, you can
5
use channel 4 instead. However, you must set the DVD/VCR's output channel to 4. See the accompanying
DVD/VCR owner's manual for details.)
Press the STANDBY-ON 2 button on the DVD/VCR or its remote to turn on the DVD/VCR.
6
The first time you turn on the DVD/VCR, you should complete the VCR setup. See the other
side of this Quick-Use Guide for details.
Page 1
Quick-Use Guide
Quick-Use Guide
CABLE BOX
IN
OUT
CABLE
TV SIGNAL
RF COAXIAL CABLE
3
ANTENNA IN
ANTENNA or
OR
CABLE TV SIGNAL
2
DVD/VCR VCR
AUDIO OUT AUDIO IN
ANT-IN
L L
R R
VIDEO OUT VIDEO IN
ANT-OUT
4
DVD
S-VIDEO COMPONENT AUDIO DIGITAL
OUT VIDEO OUT OUT AUDIO OUT
Y
C L
B
COAXIAL
C R
R
