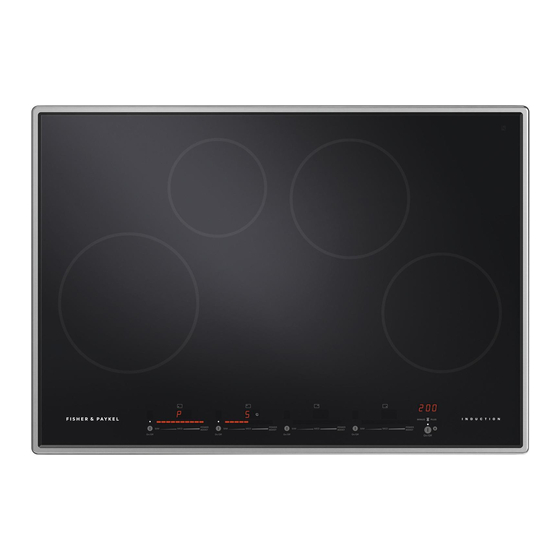

Fisher & Paykel CI304PTX Installation Manual
Black induction cooktop
Hide thumbs
Also See for CI304PTX:
- Installation manual (21 pages) ,
- User manual (36 pages) ,
- User manual (36 pages)
Related Manuals for Fisher & Paykel CI304PTX
Summary of Contents for Fisher & Paykel CI304PTX
- Page 1 BLACK INDUCTION COOKTOP CI304PTX & CI365PTX models INSTALLATION GUIDE US CA 592124C 10.22...
-
Page 2: Safety And Warnings
SAFETY AND WARNINGS READ AND SAVE THIS GUIDE WARNING! General Use Electric Shock Hazard Read these instructions carefully before installing this product. Failure to follow this advice may result in Save these instructions for the local electrical inspector’s use. Installation must comply with your local building and local electricity regulations. electric shock or death. -
Page 3: Initial Considerations
INITIAL CONSIDERATIONS PRIOR TO INSTALLATION MULTIPLE PRODUCT INSTALLATION Before installation, please ensure the following: The countertop is made of a heat resistant material. The power supply cable is not accessible through cupboard doors or drawers. There is adequate flow of cool air from the cabinetry to the base of the cooktop. You may ventilate from adjacent cupboards, but ensure that the available air supply will not be restricted. -
Page 4: Components Required
COMPONENTS REQUIRED PARTS SUPPLIED TOOLS REQUIRED Clamping Foam tape (1) brackets (4) Wrench Crosshead Silicone Cutter and screws screwdriver Hex key Router... -
Page 5: Product Dimensions
PRODUCT DIMENSIONS — 30" MODEL CI304PTX PRODUCT DIMENSIONS A Overall height of cooktop* 3 13/16 B Overall width of cooktop C Overall depth of cooktop D Height of chassis 3 1/4 PLAN PLAN E Width of chassis 28 3/8 PLAN... - Page 6 PRODUCT DIMENSIONS — 36" MODEL CI365PTX PRODUCT DIMENSIONS A Overall height of cooktop* 3 7/16 B Overall width of cooktop 35 3/8 C Overall depth of cooktop D Height of chassis 2 7/8 PLAN PLAN E Width of chassis 33 11/16 PLAN ISOMETRIC PLAN...
-
Page 7: Cutout Dimensions
CUTOUT DIMENSIONS 30" MODEL 36" MODEL PLAN PLAN FRONT FRONT CI304PTX CI365PTX CUTOUT DIMENSIONS CUTOUT DIMENSIONS A Overall width of cutout 28 3/4 A Overall width of cutout 34 1/4 B Overall depth of cutout 19 5/16 B Overall depth of cutout... -
Page 8: Clearance Dimensions
Such material shall be considered combustible even though flame-proofed, fire-retardant treated or surface-painted, or plastered. CI304PTX CLEARANCE DIMENSIONS A Minimum clearance from glass surface to: Unprotected overhead cabinet centered above cooktop*†... - Page 9 CLEARANCE DIMENSIONS — 36" MODEL Combustible surface Any materials of a building structure or decorative structure made of wood, compressed paper, plant fibres, vinyl/plastic or other materials that are capable of transferring heat or being ignited and burned. Such material shall be considered combustible even though flame-proofed, fire-retardant treated or surface-painted, or plastered.
-
Page 10: Venting Clearances
A Minimum ventiliation gap at the front of the cooktop 3 /16 B Minimum clearance below top of countertop to top B Minimum ventiliation gap at the rear of the cooktop 13/16 CI304PTX 3 3/8 of any appliance, companion product or obstruction CI365PTX below cooktop *If ventilation gap at the rear of the cooktop is not possible, add two x 2"... -
Page 11: Electrical Connection
CSA or UL - CSA or UL - listed conduit listed conduit listed conduit listed conduit connector connector connector connector CI304PTX & CI365PTX MODELS 4 wire cable 4 wire cable 3 wire cable 3 wire cable Junction from power Junction from power Junction... -
Page 12: Installer Checklist
INSTALLER CHECKLIST Read all installation guidance in this document to see if the unit has been correctly installed. Ensure that installation has been completed correctly before use. TO BE COMPLETED BY THE INSTALLER Ensure that: … … Is the cooktop earthed? Check that all the cooking zones function correctly. - Page 13 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2022. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
