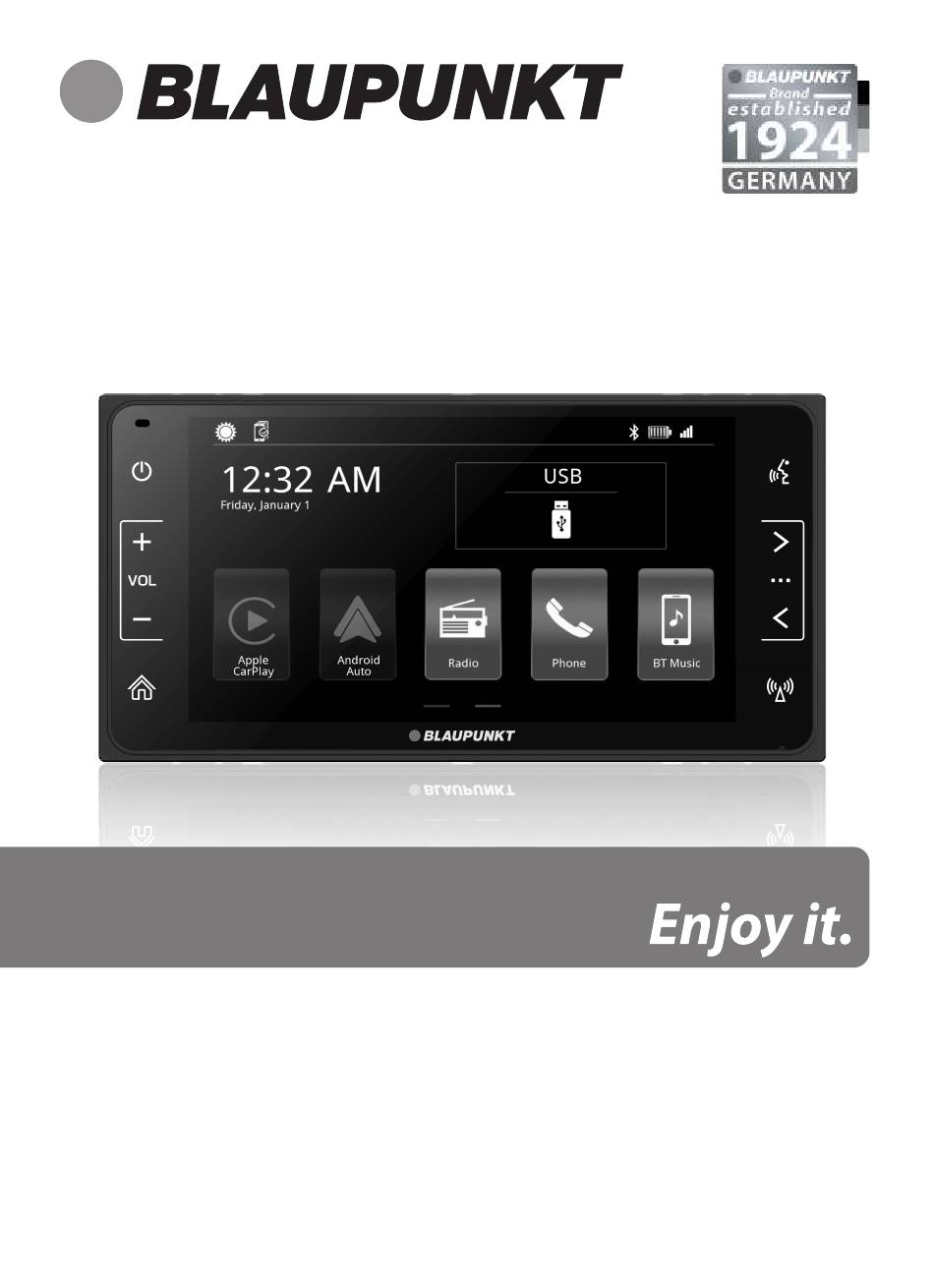

- Page 1 SMART MULTIMEDIA TEXAS CITY 800 Operating and Installation Instructions...
- Page 3 DIN slot. Observe the output This manual may be updated from time to time limits of the car radio. Do not dismantle or without any notice. Visit www.blaupunkt.com for more info. modify the car radio. Installation and repairs, if necessary, should be performed by a specialist.
- Page 4 CAUTIONS Disclaimer In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special consequential damages to property or life and whatsoever arising out of or connected with the use or misuse of our products. Blaupunkt is not a liated with Apple, Google or other Android smartphone devices.
- Page 5 KEY FUNCTIONS Functions 1. Power Button • Press to turn on or press and hold to turn o • Press to mute or unmute 2. Increase Volume 3. Decrease Volume 4. Home Page 5. Voice Command Button (Siri/ Google Voice) 6.
- Page 6 OPERATION Home Page Auto Tuning • Press the seek icon ( ) on the screen to increase / decrease the tuning frequency one step at 0.05MHz increment. • Press and hold the seek icon ( on the screen to seek the available channel by increasing or decreasing the tuning frequency.
- Page 7 OPERATION USB Media Setting This operation supports below formats : Setup operation allows you to change setting, Audio : MP3, FLAC such as setting the clock, turning On the Video : AVI, MP4 Bluetooth function, adjusting the screen brightness, setting the audio, screen calibration, etc.
- Page 8 CITY 800” should appear on your Setting Options Functions available Bluetooth scanning list. Brightness 0 to 20 Select the desired video brightness. • Select “TEXAS CITY 800” then insert Dimmer Auto/ Day/ Lower down the screen password “0000”, password Mode Night brightness at dark required.
- Page 9 OPERATION Apple CarPlay When Apple CarPlay™ is active, your voice recognition system is disabled and you will be using Siri to make your requests. • On your phone, go to Settings > General > Restrictions > CarPlay to allow CarPlay access. •...
- Page 10 OPERATION NOTE: Ensure Siri feature is set to ON in your phone (Go to Settings > General > Siri). Apple Maps • Navigate your way by using Apple Maps or any other third party navigation app (e.g., Waze). • Navigation app will display your destination and route options.
- Page 11 OPERATION Android Auto Using the USB cable that was provided with your phone is recommended. When Android Auto™ is active, your in-vehicle voice recognition system is disabled and you will be using Google voice actions to make your requests. Google Assistant Voice Command Button 1.
- Page 12 OPERATION General Power supply (12V) .......10.5 V ~ 16 V DC Standby current ...........≤ 5mA ...........<12A Operating current Max. power output ........4 x 47W Dimension (WxLxH) ....133 x 205 x 104mm Weight ..............1.1kg Operation temperature ..... -20°C ~ 60°C Screen size ............
- Page 13 WIRING DIAGRAM Radio Antenna Microphone (OEM) USB (Toyota OEM) 1 2 3 4 5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 5 6 7 8 9 10 11 12 13 WIRE BLACK R CAMERA 12V...
- Page 14 TROUBLESHOOTING If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist. Possible Causes Problems Solutions The car key is not inserted into the Unable to start Insert the car key and turn on the ignition.
