CAR MULTIMEDIA
KEY LARGO
980
Operating instructions
NOTE: Please do not watch videos or use other Apps while the vehicle is in motion.
Doing so, is a safety violation. To watch videos or use Apps, please ensure that the vehicle is in parked mode with handbrake activated.
Please check compatibility Of the device with your mobile phone before purchase.
New phone software versions in the future may or may not be compatible with the device.
In-Warranty replacement will not be applicable for non compatibility Of the mobile phone with the device.
Enjoy it.
Advertisement
Table of Contents
Related Manuals for Blaupunkt KEY LARGO 980
Summary of Contents for Blaupunkt KEY LARGO 980

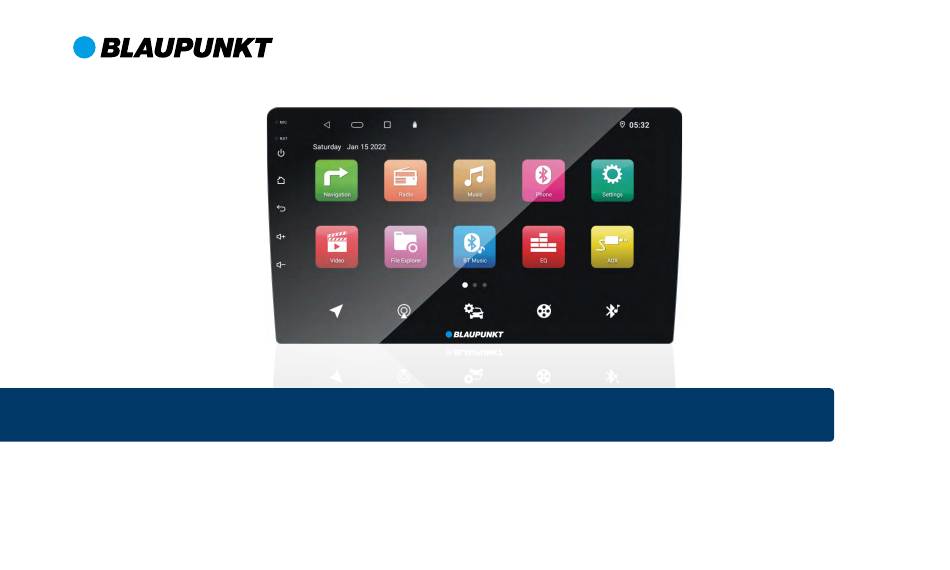

- Page 1 CAR MULTIMEDIA KEY LARGO Enjoy it. Operating instructions NOTE: Please do not watch videos or use other Apps while the vehicle is in motion. Doing so, is a safety violation. To watch videos or use Apps, please ensure that the vehicle is in parked mode with handbrake activated. Please check compatibility Of the device with your mobile phone before purchase.
- Page 2 Panel Introduction Head unit features a brilliant capacitive display with a high-end tuner and runs on Android OS version 9.0. 1. Microphone 2. Reset button Restore to default factory settings of the device. Caution, All personal setting will be erased! 3.
-
Page 3: Table Of Contents
Contents Safety notes USB media playback Whitelist setting Symbols used USB data carrier Desktop setting Audio playback from USB System Settings General Warning Video playback from USB Useful information Road safety Service Image playback from USB Instructions to read this User Manual Connection diagram Declaration of conformity Bluetooth mode... -
Page 4: Safety Notes
Safety notes Safety notes General Warning The car sound system was manufactured according to recommended and To avoid any injury or damage to yourself, your car and others, please make sure to established safety guidelines in a state of the art facility. Even so, dangers may occur do as following. -
Page 5: Road Safety
Safety notes Road safety Instructions to read this User Manual Illustrations are used in this manual to explain operations and precautions. The Observe the following notes about road safety: illustrations used in this manual are only for reference, please take the actual unit as To avoid any injury or damage to yourself, your car and others, please make sure to standard. -
Page 6: Placing The Device In Operation
Placing the device in operation | Radio Swipe left on the screen to see more Placing the device in operation Ÿ source icons. Switching ON/OFF with the POWER button Note: The gures used in these instructions To switch-ON, press the [ ] button. -
Page 7: Storing Stations Manually
Radio Storing stations manually Switching the AF (alternate frequency) function ON /OFF Set the desired station. If the AF function is activated, the car sound system automatically tunes into the Ÿ Press one of the memory buttons [ P1 ] - [ P6 ] for approx. 2 seconds to store the best receivable frequency for the station that is currently set. -
Page 8: Sound Settings
Sound Settings Sound Settings Time Alignment You can set the audio delay for each loudspeaker. Equalizer Press the [ ] button in EQ menu. Ÿ You can adjust the equalizer for all sources. To adjust the delay required, touch each speaker on the right of the screen, and Ÿ... -
Page 9: Usb Media Playback
(see Connection diagram at the end of these instructions). The movie playback on an external monitor is possible while driving. Notes: Blaupunkt cannot guarantee that all USB pen drives are compatible with this car 1. Progress Bar audio system. -
Page 10: Video Playback From Usb
Brie y tap on the name of the folder/track. The folder is opened/the track Note: Touch the folder icon on the right of the screen to show folder list. commences. Image playback from USB Touch [ ] to return to the playback menu. Select the [ QuickPic ] via the main menu. -
Page 11: Bluetooth Mode
Bluetooth Note: If a telephone is connected with the car audio system, the phone icon Bluetooth mode lighted at the top of the display in all audio/video sources. The Bluetooth® function allows cell phones and media playback devices to pair Ÿ... -
Page 12: Audio Playback Via Bluetooth Streaming
Bluetooth PhoneLINK Audio playback via Bluetooth streaming EasyConnection / PhoneLINK If an audio streaming device is connected with the car audio system via Bluetooth®, PhoneLINK function allows the mobile Ÿ you can play back the music via the car audio system and control playback from the device screen to be displayed on the Car car audio system. -
Page 13: Aux In
PhoneLINK AUX IN | Camera Input | SWC | File Manager Android Wi-Fi AUX-IN 1. Open the hotspot in the settings menu of your Android phone. This device features AUX input for audio / video playback. The AUX-IN RCA inputs 2. -
Page 14: Car Settings
Settings Brightness Car Settings Set the brightness of the screen. Ÿ In the Car settings menu, you can adjust the basic settings for the different functions of the device to your requirements. In the main menu, press the [Car Settings] button. The settings menu is Ÿ... -
Page 15: Key Light
Settings Warranty | Service Key Light System Settings Set the color of Keys on the front display. Ÿ Select [Settings] in main menu, then you can adjust the settings of the unit's system, such as Network, Storage and System time, etc. Useful information Warranty BPIN provide a 2 year manufacturer's... -
Page 16: Connection Diagram
Connection diagram Connection diagram AUX L IN AUX R IN AMP CONT FRONT L VIDEO-IN-1 FRONT R SUB WOOF VIDEO OUT REAR L BRAKE WIFI ANT REAR R BT ANT... -
Page 17: Troubleshooting
Troubleshooting Please check the list below before calling a service center. Cause Corrective action Problem General Install new fuse with correct rating Unit fuse blown Car battery fuse blown Install new fuse with correct rating Device does not turn ON Illegal operation Reset the unit. -
Page 18: Appendix
Appendix Multimedia Support List This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly is prohibited. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
