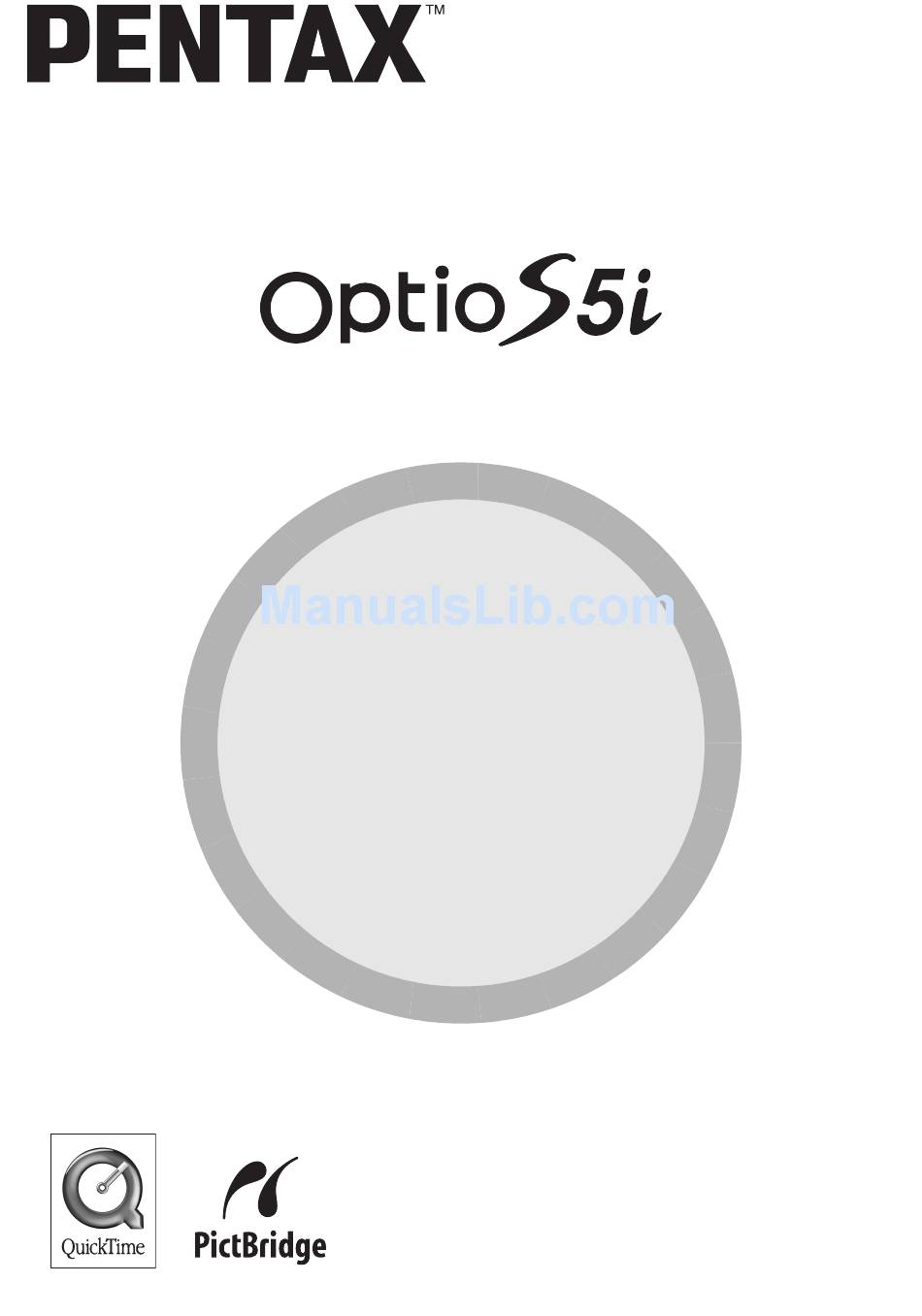

Pentax Optio S5i Connection Manual

Pentax optio s5i: pc connection manual
Hide thumbs Also See for Optio S5i:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
(PC Connection Manual)
Enjoying Your Digital
Camera Images
On Your PC
