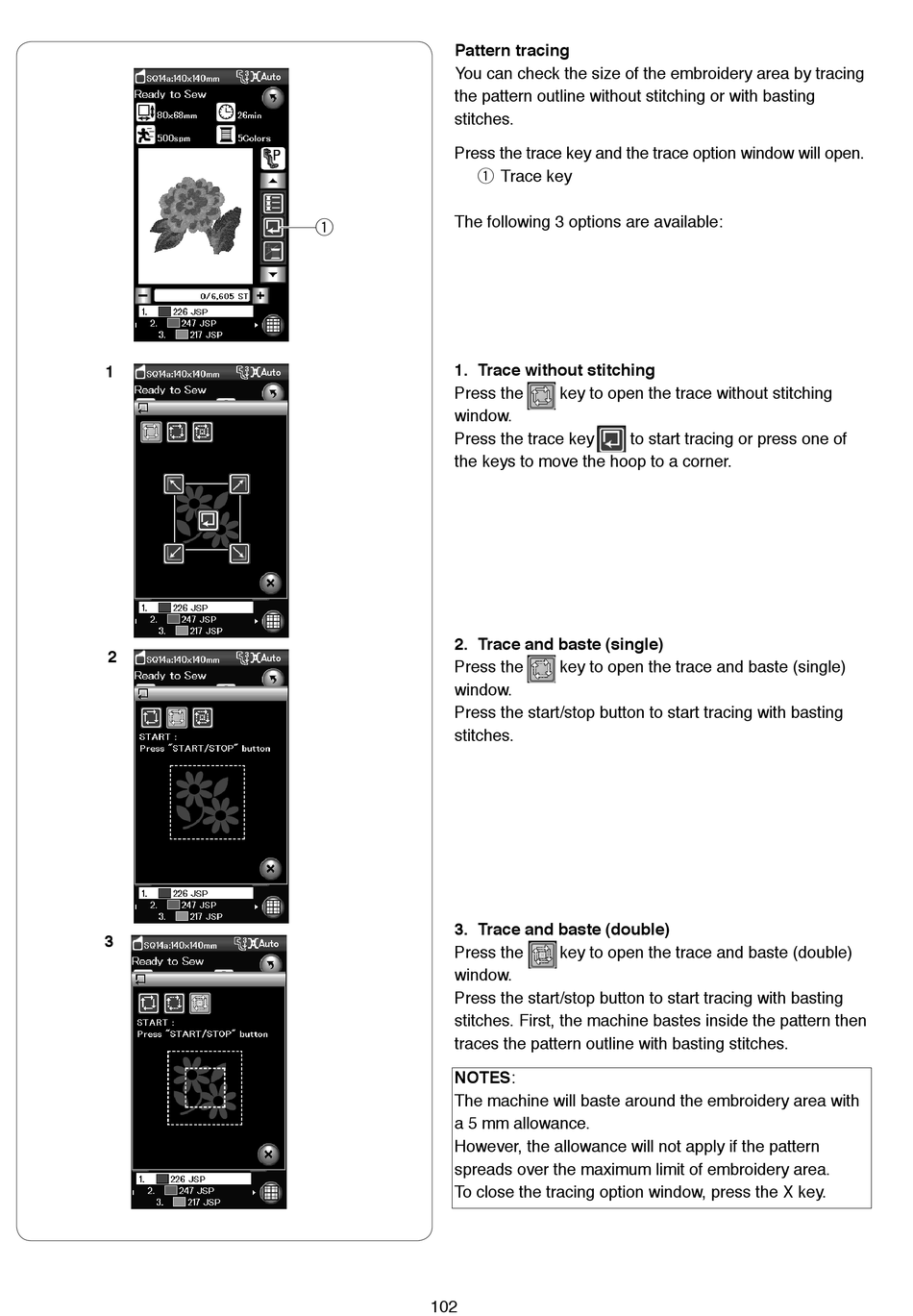

Pattern tracing
You can check the size of the embroidery area by tracing
the pattern outline without stitching or with basting
stitches.
Press the trace key and the trace option window will open.
q Trace key
The following 3 options are available:
q
1. Trace without stitching
Press the
window.
Press the trace key
the keys to move the hoop to a corner.
2. Trace and baste (single)
Press the
window.
Press the start/stop button to start tracing with basting
stitches.
3. Trace and baste (double)
Press the
window.
Press the start/stop button to start tracing with basting
stitches. First, the machine bastes inside the pattern then
traces the pattern outline with basting stitches.
NOTES:
The machine will baste around the embroidery area with
a 5 mm allowance.
However, the allowance will not apply if the pattern
spreads over the maximum limit of embroidery area.
To close the tracing option window, press the X key.
102
key to open the trace without stitching
to start tracing or press one of
key to open the trace and baste (single)
key to open the trace and baste (double)
