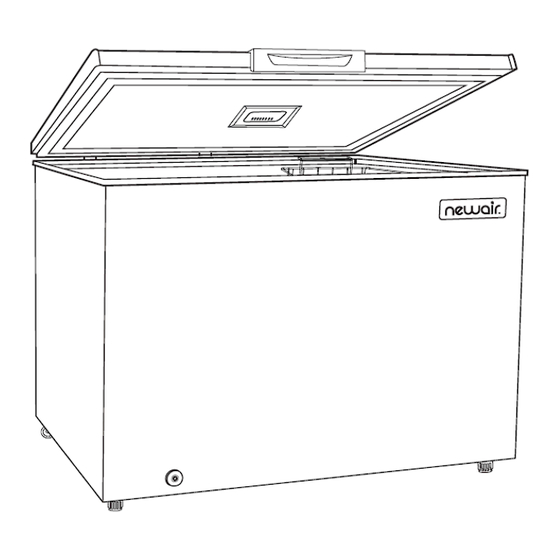

- Page 1 NFT070GA00 NFT070MB00 NFT070GN00 Newair 6.7 Cu. Ft. Chest Freezer OWNERS MANUAL Read and save these instructions. Manual v1.2...
-
Page 2: Table Of Contents
Parts List ....................... 6 Electrical Circuit Diagram ................8 Assembly and Installation .................. 10 Operating Instrutcions ..................10 Cleaning and Maintenance ................14 Troubleshooting ....................16 Limited Manufacturer’s Warranty ..............18 SPECIFICATIONS NFT070GA00/ NFT070MB00/ NFT070GN00 ODEL 110-120V ATED OLTAGE 1.4 A ATED URRENT... -
Page 3: Register Your Product Online
REGISTER YOUR PRODUCT ONLINE Register Your Newair Product Online Today! Take advantage of all the benefits product registration has to offer: Service and Support Diagnose troubleshooting and service issues faster and more accurately Recall Notifications Stay up to date for safety, system updates and recall notifications... - Page 4 • Keep ventilation openings in the appliance clear of obstruction. • Do not use mechanical devices or other means to accelerate the defrosting process other than those recommended by the manufacturer. • Do not tamper with the refrigerant circuit. newair.com...
- Page 5 To prevent entrapment and suffocation hazard, do not leave children unattended when in the vicinity of the appliance. Before discarding your chest freezer: • take off the doors. • leave the shelves in place so that children may not easily climb inside. - SAVE THESE INSTRUCTIONS - newair.com...
-
Page 6: Parts List
PARTS LIST Exterior Water Drain Handle with Digital Control Display Vinyl-Coated Steel Wire Removable Storage Basket newair.com... -
Page 7: Electrical Circuit Diagram
ELECTRICAL CIRCUIT D IAGRAM newair.com... -
Page 8: Assembly And Installation
Install it in a location where there is proper air circulation, plumbing and electrical connections. • The following are recommended clearances around the freezer: • Sides 4" (102mm) • Back 4" (102mm) • Do not block newair.com... - Page 9 Disposal of this appliance should be in accordance with federal and local regulations. • This appliance should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government office. newair.com...
-
Page 10: Operating Instrutcions
20 minutes before restarting again. • In case you unplug your chest freezer or experience an electrical outage, the unit will start 5 minutes after it is plugged back in or power is recovered. This is to protect the compressor. newair.com... - Page 11 Boiling water, gurgling sounds or slight vibrations that are the result of the refrigerant circulating through the cooling coils. • The thermostat control will click when it cycles on and off. FOOD STORAGE BASKET Your freezer has a removable basket for accessible food storage, remove if not needed. newair.com...
- Page 12 Packaging Recommendations: Plastic containers with air tight lids Heavy duty aluminum foil Plastic wrap made from saran film Self-sealing plastic bags • Do not refreeze defrosted/thawed foods. • It Is recommended that the freezing date be marked on the packaging. newair.com...
- Page 13 Fresh shrimp, scallops, crawfish 3 – 6 Months Hamburger & stew meats 3 – 4 Months Ground turkey, veal, pork 3 – 4 Months Pork chops 4 – 6 Months Steaks 6 – 12 Months Chicken or turkey, whole 1 year newair.com...
-
Page 14: Cleaning And Maintenance
• The memory function will restore the settings in place before the power outage. WARNING: IF OUTAGE IS FOR A PROLONGED PERIOD, INSPECT AND DISCARD SPOILED OR THAWED FOOD IN CHEST FREEZER. CLEAN CHEST FREEZER BEFORE REUSING. newair.com... - Page 15 "General cleaning" section. Prop doors open, so air can circulate inside. When moving always move the freezer vertically. Do not move with the unit lying down. Possible damage to the sealed system could occur. newair.com...
-
Page 16: Troubleshooting
• Check to see if doors are completely closed. • Check chest freezer compartment for blockage from frozen food packages, containers, etc. • Interior needs cleaning. Chest freezer • Foods improperly wrapped or sealed are giving off has an odor odors. newair.com... - Page 17 • The internal temperature is 10.8ᵒF (6ᵒC) lower than Code EL appears the set temperature. Wait one hour for the internal on the digital temperature to adjust to the set temperature. If the display temperature remains 10.8ᵒF (6ᵒC) lower, contact a customer service representative for more information. newair.com...
-
Page 18: Limited Manufacturer's Warranty
When making a warranty claim, please have the original bill of purchase with purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a NewAir™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs. Replacement parts and/or units will be new, re-manufactured or refurbished and is subject to the manufacturer’s discretion.
