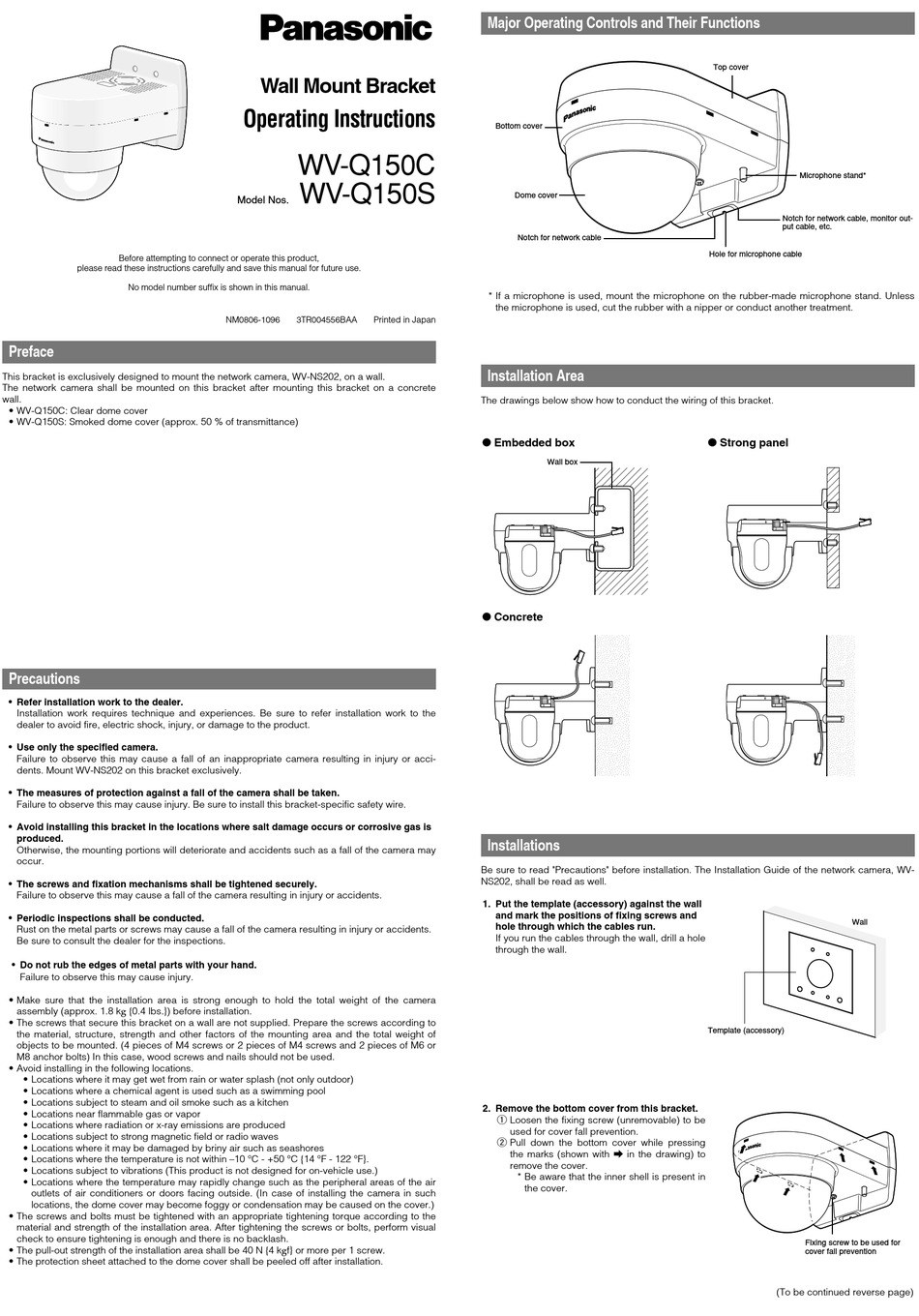

Panasonic WV-Q150C Operating Instructions

Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
No model number suffix is shown in this manual.
Preface
This bracket is exclusively designed to mount the network camera, WV-NS202, on a wall.
The network camera shall be mounted on this bracket after mounting this bracket on a concrete
wall.
• WV-Q150C: Clear dome cover
• WV-Q150S: Smoked dome cover (approx. 50 % of transmittance)
Precautions
• Refer installation work to the dealer.
Installation work requires technique and experiences. Be sure to refer installation work to the
dealer to avoid fire, electric shock, injury, or damage to the product.
• Use only the specified camera.
Failure to observe this may cause a fall of an inappropriate camera resulting in injury or acci-
dents. Mount WV-NS202 on this bracket exclusively.
• The measures of protection against a fall of the camera shall be taken.
Failure to observe this may cause injury. Be sure to install this bracket-specific safety wire.
• Avoid installing this bracket in the locations where salt damage occurs or corrosive gas is
produced.
Otherwise, the mounting portions will deteriorate and accidents such as a fall of the camera may
occur.
• The screws and fixation mechanisms shall be tightened securely.
Failure to observe this may cause a fall of the camera resulting in injury or accidents.
• Periodic inspections shall be conducted.
Rust on the metal parts or screws may cause a fall of the camera resulting in injury or accidents.
Be sure to consult the dealer for the inspections.
• Do not rub the edges of metal parts with your hand.
Failure to observe this may cause injury.
• Make sure that the installation area is strong enough to hold the total weight of the camera
assembly (approx. 1.8 kg {0.4 lbs.}) before installation.
• The screws that secure this bracket on a wall are not supplied. Prepare the screws according to
the material, structure, strength and other factors of the mounting area and the total weight of
objects to be mounted. (4 pieces of M4 screws or 2 pieces of M4 screws and 2 pieces of M6 or
M8 anchor bolts) In this case, wood screws and nails should not be used.
• Avoid installing in the following locations.
• Locations where it may get wet from rain or water splash (not only outdoor)
• Locations where a chemical agent is used such as a swimming pool
• Locations subject to steam and oil smoke such as a kitchen
• Locations near flammable gas or vapor
• Locations where radiation or x-ray emissions are produced
• Locations subject to strong magnetic field or radio waves
• Locations where it may be damaged by briny air such as seashores
• Locations where the temperature is not within –10 °C - +50 °C {14 °F - 122 °F}.
• Locations subject to vibrations (This product is not designed for on-vehicle use.)
• Locations where the temperature may rapidly change such as the peripheral areas of the air
outlets of air conditioners or doors facing outside. (In case of installing the camera in such
locations, the dome cover may become foggy or condensation may be caused on the cover.)
• The screws and bolts must be tightened with an appropriate tightening torque according to the
material and strength of the installation area. After tightening the screws or bolts, perform visual
check to ensure tightening is enough and there is no backlash.
• The pull-out strength of the installation area shall be 40 N {4 kgf} or more per 1 screw.
• The protection sheet attached to the dome cover shall be peeled off after installation.
Wall Mount Bracket

Operating Instructions

WV-Q150C
WV-Q150S
Model Nos.
NM0806-1096 3TR004556BAA Printed in Japan
Major Operating Controls and Their Functions
Bottom cover
Dome cover
Notch for network cable
* If a microphone is used, mount the microphone on the rubber-made microphone stand. Unless
the microphone is used, cut the rubber with a nipper or conduct another treatment.
Installation Area
The drawings below show how to conduct the wiring of this bracket.
G Embedded box
Wall box
G Concrete
Installations
Be sure to read "Precautions" before installation. The Installation Guide of the network camera, WV-
NS202, shall be read as well.
1. Put the template (accessory) against the wall
and mark the positions of fixing screws and
hole through which the cables run.
If you run the cables through the wall, drill a hole
through the wall.
2. Remove the bottom cover from this bracket.
q Loosen the fixing screw (unremovable) to be
used for cover fall prevention.
w Pull down the bottom cover while pressing
the marks (shown with a in the drawing) to
remove the cover.
* Be aware that the inner shell is present in
the cover.
Top cover
Microphone stand*
Notch for network cable, monitor out-
put cable, etc.
Hole for microphone cable
G Strong panel
Wall
Template (accessory)
Fixing screw to be used for
cover fall prevention
(To be continued reverse page)
