Page 1 Sun™ Ultra™ 80 Service Manual Sun Microsystems, Inc. 901 San Antonio Road Palo Alto, CA 94303-4900 U.S.A. 650-960-1300 Part No. 805-6618-11 March 2000, Revision 01 Send comments about this document to: docfeedback@sun.com...
Page 2 SunMicrophone, SunVTS, UltraSPARC, OpenBoot, StroEdge, SunOS, ShowMe How,PGX32, and Solaris are trademarks, registered trademarks, or service marks of Sun Microsystems, Inc. in the U.S. and other countries. All SPARC trademarks are used under license and are trademarks or registered trademarks of SPARC International, Inc. in the U.S. and other countries. Products bearing SPARC trademarks are based upon an architecture developed by Sun Microsystems, Inc.
Page 3: Table Of Contents
Contents Preface i Product Description 1-1 Product Overview 1-1 I/O Devices 1-2 System Features 1-3 Replaceable Components 1-7 SunVTS Overview 2-1 SunVTS Description 2-1 2.1.1 SunVTS Requirements 2-2 2.1.2 SunVTS References 2-2 Power-On Self-Test 3-1 POST Overview 3-1 3.1.1 How to Use POST 3-2 Pre-POST Preparation 3-2 3.2.1 Setting Up a Tip Connection 3-3...
Page 4 OpenBoot Diagnostics 4-15 4.8.1 Starting the OpenBoot Diagnostics Menu 4-16 4.8.2 OpenBoot Diagnosticss 4-18 4.8.3 PCI/Cheerio 4-19 4.8.4 EBus DMA/TCR Registers 4-20 4.8.5 Ethernet 4-21 4.8.6 Keyboard 4-22 4.8.7 Mouse 4-22 4.8.8 Floppy 4-22 Ultra 80 Service Manual • March 2000...
Page 5 4.8.9 Parallel Port 4-23 4.8.10 Serial Port A 4-24 4.8.11 Serial Port B 4-25 4.8.12 NVRAM 4-25 4.8.13 Audio 4-26 4.8.14 SCSI 4-26 4.8.15 All Above 4-27 How to Get Technical Assistance 4-29 4.9.1 SunSolve Online 4-29 4.9.2 Access1 4-29 4.9.3 docs.sun.com 4-30 4.9.4...
Page 6 Replacing a Fan Assembly 7-20 Speaker Assembly 7-21 7.8.1 Removing the Speaker Assembly 7-21 7.8.2 Replacing the Speaker Assembly 7-22 SCSI Assembly 7-23 7.9.1 Removing the SCSI Assembly 7-23 7.9.2 Replacing the SCSI Assembly 7-26 Ultra 80 Service Manual • March 2000...
Page 7 7.10 Chassis Foot 7-27 7.10.1 Removing a Chassis Foot 7-27 7.10.2 Replacing a Chassis Foot 7-28 7.11 Filler Panels 7-28 7.11.1 Removing a Filler Panel 7-29 7.11.2 Replacing a Filler Panel 7-30 Storage Devices 8-1 Hard Drive 8-1 8.1.1 Removing a Hard Drive 8-1 8.1.2 Replacing a Hard Drive 8-2 Peripheral Assembly Drive 8-3...
Page 8 Removing the CPU Shroud Assembly 9-37 9.9.2 Replacing the CPU Shroud Assembly 9-38 Illustrated Parts List 10-1 A. Product Specifications A-1 Physical Specifications A-2 Electrical Specifications A-2 Environmental Requirements A-3 B. Signal Descriptions B-1 Power Connectors B-1 viii Ultra 80 Service Manual • March 2000...
Page 9 Serial Ports A and B B-7 UltraSCSI Connector B-9 Parallel Port Connector B-13 Keyboard/Mouse B-15 Twisted-Pair Ethernet Connector B-16 B.6.1 TPE Cable-Type Connectivity B-16 B.6.2 External UTP-5 Cable Lengths B-17 Audio Connectors B-17 UPA Graphics Card Connectors B-18 C. Functional Description C-1 System C-1 C.1.1 System Overview C-2...
Page 10 External Cables C-31 C.1.13.4 Internal SCSI Subassembly C-31 C.1.13.5 SCSI ID Selection C-32 C.1.14 ASICs C-33 C.1.14.1 XB9++ C-33 C.1.14.2 QSC C-33 C.1.14.3 PCIO C-34 C.1.14.4 U2P C-34 C.1.14.5 RISC C-34 C.1.15 SuperIO C-35 Ultra 80 Service Manual • March 2000...
Page 11 Power Supply C-35 C.2.1 Control Signals C-36 C.2.1.1 Remote Enable PowerOn C-36 C.2.1.2 On/Off Functionality C-37 C.2.1.3 System Power Budget C-38 C.2.2 Built-In Speaker C-39 C.2.3 Standard System Facilities C-39 DC-to-DC Converter Assembly C-40 Power Management C-40 Motherboard C-41 Jumper Descriptions C-42 C.6.1 Serial Port Jumpers C-43 C.6.2...
Page 12 Ultra 80 Service Manual • March 2000...
Page 13 Figures Ultra 80 Workstation 1-2 FIGURE 1-1 System Front View 1-5 FIGURE 1-2 System Rear View 1-6 FIGURE 1-3 Setting Up a Tip Connection 3-3 FIGURE 3-1 Sun Type-6 Keyboard 3-5 FIGURE 3-2 Power Supply Connector Jack Location 4-7 FIGURE 4-1...
Page 14 Removing and Replacing the Motherboard 9-33 FIGURE 9-15 Location of the Motherboard Serial Port Jumpers 9-34 FIGURE 9-16 Identifying Jumper Pins 9-35 FIGURE 9-17 Removing and Replacing the CPU Shroud Assembly 9-38 FIGURE 9-18 Sun Ultra 80 Service Manual • March 2000...
Page 15 System Exploded View 10-2 FIGURE 10-1 DC-to-DC Converter Connector J4105 B-2 FIGURE B-1 Power Supply Connector J4106 B-3 FIGURE B-2 Power Supply Connector J4107 B-4 FIGURE B-3 DC-to-DC Converter Connector J4108 B-5 FIGURE B-4 PCI Fan Connector J4109 B-5 FIGURE B-5 CPU Fan Connector J4110 B-6 FIGURE B-6 Combined Cable Assembly Connector J4111 B-6...
Page 16 Serial Port Jumpers C-43 FIGURE C-14 Flash PROM Jumpers C-45 FIGURE C-15 Sun Ultra 80 Service Manual • March 2000...
Page 17 Tables Supported I/O Devices 1-3 TABLE 1-1 Replaceable Components 1-7 TABLE 1-2 diag-level and diag-switch? Settings 3-2 TABLE 3-1 POST Completion Times 3-6 TABLE 3-2 Keyboard LED Patterns 3-40 TABLE 3-3 Troubleshooting Information 4-2 TABLE 4-1 Internal Drives Identification 4-5 TABLE 4-2 Power Supply Connector J4106 Pin Description TABLE 4-3...
Page 18 Memory Addressing for 2-Way Interleaving C-15 TABLE C-8 Memory Addressing for 4-Way Interleaving C-15 TABLE C-9 Diskette Drive Signals and Functions C-19 TABLE C-10 18-Gbyte Hard Drive Features C-20 TABLE C-11 xviii Sun Ultra 80 Service Manual • March 2000...
Page 19 Audio Card Features C-27 TABLE C-12 Supported Target Devices C-31 TABLE C-13 Power Supply Output Values C-36 TABLE C-14 Power Supply Control Signal C-36 TABLE C-15 450-MHz CPU Module Power Estimate C-38 TABLE C-16 Built-In Speaker Specifications C-39 TABLE C-17 Serial Port Jumper Settings C-44 TABLE C-18 Flash PROM Jumper Settings C-45...
Page 20 Sun Ultra 80 Service Manual • March 2000...
Page 21 Code Samples diag-level Variable Set to max (4-Way CPU) CODE EXAMPLE 3-1 diag-level Variable Set to max (2-Way CPU) 3-16 CODE EXAMPLE 3-2 diag-level Variable Set to max (Single CPU) 3-22 CODE EXAMPLE 3-3 diag-level Variable Set to min (4-Way CPU) 3-29 CODE EXAMPLE 3-4 diag-level Variable Set to min (2-Way CPU)
Page 22 NVRAM Diagnostic Output Message 4-25 CODE EXAMPLE 4-19 Audio Diagnostic Output Message 4-26 CODE EXAMPLE 4-20 SCSI Output Message 4-26 CODE EXAMPLE 4-21 All Above Diagnostic Output Message 4-27 CODE EXAMPLE 4-22 xxii Sun Ultra 80 Service Manual • March 2000...
Page 23 Preface The Sun Ultra 80 Service Manual provides detailed procedures that describe the removal and replacement of replaceable parts in the Ultra™ 80 computer (system). The service manual also includes information about the use and maintenance of the system. This book is written for technicians, system administrators, authorized service providers (ASPs), and advanced computer system end users who have experience troubleshooting and replacing hardware.
Page 24 Provides functional descriptions for the system. Appendix D Provides Declaration of Conformity and Regulatory Compliance statements. Appendix E Provides Safety Agency Compliance statement. Glossary Provides a listing of acronyms, terms, and definitions. Sun Ultra 80 Service Manual • March 2000...
Page 25 UNIX Commands This document may not contain information on basic UNIX™ commands and procedures such as shutting down the system, booting the system, and configuring devices. See one or more of the following for this information: Solaris Handbook for Sun Peripherals AnswerBook2™...
Page 26 SunVTS 2.3 Test Reference Manual 805-4163 (SunVTS 2.1.3) Diagnostics SunVTS 3.0 User’s Guide (SunVTS 3.0) 805-4442 Diagnostics SunVTS 3.0 Quick Reference Card (SunVTS 3.0) 805-5589 Diagnostics SunVTS 3.0 Test Reference Manual (SunVTS 3.0) 805-4443 Sun Ultra 80 Service Manual • March 2000...
Page 27 12-24 Gbyte 4-mm DDS-3 Tape Drive Installation 802-7791 and User’s Guide Installation 5.25” Fast/Wide Differential SCSI Disk Drive 802-1653 Installation Manual Installation Sun Ultra 80 Rack Mount Installation Guiide 805-7959 Installation/user Sun StorEdge CD32 Installation and User’s Guide 805-4237 Specification Manual Eject Diskette Drive Specifications 805-1133...
Page 28 We are interested in improving our documentation and welcome your comments and suggestions. You can email your comments to us at: docfeedback@sun.com Please include the part number of your document in the subject line of your email. Sun Ultra 80 Service Manual • March 2000...
Page 29: Product Description
(I/O). In addition, the workstation provides accelerated graphics. The following figure illustrates the Ultra 80 workstation. The high-level functions of the Ultra 80 workstation include: Power and cooling requirements for a high-performance processor...
Page 30: I/O Devices

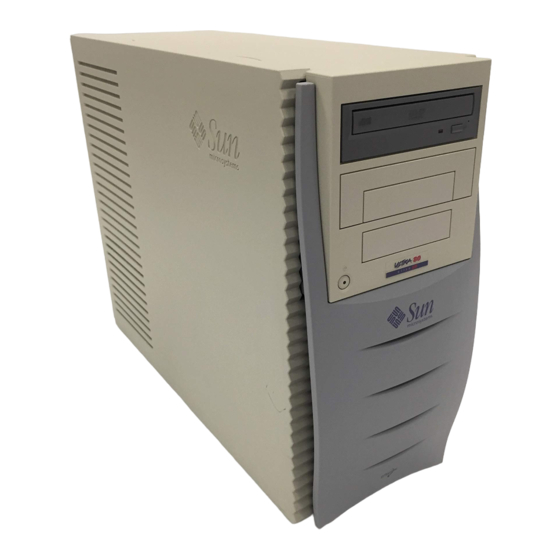

Ultra 80 Workstation FIGURE 1-1 I/O Devices The Ultra 80 workstation uses the I/O devices listed in the following table: Sun Ultra 80 Service Manual • March 2000...
Page 31: System Features
Mouse Crossbow; optomechanical, 3-button System Features Ultra 80 workstation electronics are contained on a single printed circuit board (motherboard). The motherboard contains the CPU modules, memory (with half of memory being extended to the memory riser assembly), system control application- specific integrated circuits (ASICs), and I/O ASICs.
Page 32 Modular audio interface Power interlock switch. As a safety precaution, the Ultra 80 system is equipped with a power interlock switch that shuts off system power when the access panel is opened. Be sure to power down the system before you open the access panel to avoid losing data.
Page 33: Figure 1-2 System Front View
CD-ROM drive 3.5-/5.25-inch slot Diskette drive Power switch System Front View FIGURE 1-2 Chapter...
Page 34: Figure 1-3 System Rear View
Serial port A Serial port B Parallel port SCSI port Keyboard/mouse Power supply RJ-45 (TPE) UPA graphics Audio PCI 4 PCI 3 PCI 2 PCI 66 1 Power inlet System Rear View FIGURE 1-3 Sun Ultra 80 Service Manual • March 2000...
Page 35: Replaceable Components
Replaceable Components The following table lists the replaceable components for the Ultra 80 workstation by part number. A brief description of each listed component is also provided. Note – The part numbers listed in the following table are correct as of the service manual publication date but are subject to change without notice.
Page 36 PCI filler panel (part of #560-2525, Ultra 30/60/80 accessory kit) Used to loosen and tighten the torque-limiting screws Torque-indicator driver 340-6091 on the memory riser assembly SCSI cable assembly 530-2937 Installed when second SCSI device installed Sun Ultra 80 Service Manual • March 2000...
Page 37: Sunvts Overview
C H A P T E R SunVTS Overview This chapter contains an overview of the SunVTS™ diagnostic tool. This chapter contains the following topics: Section 2.1 “SunVTS Description” on page 2-1 Section 2.1.1 “SunVTS Requirements” on page 2-2 Section 2.1.2 “SunVTS References” on page 2-2 SunVTS Description SunVTS™...
Page 38: Sunvts Requirements
These documents are part of the Solaris on Sun Hardware Collection AnswerBook set. This collection is distributed on the Sun Computer Systems Supplement CD with each SPARC Solaris release and also accessible at http://docs.sun.com. Sun Ultra 80 Service Manual • March 2000...
Page 39: Power-On Self-Test
C H A P T E R Power-On Self-Test This chapter describes how to initiate power-on self-test (POST) diagnostics. This chapter contains the following topics: Section 3.1 “POST Overview” on page 3-1 Section 3.2 “Pre-POST Preparation” on page 3-2 Section 3.3 “Initializing POST” on page 3-5 Section 3.4 “Bypassing POST”...
Page 40: How To Use Post
If a terminal or a monitor is not connected to serial port A (default port) of a system or server to be tested, the keyboard LEDs are used to determine error conditions. See Section 3.7 “System and Keyboard LEDs” on page 3-41. Sun Ultra 80 Service Manual • March 2000...
Page 41: Setting Up A Tip Connection
3.2.1 Setting Up a Tip Connection A tip connection enables a remote shell window to be used as a terminal to display test data from a system. Serial port A or serial port B of a tested system is used to establish the tip connection between the system being tested and another Sun system monitor or TTY-type terminal.
Page 42: Verifying The Baud Rate
3. Verify the following serial port default settings as follows: ttyb-mode = 9600,8,n,1 ttya-mode = 9600,8,n,1 Note – Ensure that the settings are consistent with TTY-type terminal or system monitor settings. Sun Ultra 80 Service Manual • March 2000...
Page 43: Initializing Post
Initializing POST You can initialize POST in two ways: Set the diag-switch? to true and the diag-level to max or min, and then power cycle the system Simultaneously press the Stop and D keyboard keys while power is applied to the system To set the diag-switch? to true and power cycle the system: 1.
Page 44: Bypassing Post
Examples of the min-level POST output on serial port A is provided in Section 3.5.2 “diag-level Variable Set to min” on page 3-28. To set the diag-level variable to min, type: ok setenv diag-level min Sun Ultra 80 Service Manual • March 2000...
Page 45: Diag-Level Variable Set To Max
To return to the default setting: ok setenv diag-level max 3.5.1 diag-level Variable Set to max When the diag-level variable is set to max, POST enables an extended set of diagnostic-level tests. The following code examples identify a typical serial port A POST output with the diag-level variable set to max for 4-way, 2-way, and single CPU configurations.
Page 46 1> <00> Ecache Tag Test 3> <00> Invalidate Ecache Tags 2> <00> Invalidate Ecache Tags 1> <00> Invalidate Ecache Tags 3> <00> Map PROM/STACK/NVRAM in DMMU 2> <00> Map PROM/STACK/NVRAM in DMMU Sun Ultra 80 Service Manual • March 2000...
Page 47 diag-level Variable Set to max (4-Way CPU) (Continued) CODE EXAMPLE 3-1 3> <00> Update Slave Stack/Frame Ptrs 1> <00> Map PROM/STACK/NVRAM in DMMU 2> <00> Update Slave Stack/Frame Ptrs 0> <00> DMMU Hit/Miss Test 1> <00> Update Slave Stack/Frame Ptrs 0>...
Page 48 0> <00> FPU State Reg Test 0> <00> FPU Functional Test 0> <00> FPU Trap Test 0> <00> DMMU Primary Context Reg Test 0> <00> DMMU Secondary Context Reg Test 0> <00> DMMU TSB Reg Test Sun Ultra 80 Service Manual • March 2000...
Page 49 diag-level Variable Set to max (4-Way CPU) (Continued) CODE EXAMPLE 3-1 0> <00> DMMU Tag Access Reg Test 0> <00> DMMU VA Watchpoint Reg Test 0> <00> DMMU PA Watchpoint Reg Test 0> <00> IMMU TSB Reg Test 0> <00> IMMU Tag Access Reg Test 0>...
Page 50 0> <1f> Stream Buff B Control Reg Test 0> <1f> Psycho ScacheB Page Tag Addr Test 0> <1f> Psycho ScacheB Line Tag Addr Test 0> <1f> Psycho ScacheB RAM Addr Test 0> <1f> Psycho ScacheB Page Tag NTA Test Sun Ultra 80 Service Manual • March 2000...
Page 51 diag-level Variable Set to max (4-Way CPU) (Continued) CODE EXAMPLE 3-1 0> <1f> Psycho ScacheB Line Tag NTA Test 0> <1f> Psycho ScacheB Error Status NTA Test 0> <1f> Psycho ScacheB RAM NTA Test 0> <1f> PBMA PCI Config Space Regs Test 0>...
Page 52 0> <1f> Consist DMA Wr, IOMMU LRU Locked Ebus Test 0> <1f> Consist DMA Wr, IOMMU LRU Lock Lpbk Test 0> <1f> Stream DMA Wr, IOMMU LRU Lock, Scache LRU Lock Ebus Test Sun Ultra 80 Service Manual • March 2000...
Page 53 diag-level Variable Set to max (4-Way CPU) (Continued) CODE EXAMPLE 3-1 0> <1f> Stream DMA Wr, IOMMU LRU Lock, Scache LRU Lock Lpbk Test 0> <1f> Stream DMA Wr, IOMMU Miss, Scache LRU Lock Ebus Test 0> <1f> Stream DMA Wr, IOMMU Miss, Scache LRU Lock Lpbk Test 0>...
Page 54 2> <00> DMMU TLB Tag Access Test 2> <00> DMMU TLB RAM Access Test 2> <00> IMMU TLB Tag Access Test 2> <00> IMMU TLB RAM Access Test 2> <00> Probe Ecache Sun Ultra 80 Service Manual • March 2000...
Page 55 diag-level Variable Set to max (2-Way CPU) (Continued) CODE EXAMPLE 3-2 2> <00> Ecache RAM Addr Test 2> <00> Ecache Tag Addr Test 2> <00> Ecache Tag Test 2> <00> Invalidate Ecache Tags 2> <00> Map PROM/STACK/NVRAM in DMMU 2> <00> Update Slave Stack/Frame Ptrs 1>...
Page 56 2> <00> DMMU Secondary Context Reg Test 2> <00> DMMU TSB Reg Test 2> <00> DMMU Tag Access Reg Test 2> <00> DMMU VA Watchpoint Reg Test 2> <00> DMMU PA Watchpoint Reg Test Sun Ultra 80 Service Manual • March 2000...
Page 57 diag-level Variable Set to max (2-Way CPU) (Continued) CODE EXAMPLE 3-2 2> <00> IMMU TSB Reg Test 2> <00> IMMU Tag Access Reg Test 2> <00> DMMU TLB Tag Access Test 2> <00> DMMU TLB RAM Access Test 1> <00> CPU Addr Align Trap Test 1>...
Page 58 1> <1f> Stream DMA Rd, IOMMU miss, Scache Miss Ebus Test 1> <1f> Stream DMA Rd, IOMMU miss, Scache Miss Lpbk Test 1> <1f> Stream DMA Rd, IOMMU hit, Scache Miss Ebus Test Sun Ultra 80 Service Manual • March 2000...
Page 59 diag-level Variable Set to max (2-Way CPU) (Continued) CODE EXAMPLE 3-2 1> <1f> Stream DMA Rd, IOMMU hit, Scache Miss Lpbk Test 1> <1f> Stream DMA Rd, IOMMU Miss, Scache(prev rd) Hit Ebus Test 1> <1f> Stream DMA Rd, IOMMU Miss, Scache Hit (prev rd) Lpbk Test 1>...
Page 60 CODE EXAMPLE 3-3 Executing Power On SelfTest 2> 2>@(#) Sun U80(UltraSPARC-II 4-way) UPA/PCI POST 1.2.5 04/05/1999 09:42 AM 2>INFO: Processor 2 is master. CPU 450 MHz. 4304KB Ecache. 2> 2> <00> Init System BSS Sun Ultra 80 Service Manual • March 2000...
Page 61 diag-level Variable Set to max (Single CPU) (Continued) CODE EXAMPLE 3-3 2> <00> NVRAM Battery Detect Test 2> <00> NVRAM Scratch Addr Test 2> <00> DMMU TLB Tag Access Test 2> <00> DMMU TLB RAM Access Test 2> <00> IMMU TLB Tag Access Test 2>...
Page 62 2> <00> DMMU TLB Tag Access Test 2> <00> DMMU TLB RAM Access Test 2> <00> Dcache RAM Test 2> <00> Dcache Tag Test 2> <00> Icache RAM Test 2> <00> Icache Tag Test Sun Ultra 80 Service Manual • March 2000...
Page 63 diag-level Variable Set to max (Single CPU) (Continued) CODE EXAMPLE 3-3 2> <00> Icache Next Test 2> <00> Icache Predecode Test 2> <00> CPU Addr Align Trap Test 2> <00> DMMU Access Priv Page Test 2> <00> DMMU Write Protected Page Test 2>...
Page 64 2> <1f> Stream DMA Rd, IOMMU hit, Scache Miss Ebus Test 2> <1f> Stream DMA Rd, IOMMU hit, Scache Miss Lpbk Test 2> <1f> Stream DMA Rd, IOMMU Miss, Scache(prev rd) Hit Ebus Test Sun Ultra 80 Service Manual • March 2000...
Page 65 diag-level Variable Set to max (Single CPU) (Continued) CODE EXAMPLE 3-3 2> <1f> Stream DMA Rd, IOMMU Miss, Scache Hit (prev rd) Lpbk Test 2> <1f> Stream DMA Rd, IOMMU Hit, Scache Hit Ebus Test 2> <1f> Stream DMA Rd, IOMMU Hit, Scache Hit (prev rd) Lpbk Test 2>...
Page 66: Diag-Level Variable Set To Min
The following code example identifies a serial port A POST output with the diag- level NVRAM variable set to min for 4-way, 2-way, and single CPU configurations. on page 3-29 CODE EXAMPLE 3-4 on page 3-32 CODE EXAMPLE 3-5 on page 3-35 CODE EXAMPLE 3-6 Sun Ultra 80 Service Manual • March 2000...
Page 67 Note – The following POST examples are executed with 450-MHz CPUs and 2.5 Gbyte of memory. diag-level Variable Set to min (4-Way CPU) CODE EXAMPLE 3-4 Executing Power On SelfTest 0> 0>@(#) Sun U80(UltraSPARC-II 4-way) UPA/PCI POST 1.2.5 04/05/1999 09:42 AM 0>INFO: Processor 0 is master.
Page 68 3> <00> IMMU Hit/Miss Test 1> <00> IMMU Hit/Miss Test 2> <00> IMMU Hit/Miss Test 3> <00> DMMU Little Endian Test 1> <00> DMMU Little Endian Test 2> <00> DMMU Little Endian Test Sun Ultra 80 Service Manual • March 2000...
Page 69 diag-level Variable Set to min (4-Way CPU) (Continued) CODE EXAMPLE 3-4 3> <00> IU ASI Access Test 1> <00> IU ASI Access Test 2> <00> IU ASI Access Test 3> <00> FPU ASI Access Test 1> <00> FPU ASI Access Test 2>...
Page 70 1> <00> DMMU TLB Tag Access Test 1> <00> DMMU TLB RAM Access Test 1> <00> IMMU TLB Tag Access Test 1> <00> IMMU TLB RAM Access Test 1> <00> Probe Ecache Sun Ultra 80 Service Manual • March 2000...
Page 71 diag-level Variable Set to min (2-Way CPU) (Continued) CODE EXAMPLE 3-5 1> <00> Ecache RAM Addr Test 1> <00> Ecache Tag Addr Test 1> <00> Ecache Tag Test 1> <00> Invalidate Ecache Tags 1>INFO: Processor 0 is missing or disabled. 1>INFO: Processor 2 - UltraSPARC-II.
Page 72 1> <00>Test 18: prefetcha10_mw 1> <00>Test 19: prefetcha80_17 is noped 1> <00>Test 20: prefetcha10_6: illegal instruction trap 1> <00>Test 21: prefetcha11_1w 1> <00>Test 22: prefetcha81_31 1> <00>Test 23: prefetcha11_15: illegal instruction trap Sun Ultra 80 Service Manual • March 2000...
Page 73 diag-level Variable Set to min (2-Way CPU) (Continued) CODE EXAMPLE 3-5 1>STATUS =PASSED Power On Selftest Completed diag-level Variable Set to min (Single CPU) CODE EXAMPLE 3-6 Executing Power On SelfTest 2> 2>@(#) Sun U80(UltraSPARC-II 4-way) UPA/PCI POST 1.2.5 04/05/1999 09:42 AM 2>INFO: Processor 2 is master.
Page 74 2> <00>Test 18: prefetcha10_mw 2> <00>Test 19: prefetcha80_17 is noped 2> <00>Test 20: prefetcha10_6: illegal instruction trap 2> <00>Test 21: prefetcha11_1w 2> <00>Test 22: prefetcha81_31 2> <00>Test 23: prefetcha11_15: illegal instruction trap Sun Ultra 80 Service Manual • March 2000...
Page 75: Post Progress And Error Reporting
diag-level Variable Set to min (Single CPU) (Continued) CODE EXAMPLE 3-6 2>STATUS =PASSED Power On Selftest Completed 3.5.3 POST Progress and Error Reporting While POST is initialized, the Caps Lock key on the Sun Type-6 keyboard flashes on and off to indicate that POST tests are being executed. Additional POST progress indications are also visible when a TTY-type terminal or a tip line is connected between serial port A (default port) of the system being tested and a POST monitoring system.
Page 76 2> <00> Update Slave Stack/Frame Ptrs 1> <00> DMMU Hit/Miss Test 1> <00> IMMU Hit/Miss Test 1> <00> DMMU Little Endian Test 1> <00> IU ASI Access Test 1> <00> FPU ASI Access Test Sun Ultra 80 Service Manual • March 2000...
Page 77 Typical Error Code Failure Message (Continued) CODE EXAMPLE 3-7 2> <00> DMMU Hit/Miss Test 2> <00> IMMU Hit/Miss Test 2> <00> DMMU Little Endian Test 2> <00> IU ASI Access Test 2> <00> FPU ASI Access Test 2> <00> Dcache RAM Test 2>...
Page 78: Table 3-3 Keyboard Led Patterns
Caps Lock Compose Scroll Lock Num Lock Meaning of Pattern System motherboard CPU module 0 CPU module 1 CPU module 2 CPU module 3 No memory detected Memory bank 0 Memory bank 1 Sun Ultra 80 Service Manual • March 2000...
Page 79: Additional Keyboard Control Commands
Keyboard LED Patterns (Continued) TABLE 3-3 Caps Lock Compose Scroll Lock Num Lock Meaning of Pattern Memory bank 2 Memory bank 3 NVRAM Note – The Caps Lock LED blinks on and off to indicate that the POST diagnostics are running. When it lights steadily, it indicates an error. Additional Keyboard Control Commands If the diag-level is set to either max or min and the diag-level switch?
Page 80: Initializing Motherboard Post
6. Before replacing the motherboard, remove any optional components, such as PCI cards and memory, and repeat the POST. 7. To receive additional POST failure information, establish a tip connection. See Section 3.2.1 “Setting Up a Tip Connection” on page 3-3. Sun Ultra 80 Service Manual • March 2000...
Page 81: Troubleshooting Procedures
C H A P T E R Troubleshooting Procedures This chapter describes how to troubleshoot possible hardware problems and includes suggested corrective actions. This chapter contains the following topics: Section 4.1 “Problems During Initial Set-up” on page 4-2 Section 4.2 “Power-On Failure” on page 4-3 Section 4.3 “Video Output Failure”...
Page 82: Problems During Initial Set-Up
2. Verify there is power to the wall outlet. System and monitor 1. Verify the monitor cable is attached to the system motherboard power on, but no or optional graphics card. video displays on the monitor screen. Sun Ultra 80 Service Manual • March 2000...
Page 83: Power-On Failure
Troubleshooting Information (Continued) TABLE 4-1 Problem Solution Keyboard or mouse 1. Verify the mouse cable is attached to the keyboard. does not respond to 2. Verify the keyboard cable is attached to the system keyboard actions. connector. 3. Verify that the system is powered on. An installed hard 1.
Page 84: Video Output Failure
Ensure that the power cord is connected to the monitor and to the wall receptacle. Verify that the wall receptacle is supplying AC power to the monitor. Check the video cable connection between the monitor and the system graphics Sun Ultra 80 Service Manual • March 2000...
Page 85: Hard Drive Or Cd-Rom Drive Failure
card output port at the rear of the system. Check that the CPU module(s) is properly seated. If the AC connection to the monitor is correct, the video cable is correctly connected, and the CPU module(s) is properly seated, the system monitor or the system graphics card may be defective.
Page 86: Power Supply Troubleshooting
DVM. See the figures and tables that follow to identify the J4106 and J4107 power connectors. 1. Power off the system and remove the access panel. See Section 6.1 “Powering Off the System/Removing the Access Panel” on page 6-1. Sun Ultra 80 Service Manual • March 2000...
Page 87: Figure 4-1 Power Supply Connector Jack Location
Caution – Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 2. Remove the memory riser assembly. See Section 9.6.1 “Removing the Memory Riser Assembly” on page 9-20. 3.
Page 88: Figure 4-2 Power Supply Connector J4106
Spare POWER_OK Power ok PS_FAN Fan power +5 Vdc (SENSE) +5 VDC (Sense) +3.3 Vdc (SENSE) +3.3 VDC (Sense) +12 Vdc +12 VDC +12 Vdc +12 VDC +5 Vdc_STBY +5 VDC standby Sun Ultra 80 Service Manual • March 2000...
Page 89: Dimm Failure
13, 14 1, 2 15, 16 27, 28 Power Supply Connector J4107 FIGURE 4-3 Power Supply Connector J4107 Pin Description TABLE 4-4 Signal Description +3.3 Vdc +3.3 VDC +3.3 Vdc +3.3 VDC +3.3 Vdc +3.3 VDC +3.3 Vdc +3.3 VDC +5 Vdc +5 VDC +5 Vdc...
Page 90: Openboot Prom On-Board Diagnostics
The following code example identifies the watch-clock diagnostic output message. Watch-Clock Diagnostic Output Message CODE EXAMPLE 4-1 {0} ok watch-clock Watching the ‘seconds’ register of the real time clock chip. It should be ‘ticking’ once a second. Sun Ultra 80 Service Manual • March 2000...
Page 91: Watch-Net And Watch-Net-All Diagnostics
Watch-Clock Diagnostic Output Message (Continued) CODE EXAMPLE 4-1 Type any key to stop. 4.7.2 Watch-Net and Watch-Net-All Diagnostics The watch-net and watch-net-all diagnostics monitor Ethernet packets on the Ethernet interfaces connected to the system. Good packets received by the system are indicated by a period (.).
Page 92: Probe-Scsi And Probe-Scsi-All Diagnostics
Probe-SCSI Diagnostic Output Message CODE EXAMPLE 4-4 ok probe-scsi Target 0 Unit 0 Disk SEAGATE ST34371W SUN4.2G7462 Target 1 Unit 0 Disk SEAGATE ST19171W SUN9.0G0776 Target 6 Unit 0 Removable Read Only device TOSHIBA XM6201TASUN32XCD1103 Sun Ultra 80 Service Manual • March 2000...
Page 93: Test Alias Name, Device Path, -All Diagnostic
Probe-SCSI-All Output Message CODE EXAMPLE 4-5 ok probe-scsi-all /pci@1f,4000/scsi@3,1 /pci@1f,4000/scsi@3 Target 0 Unit 0 Disk SEAGATE ST34371W SUN4.2G7462 Target 1 Unit 0 Disk SEAGATE ST19171W SUN9.0G0776 Target 6 Unit 0 Removable Read Only device TOSHIBA XM6201TASUN32XCD1103 4.7.4 Test alias name, device path, -all Diagnostic The test diagnostic, combined with a device alias or device path, enables a device self-test program.
Page 94: Upa Graphics Card
To execute the built-in diagnostic test, the system must be at the ok prompt. To initilize the UPA graphics card diagnostic: 1. At the ok prompt, type: ok setenv diag-switch? true diag-switch? = true Sun Ultra 80 Service Manual • March 2000...
Page 95: Openboot Diagnostics
2. At the ok prompt, type: ok test screen Starting AFB Selftest 2-4 minutes for the full test) (This will take an estimated AFB Command Register Test ..pass AFB Float Microcode Test ..pass AFB Passthru Packet Test ..pass AFB RAMDAC Register Test ..
Page 96: Starting The Openboot Diagnostics Menu
5. Verify that the platform resets (see following code example). Reset Verification CODE EXAMPLE 4-7 ok reset-all Resetting ... Software Power ON Master CPU : 0000.0000.0055.1190 CPU Offline (not present) CPU Offline (not present) Sun Ultra 80 Service Manual • March 2000...
Page 97 Reset Verification (Continued) CODE EXAMPLE 4-7 CPU Offline (not present) Master E$ : 0000.0000.0040.0000 @(#) Sun U80/E410 UPA/PCI 3.19 Version 4 created 1999/01/19 11:12 Clearing DTAGS Done Probing Memory CONFIG 0000.0000.0008.0008 MEM BASE = 0000.0000.8000.0000 MEM SIZE = 0000.0000.2000.0000 MMUs ON Copy Done PC = 0000.01ff.f000.2980 PC = 0000.0000.0000.29c4...
Page 98: Openboot Diagnosticss
Section 4.8.6 “Keyboard” on page 4-22 Section 4.8.7 “Mouse” on page 4-22 Section 4.8.8 “Floppy” on page 4-22 Section 4.8.9 “Parallel Port” on page 4-23 Section 4.8.10 “Serial Port A” on page 4-24 Sun Ultra 80 Service Manual • March 2000...
Page 99: Pci/Cheerio
Section 4.8.11 “Serial Port B” on page 4-25 Section 4.8.12 “NVRAM” on page 4-25 Section 4.8.13 “Audio” on page 4-26 Section 4.8.14 “SCSI” on page 4-26 Section 4.8.15 “All Above” on page 4-27 4.8.3 PCI/Cheerio The PCI/Cheerio diagnostic performs the following: PCI/Cheerio Diagnostic TABLE 4-7 Test...
Page 100: Ebus Dma/Tcr Registers
The following code example shows the EBus DMA/TCR registers output message. EBus DMA/TCR Registers Diagnostic Output Message CODE EXAMPLE 4-10 Enter (0-12 tests, 13 -Quit, 14 -Menu) ===> 1 TEST=’all_dma/ebus_test’ SUBTEST=’dma_reg_test’ SUBTEST=’dma_func_test’ Enter (0-12 tests, 13 -Quit, 14 -Menu) ===> Sun Ultra 80 Service Manual • March 2000...
Page 101: Ethernet
4.8.5 Ethernet The Ethernet diagnostic performs the following: Ethernet Diagnostic TABLE 4-9 Test Function Resets the Ethernet channel. my_channel_reset Performs Walk1 on the following registers set: global register 1, hme_reg_test global register 2, bmac xif register, bmac tx register, and the mif register.
Page 102: Keyboard
The floppy diagnostic verifies the diskette drive controller initialization. It also validates the status of a selected disk drive and reads the diskette drive header. The following code example shows the floppy output message. Sun Ultra 80 Service Manual • March 2000...
Page 103: Parallel Port
Floppy Diagnostic Output Message CODE EXAMPLE 4-14 Enter (0-12 tests, 13 -Quit, 14 -Menu) ===> 5 TEST=’floppy_test’ SUBTEST=’floppy_id0_read_test’ Enter (0-12 tests, 13 -Quit, 14 -Menu) ===> 4.8.9 Parallel Port The parallel port diagnostic performs the following: Parallel Port Function TABLE 4-10 Test Function Sets up the SuperIO configuration register to enable extended/...
Page 104: Serial Port A
Enter (0-12 tests, 13 -Quit, 14 -Menu) ===> 7 TEST=’uarta_test’ BAUDRATE=’1200’ BAUDRATE=’1800’ BAUDRATE=’2400’ BAUDRATE=’4800’ BAUDRATE=’9600’ BAUDRATE=’19200’ BAUDRATE=’38400’ BAUDRATE=’57600’ BAUDRATE=’76800’ BAUDRATE=’115200’ BAUDRATE=’153600’ BAUDRATE=’230400’ BAUDRATE=’307200’ BAUDRATE=’460800’ Enter (0-12 tests, 13 -Quit, 14 -Menu) ===> Sun Ultra 80 Service Manual • March 2000...
Page 105: Serial Port B
4.8.11 Serial Port B The serial port B diagnostic is identical to the serial port A diagnostic. The following code example shows the serial port B output message. Serial Port B Diagnostic Output Message CODE EXAMPLE 4-18 Enter (0-12 tests, 13 -Quit, 14 -Menu) ===> 8 TEST=’uartb_test’...
Page 106: Audio
The following code example shows the SCSI output message. SCSI Output Message CODE EXAMPLE 4-21 Enter (0-12 tests, 13 -Quit, 14 -Menu) ===> 11 TEST=’selftest’ Enter (0-12 tests, 13 -Quit, 14 -Menu) ===> Sun Ultra 80 Service Manual • March 2000...
Page 107: All Above
4.8.15 All Above The all above diagnostic validates the system. The following code example shows the all above output message. Note – The all above diagnostic will stall if the tip line is installed on serial port A or serial port B. All Above Diagnostic Output Message CODE EXAMPLE 4-22 Enter (0-12 tests, 13 -Quit, 14 -Menu) ===>...
Page 108 BAUDRATE=’1800’ BAUDRATE=’2400’ BAUDRATE=’4800’ BAUDRATE=’9600’ BAUDRATE=’19200’ BAUDRATE=’38400’ BAUDRATE=’57600’ BAUDRATE=’76800’ BAUDRATE=’115200’ BAUDRATE=’153600’ BAUDRATE=’230400’ BAUDRATE=’307200’ BAUDRATE=’460800’ TEST=’nvram_test’ SUBTEST=’write/read_patterns’ SUBTEST=’write/read_inverted_patterns’ TEST=’audio_test’ SUBTEST=’cs4231_test’ Codec_ID=’8a’ Version_ID=’a0’ SUBTEST=’external_lpbk’ External Audio Test not run: Please set the mfg-mode to sys-ext. Sun Ultra 80 Service Manual • March 2000...
Page 109: How To Get Technical Assistance
All Above Diagnostic Output Message (Continued) CODE EXAMPLE 4-22 ###OBDIAG_MFG_START### TEST=’audio_test’ STATUS=’FAILED’ SUBTEST=’external_lpbk’ ERRORS=’1 ‘ TTF=’468 ‘ SPEED=’450.04 MHz’ PASSES=’1 ‘ MESSAGE=’Error: internal_loopback TBD’ TEST=’selftest’ Enter (0-12 tests, 13 -Quit, 14 -Menu) ===> How to Get Technical Assistance Sun has designed interactive online support tools to help you solve problems, provide patches, and give you access to bug reports and other valuable information.
Page 110: Docs.sun.com
If your company has purchased a service contract, you can call a Sun Service Solution Center. To contact Sun Service Solution Centers for answers to your technical questions, go http://www.sun.com/service/contacting/solution.html Sun Ultra 80 Service Manual • March 2000...
Page 111: Safety And Tool Requirements
C H A P T E R Safety and Tool Requirements This chapter describes the following requirements and precautions: Section 5.1 “Safety Requirements” on page 5-1 Section 5.2 “Symbols” on page 5-2 Section 5.3 “Safety Precautions” on page 5-2 Section 5.4 “Tools Required” on page 5-4 Safety Requirements For protection, observe the following safety precautions when setting up the equipment:...
Page 112: Symbols
Follow all safety precautions. 5.3.1 Modification to Equipment Caution – Do not make mechanical or electrical modifications to the equipment. Sun Microsystems is not responsible for regulatory compliance of a modified Sun product. 5.3.2 Placement of a Sun Product Caution – To ensure reliable operation of the Sun product and to protect it from overheating, openings in the equipment must not be blocked or covered.
Page 113: Power Cord Connection
5.3.3 Power Cord Connection Caution – Not all power cords have the same current ratings. Household extension cords do not have overload protection. Do not use household extension cords with the Sun product. Caution – The power switch of this product functions as a standby type device only.
Page 114: Tools Required
The inner side (metal part) of the system access panel A Sun ESD mat, part number 250-1088 (can be purchased through your Sun sales representative) A disposable ESD mat; shipped with replacement parts or optional system features Sun Ultra 80 Service Manual • March 2000...
Page 115: Power On/Off And Internal Access
C H A P T E R Power On/Off and Internal Access This chapter contains procedures to power on and off the system, and how to access the system for service: Section 6.1 “Powering Off the System/Removing the Access Panel” on page 6-1 Section 6.2 “Attaching the Antistatic Wrist Strap”...
Page 116: Figure 6-1 System Power
Caution – Disconnect the power cord prior to servicing system components. 5. Turn off the power to the monitor. 6. Disconnect cables to any peripheral equipment. 7. Remove the lock block, if installed ( FIGURE 6-2 Sun Ultra 80 Service Manual • March 2000...
Page 117: Figure 6-2 Lock Block Location
Lock block Workstation Lock Block Location FIGURE 6-2 8. Remove the access panel as follows: Caution – As a safety precaution, the access panel is equipped with an interlock switch that immediately shuts off system power when the access panel is opened. Be sure to power down the system before you open the access panel to avoid losing data.
Page 118: Figure 6-3 Removing/Replacing The Access Panel
Lift the access panel up and clear of the chassis. Access panel Depression (2) Removing/Replacing the Access Panel FIGURE 6-3 Sun Ultra 80 Service Manual • March 2000...
Page 119: Attaching The Antistatic Wrist Strap
Attaching the Antistatic Wrist Strap Caution – Wear an antistatic wrist strap and use an ESD-protected mat when handling components. When servicing or removing system components, attach an ESD strap to your wrist, then to a metal area on the chassis, and then disconnect the power cord from the system and the wall receptacle.
Page 120: Replacing The Access Panel/Powering On The System
Caution – If the access panel is installed incorrectly, the power interlock circuit will remain activated. Ensure that the access panel is installed correctly. 1. Hold the access panel, centering it over the chassis opening. Sun Ultra 80 Service Manual • March 2000...
Page 121: Figure 6-5 Type-6 Keyboard
2. Lower the access panel lightly onto the chassis until the access panel hooks engage the chassis rail. 3. Tilt the top of the access panel in toward the chassis until it clicks into place. 4. Verify that the access panel clicks into both sides of the chassis top. 5.
Page 122 Sun Ultra 80 Service Manual • March 2000...
Page 123: Major Subassemblies
C H A P T E R Major Subassemblies This chapter describes how to remove and replace the following major subassemblies: Section 7.1 “Power Supply Assembly” on page 7-1 Section 7.2 “Power Switch Assembly” on page 7-5 Section 7.3 “DC-to-DC Converter Assembly” on page 7-7 Section 7.4 “Cable Assemblies”...
Page 124 5. Remove the power supply from the chassis by pulling on the power supply assembly handle. Note – Support the power supply assembly with one hand as you remove it from the chassis. Sun Ultra 80 Service Manual • March 2000...
Page 125: Figure 7-1 Removing And Replacing The Power Supply Assembly (Sheet 1 Of 2)
Power supply connectors J4107 J4106 Removing and Replacing the Power Supply Assembly (Sheet 1 of 2) FIGURE 7-1 Screw (6) Power supply Removing and Replacing the Power Supply Assembly (Sheet 2 of 2) FIGURE 7-2 Chapter...
Page 126: Replacing The Power Supply Assembly
See Section 7.3.2 “Replacing the DC-to-DC Converter Assembly” on page 7-8. 4. Detach the antistatic wrist strap. 5. Replace the access panel and power on the system. See Section 6.3 “Replacing the Access Panel/Powering On the System” on page 6-6. Sun Ultra 80 Service Manual • March 2000...
Page 127: Power Switch Assembly
Power Switch Assembly Use the following procedures to remove and replace the power switch assembly. 7.2.1 Removing the Power Switch Assembly 1. Power off the system and remove the access panel. See Section 6.1 “Powering Off the System/Removing the Access Panel” on page 6-1. Caution –...
Page 128: Replacing The Power Switch Assembly
Replace the combined cable assembly connectors to the power switch assembly terminators. c. Using a 5/16-inch nutdriver, replace the nut securing the power switch assembly to the chassis. 2. Replace the peripheral bezel assembly. Sun Ultra 80 Service Manual • March 2000...
Page 129: Dc-To-Dc Converter Assembly
3. Detach the antistatic wrist strap. 4. Replace the access panel and power on the system. See Section 6.3 “Replacing the Access Panel/Powering On the System” on page 6-6. DC-to-DC Converter Assembly Use the following procedures to remove and replace the DC-to-DC converter assembly.
Page 130: Replacing The Dc-To-Dc Converter Assembly
Position the two DC-to-DC converter assembly connectors on the motherboard connectors J4105 and J4108. c. Using a No. 2 Phillips screwdriver, tighten the captive screw securing the DC-to-DC converter assembly to the motherboard. 2. Detach the antistatic wrist strap. Sun Ultra 80 Service Manual • March 2000...
Page 131: Cable Assemblies
3. Replace the access panel and power on the system. See Section 6.3 “Replacing the Access Panel/Powering On the System” on page 6-6. Cable Assemblies Use the following procedures to remove and replace the peripheral power cable assembly, the diskette drive cable assembly, and the combined cable assembly. Note –...
Page 132: Replacing The Peripheral Cable Assembly
Connect the peripheral power cable assembly connectors to the CD-ROM drive, the hard drive cage, and the diskette drive. b. Connect the peripheral power cable assembly connector to connector J4112 on the motherboard. Sun Ultra 80 Service Manual • March 2000...
Page 133: Removing The Diskette Drive Cable Assembly
c. Connect the peripheral power cable to the chassis clips. 3. Detach the antistatic wrist strap. 4. Replace the access panel and power on the system. See Section 6.3 “Replacing the Access Panel/Powering On the System” on page 6-6. 7.4.3 Removing the Diskette Drive Cable Assembly 1.
Page 134: Replacing The Diskette Drive Cable Assembly
2. Connect the diskette drive cable assembly as follows ( FIGURE 7-6 a. Connect the diskette drive cable assembly to the hard drive cage SCSI assembly connector. b. Connect the diskette drive cable assembly to the rear of the diskette drive. Sun Ultra 80 Service Manual • March 2000...
Page 135: Removing The Combined Cable Assembly
3. Detach the antistatic wrist strap. 4. Replace the access panel and power on the system. See Section 6.3 “Replacing the Access Panel/Powering On the System” on page 6-6. 7.4.5 Removing the Combined Cable Assembly 1. Power off the system and remove the access panel. See Section 6.1 “Powering Off the System/Removing the Access Panel”...
Page 136: Replacing The Combined Cable Assembly
1. Position the combined cable assembly into the chassis ( FIGURE 7-7 2. Connect the combined cable assembly as follows: a. Replace the combined cable assembly connectors to the interlock switch terminators. Sun Ultra 80 Service Manual • March 2000...
Page 137: Interlock Switch Assembly
b. Replace the combined cable assembly connectors to the power switch terminators. c. Replace the combined cable assembly connectors to the speaker assembly terminators. 3. Replace the fans and the fan bracket. See Section 7.7.2 “Replacing a Fan Assembly” on page 7-20. 4.
Page 138: Replacing The Interlock Switch Assembly
1. Replace the interlock switch assembly as follows ( FIGURE 7-8 a. Connect the combined cable assembly connectors to the interlock switch terminators. Sun Ultra 80 Service Manual • March 2000...
Page 139: Air Guide
b. Press the detent tabs at either side of the interlock switch assembly while positioning the switch into the chassis. Continue to press the detent tabs and pull the interlock switch assembly until the switch is properly seated. 2. Detach the antistatic wrist strap. 3.
Page 140: Replacing The Air Guide
2. Detach the antistatic wrist strap. 3. Replace the access panel and power on the system. See Section 6.3 “Replacing the Access Panel/Powering On the System” on page 6-6. Sun Ultra 80 Service Manual • March 2000...
Page 141: Fan Assembly
Fan Assembly Use the following procedures to remove and replace a fan assembly. 7.7.1 Removing a Fan Assembly 1. Power off the system and remove the access panel. See Section 6.1 “Powering Off the System/Removing the Access Panel” on page 6-1. Caution –...
Page 142: Replacing A Fan Assembly
J4110, depending on which fan assembly is to be replaced. 2. Replace the air guide. See Section 7.6.2 “Replacing the Air Guide” on page 7-18. 3. Detach the antistatic wrist strap. Sun Ultra 80 Service Manual • March 2000...
Page 143: Speaker Assembly
4. Replace the access panel and power on the system. See Section 6.3 “Replacing the Access Panel/Powering On the System” on page 6-6. Speaker Assembly Use the following procedures to remove and replace the speaker assembly. 7.8.1 Removing the Speaker Assembly 1.
Page 144: Replacing The Speaker Assembly
1. Replace the speaker assembly as follows ( FIGURE 7-11 a. Connect the combined cable assembly connectors to the speaker assembly terminators. b. Using a No. 2 Phillips screwdriver, replace the screw securing the speaker assembly to the chassis. Sun Ultra 80 Service Manual • March 2000...
Page 145: Scsi Assembly
2. Replace the fans and fan bracket. See Section 7.7.2 “Replacing a Fan Assembly” on page 7-20. 3. Replace the air guide. See Section 7.6.2 “Replacing the Air Guide” on page 7-18. 4. Detach the antistatic wrist strap. 5. Replace the access panel and power on the system. See Section 6.3 “Replacing the Access Panel/Powering On the System”...
Page 146 FIGURE 7-13 a. Using a No. 2 Phillips screwdriver, remove the four screws securing the SCSI assembly to the hard drive cage. b. Separate the SCSI assembly from the hard drive cage. Sun Ultra 80 Service Manual • March 2000...
Page 147: Figure 7-12 Removing And Replacing The Hard Drive Cage (Sheet 1 Of 2)
Hard drive cage Captive screw (2) SCSI cable assembly Screw (2) Removing and Replacing the Hard Drive Cage (Sheet 1 of 2) FIGURE 7-12 Chapter...
Page 148: Replacing The Scsi Assembly
2. Replace the hard drive cage as follows ( FIGURE 7-12 a. Position the hard drive cage into the chassis and connect the hard drive cage to the chassis cutouts. b. Using a No. 2 Phillips screwdriver, proceed as follows: Sun Ultra 80 Service Manual • March 2000...
Page 149: Chassis Foot
i. Replace the two screws into the chassis bottom that secure the hard drive cage to the chassis. ii. Tighten the two captive screws (located on the left side of the hard drive cage). 3. Connect the diskette drive cable assembly to the motherboard and the diskette drive.
Page 150: Replacing A Chassis Foot
2. Peel the protective cover from the adhesive side of the foot and place the foot onto the chassis. 7.11 Filler Panels Use the following procedures to remove and replace a filler pane. Sun Ultra 80 Service Manual • March 2000...
Page 151: Removing A Filler Panel
7.11.1 Removing a Filler Panel 1. Identify the filler panel to be removed. 2. Remove an filler panel as follows ( FIGURE 7-15 a. Remove the peripheral bezel assembly. b. Use your finger to remove the plastic filler panel from the peripheral bezel assembly.
Page 152: Replacing A Filler Panel
Replacing a Filler Panel 1. Position and snap the metal filler panel into the peripheral assembly ( FIGURE 7-16 2. Position and snap the plastic filler panel into the peripheral bezel assembly FIGURE 7-15 Sun Ultra 80 Service Manual • March 2000...
Page 153: Storage Devices
C H A P T E R Storage Devices This chapter describes how to remove and replace the Ultra 80 storage devices. This chapter contains the following topics: Section 8.1 “Hard Drive” on page 8-1 Section 8.2 “Peripheral Assembly Drive” on page 8-3 Hard Drive Use the following procedures to remove and replace a hard drive.
Page 154: Replacing A Hard Drive
Holding the drive handle, insert the hard drive into the hard drive cage along the vertical plastic guides until the drive engages the card cage SCSI assembly connector. b. Close the hard drive handle to lock the hard drive into the system. Sun Ultra 80 Service Manual • March 2000...
Page 155: Peripheral Assembly Drive
2. Detach the antistatic wrist strap. 3. Replace the access panel and power on the system. See Section 6.3 “Replacing the Access Panel/Powering On the System” on page 6-6. Peripheral Assembly Drive To remove and replace a peripheral assembly drive, it is necessary to remove and replace the peripheral assembly.
Page 156: Figure 8-2 Removing And Replacing The Peripheral Assembly
Remove the peripheral assembly from the chassis. 5. Place the peripheral assembly on an antistatic mat. Peripheral assembly Screw (4) Peripheral bezel assembly Removing and Replacing the Peripheral Assembly FIGURE 8-2 Sun Ultra 80 Service Manual • March 2000...
Page 157: Removing The Cd-Rom Drive Or Any Optional Tape Drive Component
8.2.2 Removing the CD-ROM Drive or Any Optional Tape Drive Component Caution – Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 1.
Page 158: Replacing The Cd-Rom Drive Or Any Optional Tape Drive Component
Note – The four screws used to secure a drive to the peripheral drive assembly are specifically sized screws. Do not intermingle these screws with other screws. 3. Remove the diskette drive and place it on an antistatic mat. Sun Ultra 80 Service Manual • March 2000...
Page 159: Replacing The Diskette Drive
4. Install the filler panel, if necessary. 8.2.5 Replacing the Diskette Drive Note – If installing a diskette drive (instead of replacing it), ensure that the peripheral power cable and all data cables are properly routed through the clips adjacent to the drive bay. Route the combined cable through the wire saddle installed adjacent to the hard drive cage.
Page 160 4. Replace the access panel and power-on the system. See Section 6.3 “Replacing the Access Panel/Powering On the System” on page 6-6. Sun Ultra 80 Service Manual • March 2000...
Page 161: Motherboard And Component Replacement
C H A P T E R Motherboard and Component Replacement This chapter describes how to remove and replace the system motherboard and motherboard components. This chapter contains the following topics: Section 9.1 “CPU Module” on page 9-1 Section 9.2 “NVRAM/TOD” on page 9-5 Section 9.3 “PCI Card”...
Page 162 Using the thumbs of both hands, simultaneously lift the two extraction levers on the CPU module up and out to approximately 135 degrees. b. Lift the CPU module up until it clears the chassis. 4. Place the CPU module on an antistatic mat. Sun Ultra 80 Service Manual • March 2000...
Page 163: Replacing A Cpu Module
filler panel Extraction lever (2) J0101 J0201 CPU module J0301 J0401 Removing and Replacing a CPU Module FIGURE 9-1 9.1.2 Replacing a CPU Module Caution – Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface.
Page 164: Figure 9-2 Cpu Placement Diagram
CPU module J0401 slot 3 CPU module J0301 slot 2 J3001 CPU module J0201 slot 1 Front J3002 J4110 CPU module J0101 Audio J3501 slot 0 Bottom CPU Placement Diagram FIGURE 9-2 Sun Ultra 80 Service Manual • March 2000...
Page 165: Nvram/Tod
1. Replace a CPU module as follows ( FIGURE 9-1 a. On the antistatic mat, hold the CPU module in an upright position with the plastic surface facing you. b. Move the extraction levers on the CPU module to the 135-degree position. c.
Page 166: Figure 9-3 Removing And Replacing The Nvram/Tod
Grasp the NVRAM/TOD carrier at each end and pull straight up. Note – Gently wiggle the NVRAM/TOD as necessary. 4. Place the NVRAM/TOD and carrier on an antistatic mat. NVRAM/TOD Carrier Removing and Replacing the NVRAM/TOD FIGURE 9-3 Sun Ultra 80 Service Manual • March 2000...
Page 167: Replacing The Nvram/Tod
9.2.2 Replacing the NVRAM/TOD Caution – Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 1. Replace the NVRAM/TOD as follows ( FIGURE 9-3 a.
Page 168: Figure 9-4 Removing And Replacing A Pci Card
Remove the PCI card. 5. Place the PCI card on an antistatic mat. Aligned with Screw fan bracket Bracket tab card guide PCI card Removing and Replacing a PCI Card FIGURE 9-4 Sun Ultra 80 Service Manual • March 2000...
Page 169: Replacing A Pci Card
9.3.2 Replacing a PCI Card Caution – Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. Note – Read the PCI card product guide for information about jumper or switch settings, slot requirements, and required tools.
Page 170: Removing The Upa Graphics Card
At the two upper corners of the graphics card, pull the card straight up from the slot. c. Remove the UPA graphics card. 5. Place the UPA graphics card on an antistatic mat. Sun Ultra 80 Service Manual • March 2000...
Page 171: Replacing The Upa Graphics Card
Screw Aligned with Bracket tab fan bracket card guide UPA card Removing and Replacing a UPA Graphics Card FIGURE 9-5 9.4.2 Replacing the UPA Graphics Card Caution – Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface.
Page 172: Removing The Elite3D Upa Graphics Card
FIGURE 9-6 a. Disconnect the two 10-position sockets from the mating connectors on the Elite3D. b. Using a No. 2 Phillips screwdriver, remove the screw securing the bracket tab to the chassis. Sun Ultra 80 Service Manual • March 2000...
Page 173 Note – illustrates the Elite3D graphics card detached from the chassis to FIGURE 9-6 provide clarity. Caution – Avoid applying force to one end or one side of the card or connector damage may occur. c. Remove the bracket tab from the chassis. 5.
Page 174: Figure 9-6 Removing And Replacing The Elite3D Upa Graphics Card
Screw Bracket tab AFB serial port cable Screw Aligned with fan bracket Bracket tab card guide Elite3D UPA graphics card Removing and Replacing the Elite3D UPA Graphics Card FIGURE 9-6 Sun Ultra 80 Service Manual • March 2000...
Page 175: Replacing The Elite 3D Upa Graphics Card
9.4.4 Replacing the Elite 3D UPA Graphics Card Note – If you are installing or using the Solaris 2.5.1 HW:11/97 or the Solaris 2.6 5/98 operating environments, and you are installing an Elite3D UPA graphics card, see Section 9.4.5 “Elite3D UPA Graphics Card Patch Information” on page 9-16.
Page 176: Elite3D Upa Graphics Card Patch Information
Caution – Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. Sun Ultra 80 Service Manual • March 2000...
Page 177 3. Attach the antistatic wrist strap. See Section 6.2 “Attaching the Antistatic Wrist Strap” on page 6-5. 4. Remove the audio module assembly as follows ( FIGURE 9-7 a. Using a No. 2 Phillips screwdriver, remove the screw securing the audio module assembly bracket tab to the system chassis.
Page 178: Replacing The Audio Module Assembly
1. Replace the audio module assembly as follows ( FIGURE 9-7 a. Position the audio module assembly into the chassis. b. Lower the audio module assembly connector so that it touches its associated card slot on the motherboard. Sun Ultra 80 Service Manual • March 2000...
Page 179: Memory Riser Assembly
c. Align the audio module assembly bracket tab with the chassis back panel cutout. d. At the two upper corners of the module, push the module straight down into the slot until the module is fully seated. e. Using a No. 2 Phillips screwdriver, replace the screw securing the audio module assembly to the system chassis.
Page 180: Removing The Memory Riser Assembly
When the thumbscrews have reached their full travel, lift the memory riser assembly straight up out of the system ( FIGURE 9-10 5. Place the memory riser assembly on an antistatic mat. Sun Ultra 80 Service Manual • March 2000...
Page 181: Figure 9-9 Removing The Memory Riser Assembly (Sheet 1 Of 2)
Torque-indicator driver Thumbscrew (2) Removing the Memory Riser Assembly (Sheet 1 of 2) FIGURE 9-9 Chapter...
Page 182: Replacing The Memory Riser Assembly
Caution – Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 1. Replace the memory riser assembly as follows: Sun Ultra 80 Service Manual • March 2000...
Page 183 a. Position the memory riser assembly on the motherboard connectors FIGURE 9-10 Caution – The memory riser assembly connectors must be seated straight into the motherboard connectors to avoid damaging the motherboard connector pins. b. Using your hands, tighten the thumbscrews simultaneously until they are both finger-tight.
Page 184: Figure 9-11 Setting The Memory Riser Assembly Thumbscrew Torque
5. Replace the access panel and power on the system. See Section 6.3 “Replacing the Access Panel/Powering on the System” on page 6-6. 6. Verify proper operation. See Section 3.5 “Maximum and Minimum Level of POST” on page 3-7. Sun Ultra 80 Service Manual • March 2000...
Page 185: Dimm
DIMM Use the following procedures to remove and replace a DIMM. Caution – DIMMs consist of electronic components that are extremely sensitive to static electricity. Ordinary amounts of static electricity from clothing or work environment can destroy the DIMM. Caution – When removing and replacing a single DIMM, an identical replacement is required.
Page 186: Figure 9-12 Removing And Replacing A Dimm (Sheet 1 Of 2)
Lift the DIMM straight out of the connector and set it aside on the antistatic mat. Memory riser assembly DIMM Double notch nearest ejection lever Removing and Replacing a DIMM (Sheet 1 of 2) FIGURE 9-12 Sun Ultra 80 Service Manual • March 2000...
Page 187: Replacing A Dimm
Motherboard DIMM Double notch nearest ejection lever Removing and Replacing a DIMM (Sheet 2 of 2) FIGURE 9-13 9.7.2 Replacing a DIMM Caution – Do not remove any DIMM from the antistatic container until ready to install it on the motherboard. Handle DIMMs only by their edges. Do not touch DIMM components or metal parts.
Page 188 Note – The following figure shows the placement of the DIMM banks on the memory riser assembly (left) and the motherboard (right). On the motherboard, bank 3 is closest to the system top, bank 0 is closest to the CPU shroud. Sun Ultra 80 Service Manual • March 2000...
Page 189: Figure 9-14 Dimm Bank Arrangement
DIMM Bank Arrangement FIGURE 9-14 2. Locate the DIMM slot(s) on the motherboard and the memory riser assembly where DIMMs where removed. Caution – Handle DIMMs only by the edges. Do not touch the DIMM components or metal parts. Always wear a grounding strap when handling a DIMM. Caution –...
Page 190: Motherboard
If the same ID and Ethernet address are to be used on the replacement motherboard, remove the NVRAM/TOD from the motherboard and install the removed NVRAM/TOD on the replacement motherboard after motherboard installation. Sun Ultra 80 Service Manual • March 2000...
Page 191: Removing The Motherboard
9.8.1 Removing the Motherboard 1. Power off the system and remove the access panel. See Section 6.1 “Powering Off the System/Removing the Access Panel” on page 6-1. Caution – Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface.
Page 192 Lift the motherboard from the chassis and place on an antistatic mat. 7. Remove the CPU shroud assembly from the motherboard. See Section 9.9.1 “Removing the CPU Shroud Assembly” on page 9-37. Sun Ultra 80 Service Manual • March 2000...
Page 193: Replacing The Motherboard
Removing and Replacing the Motherboard FIGURE 9-15 9.8.2 Replacing the Motherboard Caution – Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. Note –...
Page 194: Figure 9-16 Location Of The Motherboard Serial Port Jumpers
Pin 1 is marked with an asterisk in any of the positions shown in the following figure. Ensure that the jumpers are set correctly. Sun Ultra 80 Service Manual • March 2000...
Page 195: Figure 9-17 Identifying Jumper Pins
J 2 X X X Jumper reference designation Pins Identifying Jumper Pins FIGURE 9-17 3. Replace the CPU shroud assembly to the motherboard. See Section 9.9.2 “Replacing the CPU Shroud Assembly” on page 9-38. 4. Replace the motherboard as follows: a.
Page 196 #power-cycles NVRAM variable to control the frequency of automatic system shutdown if automatic shutdown is enabled. 11. Verify proper operation. See Section 3.5 “Maximum and Minimum Levels of POST” on page 3-6. Sun Ultra 80 Service Manual • March 2000...
Page 197: Cpu Shroud Assembly
CPU Shroud Assembly Use the following procedures to remove and replace the CPU shroud assembly. 9.9.1 Removing the CPU Shroud Assembly Caution – Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface.
Page 198: Replacing The Cpu Shroud Assembly
1. Position and properly align the CPU shroud assembly on the motherboard FIGURE 9-18 2. Using a No. 2 Phillips screwdriver, tighten the seven captive screws securing the CPU shroud assembly to the motherboard (not illustrated). Sun Ultra 80 Service Manual • March 2000...
Page 199: Illustrated Parts List
C H A P T E R Illustrated Parts List This chapter lists the authorized replaceable parts for the system. FIGURE 10-1 illustrates an exploded view of the system. lists the system replaceable TABLE 10-1 components. A brief description of each listed component is also provided.
Page 200: Figure 10-1 System Exploded View
System Exploded View FIGURE 10-1 Sun Ultra 80 Service Manual • March 2000...
Page 201: Table 10-1 Replaceable Components
Note – The part numbers listed in the following table are correct as of the service manual publication date but are subject to change without notice. Consult your authorized Sun sales representative or service provider to confirm a part number prior to ordering a replacement part.
Page 202 330-2691 Plastic, combo (part of #560-2525, Ultra illustrated panel 30/60/80 accessory kit) 4-mm tape drive 370-2176 4-Gbyte/8-Gbyte, 4-mm tape drive, DDS- illustrated 4-mm tape drive 370-2377 12-Gbyte/24-Gbyte, 4-mm tape drive, illustrated DDS-3 Sun Ultra 80 Service Manual • March 2000...
Page 203 Replaceable Components (Continued) TABLE 10-1 Ref. No. Component Part Number Description 8-mm tape drive 370-1922 14-Gbyte, 8-mm tape drive illustrated TPE cable (category 530-1871 Twisted-pair Ethernet cable illustrated NVRAM/TOD 525-1430 Time of day, 48T59, with carrier illustrated PCI filler panel 240-2750 PCI filler panel (part of #560-2525, Ultra illustrated...
Page 204 Sun Ultra 80 Service Manual • March 2000...
Page 205: Product Specifications
A P P E N D I X Product Specifications This appendix provides product specifications for the system. Section A.1 “Physical Specifications” on page A-2 Section A.2 “Electrical Specifications” on page A-2 Section A.3 “Environmental Requirements” on page A-3...
Page 206: Physical Specifications
100 to 240 Vac, 47 to 63 Hz DC output 670W (maximum) Output 1 +3.3 Vdc, 90A Output 2 +5.0 Vdc, 70A Output 3 +12.0 Vdc, 8.0A Output 4 -12.0 Vdc, 0.4A Output 5 5.0 Vdc, 1.5A Sun Ultra 80 Service Manual • March 2000...
Page 207: Environmental Requirements
Environmental Requirements Environmental Requirements TABLE A-3 Environmental Operating Non-operating Temperature (with tape drive) 41 to 104° degrees F -40 to 149 degrees F (5 to 40 degrees C) (-40 to 65 degrees C) Temperature (without tape drive) 41 to 113 degrees F -40 to 149 degrees F (5 to 45 degrees C) (-40 to 65 degrees C)
Page 208 Sun Ultra 80 Service Manual • March 2000...
Page 209: Signal Descriptions
A P P E N D I X Signal Descriptions This appendix describes the system motherboard connector signals and pin assignments. Section B.1 “Power Connectors” on page B-1 Section B.2 “Serial Ports A and B” on page B-7 Section B.3 “UltraSCSI Connector” on page B-9 Section B.4 “Parallel Port Connector”...
Page 210: Figure B-1 Dc-To-Dc Converter Connector J4105
2.6 Vdc 2.6 Vdc 2.6 Vdc 2.6 Vdc 2.6 Vdc 2.6 Vdc +12 Vdc +12 Vdc Return Return Return Return Return Return Return Return 2.6 Vdc 2.6 Vdc 2.6 Vdc 2.6 Vdc Sun Ultra 80 Service Manual • March 2000...
Page 211: Figure B-2 Power Supply Connector J4106
DC-to-DC Converter Connector J4105 Pin Description (Continued) TABLE B-2 Signal Description 2.6 Vdc 2.6 Vdc 2.6 Vdc 2.6 Vdc + Sense 2.6 Vdc 2.6 Vdc sense Power Supply Connector J4106 FIGURE B-2 Power Supply Connector J4106 Pin Description TABLE B-3 Signal Description POWERON_L...
Page 212: Figure B-3 Power Supply Connector J4107
21, 22 RETURN +3.3 Vdc +3.3 Vdc Return 23, 24 RETURN +5 Vdc +5 Vdc Return 25, 26 RETURN +5 Vdc +5 Vdc Return 27, 28 RETURN +5 Vdc +5 Vdc Return Sun Ultra 80 Service Manual • March 2000...
Page 213: Figure B-4 Dc-To-Dc Converter Connector J4108
DC-to-DC Converter Connector J4108 FIGURE B-4 DC-to-DC Converter Connector J4108 Pin Description TABLE B-5 Signal Description Over voltage protect Voltage at the common collector Voltage at the common collector Ground Ground Ground Ground Voltage at the common collector Voltage at the common collector POWER_OK Power okay PCI Fan Connector J4109...
Page 214: Figure B-6 Cpu Fan Connector J4110
TABLE B-8 Signal Description Voltage at the common collector SPEAKER_OUT+ Speaker out + SWITCH_L Switch low POWERON_L Power on low SYS LED System LED SPEAKER_OUT- Speaker out - Ground INTERLOCK_L Interlock low Sun Ultra 80 Service Manual • March 2000...
Page 215: Serial Ports A And B
Peripheral Power Cable Assembly Connector J4112 FIGURE B-8 Peripheral Power Cable Assembly Connector J4112 Pin Description TABLE B-9 Signal Description Voltage at the common collector Voltage at the common collector Voltage at the common collector +12 VDC +12 VDC +12 VDC +12 VDC Ground Ground...
Page 216: Figure B-9 Serial Port A And B Connector Pin Configuration
Ready To Send SER_CTS_A_L_CONN Clear To Send SER_DSR_A_L_CONN Data Set Ready Signal Ground SER_DCD_A_L-CONN Data Carrier Detect BUTTON_POR Power-on reset BUTTON_XIR_L Transmit internal reset +5Vdc +5 VDC Not connected Not connected Not connected Sun Ultra 80 Service Manual • March 2000...
Page 217: Ultrascsi Connector
Serial Port A and B Connector Pin Assignments (Continued) TABLE B-10 Signal Description SER_TRXC_A_L_CONN Transmit Clock Not connected SER_RXC_A_L_CONN Receive Clock Not connected Not connected SER_DTR_A_L_CONN Data Terminal Ready Not connected Not connected Not connected SER_TXC_A_L_CONN Terminal Clock Not connected UltraSCSI Connector The Ultra small computer system interface (UltraSCSI) connector (J2201) is located on the motherboard back panel.
Page 218: Figure B-10 Ultrascsi Connector Pin Configuration
UltraSCSI Connector Pin Configuration FIGURE B-10 UltraSCSI Connector Pin Assignments TABLE B-11 Signal Description Ground Ground Not connected Ground Ground Ground Ground Ground Ground Ground Ground Sun Ultra 80 Service Manual • March 2000...
Page 219 UltraSCSI Connector Pin Assignments (Continued) TABLE B-11 Signal Description Ground Ground Ground Ground Ground TERMPOWER Termpower TERMPOWER Termpower Not connected Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Appendix...
Page 220 Data 4 SCSI_B_DAT<5>_ Data 5 SCSI_B_DAT<6>_ Data 6 SCSI_B_DAT<7>_ Data 7 SCSI_B_PAR<0> Parity 0 Ground Not connected TERMPOWER_B Terminal B power TERMPOWER_B Terminal B power Not connected Ground SCSI_B_ATN_L Attention Ground SCSI_B-BSY_L Busy Sun Ultra 80 Service Manual • March 2000...
Page 221: Parallel Port Connector
UltraSCSI Connector Pin Assignments (Continued) TABLE B-11 Signal Description SCSI_B_ACK_L Acknowledge SCSI_B_RESET_L Reset SCSI_B_MSG_L Message SCSI_B_SEL_L Select SCSI_B-CD_L Command SCSI_B_REQ_L Request SCSI_B_IO_L In/out SCSI_B_DAT<8>_ Data 8 SCSI_B_DAT<9>_ Data 9 SCSI_B_DAT<10>_ Data 10 SCSI_B_DAT<11>_ Data 11 Note – _ (underscore) signifies active low. Parallel Port Connector The parallel port connector (J2702) is a DB-25 connector located on the motherboard back panel.
Page 222: Figure B-11 Parallel Port Connector Pin Configuration
Acknowledge Low PAR_BUSY_CONN Busy PAR_PE_CONN Parity Error PAR_SELECT_L_CONN Select Low PAR_AFXN_L_CONN Auto Feed Low PAR_ERROR_L_CONN Error Low PAR_INIT_L_CONN Initialize Low PAR_IN_L_CONN Peripheral Input Low Chassis ground Chassisl ground Chassis ground Chassis ground Sun Ultra 80 Service Manual • March 2000...
Page 223: Keyboard/Mouse
Parallel Port Connector Pin Assignments (Continued) TABLE B-12 Signal Description Chassis ground Signal ground Signal ground Signal ground Keyboard/Mouse The keyboard/mouse connector (J2701) is a DIN-8 connector located on the motherboard back panel. Keyboard/Mouse Connector Pin Configuration FIGURE B-12 Keyboard/Mouse Connector Pin Assignments TABLE B-13 Signal Name Description...
Page 224: Twisted-Pair Ethernet Connector
+5Vdc +5VDC Transmit data - Receive data + Receive data - Common mode termination Termination B.6.1 TPE Cable-Type Connectivity The following types of TPE cables can be connected to the TPE connector. Sun Ultra 80 Service Manual • March 2000...
Page 225: External Utp-5 Cable Lengths
For 10BASE-T applications, unshielded twisted-pair (UTP) cable: Category 3 (UTP-3, voice grade) Category 4 (UTP-4) Category 5 (UTP-5, data grade) For 100BASE-T applications, UTP cable, UTP-5, data grade B.6.2 External UTP-5 Cable Lengths The following table lists TPE UTP-5 types, applications, and maximum lengths. TPE UTP-5 Cables TABLE B-15 Maximum Length...
Page 226: Upa Graphics Card Connectors
Left channel Ring (center) Right channel Right channel Right channel Right channel Shield Ground Ground Ground Ground UPA Graphics Card Connectors The UPA graphics card connector is located on the UPA graphics card. Sun Ultra 80 Service Manual • March 2000...
Page 227: Figure B-15 Upa Graphics Card Connector Pin Configuration
A1 A2 UPA Graphics Card Connector Pin Configuration FIGURE B-15 UPA Graphics Card Connector Pin Assignments TABLE B-17 Signal Name Description Green Blue Serial Read Serial Read Vert Sync Vertical Sync Sense <0> Sense <0> Ground Comp Sync Composite Sync Horiz Sync Horizontal Sync Serial Write...
Page 228 Sun Ultra 80 Service Manual • March 2000...
Page 229: Functional Description
A P P E N D I X Functional Description This section provides functional descriptions for the following: Section C.1 “System” on page C-1 Section C.2 “Power Supply” on page C-35 Section C.3 “DC-to-DC Converter Assembly” on page C-40 Section C.4 “Power Management” on page C-40 Section C.5 “Motherboard”...
Page 230: System Overview
The UPA graphics cards are UPA slave-only devices. The QSC ASIC routes UPA requests packets through the UPA address bus and controls the flow of data using the XB9++ ASIC and the CBT switching network. Sun Ultra 80 Service Manual • March 2000...
Page 231: Upa
BANK_SEL UPA_AD2 Ntwk UPA_AD3 Memory address/control ASIC UPA_AD0 modules 0 and 1 UPA_AD1 Control modules 2 and 3 ASIC Memory UPA_DATA1 UPA_DATA0 Memory data XB9++ UPA_E_DAT Memory ASIC graphics data slots 1/2 Memory Ntwk data UPA_D_DAT BANK_SEL RISC ASIC Clock control ASIC SCSI bus 33-MHz/32- or 64-bit PCI bus...
Page 232: Table C-1 Upa Interconnect
UPA address and data buses are connected between the UPA and the UPA clients. UPA Port Identification Assignments TABLE C-2 UPA Slot Number UPA Port ID <4:0> CPU module slot 0 CPU module slot 1 Sun Ultra 80 Service Manual • March 2000...
Page 233: Pci Bus
UPA Port Identification Assignments (Continued) TABLE C-2 UPA Slot Number UPA Port ID <4:0> CPU module slot 2 CPU module slot 3 U2P ASIC 0x1F UPA_AD0 UPA_DATA0 UPA_ADDRBUS0 modules <35:0> 0 and 1 P Bus UPA_DATA1 UPA_AD1 XB9++ modules ASIC 2 and 3 ASIC UPA_D_DAT...
Page 234: Pci Cards
Clock Rates (MHz) Card Type PCI 4 J4701 32/32 5/32-bit PCI 3 J1901 64/32 or 64 5/universal PCI 2 J2001 64/32 or 64 5/universal PCI 66 1 J1801 64/32 or 64 3/64-bit Sun Ultra 80 Service Manual • March 2000...
Page 235: Pci Slot Logical-To-Physical Mapping
Using a Token Ring PCI Card Caution – A Sun Token Ring PCI card, optional component (x-option) X1039 or X1154, will not function properly if you install it in PCI slot number 4 in an Ultra 80 workstation. A Sun Token Ring PCI card must be installed in PCI slots 3, 2, or 1.
Page 236: Scsi Controller
Multimedia capable visual instruction set (VIS) Multiprocessing support Glueless four-processor connection with minimum latency Snooping cache coherency Four-way superscalar design with nine execution units; four integer execution units Three floating-point execution units Sun Ultra 80 Service Manual • March 2000...
Page 237: Memory System
Two graphics execution units Selectable little- or big-endian byte ordering 64-bit address pointers 16-Kbyte non-blocking data cache 16-Kbyte instruction cache; single cycle branch following Power management Software prefetch instruction support Multiple outstanding requests C.1.5 Memory System The system’s motherboard provides sixteen slots for high-capacity dual inline memory modules (DIMMs).
Page 238 BANK_SEL interface XB9++_CMD MEM_A_SEL Memory MEM_B_SEL module From MEM_A_RD MEM_DAT MEM_B_RD ASIC <287..000> MEM_A_WR MEM_DAT MEM_B_WR XB9++ ASIC <575..000> UPA_DATA0<127..000> UPA_DATA1<127..000> MEM_DAT <287..000> UPA_D_DAT<71..00> UPA_E_DAT<63..00> Memory System Functional Block Diagram FIGURE C-3 Sun Ultra 80 Service Manual • March 2000...
Page 239 Bank 0 Bank 2 U1301 MEM_ADR_A U1303 MEM_ADR_A U1302 U1304 WE_A_L WE_A_L U0301 U0303 U0302 U0304 RAS1_L RAS0_L MEM_DAT <287..000> CAS0_L CAS0_L MEM_DAT Bank 1 Bank 3 U1401 U1403 MEM_ADR_B U1402 U1404 MEM_ADR_B U0401 U0403 WE_B_L WE_B_L U0402 U0404 MEM_DAT RAS2_L RAS3_L <287..000>...
Page 240: Dimm
Do not remove any DIMM from its antistatic packaging until you are ready to install it on the motherboard. Handle the modules only by their edges. Do not touch the components or any metal parts. Always wear a anti-static wrist strap when you handle the modules. Sun Ultra 80 Service Manual • March 2000...
Page 241: Interleaving
The DIMM is a 60-nanosecond, fast-page-mode-style DIMM. Two DIMM configurations are supported in the system: 64-Mbytes and 256-Mbytes. The minimum memory capacity is 256 Mbytes (four 64-Mbyte DIMMs) and the maximum memory capacity is 4 Gbytes (sixteen 256-Mbyte DIMMs). There are a total of four DIMM banks in the system. The following table matches the DIMM bank to the DIMM U number.
Page 242: Table C-6 1-Gbyte Dimm Configuration Scenario
0 x c000.0000 to 0 x cfff.ffc0 256-Mbyte/4 0 x 0000.0000 to 0 x 3fff.ffc0 256-Mbyte/4 0 x 4000.0000 to 0 x 7fff.ffc0 256-Mbyte/4 0 x 8000.0000 to 0 x bfff.ffc0 256-Mbyte/4 0 x c000.0000 to 0 ffff.ffc0 Sun Ultra 80 Service Manual • March 2000...
Page 243: Memory System Timing
lists memory addressing with 2-way interleaving with eight DIMMs of a TABLE C-8 particular size being installed in banks 0 and 1. lists memory addressing TABLE C-9 with 4-way interleaving with 16 DIMMs of a particular size being installed in banks 0, 1, 2, and 3.
Page 244: Graphics Card Features
8-bit window system environment Texture cache for texture mapping Acceleration for X11 and XIL graphics libraries Acceleration for 3D applications (XGL, OpenGL, and Java3D) 3D solids, dynamic shading, rotation, and Z-buffered acceleration Sun Ultra 80 Service Manual • March 2000...
Page 245: Graphics Card Performance
High resolution (1280 x 1024 pixels at 76 Hz, non-interlaced) Stereo ready (960 x 680 pixels at 122 Hz, non-interlaced) Dedicated graphics floating-point processing (can turn on more light points for enhanced visual display without a performance penalty) C.1.6.2 Graphics Card Performance The UPA graphics cards have identical window system performance characteristics, 2D graphics, and imaging and video applications.
Page 246: Diskette Drive
The diskette drive is connected to the SCSI backplane with a 34-pin ribbon cable. The maximum cable length is 1.6 yards (1.5 meters). From the SCSI backplane, the diskette drive is cabled to the motherboard with the SCSI connections. Sun Ultra 80 Service Manual • March 2000...
Page 247: Table C-10 Diskette Drive Signals And Functions
Diskette Drive Signals Diskette Drive Signals and Functions TABLE C-10 Signal Name Function MODE_SELECT When active low, MODE_SELECT sets the drive for a 1.2-Mbyte formatted disk. When active high, MODE_SELECT sets the drive for a 1.44-Mbyte formatted disk. HIGH_DENSITY_IN_L When active low, HIGH_DENSITY_IN_L indicates that a high-density disk is inserted into the drive.
Page 248: Other Peripheral Assembly Options
4-Gbyte 4-mm DDS2 tape drive; the 12-24-Gbyte 4-mm DDS3 tape drive; the 8705 7-Gbyte 8-mm tape drive; the 4-8-Gbyte tape drive; and the 14-Gbyte tape drive. For a listing of all optional components, refer to the product guide. Sun Ultra 80 Service Manual • March 2000...
Page 249: Keyboard And Mouse, Diskette, And Parallel Port
C.1.9 Keyboard and Mouse, Diskette, and Parallel Port The keyboard and mouse, diskette, and parallel port interfaces are managed by the SuperIO component. shows keyboard, diskette, and parallel port interface FIGURE C-6 functionality. For a brief description of the SuperIO, see Section C.1.15 “SuperIO” on page C-35.
Page 250: Diskette Port
(host-to-peripheral) channel with data and status lines used according to their original definitions. Nibble mode – Provides an asynchronous, reverse (peripheral-to-host) channel, under control of the host. Data bytes are transmitted as two sequential, four-bit nibbles using four peripheral-to-host status lines. Sun Ultra 80 Service Manual • March 2000...
Page 251: Serial Port
Parallel Port Cables The parallel port cable is IEEE1284 compliant and consists of 18 pairs of signal wires that are double shielded with braid and foil. The maximum length of the parallel port cable is 2.2 yards (2 meters). Electrical Characteristics Drivers operate at a nominal 5-VDC transistor-transistor logic (TTL) levels.
Page 252: Serial Port Components
Europe. An ASCII text window is accessible through the serial port on non-graphic systems. Low speed printers, buttonboxes (for CAD/ CAM applications), and devices that function like a mouse are also accessible Sun Ultra 80 Service Manual • March 2000...
Page 253: Eia Levels
through the serial port. The additional speed of the serial port can be used to execute communications with a CSU/DSU for a partial T1 line to the internet at 384 Kbaud per second. C.1.10.3 EIA Levels Each serial port supports both RS-232 and RS-423 protocols. RS-232 signaling levels are between -3 VDC and -15 VDC and +3 VDC and +15 VDC.
Page 254: Ethernet
The Ethernet port supports automatic negotiation. At power up, an on-board transceiver advertises 100BASE-TX in half-duplex mode, which is configured by the automatic negotiation to the highest common denominator based on the linked partner. Sun Ultra 80 Service Manual • March 2000...
Page 255: External Cables
C.1.11.2 External Cables The RJ-45 Ethernet port supports a Category 5, UTP cable for the 100BASE-T, and a Category 3, 4, or 5 UTP cable for the 10BASE-T operation. Note – The maximum cable segment lengths for the 100BASE-TX and 10BASE-TX are 109 yards (100 meters) and 1094 yards (1000 meters), respectively.
Page 256 Aux 1 R Headphone Headphone mute control out (stereo) CD-ROM drive (Internal/optional) EBus Interface Audio Card Functional Block Diagram FIGURE C-8 The audio card connector is a dual-position, standard-edge connector whose features include: Sun Ultra 80 Service Manual • March 2000...
Page 257: Scsi
23 dual positions (46 total) 50-millimeter centerline 1.49 inches (total length) The audio connector supports the following: Nine Codec address lines Eight Codec data lines Control lines: Write, read, Codec chip select, PROM chip select, reset Codec DMA support signals: playback request, playback acknowledge, capture request, and capture acknowledge Codec power down line Audio analog lines: DC volume control line...
Page 258: Host Adapter
(input high) equals 1.9 VDC minimum (signal false) (input low current) equals +/- 20 µA at Vi equals 0.5 VDC (input high current) equals +/- 20 µA at Vi equals 2.7 VDC Minimum input hysteresis equals 0.3 VDC Sun Ultra 80 Service Manual • March 2000...
Page 259: Supported Target Devices
C.1.13.2 Supported Target Devices The SCSI subsystem supports a maximum of four internal devices, including the host adapter. A unipack with one drive or a six-pack, accommodating six drives, can be used as external devices. The following table lists the target devices supported by the SCSI subsystem.
Page 260: Scsi Id Selection
The motherboard host adapter is assigned the SCSI identification of 7 for both ports. The two internal drives attached to the SCA-2 connectors have a SCSI identification of 0 and 1, while the CD-ROM has an identification of 6. Sun Ultra 80 Service Manual • March 2000...
Page 261: Qsc
C.1.14 ASICs The system achieves a high level of integration through application-specific intergrated circuits (ASICs). The following ASICs are highlighted and are described in the following subsections: Section C.1.14.1 “XB9++” on page C-33 Section C.1.14.2 “QSC” on page C-33 Section C.1.14.3 “PCIO” on page C-34 Section C.1.14.4 “U2P”...
Page 262 Generation and stretching of the reset pulse is performed in this ASIC. Interrupt logic concentrates 42 different interrupt sources into a 6-bit code, which communicates with the U2P ASIC. It also integrates a JTAG controller. Sun Ultra 80 Service Manual • March 2000...
Page 263: Power Supply
Highlights of the RISC ASIC features include: Determines system clock frequency Controls reset generation Performs PCI bus and miscellaneous interrupt concentration for U2P Controls flash PROM programming, frequency margining, and lab console operation 33-MHz operation 3.3-VDC and 5-VDC supply voltage C.1.15 SuperIO The SuperIO is a commercial, off-the-shelf component that controls the keyboard,...
Page 264: Control Signals
0.8 VDC C.2.1.1 Remote Enable PowerOn A remote interface can enable the DC outputs with a low signal to the PowerOn input. Both signals are interfaced to the power supply through the motherboard. Sun Ultra 80 Service Manual • March 2000...
Page 265: On/Off Functionality
C.2.1.2 On/Off Functionality The system uses a latching relay to remember the state of the system. Turning the System On The system can be turned on in the following ways: Keyboard switch Set the TOD timer to wake-up at a given time Power switch on front of system Turning the System Off The system can be turned off in the following ways:...
Page 266: System Power Budget
PCI slot must be counted as a 15-watt PCI card for power budgeting. Internal Access Drive Bay Not to exceed 1.2 amps at 5 VDC; 1.5 amps at 12 VDC; 24 watts per drive (times 2 internal drive bays) Sun Ultra 80 Service Manual • March 2000...
Page 267: Built-In Speaker
External Access Drive Bay 5.25-inch; not to exceed 2 amps at 5 VDC; 1.2 amps at 12 VDC; 17 watts per bay (times 2) 3.5-inch 1.5 watts (times 2, 5 VDC only) UPA Slots 65 watts per slot (times 2 slots) C.2.2 Built-In Speaker The system contains a cost-effective speaker.
Page 268: Dc-To-Dc Converter Assembly
Power Management Power management software is supported on Solaris™ 2.6 Hardware 5/98, Solaris 7 5/99, or later. Sun Ultra 80 Service Manual • March 2000...
Page 269: Motherboard
Motherboard J4105 J4108 J4107 Serial port A (left) J2902 J4106 U1404 Serial port B J2804 Bank 3 U1403 (right) J2903 U1402 Bank 1 J4112 U1401 J2805 U1304 SCSI Bank 2 U1303 (left) J2201 U1302 Bank 0 U1301 Parallel port J2802 (right) J2702 J1501 J1601...
Page 270: Jumper Descriptions
J designator. Pin 1 is marked with an asterisk in any of the positions shown ( ). Ensure that the serial port jumpers are set FIGURE C-13 correctly. J 2 xxx Jumper designation Pins Identifying Jumper Pins FIGURE C-13 Sun Ultra 80 Service Manual • March 2000...
Page 271: Serial Port Jumpers
C.6.1 Serial Port Jumpers Serial port jumpers J2804 and J2805 can be set to either the RS-423 or RS-232 serial interface. The jumpers are preset for RS-423. RS-232 is required for digital telecommunication within the European Community. identifies serial port TABLE C-18 jumper settings.
Page 272: Table C-18 Serial Port Jumper Settings
See Section 6.3 “Replacing the Access Panel/Powering On the System” on page 6-6. C.6.2 Flash PROM Jumpers Flash PROM jumpers J3001 and J3002 are for reprogramming specific code blocks and remote programming of the flash PROM. identifies the flash PROM TABLE C-19 jumper settings. Sun Ultra 80 Service Manual • March 2000...
Page 273: Flash Prom Jumpers
U1304 Bank 2 U1303 U1302 Bank 0 U1301 J2802 J1501 J1601 CPU module J0401 slot 3 CPU module J0301 slot 2 J3001 CPU module J0201 slot 1 J4110 J3002 Flash PROM Jumpers FIGURE C-15 Flash PROM Jumper Settings TABLE C-19 Default Jumper on Jumper...
Page 274: Enclosure Features
Note – If you plan on installing Solaris 2.5.1 or Solaris 2.6 software, you must first install upgrade patches from the CD. Use the upgrade CD included with your new system (part number 704-6657). Refer to the installation instructions in the CD-insert document included with the CD. Sun Ultra 80 Service Manual • March 2000...
Page 275: Conformity
A P P E N D I X Conformity Declaration of Conformity The following pages provide the decalration of conformity for the Ultra 80 workstation.
Page 276: Regulatory Compliance Statement
Regulatory Compliance Statement The following pages provide the regulatory compliance statements for the Ultra 80 workstation. Sun Ultra 80 Service Manual • March 2000...
Page 277 FCC radio frequency emission limits. Networking connections can be made using unshielded twisted-pair (UTP) cables. Modifications: Any modifications made to this device that are not approved by Sun Microsystems, Inc. may void the authority granted to the user by the FCC to operate this equipment.
Page 278 This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Sun Ultra 80 Service Manual • March 2000...
Page 279: Agency Compliance
Agency Compliance The system complies with international and domestic regulatory requirements for safety, ergonomics, and electromagnetic compatibility. When installed and operated in accordance with this service manual, the EMC class marked on your system unit label remains the same. German Acoustic Compliance ACHTUNG: Der arbeitsplatzbezogenr Schalldruckpegel nach DIN 45 635.
Page 280 Sun Ultra 80 Service Manual • March 2000...
Page 281: Safety Agency Compliance Statement
A P P E N D I X Safety Agency Compliance Statement...
Page 282 Standby – The On/Standby switch is in the standby chassis. position. Modifications to Equipment Do not make mechanical or electrical modifications to the equipment. Sun Microsystems is not responsible for regulatory compliance of a modified Sun product. Sun Ultra 80 Service Manual • March 2000...
Page 283 Änderungen an Sun-Geräten. Einhaltung sicherheitsbehördlicher Nehmen Sie keine mechanischen oder elektrischen Vorschriften Änderungen an den Geräten vor. Sun Microsystems, übernimmt bei einem Sun-Produkt, das geändert wurde, Auf dieser Seite werden Sicherheitsrichtlinien beschrieben, keine Verantwortung für die Einhaltung behördlicher die bei der Installation von Sun-Produkten zu beachten sind.
Page 284 Systemschäden. Einhaltung der Richtlinien für Laser Sun-Produkte, die mit Laser-Technologie arbeiten, entsprechen den Anforderungen der Laser Klasse 1. Class 1 Laser Product Luokan 1 Laserlaite Klasse 1 Laser Apparat Laser Klasse 1 Sun Ultra 80 Service Manual • March 2000...
Page 285 Ne pas apporter de modification mécanique ou électrique au Ce texte traite des mesures de sécurité qu’il convient de matériel. Sun Microsystems n’est pas responsable de la prendre pour l’installation d’un produit Sun Microsystems. conformité réglementaire d’un produit Sun qui a été modifié.
Page 286 Laser Klasse 1 Encendido – Aplica la alimentación de CA al sistema. Según el tipo de interruptor de encendido que su equipo tenga, es posible que se utilice uno de los siguientes símbolos: Sun Ultra 80 Service Manual • March 2000...
Page 287 No realice modificaciones de tipo mecánico o eléctrico en el Precaución – Con el producto Sun se proporciona un equipo. Sun Microsystems no se hace responsable del cable de alimentación con toma de tierra. Para cumplimiento de las normativas de seguridad en los equipos reducir el riesgo de descargas eléctricas conéctelo...
Page 288 Ved utskifting benyttes kun batteri som anbefalt av apparatfabrikanten. Brukt batteri returneres apparatleverandøren. Sverige VARNING – Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion. Danmark Sun Ultra 80 Service Manual • March 2000...
Page 289 Glossary address A number used by the system software to identify a storage location. (2) In networking, a unique code that identifies a node to the network ASIC Application-specific integrated circuit. Authorized service provider. boot Short for bootstrap. To load the system software into memory and start it running.
Page 290 A type of programmable read-only memory (PROM) that can be reprogrammed by a voltage pulse or a flash of light. See also PROM. Gbyte Gigabyte. Graphical user interface. Insulation displacement connector. Input/output. Kbyte Kilobyte. Light-emitting diode. Mbyte Megabyte. Sun Ultra 80 Service Manual • March 2000...
Page 291 MBps Megabyte per second. Mbps Megabit per second. Megahertz. Media independent interface. Network Technically, the hardware connecting various systems enabling them to communicate. Informally, the systems so connected. Node An addressable point on a network. Each node in a Sun network has a different name.
Page 292 UPA address bus 0. Provides data interface between CPU module 0 and the QSC ASIC. UPA AD 1 UPA address bus 1. Provides data interface between CPU module 1 and the QSC ASIC. Supports slave UPA connection to the expansion slot for graphics capability. Sun Ultra 80 Service Manual • March 2000...
Page 293 UPA AD 2 UPA address bus 2. Provides data interface between QSC ASIC and the U2P ASIC. UPA AD 3 UPA address bus 3. Provides data interface between QSC ASIC and the UPA graphics. UPA DATA 0 UPA data bus 0. Provides 144-bit-wide data bus between the XB9+ ASIC and CPU module 0.
Page 294 Sun Ultra 80 Service Manual • March 2000...
Page 295 Index access panel baud rate, verifying, 3-4 removing, 6-1 built-in speaker, C-39 replacing, 6-6 bypassing POST, 3-6 agency compliance, D-5 air guide removing, 7-17 replacing, 7-18 CD-ROM drive, C-17 all above, 4-27 failure, 4-5 all above diagnostic output message, 4-27 removing, 8-5 ASIC replacing, 8-6...
Page 296 J4110, B-6 watch-net all, 4-11 pin assignments, B-6 diagnostics, OBP on-board, 4-10 CPU shroud assembly DIMM, C-12 removing, 9-37 bank-to-U-number mapping, C-13 replacing, 9-38 failure, 4-9 mapping (memory riser assembly), C-12 Index-2 Sun Ultra 80 Service Manual • March 2000...
Page 297 removing, 9-25 replacing, 7-20 replacing, 9-27 ﬁller panel diskette drive, C-18 removing, 7-29 cable assembly replacing, 7-30 removing, 7-11 ﬂash PROM replacing, 7-12 jumper settings, C-45 connectors, C-18 jumpers, C-44 functions, C-19 ﬂoppy, 4-22 signals, C-19 ﬂoppy diagnostic output message, 4-23 SuperIO interface, C-18 front view, system, 1-5 supported features, C-18...
Page 298 B-15 removing, 9-5 port, C-21 replacing, 9-7 functional block diagram, C-21 OBDiags, 4-15 LEDs, 3-5 all above, 4-27 keyboard, 3-41 Ethernet, 4-21 patterns, keyboard, 3-40 ﬂoppy, 4-22 system, 3-41 keyboard, 4-22 Index-4 Sun Ultra 80 Service Manual • March 2000...
Page 299 mouse, 4-22 PCI/Cheerio, 4-19 NVRAM, 4-25 PCIO ASIC, C-8, C-34 PCI/Cheerio, 4-19 peripheral SCSI, 4-26 component interconnect bus, C-5 serial port A, 4-24 power cable assembly serial port B, 4-25 removing, 7-9 OBP on-board diagnostics, 4-10 replacing, 7-10 probe-SCSI, 4-12 peripheral power cable assembly probe-SCSI-all, 4-12 connector J4112 pin assignments, B-7...
Page 300 SCSI-all diagnostic output message, 4-13 replaceable components, 1-7, 10-3 procedures, troubleshooting, 4-1 replacing processor, UltraSPARC-II, C-8 access panel, 6-6 product air guide, 7-18 description, 1-1 audio module, 9-18 overview, 1-1 cable assembly speciﬁcations, A-1 Index-6 Sun Ultra 80 Service Manual • March 2000...
Page 301 combined, 7-14 selected jumper settings, C-42 diskette drive, 7-12 serial peripheral power, 7-10 port, C-23 CD-ROM drive, 8-6 asynchronous rates, C-25 chassis foot, 7-28 cable length, C-25 CPU module, 9-3 components, C-24 CPU shroud assembly, 9-38 EIA levels, C-25 dc-to-dc converter assembly, 7-8 functions, C-24 DIMM, 9-27 jumper settings, 9-34, C-44...
Page 302 B-10 UltraSPARC-II processor, C-8 universal PCI card, C-6 UNIX commands, iii UPA, C-4 interconnect, C-4 port identiﬁcation assignments, C-4 UPA graphics card, 4-14 connector pin assignments, B-19 pin configuration, B-19 Index-8 Sun Ultra 80 Service Manual • March 2000...

Sun Microsystems Ultra 80 Service Manual

Quick Links

Troubleshooting

Related Manuals for Sun Microsystems Ultra 80

Summary of Contents for Sun Microsystems Ultra 80
