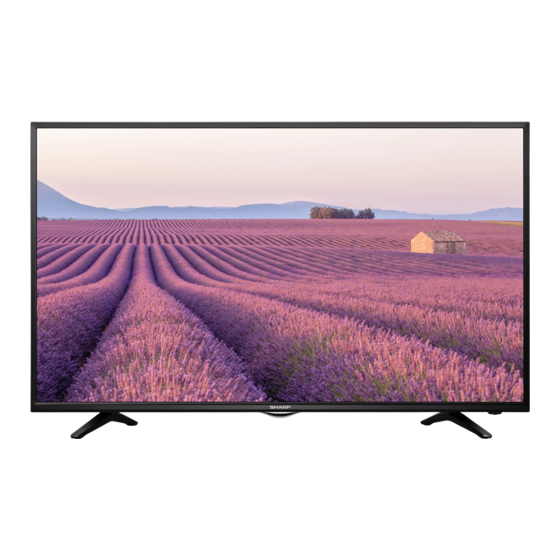

Sharp LC-43Q3000U Quick Start Manual

Overview
These instructions are provided to update the firmware for your LC-43Q3000U LED TV. Once you've
successfully completed the steps, then the issues that were found will be resolved.
Instructions for the Firmware Update
Copy the
1.
USB_HU43N2173F_REF68.bin
IMPORTANT: Do not modify the file.
Note: The USB thumb drive file system needs to be FAT32.
Figure 1. USB Thumb Drive
2. Power on the TV.
Plug the USB thumb drive into the USB port that's located on the side of the TV.
3.
Figure 2. USB port
Select No when the dialogue message "Do you want to launch the Multimedia Player?"
4.
displays.
Figure 3. Dialogue Message
Press the Menu Button on the TV remote located on the top right. Next, go to
5.
Settings About TV.
Figure 4. About TV tab
SHARP Firmware Instructions
file into a USB thumb drive root directory.
Page 1 of 2
