Summary of Contents for Sharp LC-43CFG6021KF

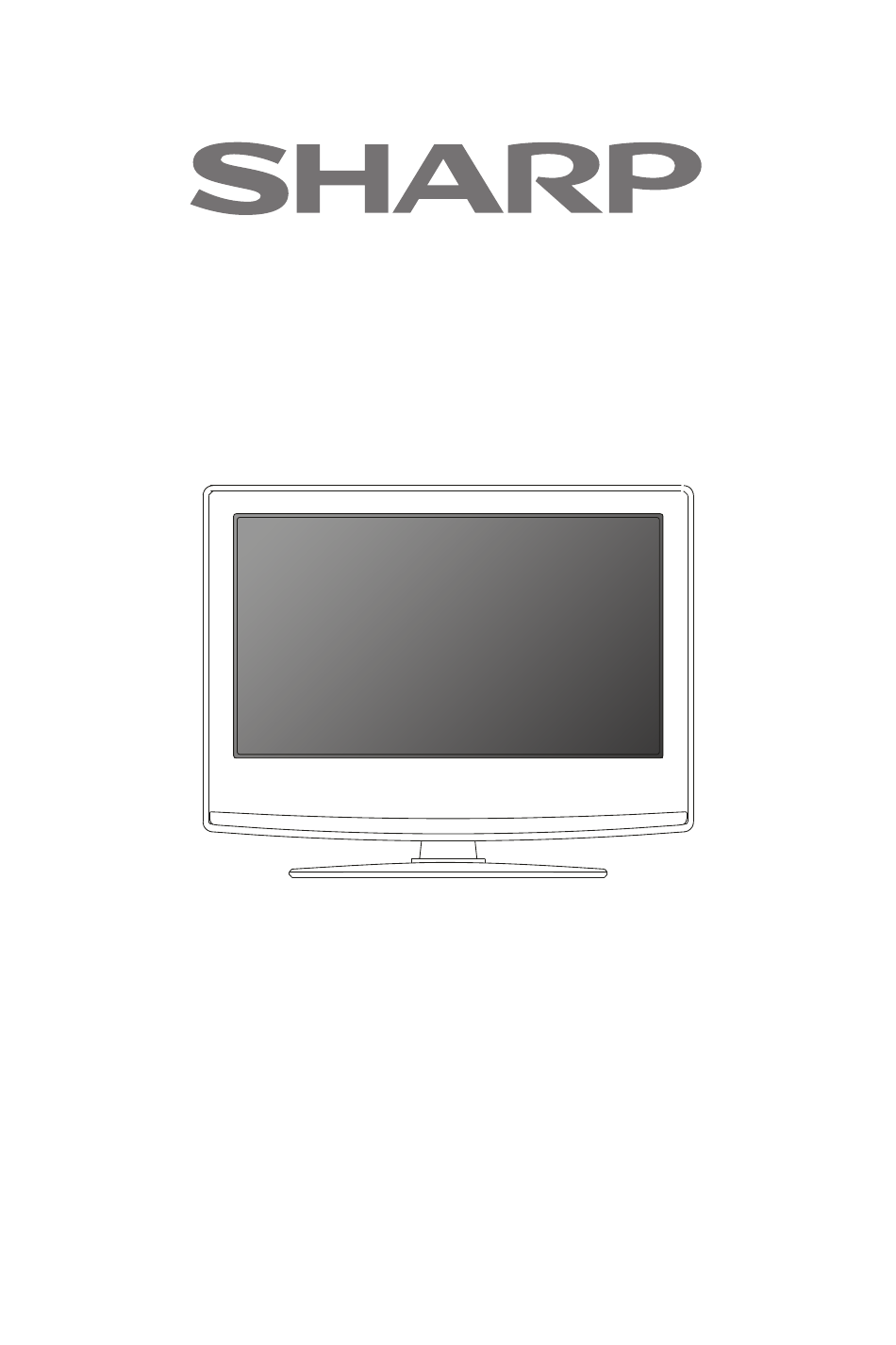

- Page 1 LED SMART TV with Freeview, Saorview & USB PVR User Guide Model No LC-32CHG6021KF LC-32CHG6022KF LC-32CFG6021KF LC-32CFG6022KF LC-32DHG6021KF LC-40CFG6022KF LC-40CFG6021KF LC-43CFG6022KF LC-43CFG6021KF LC-49CFG6022KF LC-49CFG6021KF LC-55CFG6022KF LC-55CFG6021KF...
- Page 2 WARNING: Never place a television set on an Important safety instruction unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Use cabinets or stands recommended by the manufacturer of the television set.
- Page 3 • Time displays. Important safety instruction • Teletext: Do not view a stationary page for a long period of time • TV/DVD menus: e.g. listings of DVD disc content. • Pause mode: Do not leave the TV in pause mode for long periods of time, e.g.
-
Page 4: Trademarks
The “HD TV 1080p” Logo is a trademark of DIGITALEUROPE. requirements and other relevant provisions of RED Directive 2014/53/EU. The DVB logo is the registered trademark of the Digital Video http://www.sharp.eu/av/documents-of-conformity Broadcasting (DVB) project. FREEVIEW HD The FREEVIEW HD words and logos are trade marks of DTV Services LTD. -
Page 5: Table Of Contents
CONTENTS Manufacturers guarantee information ........3 Important safety instructions . -
Page 6: What Is Included In The Box
What is included in the box WHAT IS INCLUDED IN THE BOX Accessories Included with this TV are the following accessories. 1 x User guide 1 x Remote Control and 2 x AAA Batteries Freeview Play APPs User guide GUIDE INFO MENU BACK... -
Page 7: Attaching/Detaching The Stand
Attaching/detaching the stand ATTACHING THE STAND Attaching the stand feet To complete the stand feet installation you will require a cross head screw driver. Screws that are included. TV panel must be facing downwards. (fi g.1) Place the TV set on a fl at and clean surface with the panel facing downwards to avoid damage, then fi... -
Page 8: Securing The Tv To A Wall/Wall Mounting
Securing the TV to a Wall/Wall Mounting SECURING THE TV TO A WALL Securing the TV to a wall with anti-tip straps For maximum security in the home when using a TV with its stand anti-tip straps should be fi tted. These are available from supermarket websites and other websites and are an easy, inexpensive and effective way of ensuring your TV stays safely upright. -
Page 9: Remote Control
Remote control REMOTE CONTROL For models with integrated DVD players. For models with PVR Function. For models with USB Playback. For models with 3D functions. Freeview Play FREEVIEW PLAY - Switch on the TV when in standby or vice versa. NETFLIX - Access the Netfl... -
Page 10: Tv Control Stick And Input Source Menu
TV Control Stick and Input Source Menu TV CONTROL STICK AND INPUT SOURCE MENU An example of the ‘Input Source’ menu (will vary by model) TV Control Stick TV control stick is located on the back of the TV in the left bottom corner. The control stick can be used to control many of the TV functions. -
Page 11: Connections
Connections CONNECTIONS Input/Outputs for the 32” models only. S AT IN E A R P H O N E Ethernet/LAN* Network Connection HDMI 3 (MHL)*** HDMI input HDMI 1 HDMI input 2 x USB USB port HDMI 2 (ARC) HDMI input Earphone Earphone output SCART... - Page 12 Connections CONNECTIONS Input/Outputs for the 40” and 43” models only. DIGITAL AUDIO OUT VGA/PC (Audio In) ETHERNET VGA/PC In SCART RF IN SAT IN OPTICAL CI CARD IN 500mA MAX USB (2.0) EARPHONE AV IN YPbPr IN Ethernet/LAN* Network Connection Optical Digital Audio Digital Audio output HDMI 1...
- Page 13 Connections CONNECTIONS Input/Outputs for the 49” and 55” models only. AV IN DIGITAL YPbPr IN AUDIO OUT OPTICAL ETHERNET SCART RF IN SAT IN CI CARD IN 500mA MAX USB (2.0) EARPHONE SD CARD IN Ethernet/LAN* Network connection SAT IN** Satellite input HDMI 1 HDMI input...
- Page 14 Connections CONNECTIONS Note: Connecting cables are shown for example only and may not be included. Please check ‘What Is Included In The Box’ page. Connecting to a device with Composite AV/Video output TV Source should be set to Composite/AV L (white) R (red) Mini Video...
- Page 15 Connections CONNECTIONS Connecting to a device with Component/YPbPr output If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you must connect via Component (for picture) and by phono cable (for sound). TV Source should be set to Component/YPbPr Y (green) PB (blue)
-
Page 16: Connecting The Tv To The Internet
Connecting the TV to the Internet CONNECTING THE TV TO THE INTERNET When you fi rst power on your new SMART TV there will be an option to follow various on-screen set up instructions. These instructions will enable you to connect to the internet via your home network. You can connect to your home network either wirelessly or with an Ethernet cable. -
Page 17: Tv Menu Operation
TV Menu Operation PICTURE MENU MENU BACK EXIT To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK]. If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 18: Picture Menu
TV Menu Operation PICTURE MENU MENU BACK EXIT Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast. There are a number of different options to best meet your needs. Choose from the following settings: Auto Automatically displays the best picture format so the picture is in the correct position, black lines maybe viewable at the top/bottom and/or sides. -
Page 19: Sound Menu
TV Menu Operation SOUND MENU MENU BACK EXIT To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK]. If you wish to make changes to any of the default settings, use the scroll buttons. - Page 20 TV Menu Operation SOUND MENU MENU BACK EXIT To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK]. If you wish to make changes to any of the default settings, use the scroll buttons.
-
Page 21: Channel Menu
TV Menu Operation CHANNEL MENU MENU BACK EXIT This menu is part of the ‘Settings’ menu, To access the ‘Settings’ menu, press the [MENU] button on the remote control, scroll right and select ‘Settings’ by pressing [OK]. Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and analogue devices. -
Page 22: Network Menu
TV Menu Operation NETWORK MENU MENU BACK EXIT This menu is part of the ‘Settings’ menu, To access the ‘Settings’ menu, press the [MENU] button on the remote control, scroll right and select ‘Settings’ by pressing [OK]. If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 23: Time Menu
TV Menu Operation TIME MENU MENU BACK EXIT This menu is part of the ‘Settings’ menu, To access the ‘Settings’ menu, press the [MENU] button on the remote control, scroll right and select ‘Settings’ by pressing [OK]. If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 24: Lock Menu
TV Menu Operation LOCK MENU MENU BACK EXIT This menu is part of the ‘Settings’ menu, To access the ‘Settings’ menu, press the [MENU] button on the remote control, scroll right and select ‘Settings’ by pressing [OK]. If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 25: Setup Menu
TV Menu Operation SETUP MENU MENU BACK EXIT Language - Allows you to change the language of the menu. Audio Language - Select your preferred primary audio language. Subtitle Language - Select your preferred primary subtitle language. Subtitle - Switch subtitles ON/OFF. Hearing Impaired - This allows the user to turn on the Hearing Impaired function, this produces subtitles on the screen which provide a description of what is happening during the selected program. -
Page 26: Apps Menu
Apps Menu APPS MENU MENU BACK EXIT To access this menu, press [MENU] button on the remote control and scroll right. To select a sub menu press [OK]. If you wish to make changes to any of the default settings, use the scroll buttons. - Page 27 Apps Menu APPS MENU Applications BBC iPlayer - Enjoy BBC iPlayer exclusives and your favourite BBC programmes from the last 30 days. ITV Player - The ITV Hub, new home of ITV on demand. Enjoy the best telly anytime, anywhere. Channel 4 / All 4 - The latest catch up plus a huge library of shows from 4, which includes complete boxsets.
-
Page 28: Freeview Play Menu
Freeview Play Menu FREEVIEW PLAY MENU Freeview Play Freeview Play brings together live TV viewing with catch-up TV services such as BBC iplayer, ITV player, More4 and Demand 5. The Freeview Play Explore app features a carousel of genres to select from when searching for programmes, such as sport, comedy, dramas &... -
Page 29: Media Menu
Media Menu MEDIA MENU USB mode and media server The USB media and the media server offer the playback of various different types of content that is either saved on your USB memory stick or external media server. (USB mode allows you to view/playback fi... - Page 30 Media Menu MEDIA MENU Miracast (Screen mirroring) The Miracast (screen mirroring) feature allows you to connect to a compatible external device such as a tablet and/or smartphone. Once connected, your device will mirror all its content on to the TV, this allows you to view photos, emails and This allows almost unlimited applications including many video on demand and subscription based services, for example Blinkbox, Netflix and Amazon, to be played on your smartphone or tablet and at the same time wirelessly ‘streamed’...
-
Page 31: Day Tv Guide And Channel List
7 Day TV Guide and Channel List 7 DAY TV GUIDE TV Guide is available in Saorview/Freeview TV mode. It provides information about forthcoming programmes (where supported by the Saorview/Freeview channel). You can view the start and end time of all programmes, on all channels, for the next 7 days and set reminders. -
Page 32: Catchup Menu
Catch Up Menu CATCHUP MENU The Catch Up menu allows you to access available programmes from the last 7 days, that you may have missed. 1) To access the catch up menu, fi rst you will need to access the 7 day TV guide, access this by Pressing the [TV GUIDE] button on the remote control, when the 7 day TV guide appears press the RED button or scroll left to access the catch up menu screen. -
Page 33: Dvd Setup Menu
DVD Menu Operation DVD SETUP (Applies to models with built in DVD player) MENU BACK EXIT To enter this menu please ensure the TV is in DVD source & press [DVD SETUP] If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 34: Usb Record - Freeview / Saorview
USB Record USB RECORD - FREEVIEW/SAORVIEW MODE USB RECORD – FREEVIEW/SAORVIEW MODE Built into this television is a USB record facility. This function is available in Freeview/Soarview mode when used in conjunction with a compatible USB memory stick or USB hard drive. The benefi ts of this are as follows: •... -
Page 35: General Information
General Information FREQUENTLY ASKED QUESTIONS General I would like to have louder Option 1) Use the 3.5mm headphone output and a 3.5mm to phono cable sound by connecting additional (available separately) to connect to an amplifi er/surround sound system. Please speakers. - Page 36 I cannot access Smart apps on my Check your TV is connected to the internet and there is suitable signal strength. Sharp Smart TV. You can carry out a Network Test as follows: 1) Press Menu on the remote control.
- Page 37 General Information TECHNICAL SPECIFICATION Product fi che Trademark Sharp Model ID (model with LC-32CHG6021KF DVD player) LC-32CHG6022KF LC-32DHG6021KF Energy effi ciency class Visible screen size (diagonal) 81 cm / 32 inches On-mode power consumption 31.0 W Annual energy consumption *1...
- Page 38 General Information TECHNICAL SPECIFICATION Product fi che Trademark Sharp Model ID LC-32CFG6021KF LC-32CFG6022KF Energy effi ciency class Visible screen size (diagonal) 81 cm / 32 inches On-mode power consumption 31.0 W Annual energy consumption *1 45 kWh Standby power consumption *2 <0.50 W...
- Page 39 General Information TECHNICAL SPECIFICATION Product fi che Trademark Sharp Model ID LC-40CFG6021KF LC-40CFG6022KF Energy effi ciency class Visible screen size (diagonal) 102 cm / 40 inches On-mode power consumption 45.0 W Annual energy consumption *1 66 kWh Standby power consumption *2 <0.50 W...
- Page 40 General Information TECHNICAL SPECIFICATION Product fi che Trademark Sharp Model ID LC-43CFG6021KF LC-43CFG6022KF Energy effi ciency class Visible screen size (diagonal) 109 cm / 43 inches On-mode power consumption 50.0 W Annual energy consumption *1 73 kWh Standby power consumption *2 <0.50 W...
- Page 41 General Information TECHNICAL SPECIFICATION Product fi che Trademark Sharp Model ID LC-49CFG6021KF LC-49CFG6022KF Energy effi ciency class Visible screen size (diagonal) 123 cm / 49 inches On-mode power consumption 67.0 W Annual energy consumption *1 98 kWh Standby power consumption *2 <0.50 W...
- Page 42 General Information TECHNICAL SPECIFICATION Product fi che Trademark Sharp Model ID LC-55CFG6021KF LC-55CFG6022KF Energy effi ciency class Visible screen size (diagonal) 139 cm / 55 inches On-mode power consumption 85.0 W Annual energy consumption *1 124 kWh Standby power consumption *2 <0.50 W...
- Page 43 General Information TECHNICAL SPECIFICATION Compatible fi le types for USB and DLNA Media Codec Resolution Bit Rate File Extension .DAT, .VOB, .MPG, .MPEG,.ts, .trp, .tp, .mp4, .mov, MPEG1/2 1080P@60fps 40Mbps .3gpp, .3gp, .avi, .mkv, .asf MPEG4 1080P@60fps 40Mbps .MPG, .MPEG, .mp4, .mov, .3gpp, .3gp, .avi, .mkv, .asf XviD 1080P@60fps 40Mbps...
- Page 45 SHA/MAN/0289 UMC Poland sp. z o.o. Poland Assembled in Europe www.sharp.eu/av...
