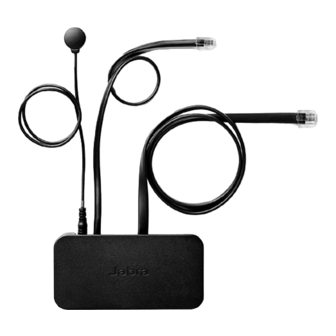

Jabra Link 14201-20

How to connect my Jabra GN9330e with Alcatel IP Touch 4028

EE, 4038 EE, 4068 EE

Prerequisite:

GN Jabra 9330e + Jabra LINK 14201-20

In combination with one of the following phones:

IP Touch 4028 EE

IP Touch 4038 EE

IP Touch 4068 EE

EE = Extended Edition

Connection:

Connect the EHS adapter to the Jabra GN9330e base as follows:

1. Insert the supplied RJ10 to RJ10 connection cable into the socket of

your Jabra GN9330e base marked "phone" and the other end into the

socket of the EHS adapter marked with the "phone" symbol.

2. Now connect the end of the RJ45 to RJ45 connection cable (EHS

adapter) marked in red with the socket of the EHS adapter marked

with "AUX" and the socket of your Jabra GN9330e base marked with

"AUX".

3. Now connect the white RJ10 to the 3.5 mm jack connection cable

marked "D" to the socket of the EHS adapter marked with

"Headset/Handset" and with the headset socket of your phone.

4. Now connect the orange RJ12 to RJ12 connection cable marked with

"A" to the socket of the EHS adapter marked with "COM" and with the

"bell" socket of your phone.

https://www.apac.jabra.com/supportpages/jabra-link-14201-20/14201-20/faq/2188ed47-

9bb4-4f91-bf14-ca96af19c4b8

04/11/2022 08:29

Page 1 of 4

Page 1 Connect the EHS adapter to the Jabra GN9330e base as follows: 1. Insert the supplied RJ10 to RJ10 connection cable into the socket of your Jabra GN9330e base marked "phone" and the other end into the socket of the EHS adapter marked with the “phone” symbol.
Page 2 EHS adapter, see photo. Put the headset into the base and activate the “DHSG” mode. Hold down the “phone” button on the base of the Jabra GN9330e for approx. 6 seconds until the online display (blue LED) on the headset starts to flash.
Page 3 Menu> Settings> Phone> Audio Jack> Select / Activate Headset. Phone setup with system software below version 9.xx: Important: The “Force Headset” function must not be activated on the phone, as otherwise it will not be possible to accept external calls. https://www.apac.jabra.com/supportpages/jabra-link-14201-20/14201-20/faq/2188ed47- Page 3 of 4 9bb4-4f91-bf14-ca96af19c4b8...
Page 4 Should the dial tone signal transfer not work although you have setup the correct ringtone, please check the following settings: Menu > Settings > Phone > Internal/External, More Options No sound, Progressive, Beeps> all points must be set to "OFF". https://www.apac.jabra.com/supportpages/jabra-link-14201-20/14201-20/faq/2188ed47- Page 4 of 4 9bb4-4f91-bf14-ca96af19c4b8...
