MZ3-FU-V01
3-Level Switch
Function
•
Electronic 3-level switch with touch panel
•
Manual operation with up to 3 Levels: MIN, MID, MAX
•
Automatic reset of the level MAX to specified level (per default no reset)
•
One 0...10 VDC output to output defined voltage levels
•
Password protected settings
•
Copy of settings with accessory (AEC-PM2)
Applications
Comfort ventilation, for example for very well insulated living rooms which must be
ventilated according to regulations or for controlling dampers, valve drives, blinds or
windows, etc.
General description
The MZ3-FU-V01 is a microprocessor-controlled precision level switch with touch
panel. Through parameters the level switch may be configured. Settings such as
switching levels for each step may be adjusted. The level switch is configuration with
a programming device called OPA-S. Configuration can as well be updated using a
remote memory device called AEC-PM2.
Safety
DANGER! Safety note
This device is intended to be used as 3-level switch. Where a device failure endangers human life and/or
property, it is the responsibility of the client to add additional safety devices to prevent or detect a system failure
caused by such a device failure.
The device contains electronic components and must not be disposed of with household waste.
Types and ordering
Product name
Product No.
MZ3-FU-V01-B3-T3
on request
MZ3-FU-V01-G3-T3
on request
Accessories
OPA-S
40-500006
AEC-PM2
40-500130
Interface to the ventilation system
The 3-level switch works with all systems that are designed for a 0...10 VDC or 2...10 VDC input signal.
Doc: 70-00-0842A V2.5, 20230220
Subject to alternation
Description
- Blue LED
- White frame
- Lettering: MIN, MID, MAX
- Green LED
- White frame
- Lettering: MIN, MID, MAX
Programming and display device
Memory-Device. Used for copying settings
© Vector Controls GmbH, Switzerland
www.vectorcontrols.com

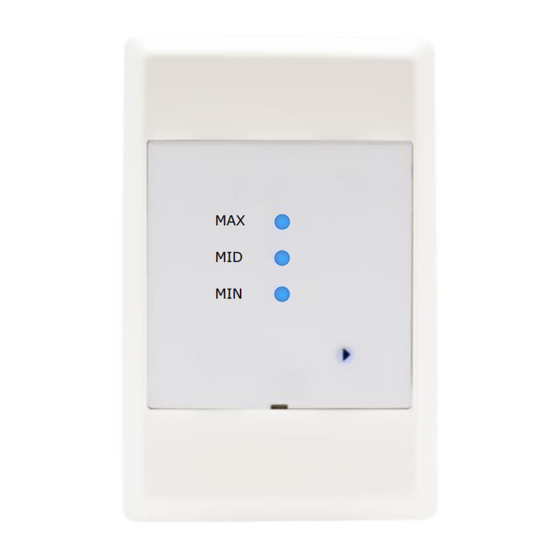

MZ3-FU-V01
MAX
MID
MIN
Features
Compact positioner/controller in a
frame, with one 0-10 VDC output.
Operation as 3-level switch with
touch panel.
LCD display for surface mounting
or handheld operation.
Stores settings of MZ3
Page 1-6
Advertisement
Related Manuals for Vector MZ3-FU-V01
Summary of Contents for Vector MZ3-FU-V01
- Page 1 General description The MZ3-FU-V01 is a microprocessor-controlled precision level switch with touch panel. Through parameters the level switch may be configured. Settings such as switching levels for each step may be adjusted. The level switch is configuration with a programming device called OPA-S.
-
Page 2: Technical Data
24 VAC, +24 VDC Not used, do not connect Analog output ventilation: 0/2…10 VDC Mounting instruction For more information on mounting, refer to MZ3-FU-V01 Installation Manual No. 70-000841 (www.vectorcontrols.com). Doc: 70-00-0842A V2.5, 20230220 © Vector Controls GmbH, Switzerland Page 2-6 Subject to alternation www.vectorcontrols.com... - Page 3 NOTE: For parameter programming, the OPA-S programming and display unit must be plugged in at the connector under the front panel or on the back of the MZ3. Dimensions mm (in) The MZ3-FU-V01 is so designed that it can be incorporated into a commercially available flush box. Doc: 70-00-0842A V2.5, 20230220 © Vector Controls GmbH, Switzerland...
-
Page 4: Display And Operation
10 cm, the luminosity of the LED increases. After 30 seconds without interaction, the LEDs dim down again and thus save energy. Level button Doc: 70-00-0842A V2.5, 20230220 © Vector Controls GmbH, Switzerland Page 4-6 Subject to alternation www.vectorcontrols.com... -
Page 5: Setting The Parameters
AEC-PM2. The "Data" LED on the AEC-PM2 will light for 5 seconds after the parameters have been successfully copied. If the parameter copy failed, the LED will blink for 5 seconds. Doc: 70-00-0842A V2.5, 20230220 © Vector Controls GmbH, Switzerland Page 5-6 Subject to alternation www.vectorcontrols.com... - Page 6 MZ3-FU-V01 Smart Sensors and Controls Made Easy! Quality - Innovation – Partnership Vector Controls GmbH Switzerland info@vectorcontrols.com www.vectorcontrols.com Doc: 70-00-0842A V2.5, 20230220 © Vector Controls GmbH, Switzerland Page 6-6 Subject to alternation www.vectorcontrols.com...
