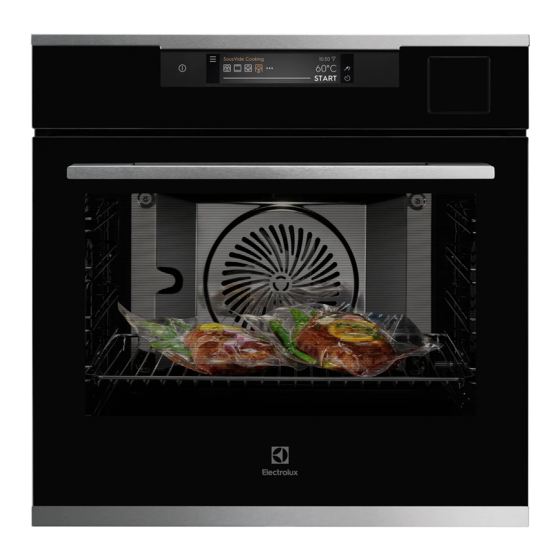

- Page 1 EN User Manual | Steam oven KOAAS31X...
-
Page 2: Table Of Contents
WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. -
Page 3: Safety Information
SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. -
Page 4: Safety Instructions
similar accommodation where such use does not exceed (average) domestic usage levels. • Only a qualified person must install this appliance and replace the cable. • Do not use the appliance before installing it in the built-in structure. • Disconnect the appliance from the power supply before carrying out any maintenance. - Page 5 • Do not pull the appliance by the handle. • Do not use multi-plug adapters and • Install the appliance in a safe and suitable extension cables. place that meets installation requirements. • Make sure not to cause damage to the •...
- Page 6 • Do not use the appliance as a work • Before maintenance, deactivate the surface or as a storage surface. appliance and disconnect the mains plug • Open the appliance door carefully. The from the mains socket. use of ingredients with alcohol can cause •...
-
Page 7: Product Description
2.7 Service • Contact your municipal authority for information on how to dispose of the • To repair the appliance contact the appliance. Authorised Service Centre. • Disconnect the appliance from the mains • Use original spare parts only. supply. •... -
Page 8: Control Panel
Grill- / Roasting pan To bake and roast or as a pan to collect fat. Food sensor To measure the temperature inside food. Telescopic runners For inserting and removing trays and wireshelf more easily. Steam set One unperforated and one perforated food container. - Page 9 ON / OFF Press and hold to turn the appliance on and off. Display Shows the current settings of the appliance. Press Move Press and hold Touch the surface with fingertip. Slide fingertip over the surface. Touch the surface for 3 seconds. 4.2 Display The display with the maximum number of functions set.
-
Page 10: Before First Use
5. BEFORE FIRST USE WARNING! Refer to Safety chapters. 5.1 Initial Cleaning Step 1 Step 2 Step 3 Remove all accessories and remov‐ Clean the appliance and the acces‐ Place the accessories and the re‐ able shelf supports from the appli‐ sories only with a microfibre cloth, movable shelf supports in the appli‐... -
Page 11: Daily Use
Put the test paper into Shake the test paper to re‐ After 1 min, check water Set the water hardness lev‐ water for about 1 sec. Do move the excess of water. hardness with the table el: Menu / Settings / Setup / not put the test paper un‐... - Page 12 Step 6 Press: Food Sensor - you can plug the sensor at any time before or during cooking. - press to turn off the heating function. Step 7 Turn off the oven. 6.2 Water drawer A. Lid B. Wave-breaker C. Drawer D.
- Page 13 CAUTION! Keep the water drawer away from hot surfaces. 6.4 How to set: Steamify - Steam heating function Step 1 Turn on the oven. Step 2 Press . Set the steam heating function. Step 3 Press: . The display shows the temperature settings. Step 4 Set the temperature.
- Page 14 Step 10 When the water drawer runs out of water, the signal sounds. Refill the water drawer. At the end of cooking, the cooling fan runs quicker to remove steam. The signal sounds at the end of the cooking time. Step 11 Turn off the oven.
- Page 15 6.7 Heating functions STANDARD Heating function Application To grill thin pieces of food and to toast bread. Grill To roast large meat joints or poultry with bones on one shelf position. To make gratins and to brown. Turbo Grilling To bake on up to three shelf positions at the same time and to dry food. Set the tem‐ perature 20 - 40 °C lower than for Conventional Cooking.
- Page 16 Heating function Application To prepare yoghurt. The lamp in this function is off. Yoghurt Function To preheat plates for serving. Plate Warming To defrost food (vegetables and fruit). The defrosting time depends on the amount and size of the frozen food. Defrost For dishes such as lasagna or potato gratin.
-
Page 17: Clock Functions
Heating function Application For steaming vegetables, side dishes, fish Full Steam The function is suitable for cooking delicate dishes like custards, flans, terrines and fish. Humidity High The function is suitable for cooking stewed and braised meat as well as bread and sweet yeast dough. - Page 18 Start Comment Start Comment crite‐ crite‐ The timer starts when you turn it on. The timer starts when the appliance rea‐ ches the set temperature. The timer starts after closing the door. 7.2 How to set: Clock functions The timer starts when cooking starts. How to set the clock Step 1 Press:...
-
Page 19: Using The Accessories
How to delay start without setting the end of cooking Step 2 Press: Step 3 Press: Step 4 Press: Delayed start. Step 5 Choose the value. Press: How to set extra time When 10% of cooking time is left and the food seems not to be ready, you can extend cooking time. You can also change the oven function. - Page 20 Wire shelf: Push the shelf between the guide bars of the shelf support. Baking tray / Deep pan: Push the tray between the guide bars of the shelf support. 8.2 Food Sensor Food Sensor - measures the temperature inside the food. You can use it with every heating function.
-
Page 21: Additional Functions
Insert the tip of Food Sensor into the centre of meat, Insert the tip of Food Sensor exactly in the centre of the fish, in the thickest part if possible. Make sure that at casserole. Food Sensor should be stabilized in one place least 3/4 of Food Sensor is inside of the dish. -
Page 22: Hints And Tips
Step 1 Turn on the appliance. Step 2 Select the preferred setting. Step 3 Press: . Select: Favourites. Step 4 Select: Save current settings. Step 5 Press + to add the setting to the list of: Favourites. Press - press to reset the setting. - press to cancel the setting. - Page 23 (°C) (min) Sweet rolls, 16 baking tray or dripping pan 25 - 35 pieces Swiss Roll baking tray or dripping pan 15 - 25 Whole fish, 0.2 kg baking tray or dripping pan 15 - 25 Cookies, 16 pieces baking tray or dripping pan 20 - 30 Macaroons, 24 baking tray or dripping pan...
- Page 24 °C Fatless sponge cake Conventional Cooking 45 - 60 Apple pie, 2 tins Ø20 cm True Fan Cooking 55 - 65 Apple pie, 2 tins Ø20 cm Conventional Cooking 55 - 65 Short bread True Fan Cooking 25 - 35 Short bread Conventional Cooking 25 - 35...
-
Page 25: Care And Cleaning
Information for test institutes Tests for the function: Full Steam. Tests according to IEC 60350-1. Set the temperature to 100°C. Container (Gastronorm) Broccoli, preheat 1 x 2/3 perforated 0.3 8 - 9 Put the baking tray the empty oven on the first shelf position. - Page 26 11.2 How to remove: Shelf supports Remove the shelf supports to clean the oven. Step 1 Turn off the oven and wait until it is cold. Step 2 Carefully pull the shelf supports up and out of the front catch. Step 3 Pull the front end of the shelf support away from the side wall.
- Page 27 Use the function: Steam Cleaning Plus. You can enable and disable the reminder in the menu: Setup. 11.5 How to clean: Water drawer Step 1 Remove the water drawer from the oven. Step 2 Remove the lid of the water drawer. Lift the cover in correspondence with the protru‐...
- Page 28 Step 5 Turn on the function and follow the instruction on the display. The first part of descaling starts. Step 6 After the first part is over, empty the deep pan and put it back on the first shelf position. Duration of the second part: around 35 min Step 7 Fill the water drawer with water.
- Page 29 11.9 Drying reminder After cooking with a steam heating function the display prompts to dry the oven. Press YES to dry the oven. 11.10 How to use: Drying Use it after cooking with a steam heating function or steam cleaning to dry the cavity. Step 1 Make sure the oven is cold.
- Page 30 Step 7 Clean the glass panel with water and soap. Dry the glass panel care‐ fully. Do not clean the glass panels in the dishwasher. Step 8 After cleaning, do the above steps in the opposite sequence. Step 9 Install the smaller panel first, then the larger and the door. Make sure that the glasses are inserted in the correct position otherwise the surface of the door may overheat.
-
Page 31: Troubleshooting
12. TROUBLESHOOTING WARNING! Refer to Safety chapters. 12.1 What to do if... The appliance does not turn on or does not heat up Possible cause Remedy The appliance is not connected to an electrical supply Check if the appliance is correctly connected to the or it is connected incorrectly. - Page 32 Problems with cleaning procedure Description Possible cause Remedy The water drawer is difficult to The lid and the wave breaker were Remove the lid and the wave break‐ clean. not removed. There is no water inside the grill -/ The water drawer was not filled in to Check if a descaling agent / water is roasting pan after descaling.
-
Page 33: Energy Efficiency
......... 13. ENERGY EFFICIENCY 13.1 Product Information and Product Information Sheet Supplier's name Electrolux Model identification KOAAS31X 944184994 Energy Efficiency Index 61.9 Energy efficiency class Energy consumption with a standard load, conventional mode 0.99 kWh/cycle Energy consumption with a standard load, fan-forced mode 0.52 kWh/cycle... -
Page 34: Menu Structure
13.2 Energy saving the residual heat. You can use that heat to keep the food warm. When the cooking duration is longer than 30 min, reduce the appliance temperature to The appliance has features which help minimum 3 - 10 min before the end of you save energy during everyday cooking. - Page 35 14.2 Submenu for: Cleaning Submenu Application Steam Cleaning Light cleaning. Steam Cleaning Plus Thorough cleaning. Descaling Cleaning of the steam generation circuit from residual limestone. Rinsing Cleaning of the steam generation circuit. Use rinsing after frequent steam cook‐ ing. Drying Procedure for drying the cavity from the condensation remaining after a use of the steam functions.
-
Page 36: S Easy
14.5 Submenu for: Service Submenu Description Demo mode Activation / deactivation code: 2468 Licence Information about licenses. Software version Information about software version. Reset all settings Restores factory settings. Reset all popups Restores all pop-ups to the original settings. 15. IT'S EASY! Before the first use you have to set: Language Display brightness... -
Page 37: Saudi Arabia - Customer Service
Get to know how to cook quickly Use the automatic programmes to prepare a dish quickly with the default settings: Assisted Cooking Step 1 Step 2 Step 3 Step 4 Choose the dish. Press: Press: Press: Assisted Cooking. Use quick functions to set the cooking time or change the cooking function Quick timer settings Step 1 Step 2... -
Page 38: Environmental Concerns
17. ENVIRONMENTAL CONCERNS appliances marked with the symbol with Recycle materials with the symbol . Put the the household waste. Return the product to packaging in relevant containers to recycle it. your local recycling facility or contact your Help protect the environment and human municipal office. - Page 40 867361737-C-072023...
