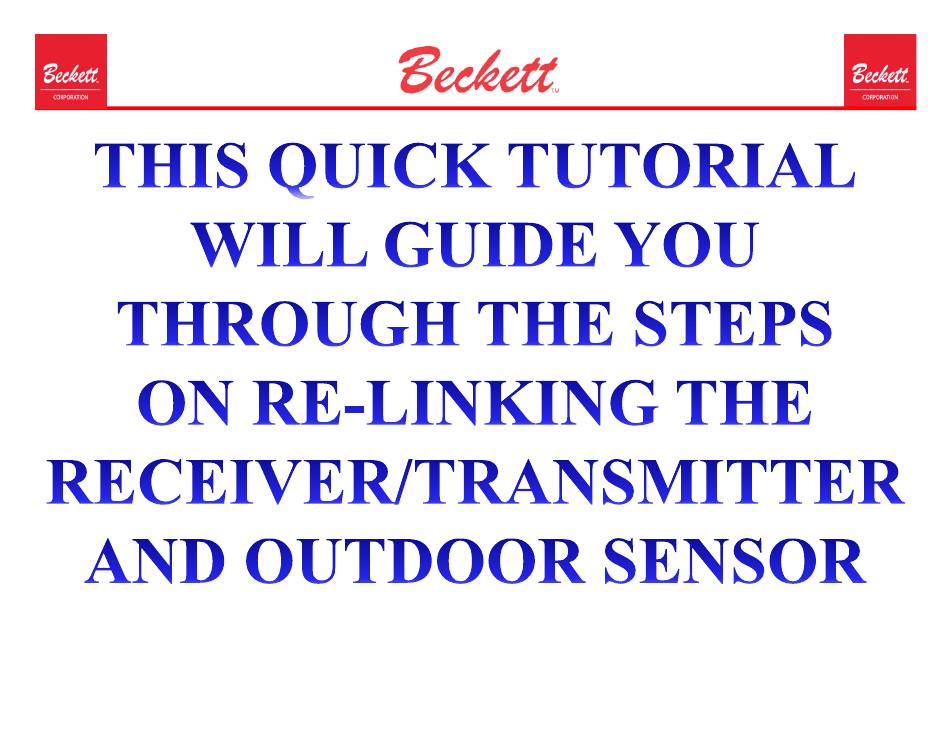

- Page 1 All manuals and user guides at all-guides.com...
- Page 2 All manuals and user guides at all-guides.com The receiver/transmitter and sensor should be linked together from the factory. It can be possible for this link to be lost on either side. Use the following procedures to re-establish this link.
- Page 3 All manuals and user guides at all-guides.com Clearing the old links. Outdoor Sensor: Hold the button of the WTS for five seconds. The LED should turn on. While the LED is still on (within 5 seconds), press the button once more to confirm the clearing. Once the link is cleared, the LED will flash quickly for 2 seconds.
- Page 4 All manuals and user guides at all-guides.com WIRELESS MENU ENTER TO VIEW Navigate to the wireless menu on the AquaSmart keypad and press ENTER.
- Page 5 All manuals and user guides at all-guides.com OTR MENU ENTER TO VIEW The screen reads OTR MENU. Press the down arrow key to advance to the maintenance menu.
- Page 6 All manuals and user guides at all-guides.com MAINTENANCE MENU ENTER TO VIEW Press ENTER.
- Page 7 All manuals and user guides at all-guides.com CONNECTIONS ENTER TO CLEAR Press the down arrow key to the CONNECTIONS ENTER TO CLEAR menu and press ENTER.
- Page 8 All manuals and user guides at all-guides.com CLEAR ALL? ENTER or CANCEL Press ENTER.
- Page 9 All manuals and user guides at all-guides.com CLEARED ALL CONNECTIONS Cleared all connections will quickly flash on the screen.
- Page 10 All manuals and user guides at all-guides.com Put the WTS in discovery mode: press the WTS button twice. The LED will flash slowly until it finds the AWM (for up to 3 minutes).
- Page 11 All manuals and user guides at all-guides.com CONNECTIONS ENTER TO CLEAR Press the down arrow key twice to advance to the CONNECTIONS ENTER TO ADD screen.
- Page 12 All manuals and user guides at all-guides.com CONNECTIONS ENTER TO ADD Press ENTER.
- Page 13 All manuals and user guides at all-guides.com SEARCHING 03:00 The screen will read “SEARCHING… 3:00” and count down from 3 minutes.
- Page 14 XXXX Once the receiver/transmitter sees the sensor, the 4-digit Network I.D. of the sensor will appear on the 2nd line of the AquaSmart’s display. Pressing up or down will cycle through multiple device I.D.s if more than one sensor is found. Press ENTER.
- Page 15 All manuals and user guides at all-guides.com CONNECT: XXXX ENTER OR CANCEL The screen will read CONNECT XXXX where XXXX is the Network I.D. of the sensor. Press ENTER.
- Page 16 All manuals and user guides at all-guides.com CONNECTED XXXX Once the two are linked, the LED on the sensor will flash quickly for 10 seconds and the AquaSmart’s screen will read “CONNECTED: XXXX“, where XXXX is the Network I.D. of the sensor.
- Page 17 All manuals and user guides at all-guides.com OAT: AS OF 00:00 Navigate back into the OTR MENU and verify a valid OAT temperature was received and is present on the screen.
