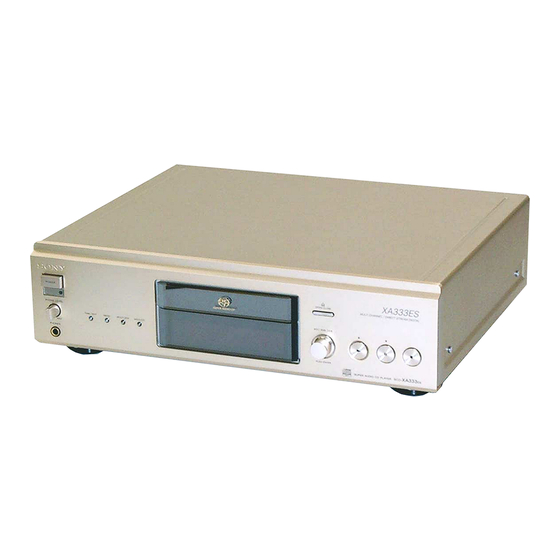

Sony SCD-XA333ES Service Manual

Super audio cd player
Hide thumbs Also See for SCD-XA333ES:
Table of Contents

Advertisement

Quick Links

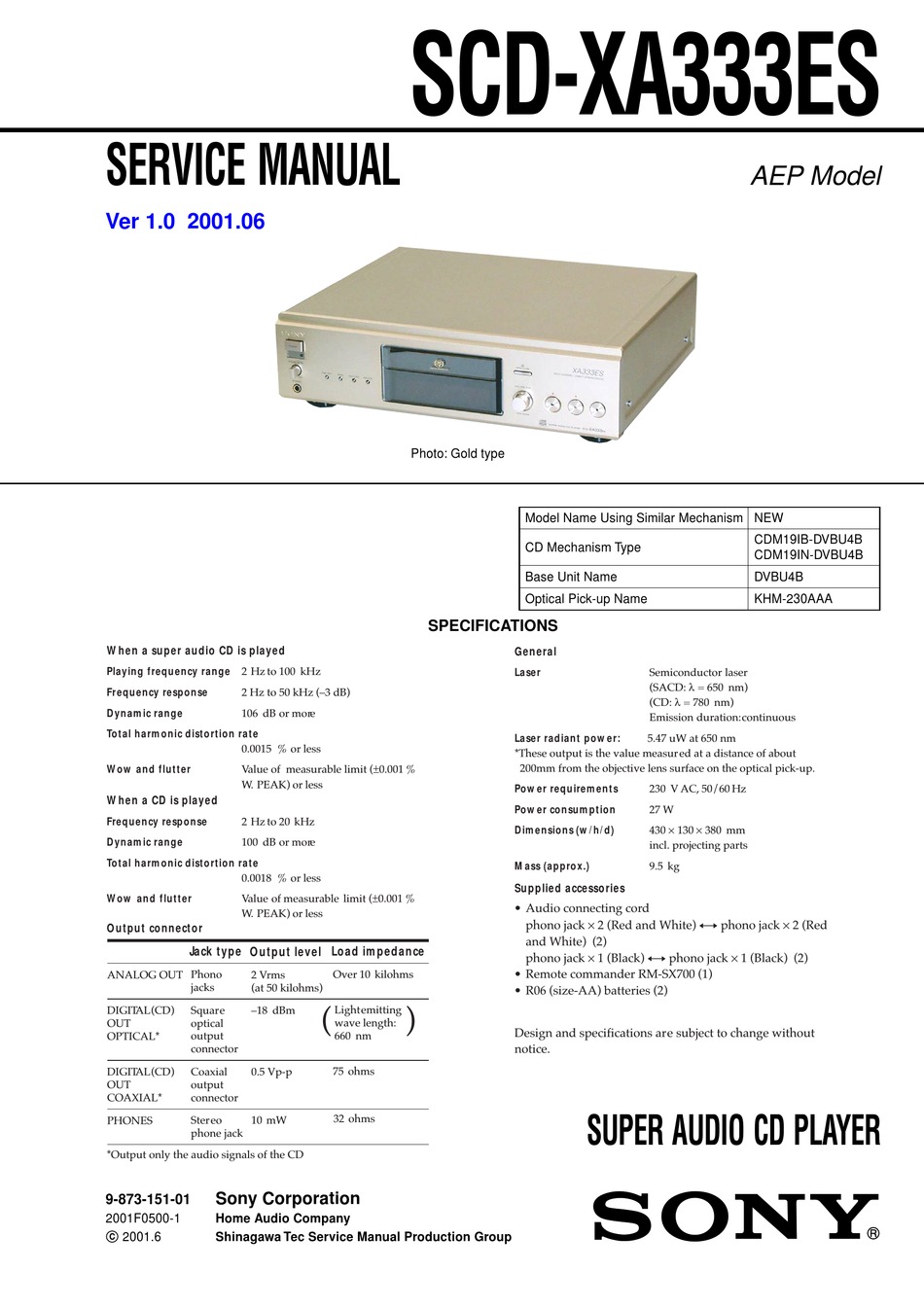

SERVICE MANUAL
Ver 1.0 2001.06
When a super audio CD is played
Playing frequency range 2 Hz to 100 kHz
Frequency response
2 Hz to 50 kHz (–3 dB)
Dynamic range
106 dB or more
Total harmonic distortion rate
0.0015 % or less
Wow and flutter
Value of measurable limit (±0.001 %
W. PEAK) or less
When a CD is played
Frequency response
2 Hz to 20 kHz
Dynamic range
100 dB or more
Total harmonic distortion rate
0.0018 % or less
Wow and flutter
Value of measurable limit (±0.001 %
W. PEAK) or less
Output connector
Jack type
Output level
Phono
2 Vrms
ANALOG OUT
jacks
(at 50 kilohms)
DIGIT AL (CD)
Square
–18 dBm
OUT
optical
output
OPTICAL*
connector
DIGIT AL (CD)
Coaxial
0.5 Vp-p
output
OUT
connector
COAXIAL*
PHONES
Stereo
10 mW
phone jack
*Output only the audio signals of the CD
Sony Corporation
9-873-151-01
2001F0500-1
Home Audio Company
C 2001.6
Shinagawa Tec Service Manual Production Group
SCD-XA333ES
Photo: Gold type
SPECIFICATIONS
Load impedance
Over 10 kilohms
Light emitting
(
)
wave length:
660 nm
75 ohms
32 ohms
Model Name Using Similar Mechanism NEW
CD Mechanism Type
Base Unit Name
Optical Pick-up Name
General
Laser
Semiconductor laser
(SACD: λ = 650 nm)
(CD: λ = 780 nm)
Emission duration: continuous
Laser radiant power:
5.47 uW at 650 nm
*These output is the value measur ed at a distance of about
200mm from the objective lens surface on the optical pick-up.
Power requirements
230 V AC, 50/60 Hz
Power consumption
27 W
430 × 130 × 380 mm
Dimensions (w/h/d)
incl. projecting parts
Mass (approx.)
9.5 kg
Supplied accessories
• Audio connecting cord
phono jack × 2 (Red and White) y phono jack × 2 (Red
and White) (2)
phono jack × 1 (Black) y phono jack × 1 (Black) (2)
• Remote commander RM-SX700 (1)
• R06 (size-AA) batteries (2)
Design and specifications are subject to change without
notice.
SUPER AUDIO CD PLAYER
AEP Model
CDM19IB-DVBU4B
CDM19IN-DVBU4B
DVBU4B
KHM-230AAA
